(2015–2024 F-150, Ram 1500, Silverado, Tacoma)

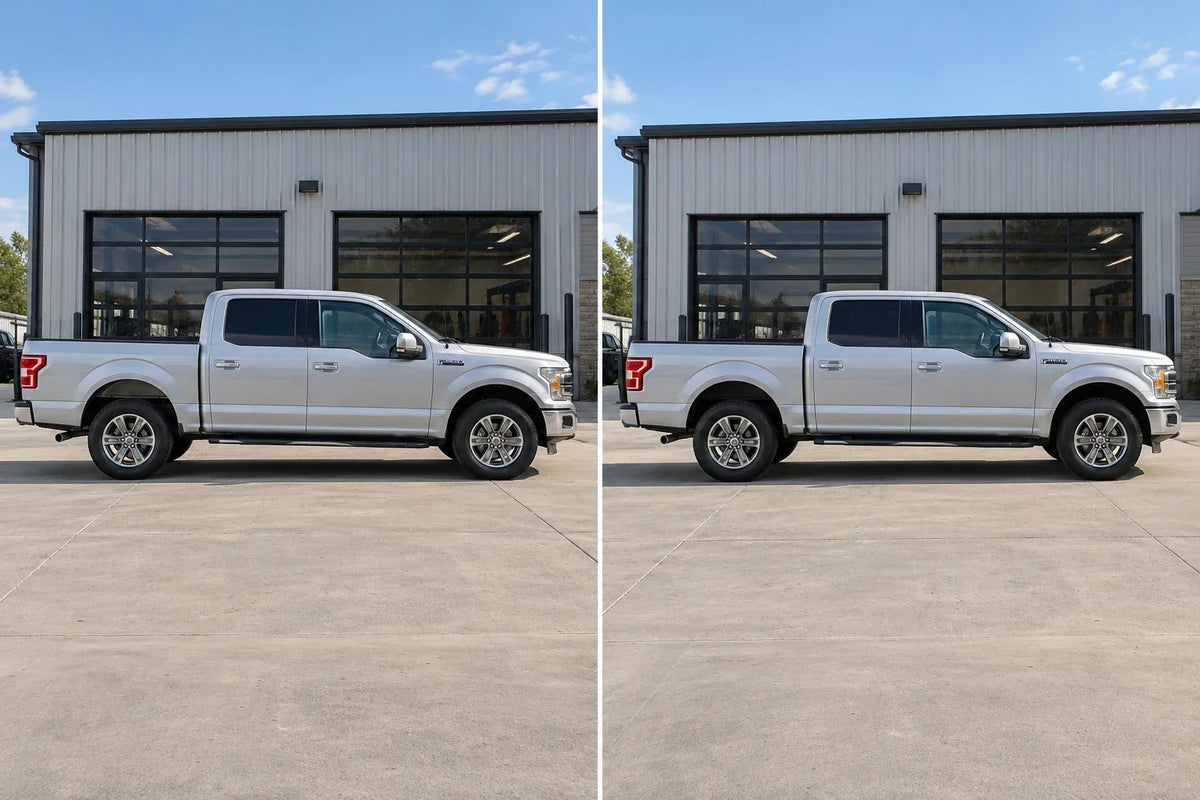

A leveling kit raises the front of a truck to match the stock rear ride height. Total installed cost ranges from $200 to $1,000, covering the parts (spacers, struts, or coilovers), labor, and a mandatory alignment. The final bill depends heavily on the vehicle platform, kit design, and whether you install it yourself.
Application
- 2015–2020 Ford F-150 (2WD/4WD, 2.7L EcoBoost, 3.5L EcoBoost, 5.0L Coyote)
- 2019–2024 Ram 1500 (DT) and 2015–2024 Ram 1500 Classic (DS) (3.6L Pentastar, 5.7L HEMI)
- 2014–2018 Chevrolet Silverado 1500 / GMC Sierra 1500 (4.3L V6, 5.3L L83, 6.2L L86)
- 2016–2023 Toyota Tacoma (2.7L 2TR-FE, 3.5L 2GR-FKS)
- Similar body-on-frame trucks with coil-over-shock or strut front suspension.
Parts & Numbers
| Kit Description | Part Number (Real Example) | Approximate Parts Cost | Application Note |
|---|---|---|---|
| 2-inch front spacer leveling kit | Rough Country 571.20 | $50–$80 | 2009–2020 Ford F-150 2WD/4WD; steel strut spacer |
| 2.5-inch front spacer leveling kit | Motofab DR-2.5 | $60–$90 | 2006–2024 Ram 1500 (DS & DT); billet aluminum spacer |
| 2.25-inch front leveling kit (strut extension) | ReadyLIFT 66-2015 | $180–$220 | 2014–2018 Silverado/Sierra 1500; includes sway bar drops |
| 2-inch front leveling strut assemblies (coilover) | Bilstein 5100 (24-261425) | $200–$400 (pair) | 2014–2021 Toyota Tundra, 2005-2023 Tacoma (adjustable clip height) |
| 2-inch front adjustable leveling shocks | Fox 2.0 Performance Series IFP | $400–$600 (pair) | 2015–2020 F-150; rebuildable, aluminum body |
Parts cost does not include tax, shipping, or shop markup. Prices current as of 2025–2026.
Procedure (Installation Steps Influencing Labor Cost)
This procedure illustrates why a shop quotes 2 to 3 hours of labor for a typical spacer or strut-based leveling kit on an independent front suspension (IFS) truck.
- Lift and support the front axle. Secure the vehicle on jack stands. Remove the front wheels. Lug nut torque: typically 140 ft-lb (190 Nm) for full-size half-ton trucks.
- Disconnect the sway bar end links and brake line brackets from the knuckle or upper control arm. Sway bar end link nut torque is commonly 50–60 ft-lb (68–81 Nm).
- Remove the tie rod end from the knuckle using a 21mm socket and press tool. Mark the camber adjustment eccentrics before loosening the lower control arm bolts if equipped.
- Detach the strut/coilover assembly. Remove the upper strut mount nuts (often 15mm or 18mm) and the lower strut-to-lower control arm bolts. Bolt torque is typically 140–160 ft-lb (190–217 Nm) for half-ton trucks — verify against the factory service manual.
- Install the spacer or new strut. For spacer kits, bolt the spacer to the top of the factory strut mount using the supplied hardware (torque to 30–35 ft-lb). For pre-assembled leveling struts, install the complete assembly.
- Reassemble the front suspension in the reverse order. Use new self-locking nuts or apply threadlocker as specified. Never reuse torque-to-yield fasteners.
- Perform a four-wheel alignment immediately. Camber, caster, and toe must be set to factory specifications. Alignment cost: $80–$120 at a reputable shop.
Torque Specifications
The values below are industry-typical ranges for half-ton pickup trucks. Always confirm with the service manual for your specific model and year.
| Item | Value (ft-lb) | Value (Nm) | Notes |
|---|---|---|---|
| Strut mount top nuts | 30–35 | 41–47 | Typical; do not overtighten, can compress rubber mount |
| Lower strut-to-control arm bolts | 140–160 | 190–217 | Often a 21mm or 24mm hex; verify final torque per OEM |
| Upper control arm pivot bolts | 80–100 | 108–135 | If removed during camber adjustment |
| Sway bar end link nuts | 50–60 | 68–81 | Often T40 Torx plus 18mm wrench |
| Lug nuts (14 mm x 1.5 stud) | 140 | 190 | Common for F-150, Ram 1500, Silverado |
Notes & Common Mistakes
- Skipping the alignment is the most frequent error. A 2-inch front lift changes toe and camber significantly, leading to rapid tire wear and poor on-center steering feel.
- Overtightening fasteners on the strut spacer can crack the aluminum spacer or crush the factory strut mount. Always use a calibrated torque wrench.
- Clock the coil spring correctly when reusing factory struts. The spring tail must sit in the lower perch pocket to prevent noise and preload loss.
- On IFS trucks with CV axles, exceeding a 2.5-inch front lift can cause the inner CV joints to bind at droop. Most half-ton trucks safely accommodate 2–2.5 inches of leveling lift.
- Recalibrate the electronic stability control (ESC) steering angle sensor after alignment if the vehicle has an advanced driver-assist system to avoid false ESC intervention.
Diagnostic Reference
No standard OBD-II diagnostic trouble codes (DTCs) are generated by a leveling kit itself. However, incorrect installation can trigger wheel-speed sensor or ABS/ESC faults.
| DTC Code | Description | Typical Trigger |
|---|---|---|
| C0035–C0050 | Wheel speed sensor circuit malfunction | Damaged or disconnected sensor wiring during strut removal |
| C0051 | Steering wheel angle sensor signal invalid | Steering angle not reset after alignment; ESC light illuminates |
| U0121 | Lost communication with anti-lock brake system (ABS) control module | Power or CAN bus connector left loose after the job |
FAQ
Q: How much is a leveling kit installed at a shop? A: For a straightforward spacer kit on an F-150 or Ram 1500, expect $300–$600 total. This includes a $50–$100 spacer kit, 2 hours of labor at $100–$150 per hour, and an alignment. Premium adjustable coilover kits push the total to $800–$1,200 with parts and labor.
Q: Can I install a leveling kit myself and save money? A: Yes, if you have a floor jack, jack stands, a quality torque wrench, and coil spring compressor (for spacer kits that require strut disassembly). The job usually takes a competent DIYer 3–4 hours. You still need a professional alignment afterward.
Q: Will a leveling kit ruin my truck’s ride? A: A basic front spacer kit preserves the factory spring and damper, so ride quality remains close to stock on smooth roads. Larger lifts or heavy off-road use can accelerate ball joint and CV axle wear. Adjustable leveling struts (Bilstein 5100, Fox 2.0) often improve ride control over stock.
Q: Do I need new upper control arms with a leveling kit? A: For lifts over 2.5 inches on many IFS trucks, upgrading to high-angle upper control arms is recommended to restore proper ball joint angle and avoid coil spring contact. For a 2-inch leveling kit, factory arms are generally acceptable.
Q: What tire size can I fit after a leveling kit? A: With a 2-inch front level on a 2015–2020 F-150, owners commonly fit 33x12.50R20 tires without trimming. A Ram 1500 with a 2.5-inch level can clear 35x12.50R20 tires on the factory 20×9-inch wheel with minor inner fender liner reshaping. Always check backspacing and offset; rubbing varies by wheel choice.
Last updated: 2026-09. Applicable model years: 2015–2024.
