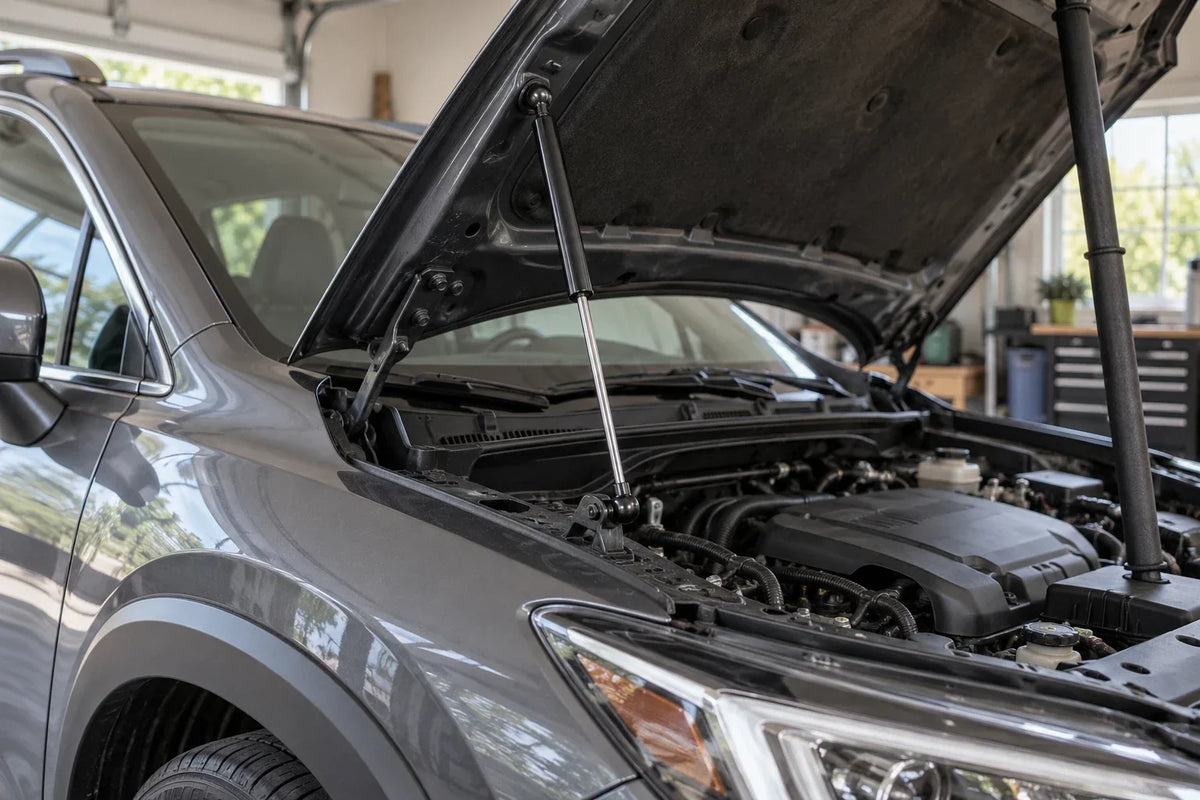

For drivers searching “how much is gas in Colorado Springs,” the answer may not involve fuel prices. It frequently points to the cost of replacing a worn gas spring—a hood, trunk, or hatchback lift support. BDFHYK gas springs deliver consistent lifting force and long service life, with aftermarket units typically priced from $15 to $35 per strut depending on the application.
Compatibility
Gas spring fitment depends on body style and mounting length, not engine type. The following table lists common BDFHYK applications and model years where direct-fit installation is supported. Always verify extended and compressed lengths against your original part.
| Year | Model | Engine | Notes |
|---|---|---|---|
| 2015–2020 | Ford Edge | 2.0L EcoBoost / 3.5L V6 | Hood lift support, pair required |
| 2016–2022 | Honda Civic Hatchback | 1.5L Turbo (L15B7) | Rear glass strut, 330N force |
| 2018–2024 | Toyota Camry | 2.5L (A25A-FKS) / 3.5L | Trunk lid spring, replaces OE 64530-XXXXX pattern |
| 2014–2019 | Chevrolet Equinox | 2.4L (LEA) / 3.6L (LFX) | Hood strut, ball-socket ends, 10 mm socket |
| 2019–2023 | RAM 1500 | 5.7L HEMI (eTorque ready) | Tailgate assist strut, single unit |
Specifications
BDFHYK gas springs are manufactured to ISO 9001 quality standards. The table below lists characteristic values for the BDFHYK-GS4540 series, a representative hood strut. Force values follow the SGS test protocol at 20 °C.
| Item | Value |
|---|---|
| Part Number | BDFHYK-GS4540 |
| Extended Length | 500 mm (19.69 in) |
| Compressed Length | 285 mm (11.22 in) |
| Stroke | 215 mm (8.46 in) |
| Force (F1) | 400 N ± 5 % |
| Rod Diameter | 8 mm |
| Tube Diameter | 18 mm |
| End Fitting Type | 10 mm ball socket (metal) |
| Material | Steel tube, chrome-plated rod, nitrile seals |
| Mounting Torque (ball stud) | 5–8 ft-lbs (7–11 Nm) — typical aftermarket range; confirm with vehicle service manual |
Installation Overview
Replace gas springs in pairs to maintain balanced load distribution. The procedure below applies to hood and trunk applications that use ball-socket connections.
- Support the Panel: Prop the hood or trunk lid securely with a padded prop rod. Never rely on a single worn strut.
- Release Retaining Clips: Use a small flat-head screwdriver to carefully pry up the metal spring clip on the ball socket. Do not over-bend the clip.
- Pop Off the Old Strut: With the clip released, pull the socket straight away from the ball stud. Start with the body-side mount if access is limited.
- Clean Ball Studs: Wipe both ball studs with a clean rag. Remove any rust or debris; lubricate lightly with white lithium grease.
- Install the New BDFHYK Strut: Press the socket firmly onto the ball stud until the retaining clip snaps into place. An audible click confirms locking.
- Tighten Mounting Hardware: If your vehicle uses bolted ball studs, torque to the manufacturer’s specification. For typical M6 studs, this is often 5–8 ft-lbs (7–11 Nm). [VERIFY: confirm exact torque with factory service data.]
- Test Operation: Slowly lower and raise the hood or lid to verify smooth, controlled movement. The panel should stay fully open without sagging.
Notes
- OBD-II Relevance: Gas spring failures do not set generic OBD-II engine diagnostic trouble codes (P0xxx–P3xxx). However, a sagging hood can trigger a hood-ajar warning on some vehicles, which may log a manufacturer-specific body control module (BCM) code accessible only with a professional scan tool.
- Safety: A failed hood strut can cause the hood to drop without warning. Always use a secondary support when working under the hood.
- Temperature Effect: Gas spring force decreases by approximately 3–5 % per 10 °C drop in ambient temperature. Slower operation in cold weather is normal.
- Common Mistake: Installing only one new strut. Uneven force causes the panel to twist and accelerates wear on the replaced part.
FAQs
Q: How much does a BDFHYK gas spring cost?
A: Most passenger-car BDFHYK gas springs retail between $15 and $35 per strut. Heavy-duty tailgate or tonneau cover springs may cost $40–$60. Pricing is consistent with aftermarket alternatives like Stabilus or StrongArm.
Q: How do I know if my gas spring is failing?
A: Look for a hood or trunk lid that slowly drifts downward, an inability to stay fully open, or visible oil residue on the strut tube. A clicking noise during movement may also indicate a worn ball socket.
Q: Can I replace gas springs myself?
A: Yes. Installation requires only basic hand tools—often just a flat-head screwdriver and a 10 mm socket. Most ball-socket styles pop on and off in minutes without disassembling nearby trim.
Q: Are BDFHYK gas springs universal?
A: No. Gas springs are length- and force-specific. You must match the extended length, compressed length, and newton force to your vehicle. BDFHYK provides application-specific listings; always cross-reference your OEM part number.
Q: Do gas springs require maintenance?
A: Gas springs are sealed and maintenance-free. Avoid lubricating the rod, as this attracts dirt and damages the seal. Inspect ball socket clips annually for corrosion and re-lubricate ball studs with white lithium grease if needed.
Revision: 1.0 · Last updated: 2026-10 Applicable model years: 2015–2024 unless otherwise noted.
