A RAM 1500 leveling kit changes the truck’s stance by raising the front, or by changing both front and rear ride height. The goal is usually to reduce the factory nose-down appearance, create additional tire clearance or produce a taller truck profile without installing a complete suspension lift.
A leveling kit is not universal. RAM 1500 trucks include different body generations, 2WD and 4WD suspensions, conventional coil or strut arrangements, factory air suspension and special trim packages. A kit that fits a RAM 1500 Classic may not fit a new-body RAM 1500 DT from the same model year.
This guide explains how to measure factory rake, compare 2-inch and 3-inch kits, check tire clearance and identify the suspension components that must be inspected after installation.
| Quick Answer | What RAM 1500 Owners Should Know |
|---|---|
| Best general-purpose height | A mild setup based on the truck’s measured rake usually preserves more suspension travel and alignment range |
| 2-inch kit | Often selected for daily driving and moderate factory-rake correction |
| 3-inch kit | Creates a more aggressive stance but produces larger geometry and clearance changes |
| Alignment required | Yes. Complete a professional four-wheel alignment after changing ride height |
| Tire size guarantee | No. Tire clearance also depends on width, wheel offset, suspension travel and body clearance |
| Towing capacity | A leveling kit does not increase the truck’s rated payload, axle ratings or towing capacity |
What Does a RAM 1500 Leveling Kit Do?
Most unloaded pickup trucks sit higher at the rear than at the front. This difference is called factory rake. It allows the rear suspension to compress under cargo or trailer tongue weight without immediately creating a nose-high stance.
A front leveling kit raises the front suspension to reduce that height difference. A front-and-rear kit raises both ends by different amounts to change the overall ride height while maintaining some front-to-rear rake.
A leveling kit may provide:
- A more level unloaded appearance.
- Additional clearance between the tire and fender.
- A taller front bumper and body position.
- Space for certain wheel-and-tire combinations.
- A lower-cost alternative to a complete lift system for appearance-focused builds.
It does not automatically provide:
- Increased payload capacity.
- Increased axle or gross vehicle weight ratings.
- Increased towing capacity.
- Guaranteed clearance for a specific tire diameter.
- More suspension travel.
- Correction for worn springs, struts, shocks or suspension joints.
Measure Your RAM 1500 Before Choosing a Kit
Do not select lift height from a product photo alone. Measure the actual truck on a level surface first.

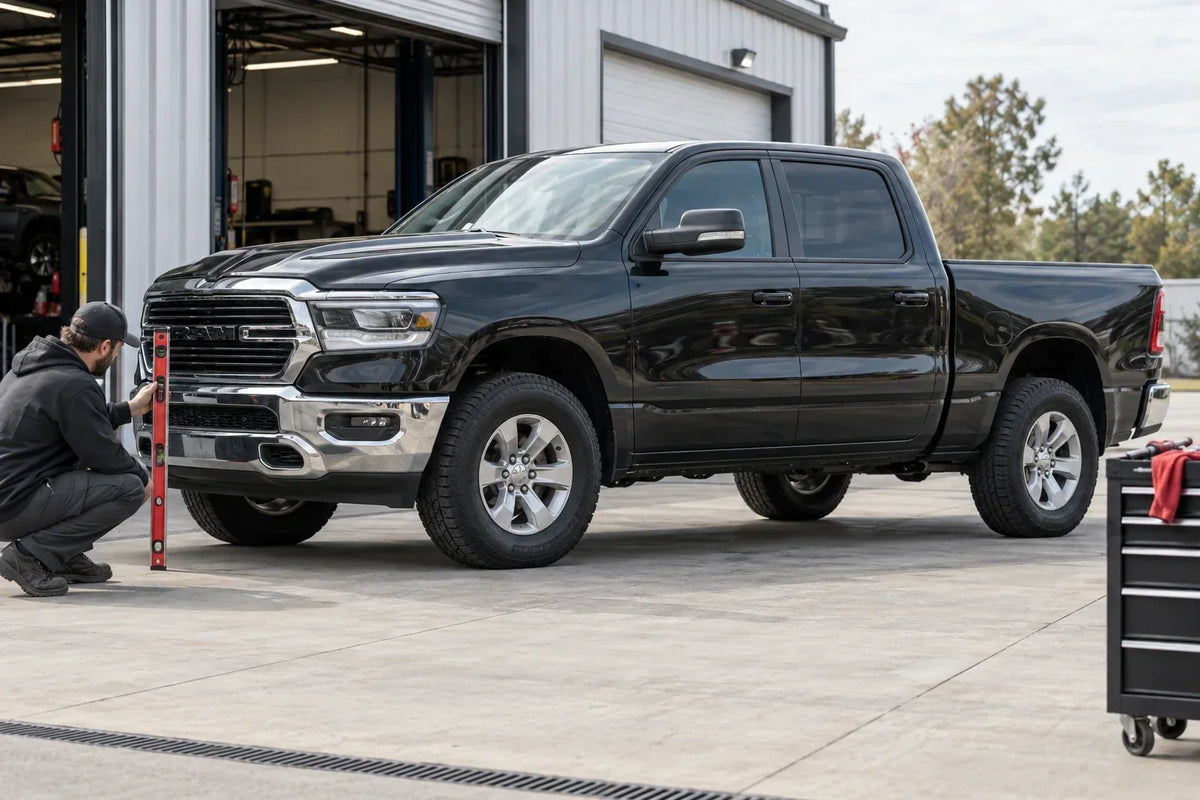

How to Measure Factory Rake
- Park the truck on level pavement.
- Set normal tire pressure.
- Remove unusual cargo from the bed and cab.
- Confirm that the fuel load represents normal use.
- Measure vertically from the center of each wheel hub to the lower edge of the fender opening.
- Record the left-front, right-front, left-rear and right-rear measurements.
- Subtract the average front measurement from the average rear measurement.
Measuring from the hub center reduces the effect of tire diameter and inflation on the result.
| Measured Condition | What It May Mean | Action Before Ordering |
|---|---|---|
| Rear is clearly higher than front | Normal factory rake may be present | Select height based on the measured difference and intended loaded use |
| Truck already sits nearly level | Suspension, trim or previous modifications may differ | A large front lift may create a nose-high stance |
| One side is lower | Spring condition, load distribution or previous damage may be involved | Diagnose the side-to-side difference before installing spacers |
| Rear sits low when empty | Worn springs, permanent cargo or existing modifications may be present | Correct the cause instead of using a front kit to match a sagging rear |
2-Inch vs. 3-Inch RAM 1500 Leveling Kit
The correct height depends on measured rake, suspension design, tire goals and how the truck is used.
| Decision Factor | 2-Inch Leveling Kit | 3-Inch Leveling Kit |
|---|---|---|
| Appearance | Mild to moderate rake reduction | Taller and more aggressive front stance |
| Daily driving | Usually the more conservative approach | Requires closer geometry and clearance inspection |
| Alignment range | Generally easier to keep near factory targets | May move caster and camber farther from their original range |
| Upper control arm angle | Changes from factory position | Usually produces a larger angle change |
| Ball-joint operating angle | Must be checked through full suspension travel | Higher risk of reduced articulation or binding |
| CV axle angle on 4WD | Moderate change depending on design | Larger change that requires careful inspection |
| Tire clearance | May support a moderately larger setup | May add clearance but does not guarantee a specific tire size |
| Towing stance | Reduces some unloaded rear-height advantage | May make rear squat more noticeable when loaded |
When a 2-Inch Leveling Kit Makes Sense
A 2-inch leveling kit is commonly considered when the owner wants to reduce factory rake while limiting the amount of suspension-geometry change.
It is generally more suitable when:
- The truck is driven daily.
- The measured rake is close to the intended lift.
- Moderate rather than maximum tire clearance is required.
- The owner wants to preserve some rear-high stance for cargo.
- Factory-like steering and ride are priorities.
When a 3-Inch Leveling Kit Needs More Planning
A 3-inch front lift can create a more aggressive appearance, but it also changes suspension geometry more than a mild kit.
Before choosing 3 inches, check:
- Whether the kit manufacturer approves that height for the exact truck.
- Upper control arm and ball-joint angles.
- CV axle angles on 4WD trucks.
- Available droop and compression travel.
- Brake hose, ABS wiring and sway-bar clearance.
- Whether the alignment can be brought within the required range.
- How the truck will sit with normal cargo or trailer tongue weight.
A large spacer does not create longer suspension travel. In some configurations it can reduce available droop or bring components closer to their operating limits.
Spacer Thickness Is Not Always the Lift Height
The physical thickness of a suspension spacer may be smaller than the advertised height change. Suspension geometry determines how movement at the mounting point translates into ride-height change at the wheel.
Do not measure a spacer and conclude that the product was labeled incorrectly. Use the manufacturer’s documented application and lift amount.
Actual installed height can also vary because of:
- Spring and strut condition.
- Vehicle weight and options.
- Existing suspension modifications.
- Added bumpers, winches or accessories.
- Measurement method.
- Suspension settling after installation.
RAM 1500 Leveling Kit Fitment: DS, Classic and DT
Generation identification is essential, particularly for 2019 and later trucks.
| RAM 1500 Type | Fitment Check | Common Ordering Error |
|---|---|---|
| RAM 1500 DS | Confirm year, 2WD or 4WD, suspension and trim exclusions | Assuming every 2009–2018 truck uses the same front suspension |
| RAM 1500 Classic | Select a kit specifically listing Classic or DS fitment | Ordering a new-body DT kit because the model year matches |
| RAM 1500 DT | Confirm new-body fitment, drivetrain, suspension and trim | Using a previous-generation kit on a DT truck |
| Air-suspension truck | Use only a kit specifically engineered for that air-suspension system | Installing a conventional-suspension spacer kit |
| Special trim | Check Rebel and other trim-specific exclusions | Assuming trim level does not affect ride height or components |
Read our RAM 1500 DS vs. DT guide before ordering if the generation is uncertain.
2019 RAM 1500 Leveling Kit
The 2019 model year includes both the new-body RAM 1500 DT and RAM 1500 Classic. These trucks should be treated as separate suspension applications.
Before purchasing a 2019 RAM 1500 leveling kit, confirm:
- New-body DT or RAM 1500 Classic.
- 2WD or 4WD.
- Conventional or factory air suspension.
- Trim level.
- Existing ride height and modifications.
2020, 2021 and 2022 RAM 1500 Leveling Kits
Do not assume every later-model RAM 1500 has the same suspension. Check whether the truck is a DT or a continuing Classic and whether it has air suspension.
A product listing that states “RAM 1500” without identifying body generation and suspension type is not enough for confident fitment.
2025 RAM 1500 Leveling Kit
A 2025 RAM 1500 should use a kit whose manufacturer explicitly lists the 2025 application and exact suspension configuration. Do not extend a product’s 2023 or 2024 fitment to 2025 without confirmation.
The current BDFHYK RAM 1500 3-inch front and 2-inch rear product page lists applications through 2023. It should not be presented as a confirmed 2025 RAM 1500 leveling kit.
RAM 1500 2WD vs. 4WD Leveling Kits
Drivetrain matters because 2WD and 4WD trucks may use different suspension parts and mounting arrangements.
RAM 1500 Leveling Kit for 2WD
Check whether the product specifically lists the truck’s 2WD application and generation. A listing that includes later new-body 2WD trucks may still exclude earlier DS 2WD models.
RAM 1500 Leveling Kit for 4WD
On a 4WD truck, raising the front changes CV axle angles. Inspect both inner and outer CV boots, axle clearance and operating angle at normal ride height and through suspension travel.
A leveling kit does not correct an already worn CV joint or damaged boot. Diagnose those conditions before installation.
RAM 1500 Air Suspension Leveling Kit
Factory four-corner air suspension controls vehicle ride height electronically. A conventional strut or coil spacer should not be installed unless the kit is specifically designed and documented for the air-suspension system.
Air-suspension considerations include:
- Ride-height sensors and linkage position.
- Normal, aero, off-road and entry/exit height modes.
- Calibration requirements.
- Alignment mode.
- Air-spring travel.
- Compressor duty cycle.
The official RAM owner’s manual states that the air-suspension alignment mode must be activated before wheel alignment. This places the vehicle at normal ride height and disables automatic suspension adjustment during the procedure.
If the truck has air suspension, use model-specific service information and a kit intended for that system.
Will a Leveling Kit Fit Larger Tires?
A leveling kit can create more fender clearance, but advertised lift height does not guarantee that a particular tire will fit without rubbing.
Tire clearance depends on:
- Tire diameter.
- Tire section width and actual measured dimensions.
- Wheel width.
- Wheel offset and backspacing.
- Front caster setting.
- Inner fender and bumper clearance.
- Suspension compression and droop.
- Steering position.
- Trim-specific bodywork.
- Use of mud flaps or aftermarket bumpers.
How to Perform a Tire-Clearance Check
- Install and align the suspension before judging final clearance.
- Turn the steering from lock to lock on level ground.
- Check the tire near the upper control arm, sway bar, liner and bumper.
- Repeat the inspection with the suspension compressed safely.
- Check clearance while reversing and turning.
- Inspect again after the first road test for fresh rubbing marks.
Do not rely solely on tire diameter. Two tires with the same listed diameter can have different actual width and shoulder shape.
How a Leveling Kit Affects Suspension Geometry
| Component or Setting | Possible Change | Required Check |
|---|---|---|
| Camber | Wheel may tilt from its original position | Measure and adjust during alignment |
| Caster | Steering return and straight-line stability may change | Compare left and right values with specification |
| Toe | Ride-height change can alter toe | Correct to prevent rapid tire wear |
| Upper ball joint | Operating angle and available articulation may change | Check at full droop and compression |
| CV axle | Angle increases on applicable 4WD trucks | Inspect boots, clearance and binding |
| Brake hose and ABS wiring | May become stretched at full droop | Check through steering and suspension travel |
| Headlamp aim | Beam position may change with vehicle attitude | Inspect and adjust according to local requirements |
| Driver-assistance sensors | Ride-height or tire changes may affect calibration | Follow model-specific calibration requirements |
Do You Need Upper Control Arms?
Not every leveling kit requires replacement upper control arms. The decision should be based on the final suspension geometry rather than appearance alone.
Upper control arms should be evaluated when:
- The ball joint approaches its articulation limit.
- The ball-joint housing contacts another component.
- Correct caster or camber cannot be achieved.
- The tire or wheel contacts the control arm.
- The vehicle is used off-road with substantial suspension travel.
- The kit manufacturer requires or recommends a specific control arm.
Our next cluster article explains this decision in more detail: RAM 1500 upper control arm replacement guide.
Does a Leveling Kit Affect Towing?
A leveling kit does not increase the capacities shown on the truck’s certification labels or towing guide.
It cannot increase:
- Gross vehicle weight rating.
- Gross axle weight ratings.
- Payload rating.
- Gross combined weight rating.
- Maximum trailer weight.
- Tire or wheel load capacity.
Factory rear-high rake gives the suspension space to settle under cargo and trailer tongue weight. Raising only the front can make rear squat appear more severe when the truck is loaded.
If the truck frequently tows or carries cargo:
- Measure the truck unloaded.
- Measure it again with normal tongue weight or cargo.
- Confirm axle and payload limits using the truck’s labels.
- Check headlamp aim and steering response when loaded.
- Choose a final stance that retains suitable rear-height margin.
Do not use a leveling kit to compensate for overloading.
RAM 1500 Leveling Kit Installation Overview
Suspension springs and strut assemblies can store enough energy to cause serious injury. Installation should be performed by a technician with suitable lifting, supporting and spring-service equipment.
Before Installation
- Verify part number and complete fitment.
- Measure all four fender heights.
- Inspect tires for uneven wear.
- Check ball joints, tie rods and control-arm bushings.
- Inspect CV boots on 4WD trucks.
- Check struts, shocks and springs for leakage or damage.
- Record current alignment measurements where possible.
During Installation
- Support the vehicle at approved lifting points.
- Do not allow the brake hose or ABS wiring to support the steering knuckle.
- Follow the kit’s orientation and hardware instructions.
- Replace one-time-use hardware where specified.
- Tighten suspension fasteners using the vehicle and kit specifications.
- Torque bonded-rubber bushing fasteners at the specified ride position where required.
- Check that the spring or strut seats correctly.
After Installation
- Reinstall the wheels and torque the wheel fasteners correctly.
- Settle the suspension before measuring final height.
- Inspect brake hoses, ABS wiring and CV axles.
- Turn the steering from lock to lock.
- Check clearance at full droop and controlled compression.
- Complete a professional alignment.
- Road-test for pulling, vibration and abnormal noise.
- Recheck mounting hardware according to the kit manufacturer’s schedule.
Why Alignment Is Required
Changing suspension ride height changes wheel alignment. Driving before alignment can cause:
- Rapid inside or outside tire wear.
- Steering pull.
- Off-center steering wheel.
- Poor straight-line stability.
- Reduced steering return.
- Increased tire noise.
Ask for a printed before-and-after alignment report. A green indicator on an alignment screen is useful, but the actual caster, camber and toe values provide better documentation.
If the technician cannot bring the truck within the required range, do not accept abnormal tire wear as an unavoidable result. Recheck installation, worn parts, ride height and whether additional correction components are needed.
BDFHYK RAM 1500 Leveling Kit Fitment
The current BDFHYK RAM 1500 3-inch front and 2-inch rear leveling lift kit product details list the following applications:
- 2009–2018 RAM 1500 4WD.
- 2019–2023 RAM 1500 new-body models in listed 2WD and 4WD configurations.
The detailed product fitment excludes:
- 2009–2018 2WD trucks.
- Mega Cab applications.
- Rebel models.
- Trucks equipped with factory air suspension.
The product title should not be interpreted as universal 2009–2023 2WD and 4WD fitment. Use the detailed application table and exclusions, then confirm the truck’s body style, drivetrain and suspension before ordering.
The product is also not currently listed for 2024, 2025 or 2026 RAM 1500 trucks. Do not extend fitment beyond the documented model years.
Browse other options in the BDFHYK leveling lift kit collection.
Common Leveling Kit Mistakes
Choosing Height Without Measuring Rake
A truck with less factory rake than expected may become nose-high after installation.
Confusing DT and RAM 1500 Classic
The same model year can contain two generations. Select the kit by platform, not year alone.
Ignoring 2WD and 4WD Differences
A kit may fit one drivetrain but not the other, particularly across different generations.
Installing a Conventional Kit on Air Suspension
Air suspension requires a system-specific solution and may need calibration and alignment-mode procedures.
Assuming Lift Height Guarantees Tire Fitment
Wheel offset and tire width can cause rubbing even when tire diameter appears reasonable.
Skipping the Alignment
Toe can change enough to damage tires quickly even if the truck appears to drive straight.
Ignoring Worn Suspension Parts
A spacer does not repair worn ball joints, bushings, shocks, struts or tie rods.
Assuming the Kit Increases Towing Capacity
Vehicle ratings do not increase after installing a leveling kit.
Post-Installation Inspection Checklist
- Front and rear ride heights are recorded.
- Left-to-right height difference is acceptable.
- All fasteners are torqued to specification.
- Brake hoses remain free through full steering travel.
- ABS wiring is secured and not stretched.
- Ball joints do not bind at full droop.
- CV boots are not stretched or contacting other parts.
- Tires clear the suspension and body at full steering lock.
- Wheel alignment has been completed.
- Steering wheel is centered.
- Headlamp aim has been checked.
- Driver-assistance calibration requirements have been reviewed.
- Hardware will be rechecked after initial driving.
RAM 1500 Leveling Kit FAQs
Q: What size leveling kit is best for a RAM 1500?
A: The correct size depends on measured factory rake, suspension type, tire goals and loaded use. A mild setup is generally easier to align and places less change on suspension geometry than a taller front lift.
Q: Is a 2-inch or 3-inch leveling kit better?
A: A 2-inch kit generally suits moderate rake correction and daily use. A 3-inch kit creates a more aggressive stance but requires closer inspection of ball-joint, control-arm, CV axle and alignment angles.
Q: Does a leveling kit make the spacer thickness equal the lift height?
A: Not necessarily. Suspension geometry means physical spacer thickness and final wheel-height change may not be one-to-one.
Q: Do I need an alignment after installing a RAM 1500 leveling kit?
A: Yes. Ride-height changes affect camber, caster and toe. Complete an alignment after installation and request the before-and-after measurements.
Q: Do I need new upper control arms?
A: Not in every case. They may be needed when the ball-joint angle is excessive, suspension articulation is limited or correct alignment cannot be achieved.
Q: Can a leveling kit fit larger tires?
A: It may provide additional clearance, but tire fitment also depends on width, wheel offset, alignment, trim and suspension travel. No tire size should be guaranteed from lift height alone.
Q: Will a leveling kit affect ride quality?
A: It can. The effect depends on kit design, height, existing shocks or struts, tire choice and available suspension travel.
Q: Does a leveling kit increase RAM 1500 towing capacity?
A: No. It does not change the truck’s certified axle, payload, gross vehicle or trailer ratings.
Q: Can I install a leveling kit on a RAM 1500 with air suspension?
A: Only use a kit specifically designed and documented for the factory air-suspension system. A conventional spacer kit should not be assumed compatible.
Q: Will a 2019 RAM 1500 Classic leveling kit fit a 2019 RAM 1500 DT?
A: Do not assume it will. The Classic and DT are different platforms and should be treated as separate suspension applications.
Q: Does the BDFHYK kit fit a 2009–2018 RAM 1500 2WD?
A: The current detailed product fitment excludes 2009–2018 2WD trucks. It lists 2009–2018 4WD and specified 2019–2023 new-body applications.
Q: Does the current BDFHYK kit fit a 2025 RAM 1500?
A: No confirmed 2025 fitment is shown on the current product page. Do not install it on a 2025 truck without documented confirmation.
Shop RAM 1500 Suspension Parts
Before purchasing a leveling kit, record the year, DS or DT generation, drivetrain, suspension type, trim and measured front-to-rear rake.
View the BDFHYK RAM 1500 3-inch front and 2-inch rear kit, browse the leveling lift kit collection or explore additional RAM 1500 replacement parts.
Authoritative References
- 2022 RAM 1500 Owner’s Manual — Mopar
- 2023 RAM 1500 Owner’s Manual — Mopar
- 2025 RAM 1500 Payload and Towing Guide — Ram Trucks
This article provides general selection and installation-planning information. Suspension design, torque requirements, alignment settings and calibration procedures vary by model year, drivetrain, trim and suspension option. Use vehicle-specific service information and the leveling kit manufacturer’s instructions.
