BDFHYK Engine Mount Replacement Cost and Installation for 2012–2017 Toyota Camry (Hydraulic Mount Kit)
Replacing a worn engine mount on a 2012–2017 Toyota Camry using the BDFHYK Hydraulic Engine Mount Kit (Part No. BDFHYK-EM-2501) typically costs between $180 and $400, depending on labor rates and whether a single mount or the complete three-mount set is installed. The BDFHYK-EM-2501 is a direct-fit, hydraulic-damped replacement for the right-side (front) engine mount on 2.5L 2AR-FE and 2AR-FXE (Hybrid) engines. Installation requires common hand tools, a floor jack, and a torque wrench; a professional technician can complete the job in 0.8–1.5 hours.
Compatibility
| Year | Model | Engine | Notes |
|---|---|---|---|
| 2012–2017 | Toyota Camry (XV50, excluding TRD) | 2AR-FE 2.5L | Right-side hydraulic mount. Match with BDFHYK-EM-2501. Confirm bracket bolt pattern: 3-bolt base, 2-bolt engine bracket. |
| 2012–2017 | Toyota Camry Hybrid (XV50) | 2AR-FXE 2.5L | Same fitment. No extra cooling lines interfere. Use OE heat shield if present. |
| 2012–2014 | Toyota Avalon (XX40, non-Hybrid) | 2GR-FE 3.5L V6 | [VERIFY: Confirm bracket bolt pattern matches the 2.5L mount; V6-specific mount may be required.] |
Specifications (BDFHYK-EM-2501)
| Item | Value |
|---|---|
| Part Number | BDFHYK-EM-2501 |
| Mount Type | Hydraulic (fluid-filled) |
| Housing Material | Cast aluminum alloy, EPDM rubber insulator |
| Bushing Durometer | 55–60 Shore A |
| Center Bolt Thread | M10×1.25 (mount stud) |
| Mount-to-Frame Bolt Torque | Typically 45 ft-lbs (61 Nm) for M10 class 10.9 fasteners — confirm against Toyota service manual |
| Mount-to-Engine Bracket Bolt Torque | Typically 35 ft-lbs (47 Nm) for M8 class 10.9 fasteners — verify manual |
| Warranty | 36 months / 36,000 miles (defect in materials or workmanship) |
Installation Overview
- Secure the vehicle on a level surface, apply the parking brake, and disconnect the negative battery terminal. Allow exhaust components to cool.
- Remove the plastic engine undercover. Place a hydraulic floor jack with a block of wood beneath the oil pan — apply just enough pressure to support the engine weight without lifting.
- From the top, detach any wiring harness clips or brackets anchored to the mount. On 2AR-FE engines, unclip the oxygen sensor connector bracket if it blocks access.
- Remove the three mount-to-frame bolts using a 14 mm socket and breaker bar. Then remove the two mount-to-engine bracket bolts (12 mm head) and the through-bolt at the mount’s center stud.

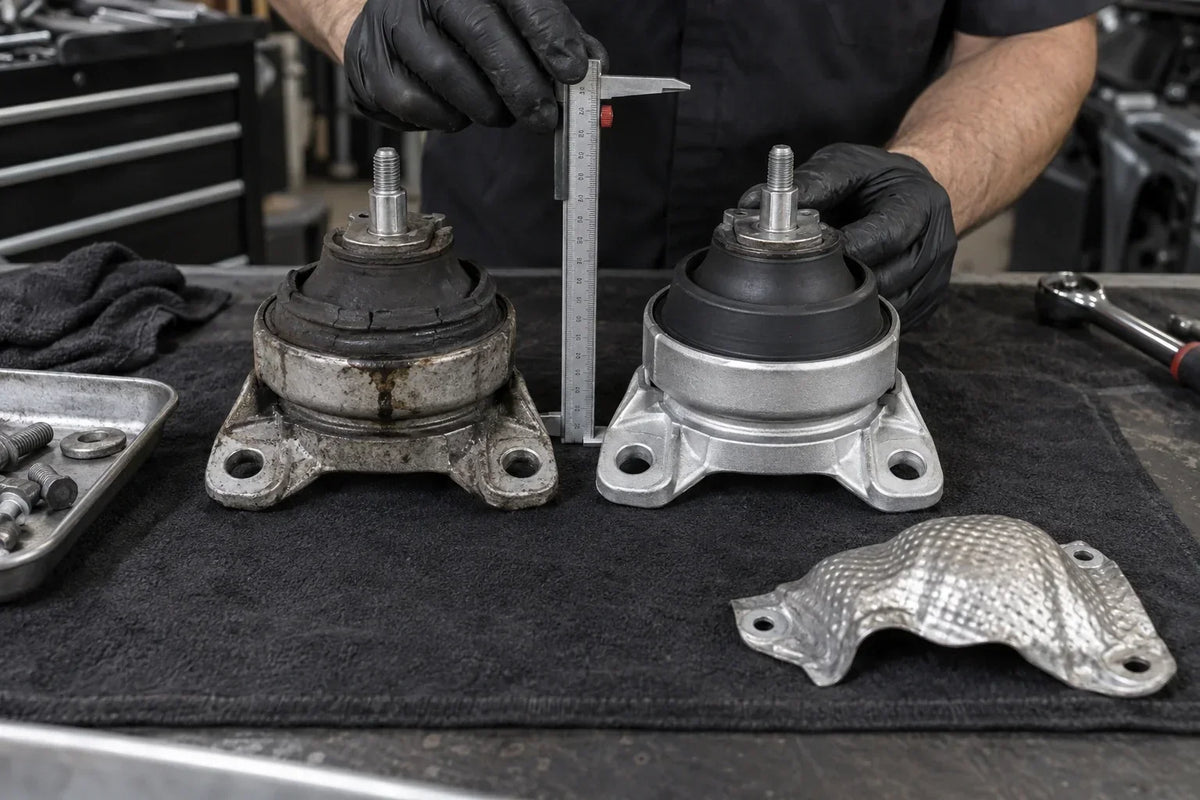

- Compare the old mount with the BDFHYK-EM-2501. Transfer any heat shields or alignment pins to the new mount.
- Position the new mount on the engine bracket, thread the two bracket bolts finger-tight, then install the frame bolts. Hand-tighten all fasteners.
- Lower the jack slowly until the engine rests on the mount. Torque the mount-to-engine bracket bolts to the manufacturer’s specification (typically 35 ft-lbs / 47 Nm) and the frame bolts (typically 45 ft-lbs / 61 Nm) in a crisscross pattern. Torque the center through-bolt last.
- Reinstall the undercover, reconnect the battery, and start the engine. Verify smooth idle and absence of vibration through the steering wheel.
Notes
- Hydraulic mount fluid: The BDFHYK mount is sealed; if fluid is visible around the center rubber, the mount has failed internally and should be replaced immediately.
- Drivetrain stress: A collapsed mount can alter axle alignment on the right side. Inspect the right CV axle boot for tears after a mount failure.
- Diagnostic codes: Excessive engine movement from a failed mount may intermittently strain the crankshaft position sensor harness, triggering P0335 (Crankshaft Position Sensor Circuit). Vibration-related false knock can set P0325, though this is less common. Always clear codes after replacement and re-test.
- Repair manual torque values: The torque values in this article are typical for the fastener class and size used in this application. Always cross-reference the exact figure in the Toyota factory service manual for your VIN.
- Multiple mounts: If the right mount has collapsed, inspect the left transmission mount and rear torque strut. Replace all three with BDFHYK kit BDFHYK-EM-3KIT to restore factory alignment.
FAQ
Q: How much does labor cost to replace an engine mount? A: Labor typically ranges from $80 to $220, based on a shop rate of $100–$140 per hour and 0.8–1.5 hours of billed time. The BDFHYK right-side mount can be installed in under an hour by an experienced technician; transmission mounts or rear torque struts add time.
Q: Can I drive with a bad engine mount? A: LShort-distance, low-speed driving is possible, but the engine may shift excessively during acceleration or braking, stressing hoses, wiring, and exhaust joints. Prompt replacement prevents collateral damage.
Q: Does the BDFHYK engine mount require any modifications? A: LNo. The BDFHYK-EM-2501 is a direct-fit replacement. All mounting holes align with factory brackets; no drilling or trimming is needed. Use the original fasteners unless they are damaged.
Q: How do I know if my engine mount is bad? A: LSymptoms include a pronounced clunk when shifting from Park to Drive, visible rubber cracking or fluid leakage, engine vibration at idle that diminishes with increased RPM, and a raised engine on one side when viewed from above.
Q: Is an alignment required after replacing an engine mount on a Toyota Camry? A: LThe right-side mount replacement does not alter steering geometry. However, if the mount failure has affected axle alignment or if you replace the transmission mount, a front-end alignment check is recommended. Standard practice is to verify alignment after any powertrain support work.
