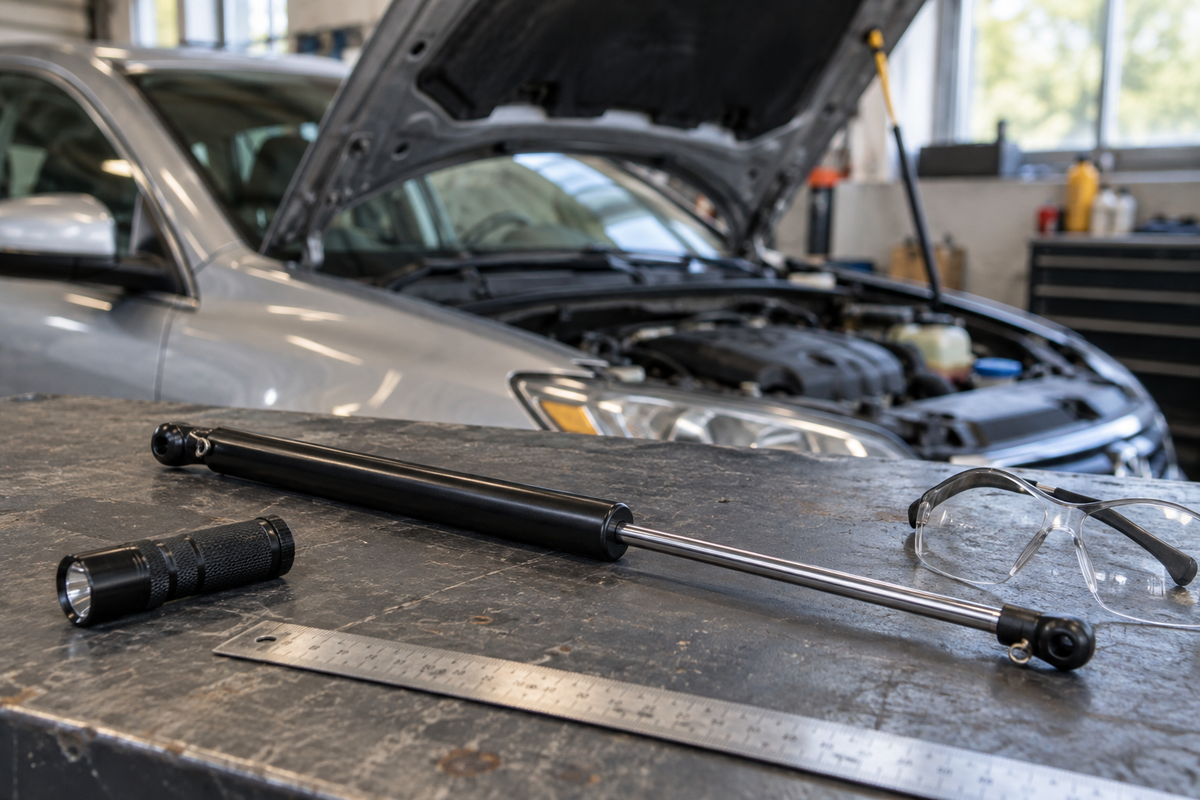

Gas Spring / Lift Support Troubleshooting: When a gas spring refuses to move—stuck, too stiff, or completely immobile—the root cause is typically an excessively high force rating, incorrect mounting geometry or length, an engaged locking mechanism, binding at the end fittings or pivot points, insufficient load to compress the rod, a bent or corroded rod, or an incorrect specification. This Gas Spring / Lift Support Troubleshooting article applies to automotive hoods, trunks, tailgates, and light industrial guards, model years 2000–2026. Typical force ratings range from 150 N to 2500 N; diagnosis and replacement of a single strut usually takes under 30 minutes.
Compatibility (Common Applications)
The table below lists representative gas-spring applications and correct OEM part numbers. Force ratings and extended/compressed lengths are application-specific; never install a strut intended for another vehicle.
| Year | Model | Application | OEM Part Number | Notes |
|---|---|---|---|---|
| 2015–2019 | BMW 3 Series (F30) | Hood (left) | 51237256131 | Torque mounting bolts to 10 Nm (7.4 ft-lbs) per BMW spec. |
| 2015–2019 | BMW 3 Series (F30) | Hood (right) | 51237256132 | Same torque value; never mix left/right struts. |
| 2014–2019 | Toyota Corolla | Hood (left) | 53440-02130 | Torque ball studs to 8 Nm (5.9 ft-lbs). |
| 2014–2019 | Toyota Corolla | Hood (right) | 53450-02130 | Identical force rating; check mounting ball-joint condition. |
| 2018–2023 | Jeep Wrangler (JL) | Tailgate (glass) | 68330729AA | Glass lift gas spring; verify extended length 382 mm. |
| Various | Industrial machine guard | Lockable gas spring | IGS-NBV-type (ball-valve) | Requires release button/lever actuation; see www.industrialgassprings.com/faq/. |
Specifications (Typical Values)
Values are industry-norm ranges for unpressurized inspection. Exact specifications appear on the gas-spring cylinder label.
| Specification | Typical Value (Automotive & Light Industrial) |
|---|---|
| Force rating (extension) | 150 N to 2500 N; trunk lid: 200–400 N; hood: 300–800 N |
| Compressed length tolerance | ±2 mm from published catalog dimension |
| Rod diameter | 6 mm to 14 mm |
| Cylinder diameter | 15 mm to 28 mm |
| Stroke length | 40 mm to 500 mm (vehicle-specific) |
| Mounting center distance | Published extended length ±1 mm; check with lid fully open |
| Service temperature | −30 °C to +80 °C (standard nitrile seals, per ISO 11901) |
| Seal life expectancy | ~30 000 full cycles under proper alignment |
| Internal gas fill | Nitrogen; pressure not adjustable on sealed automotive struts |
Installation / Troubleshooting Overview
Follow these steps to identify why a gas spring refuses to move. Perform all checks with the gas spring removed from the application, wearing safety glasses.
- Verify the force rating. Read the Newton (N) or pound-force (lbf) printed on the cylinder. A 500 N hood strut will feel immovable when hand-compressed—that is normal. Compare to the vehicle’s factory specification; a replacement strut with too high a force will lock the panel. For additional force-selection context, see what a gas spring does and how force rating affects operation.
- Confirm mounting geometry. Measure the extended length (center of ball socket to center of ball socket) and the compressed length at the closed position. An error as small as 5 mm in compressed length can prevent full closure or impose a bind that mimics a seized strut.
- Identify lockable gas springs. Industrial struts with a ball-valve (NBV) or pin-release require the actuator button to be pressed or the lever lifted before the rod can move. Attempting to force a locked gas spring will damage the piston seal. For adjustment procedures, see the ball-valve guide at www.industrialgassprings.com/ball-valve-nbv-and-bv-adjustment/.
- Inspect for physical bind. Look for a bent or scored piston rod, corrosion on the rod or cylinder, and worn or seized ball sockets. Any dirt ingress at the rod seal can cause stick-slip that feels like total lock.
- Bench-test compression. Carefully place the strut in a soft-jaw vise or use a designated spring compressor. Apply force along the axis of the rod. If it still won’t budge, the internal piston has likely seized due to seal failure or a collapsed pressurized chamber.
- Replace if non-functional. Non-serviceable automotive gas springs cannot be recharged. Replace with a matched strut using the original OEM part number or an aftermarket equivalent with identical extended/compressed lengths and force. See the gas spring installation guide for replacement steps and mounting checks.
Notes & Common Mistakes
- High force is not a defect. Many DIY installers reject a correct replacement because they cannot compress it by hand. An OEM hood strut for a 2015–2020 Ford F-150, for instance, may require 600 N (135 lbf) extension force—well beyond hand strength.
- Damper vs. gas spring. A lift support damper without any extension force will not lift a lid. If the new part barely moves the panel, it may be a damper-only unit rather than a pressurized gas spring.
- Wrong mounting stud orientation. Installing the gas spring upside down (rod-end down on a standard non-lockable strut) does not affect function, but on a lockable or oil-damped unit it can trap oil and cause hydraulic lock. Always follow the OEM orientation.
- Powered liftgate struts. For motorized liftgates, a seized power strut may set a body DTC such as B2634 (liftgate module fault). Scan with a capable OBD-II scanner before replacing mechanical components.
- Overtorqued ball studs. Mounting fasteners typically torque to 8–12 Nm (6–9 ft-lbs). Exceeding this can deform the socket and restrict articulation, causing the strut to bind.
FAQ
Q: Why is my new gas spring too stiff to compress by hand?
A: Automotive gas springs support the weight of a hood, trunk, or hatch. Force ratings often exceed 400 N, so they can be extremely difficult to compress by hand—this is normal. Always match the force specification printed on the original strut.
Q: Can I compress any gas spring with a clamp?
A: Do not assume a clamp or vise is safe; follow the manufacturer’s compression procedure and never clamp the piston rod or pressure cylinder. Lockable gas springs require their release mechanism to be actuated before compression. Forcing them while locked can damage internal components.
Q: Why does the gas spring move a short distance and then stop hard?
A: Possible causes include a bent rod, misaligned mounting brackets, or reaching the gas spring’s minimum compressed length before the lid fully closes. A lockable model may also require release. Stop applying force and check the installation and specifications.
Q: What is the difference between a lift support damper and a gas spring?
A: A damper primarily controls movement by providing resistance. A gas spring uses pressurized gas to provide an extension force that helps lift and support a panel. Product names vary, so verify the part’s function and application before installing it.
Q: How do I select the correct force rating for a replacement?
A: Check the Newton (N) or pound-force (lbf) value marked on the original unit. If it is unreadable, consult the manufacturer’s application catalog. Force selection depends on panel weight and mounting geometry. Undersized struts may fail to support the panel, while oversized struts can make closing difficult or cause excessively forceful opening.
