5x114.3 to 5x120 Hubcentric Wheel Adapters 1 Inch for Honda Odyssey Pilot Acura MDX CL, M12x1.5 Studs, 64.1mm Hub Bore, Set of 2
Regular price
$66.49
Product Detail
- Type Wheel Adapters
- SKU BDDLZ-OS06875S1BK-2
Estimated Delivery:
Calculating...
·
Ships by
Calculating...
·
Free Shipping
Trust & Assurance
Free Shipping · 2–7 Business Days
12-Month Warranty
30-Day Return
Secured Payment

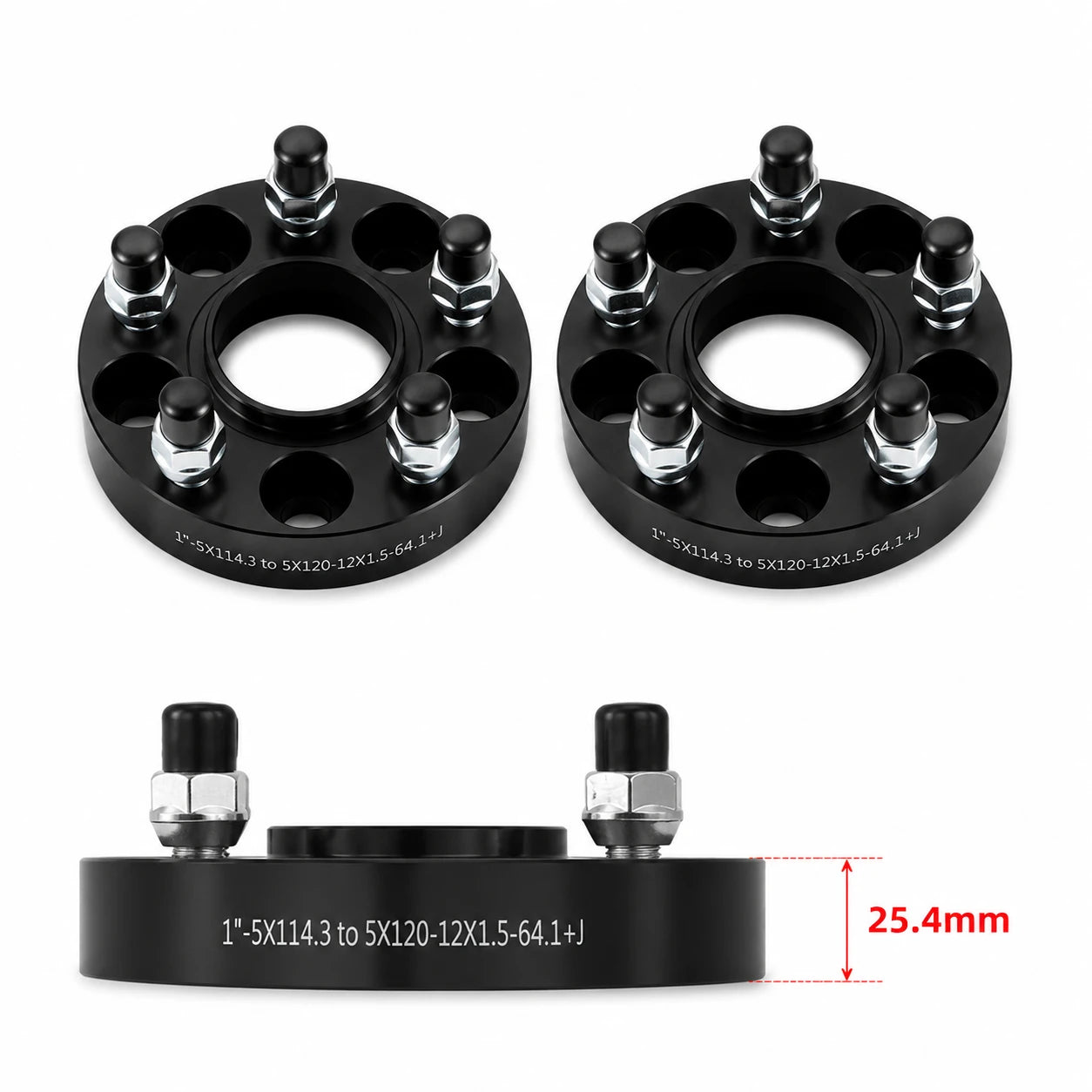

5x114.3 to 5x120 Hubcentric Wheel Adapters for Honda and Acura – 1 Inch, Set of 2
These BDFHYK wheel adapters are designed for selected Honda and Acura applications that use a 5x114.3 vehicle-side bolt pattern, a 64.1 mm hub bore, and M12x1.5 hardware. The adapter changes the wheel-side pattern to 5x120 while moving the wheel outward by approximately 1 inch. This combination can support a wheel-conversion project, correct an inward wheel position, or create additional inner clearance when every mounting dimension is confirmed.
A wheel adapter is not selected by vehicle name or bolt pattern alone. The vehicle hub, adapter, wheel center bore, stud or bolt seat, wheel pocket depth, offset, brake clearance, and fender clearance must work together. Confirm the exact model year and suspension configuration before ordering.
What This Adapter Changes
- Vehicle-side pattern: 5x114.3.
- Wheel-side pattern: 5x120.
- Thickness: approximately 1 inch, or 25.4 mm, per side.
- Position change: the wheel mounting surface moves outward, which reduces effective wheel offset by approximately 25.4 mm.
Common Fitment Scenarios
This adapter may be considered when mounting selected 5x120 wheels on a compatible 5x114.3 Honda or Acura hub, including applications listed for Odyssey, Pilot, MDX, and CL. It may also help create space between the inner wheel or tire and a strut, coilover, upper control arm, brake component, or inner liner. Moving the wheel outward can improve inner clearance, but it also reduces outer fender clearance and can increase the chance of tire contact during steering or suspension compression.
Key Product Parameters
- 64.1 mm vehicle-side center bore as listed.
- M12x1.5 studs and mounting hardware configuration.
- Forged 6061-T6 aluminum construction with a black anodized finish.
- Hubcentric design and two-adapter package for one axle.
1 Inch or 20 mm?
The 1 inch version moves each wheel approximately 5.4 mm farther outward than the 20 mm version. Choose the thicker adapter only after measuring inner clearance, outer fender space, wheel offset, and available stud or wheel-pocket depth. A thicker adapter does not automatically solve rubbing and should not be used to compensate for an incompatible wheel center bore or lug-seat design.
Fitment Checks Before Ordering
- Verify the vehicle is 5x114.3 with a 64.1 mm hub and compatible M12x1.5 mounting hardware.
- Verify the wheel is 5x120 and its center bore fits the adapter’s wheel-side register.
- Confirm the wheel has enough rear pocket depth for any vehicle-stud protrusion.
- Check brake-caliper, suspension, liner, fender, and full-lock clearance.
- Confirm the supplied lug nuts and the wheel’s lug-seat style are compatible.
Installation and Maintenance
Install only on a clean, flat, rust-free hub surface. Seat the adapter fully, tighten hardware in a star pattern with a calibrated torque wrench, and follow the vehicle and wheel manufacturer’s torque guidance. Never stack adapters or spacers. Recheck torque after the initial driving period and inspect for looseness, vibration, contact marks, or uneven seating during routine wheel service.
