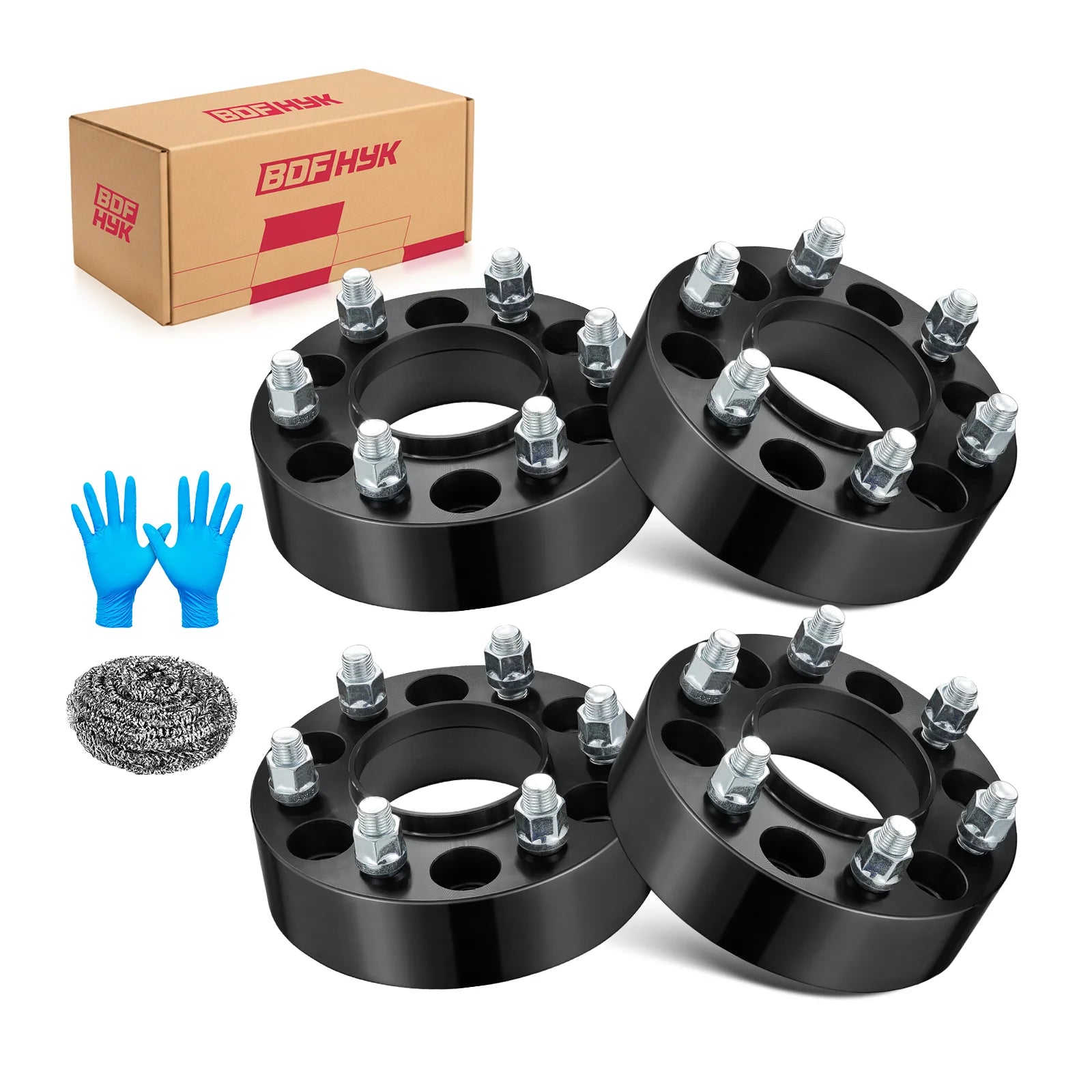

BDFHYK 5x4.5 Wheel Spacers 1 Inch (25mm) for 1995-2021 Ford Mustang, 2020-2022 Explorer Aviator, 70.5mm Hub, M14x1.5, 4PCS

5x4.5 1 Inch Wheel Spacers for Ford Mustang, Explorer, and Aviator

These BDFHYK 5x4.5 / 5x114.3 wheel spacers are designed for compatible Ford Mustang, Ford Explorer, and Lincoln Aviator applications using a 70.5 mm hub bore and M14x1.5 wheel hardware. The 1 inch thickness moves the wheels outward by approximately 25 mm, making the set useful when the original or replacement wheels sit too far inward or require more space near inner brake and suspension components.

The package includes four spacers for a consistent four-corner change when the same spacing is suitable at the front and rear. Fitment can vary by model year, trim, brake package, wheel width, wheel offset, tire size, and suspension setup. The listed vehicle range is a starting point; the exact dimensions must be confirmed before ordering.

Scene-Based Uses for This 1 Inch Spacer Set

• Reduce a tucked wheel appearance: Moves compatible wheels outward for a more filled-out position relative to the body line.
• Address inner tire clearance: May help when the tire sidewall sits close to struts, control arms, liners, or other inner components.
• Support selected aftermarket wheels: Can compensate when a high positive offset positions an otherwise compatible wheel too far inward.
• Create selected brake clearance: May provide additional room between the inner wheel and brake components, depending on wheel-barrel and spoke shape.
• Front-and-rear consistency: A set of four supports the same 1 inch wheel-position change at all corners when measurements confirm that configuration.

Key Product Parameters

• Bolt pattern: 5x4.5 / 5x114.3
• Spacer thickness: 1 inch / approximately 25 mm
• Center bore: 70.5 mm
• Thread pitch: M14x1.5
• Design: Hubcentric configuration for applications matching the listed hub dimensions
• Package quantity: Set of 4
• Listed fitment: Compatible 1995-2021 Ford Mustang and selected 2020-2022 Ford Explorer and Lincoln Aviator applications

What a 1 Inch Spacer Changes

A 1 inch spacer creates a noticeable effective-offset change. It may improve inner clearance, but it also moves the tire closer to the fender and wheel-well liner. Measure the current gap at ride height, then check steering lock and expected suspension compression. Wide wheels, wide tires, lowered suspension, aggressive alignment, and large brake packages require additional clearance checks.

Fitment Checks Before Ordering

• Confirm the exact vehicle and wheel use a 5x114.3 / 5x4.5 bolt pattern.
• Verify the 70.5 mm vehicle-hub and wheel-centering requirements.
• Confirm M14x1.5 thread compatibility and the correct wheel lug-seat style.
• Check original stud protrusion and wheel pocket depth so the wheel can sit fully flat.
• Measure brake-caliper, suspension, tire, fender, and liner clearance.
• Confirm that the same 1 inch spacing is appropriate at both axles.

Installation and Maintenance

Remove rust, dirt, paint buildup, and debris from the hub, spacer, and wheel mounting faces. Confirm each spacer seats fully against the hub and each wheel seats fully against the spacer. Tighten compatible hardware in a star pattern using a calibrated torque wrench and the applicable torque specification. Do not stack spacers or install over damaged studs or lug nuts. Recheck torque after initial driving and inspect the assembly during routine tire rotations.
