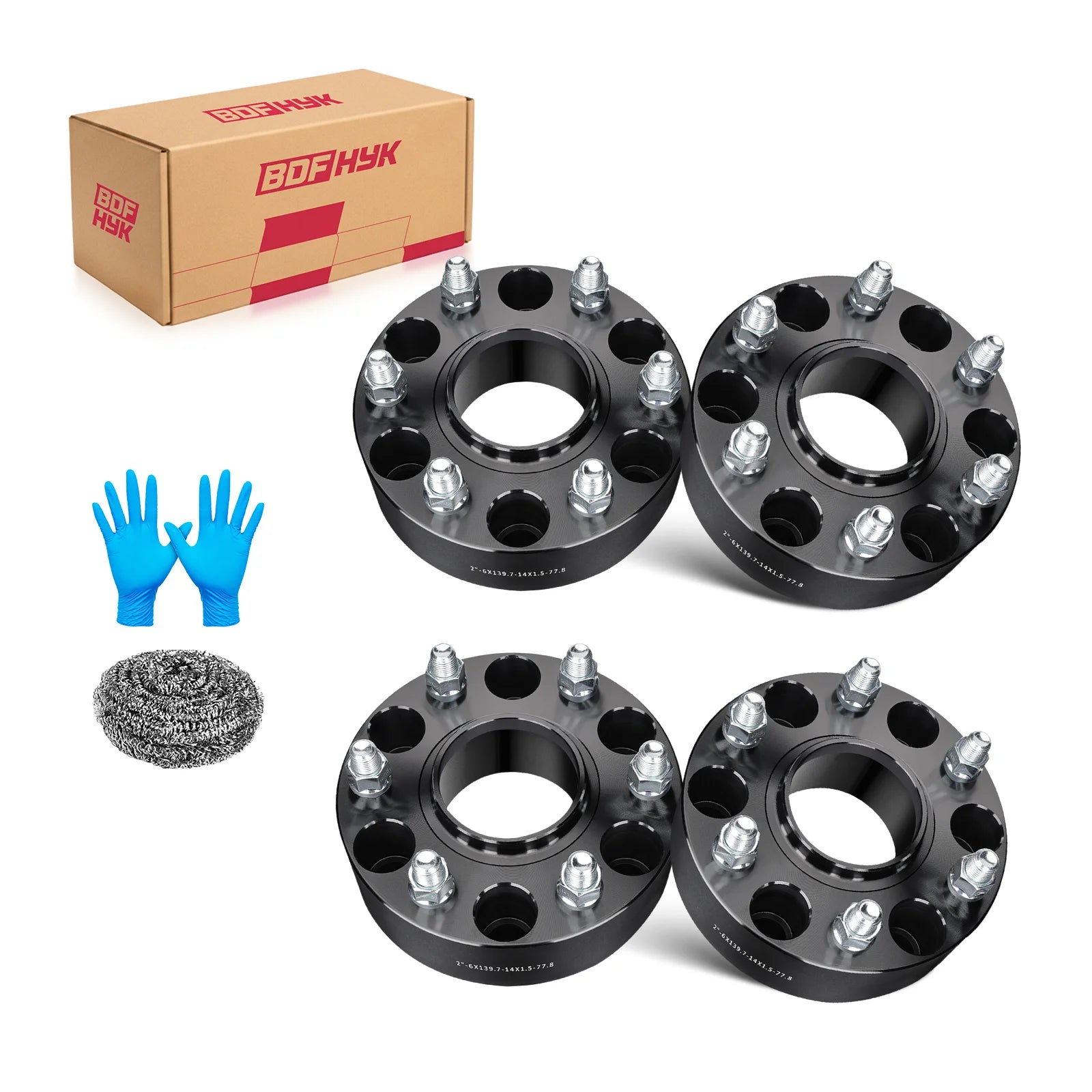

BDFHYK 6x139.7 Hubcentric Wheel Spacers 1 Inch / 1.5 Inch / 2 Inch for Ram 1500 2019-2024, M14x1.5, 77.8mm Hub Bore, Set of 4

6x139.7 Hubcentric Wheel Spacers for Ram 1500 2019-2024

These BDFHYK hubcentric wheel spacers are designed for compatible 2019-2024 Ram 1500 applications using a 6x139.7 / 6x5.5 bolt pattern, 77.8 mm hub bore, and M14x1.5 thread pitch. They are made for truck owners who want a wider stance, need help correcting an inward wheel position, or are trying to create additional clearance for certain wheel and tire setups.

Ram 1500 owners often consider wheel spacers after installing wider tires, changing wheel offset, adding a leveling kit, or trying to make the factory wheels sit more evenly with the body line. These spacers move compatible wheels outward, which may help reduce inner tire contact near suspension arms, brake components, or wheel well liners. The correct result depends on your exact wheel width, offset, tire size, trim, ride height, and alignment.

Scenario-Based Solutions

• Wheels look too tucked: Helps create a wider, more filled-out stance on compatible Ram 1500 trucks.
• Wider tires need inner room: May help move the tire away from inner suspension contact points when offset is the cause.
• Leveled truck appearance: Helps match wheel position with a more aggressive leveled or lifted profile when clearance allows.
• Front and rear consistency: Set of 4 supports the same spacing change at all four wheel positions.

Fitment Parameters to Verify

• Vehicle application: Compatible Ram 1500 2019-2024 applications
• Bolt pattern: 6x139.7 / 6x5.5
• Hub bore: 77.8 mm
• Thread pitch: M14x1.5
• Thickness options: 1 inch, 1.5 inch, and 2 inch, depending on selected variant
• Pack quantity: Set of 4

Choosing Thickness for Your Ram 1500

Choose 1 inch for a moderate change when you need a cleaner stance or minor inner clearance. Choose 1.5 inch when you want a more visible outward position while still keeping measurement control. Choose 2 inch only after confirming fender clearance, bumper corner clearance, and wheel pocket depth. Larger tire setups should be checked at full steering lock and under suspension compression.

Important Pre-Installation Checks

• Confirm that your Ram uses the listed bolt pattern, hub bore, and thread pitch.
• Measure tire-to-fender clearance before selecting thickness.
• Check brake caliper clearance, control arm clearance, and inner liner clearance.
• Confirm the wheel mounting pad is flat and compatible with bolt-on spacers.
• Make sure the original wheel studs do not prevent the wheel from seating flat.

Installation and Use Notes

Clean the hub face thoroughly before installation. Mount the spacer flush against the hub, torque the spacer hardware in a star pattern, then mount the wheel and torque again to the correct vehicle specification. Do not stack spacers. Recheck torque after the first drive, after several heat cycles, and during routine tire rotations. For trucks used in towing, hauling, off-road driving, or frequent heavy loads, inspect the hardware more often.
