BDFHYK AN6 PTFE Fuel Line Kit 10FT, 21/64" ID, E85 LS Swap

BDFHYK AN6 PTFE Braided Fuel Line Kit for E85 and LS Swap Routing

Planning an E85-compatible LS swap or custom fuel system requires checking more than the AN label. This BDFHYK AN6 PTFE fuel line kit includes a 10FT braided hose and six reusable swivel hose ends for external fuel routing. The hose has a 21/64-inch (0.328-inch) actual inner diameter, a 15/32-inch (0.468-inch) outer diameter, 9/16-18 UNF AN6 connections, and a stated 1500 PSI working-pressure rating. The PTFE liner is listed as compatible with E85, but every pump, filter, regulator, injector, seal, adapter, and tank connection must also be compatible with the intended fuel.

Why Choose a PTFE Fuel Line?

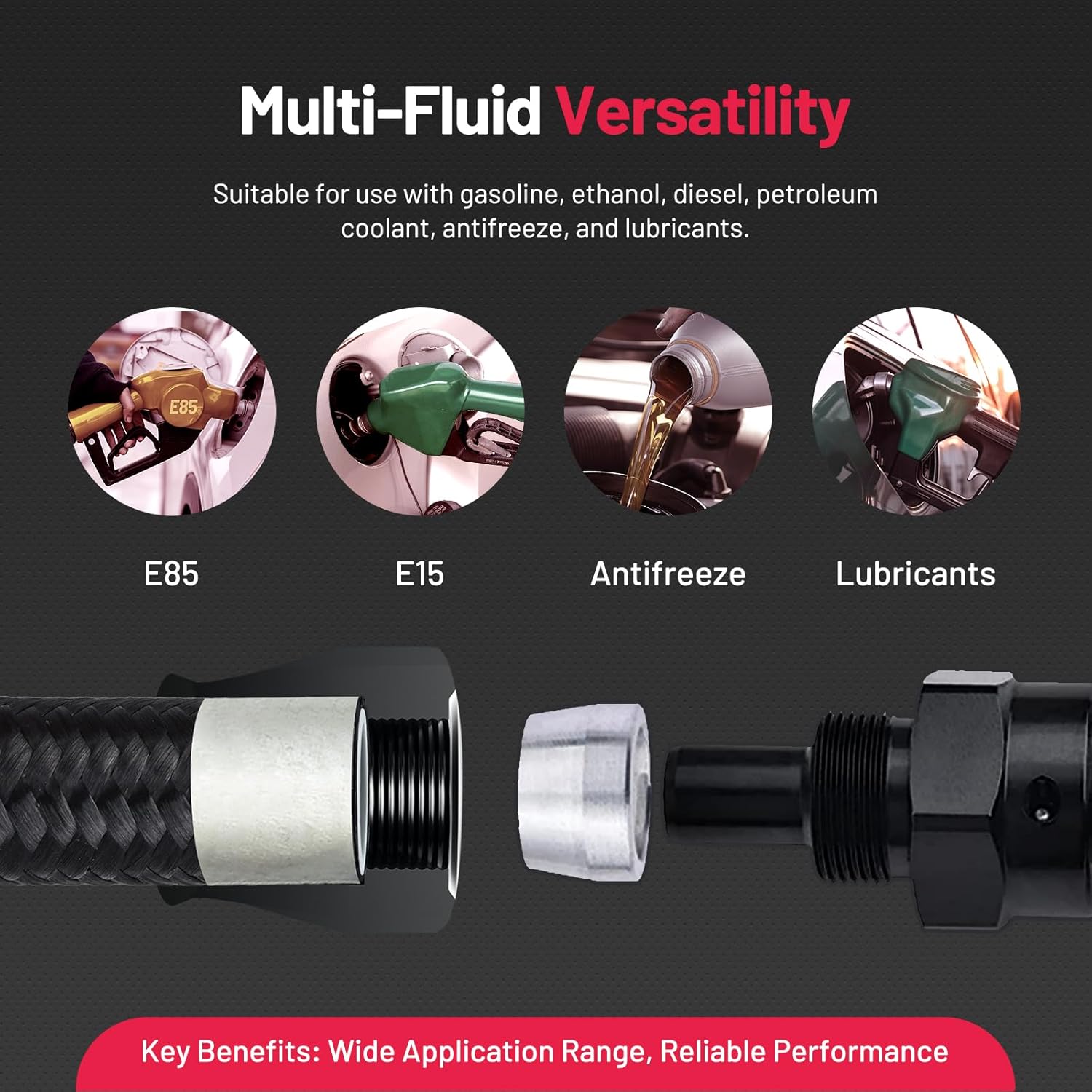

• Fuel compatibility: The PTFE inner liner is listed for gasoline, diesel, E85, ethanol-blended fuel, engine oil, transmission fluid, hydraulic fluid, and vacuum applications when the complete system requirements match.
• Lower permeation: PTFE generally limits fuel-vapor permeation more effectively than many conventional rubber-based hose constructions.

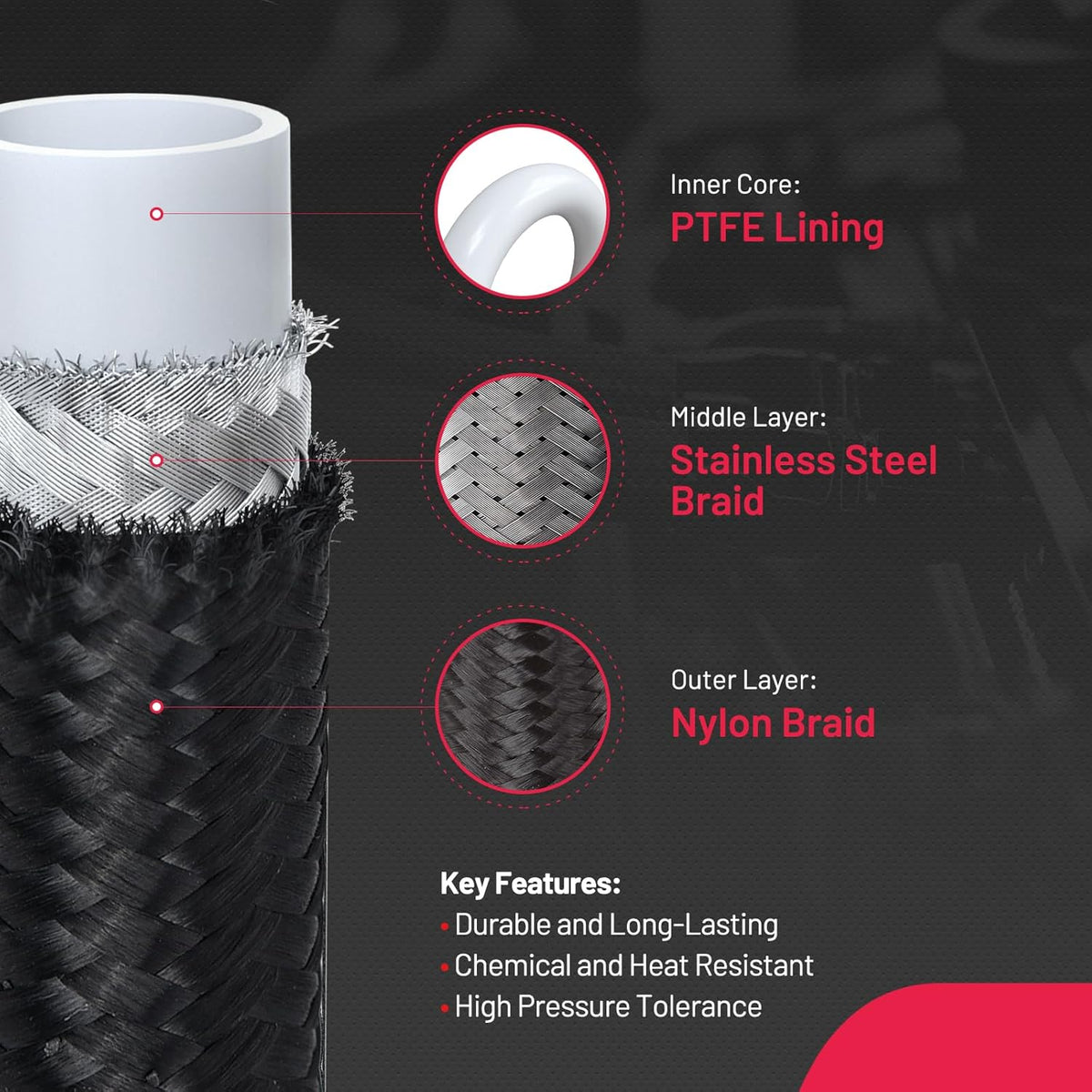

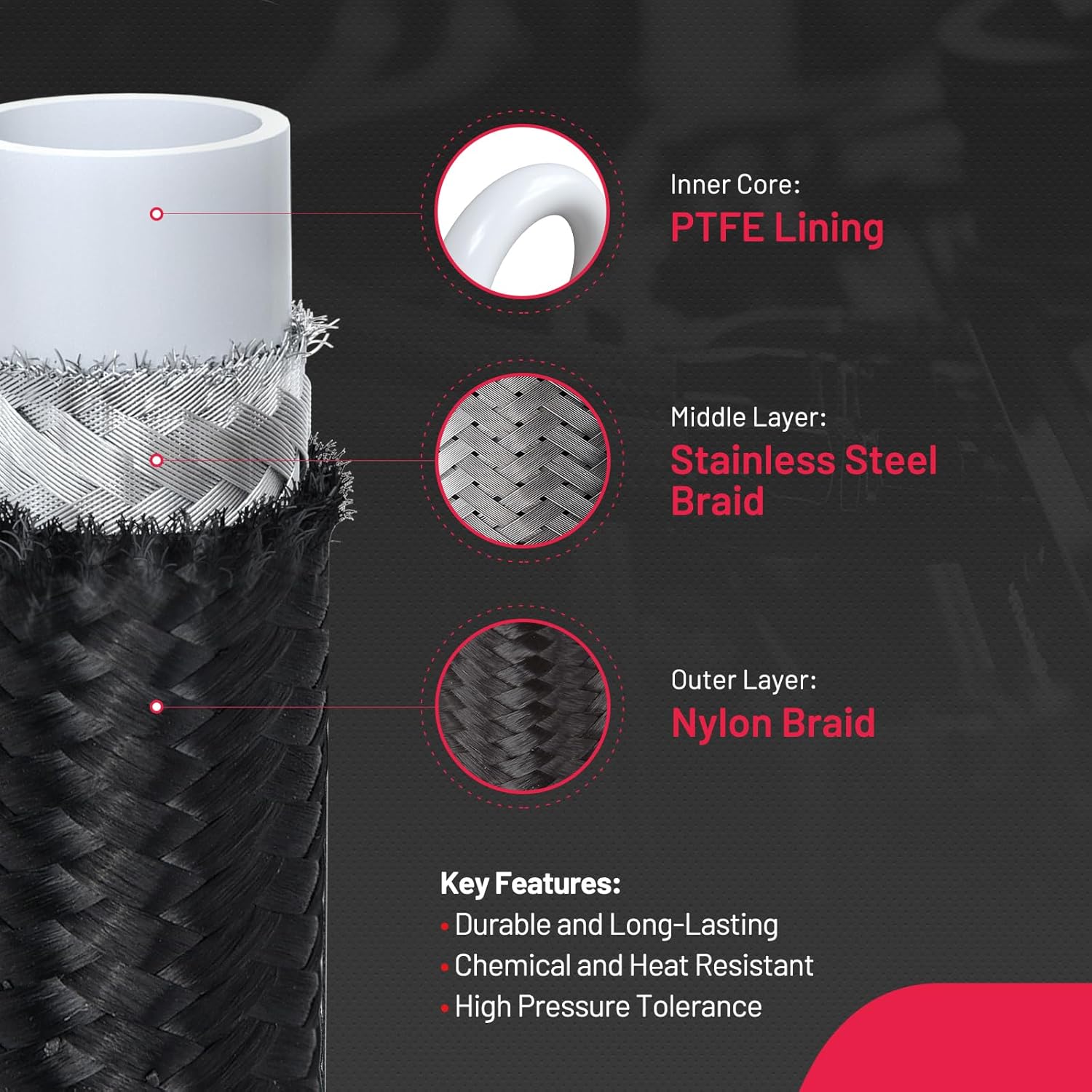

• Braided protection: Stainless steel reinforcement and a black nylon outer braid help protect the line while supporting custom engine-bay and chassis routing.
• Routing behavior: PTFE hose is typically firmer than CPE hose. Plan bends, fitting angles, and component positions before cutting the line.

Connection and Hose Compatibility

• AN6 connection: The included swivel hose ends use 9/16-18 UNF AN6 connections.

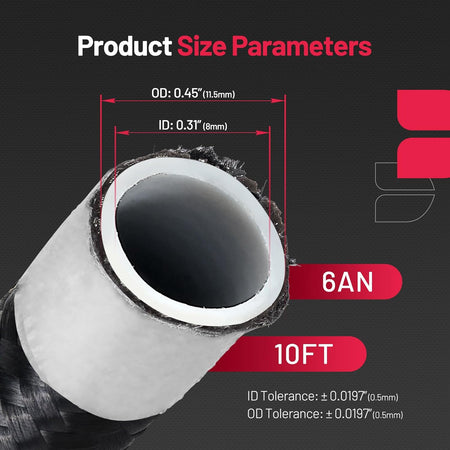

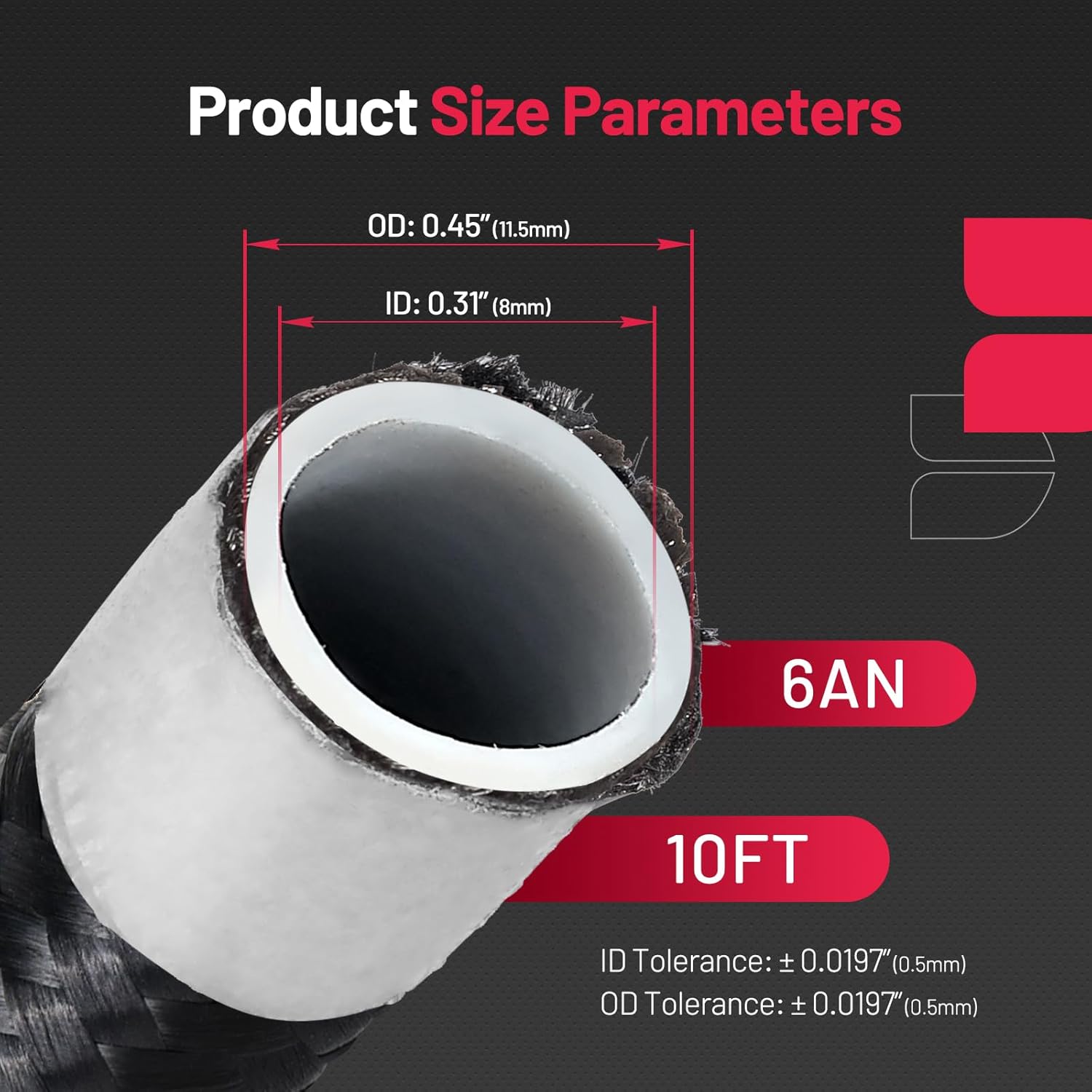

• Actual hose dimensions: The hose measures 21/64 inch (0.328 inch) ID and 15/32 inch (0.468 inch) OD. AN6 describes the connection size and does not guarantee the same flow passage across every hose construction.
• PTFE-specific assembly: Use hose ends designed for this PTFE hose construction. CPE and PTFE hose ends should not be treated as interchangeable.
• AN sealing surface: The AN flare seat forms the seal. Do not apply thread sealant or PTFE tape to the AN flare surface.
• Adapter check: Confirm the connection type and sealing method on every pump, filter, regulator, rail, tank, cooler, and adapter before assembly.

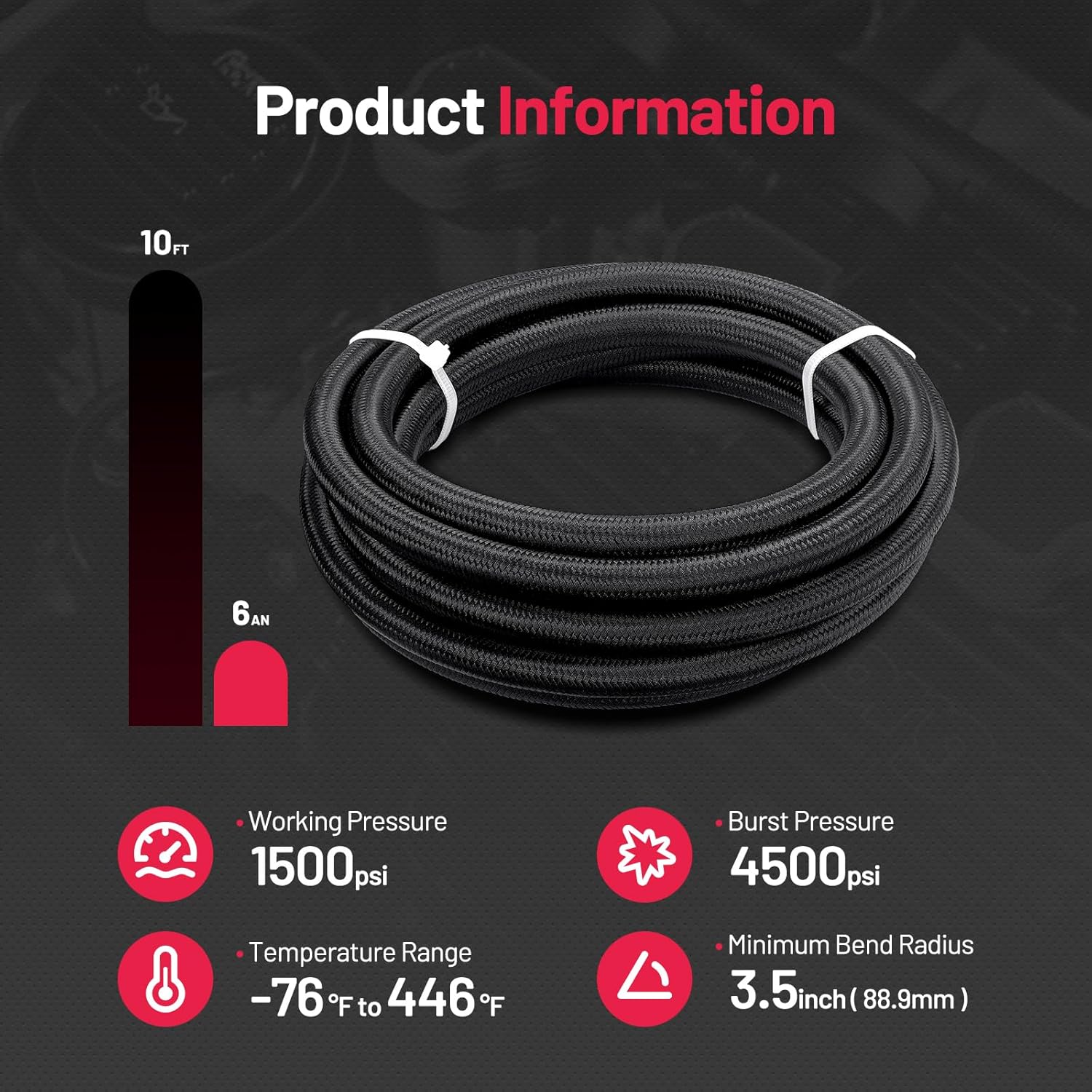

Key Specifications

• Hose size: AN6 / 6AN
• Hose length: 10FT (3.05 m)
• Inner diameter: 21/64 inch (0.328 inch)
• Outer diameter: 15/32 inch (0.468 inch)
• Connection specification: 9/16-18 UNF (AN6)
• Working pressure: 1500 PSI
• Burst pressure: 4500 PSI
• Temperature range: -76°F to 446°F (-60°C to 230°C)
• Minimum bend radius: 88.9 mm

Fuel and System Compatibility

• The PTFE liner is listed as compatible with E85 and ethanol-blended fuel.
• E85 compatibility applies only when the complete system—including hose ends, O-rings, quick-connects, adapters, pump, filter, regulator, injectors, and tank components—is rated for the same fuel.
• Fuel formulation, additives, operating temperature, pressure, and service duration can affect compatibility.
• The completed line is limited by the lowest-rated hose, fitting, adapter, seal, and connected component.

Before You Order

• This LS swap fuel line kit is universal rather than vehicle-specific. Confirm every required adapter and connection separately.
• Verify that AN6 connections, the 21/64-inch actual ID, 10FT length, and included fitting angles suit the required flow and routing layout.
• Use 1500 PSI as the stated working-pressure rating. The 4500 PSI burst value is not the recommended operating pressure.
• This hose is intended for external fuel and fluid routing. It is not designed for installation inside a fuel tank or for marine applications.
• Confirm clearance around exhaust heat, sharp edges, steering parts, suspension travel, belts, fans, and other moving components.

Installation and Leak-Check Notes

• Relieve fuel-system pressure and work away from ignition sources before disconnecting or assembling lines.
• Wrap the cutting area, cut the braided hose squarely, remove loose wire and debris, and inspect the PTFE liner before installing each hose end.
• Follow the fitting assembly sequence carefully so the PTFE liner and braid are captured correctly without folding, scoring, or separating.
• Maintain at least the stated 88.9 mm minimum bend radius. Avoid kinks, flattened sections, twisting, and side load at the hose ends.
• Support long runs with suitable clamps and protect the hose where it passes near edges or through panels.
• Prime and pressure-test the completed system before starting the engine. Inspect every connection for seepage and check again after the first heat cycle.

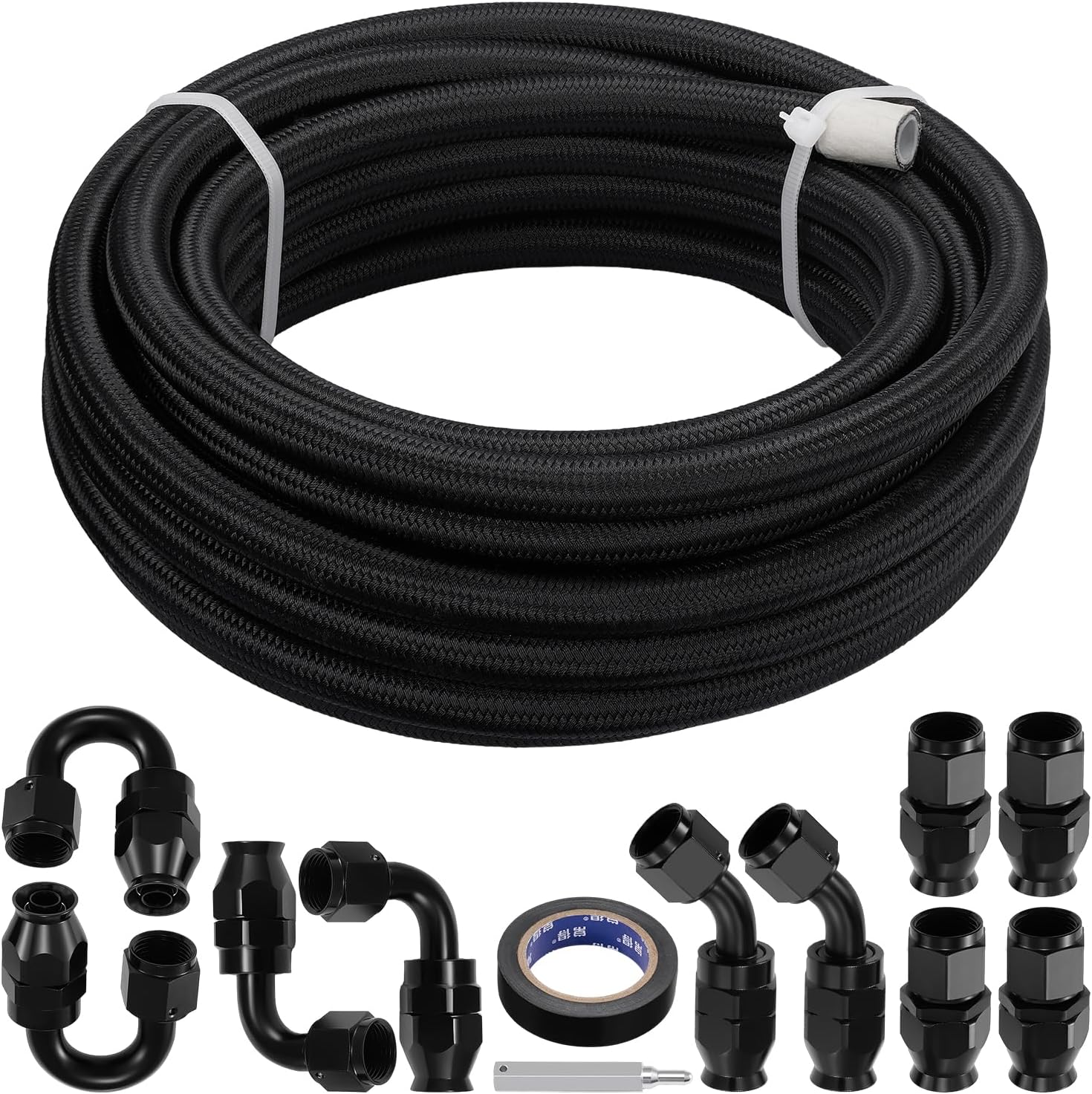

Package Contents

• 1 × 10FT AN6 PTFE braided hose
• 2 × AN6 straight swivel hose ends
• 2 × AN6 45-degree swivel hose ends
• 2 × AN6 90-degree swivel hose ends
• 1 × insulation tape

Critical note: Confirm hose material, actual dimensions, connection standards, fuel compatibility, pressure requirements, fitting angles, adapters, and routing clearance before ordering.
