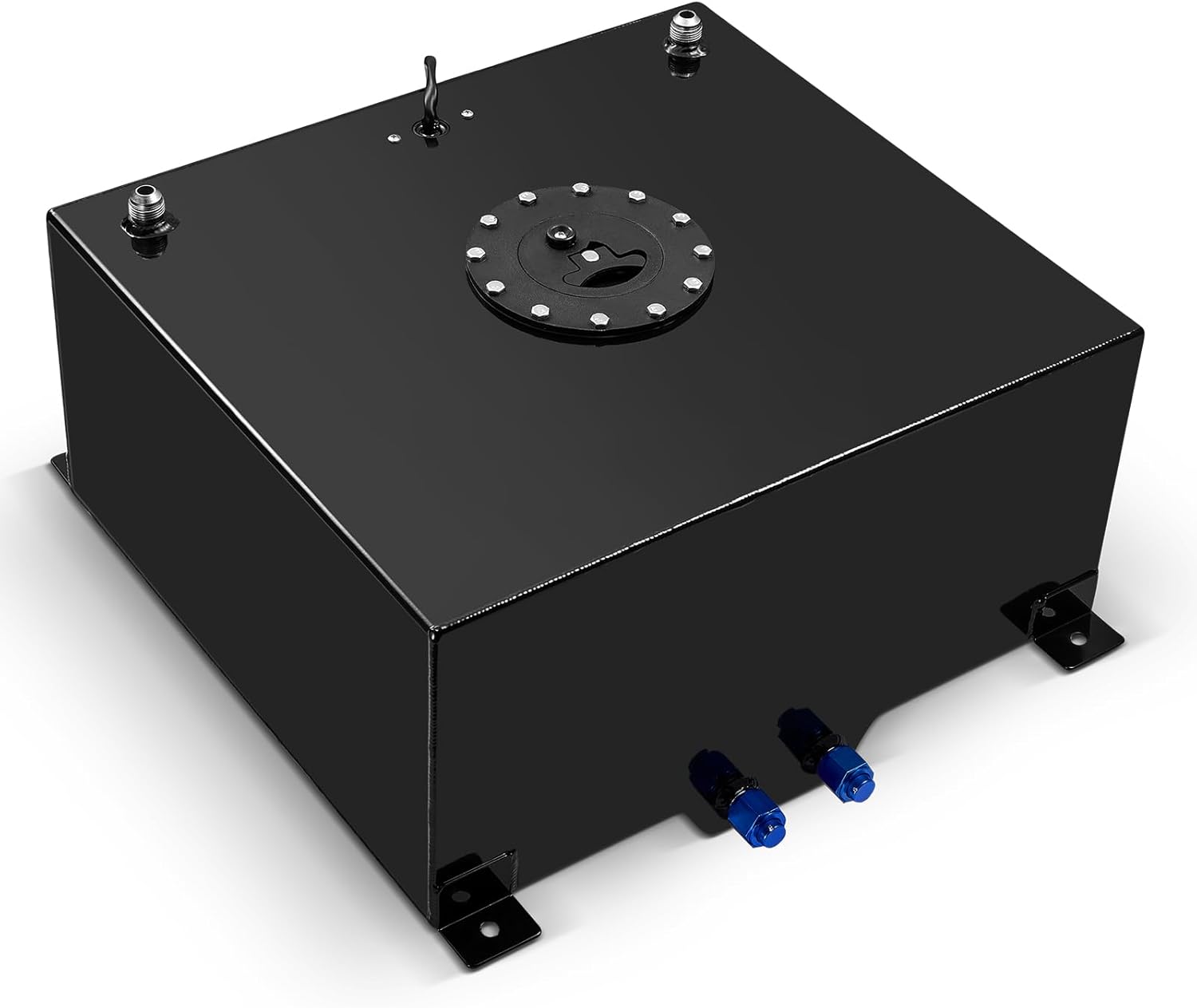

BDFHYK 12 Gallon Fuel Cell Gas Tank Aluminum Polished Black with Level Sender 19.9" (L) x 18" (W) x 9.05" (H) Racing Street Drift Strip Fuel Tank Fuel Cap

Q: Does this 12-gallon fuel cell tank directly fit a specific vehicle?

A: No. It is a universal-style tank for a custom fuel-system installation. Measure the available space and confirm the mounting tabs, AN10 connections, hose routing, service access, and clearance before ordering.

Q: What are the capacity and dimensions of this fuel cell tank?

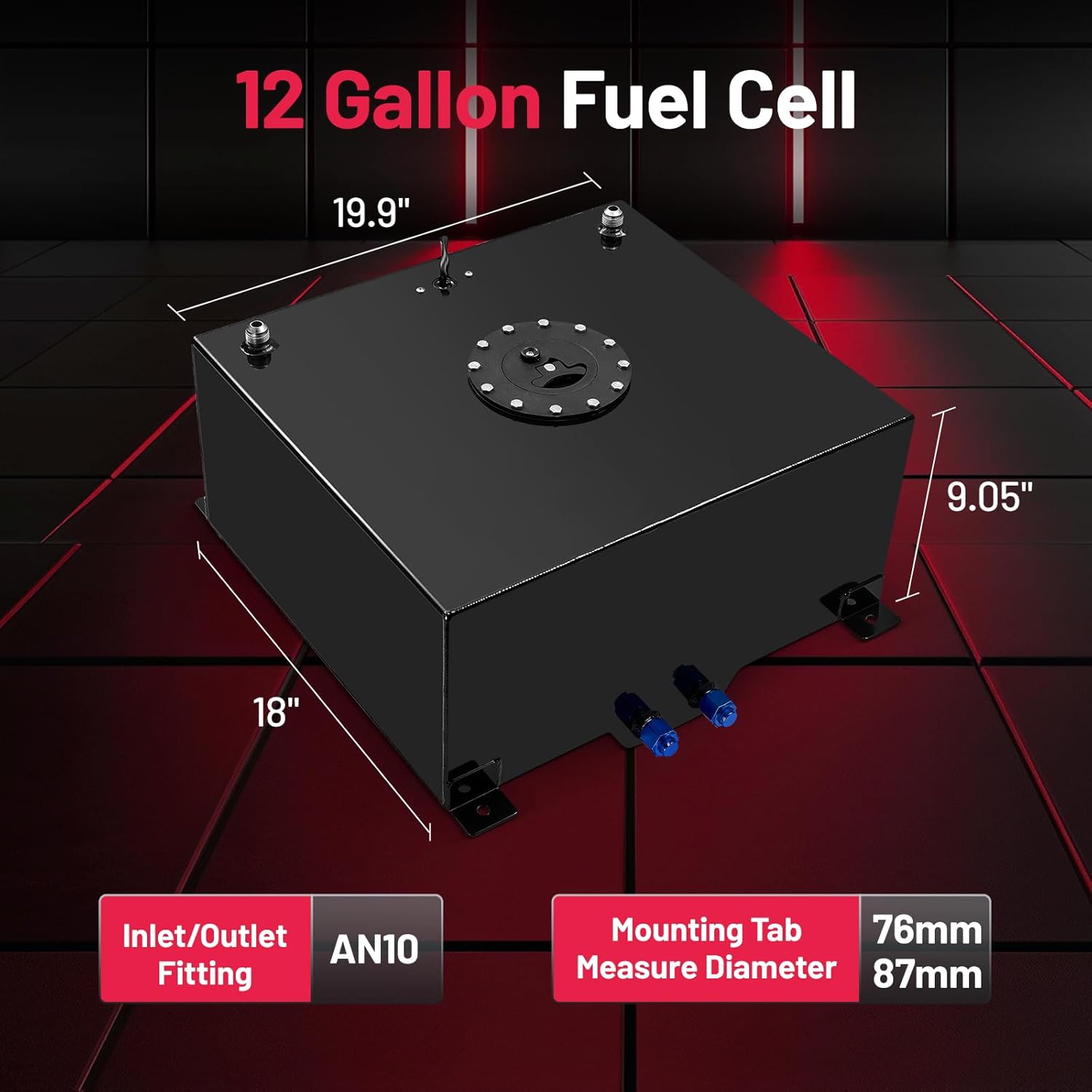

A: The listed capacity is 12 gallon. The tank measures approximately 19.9 inches long, 18 inches wide, and 9.05 inches high. Compare these dimensions and the mounting-tab measurements with the planned installation area.

Q: What material and finish does the tank use?

A: The tank is made from 1060H24 aluminum with a polished black finish. Material alone does not confirm compatibility with every fuel because the foam, sender, cap, seals, fittings, and hoses must also be suitable.

Q: What is included with the tank?

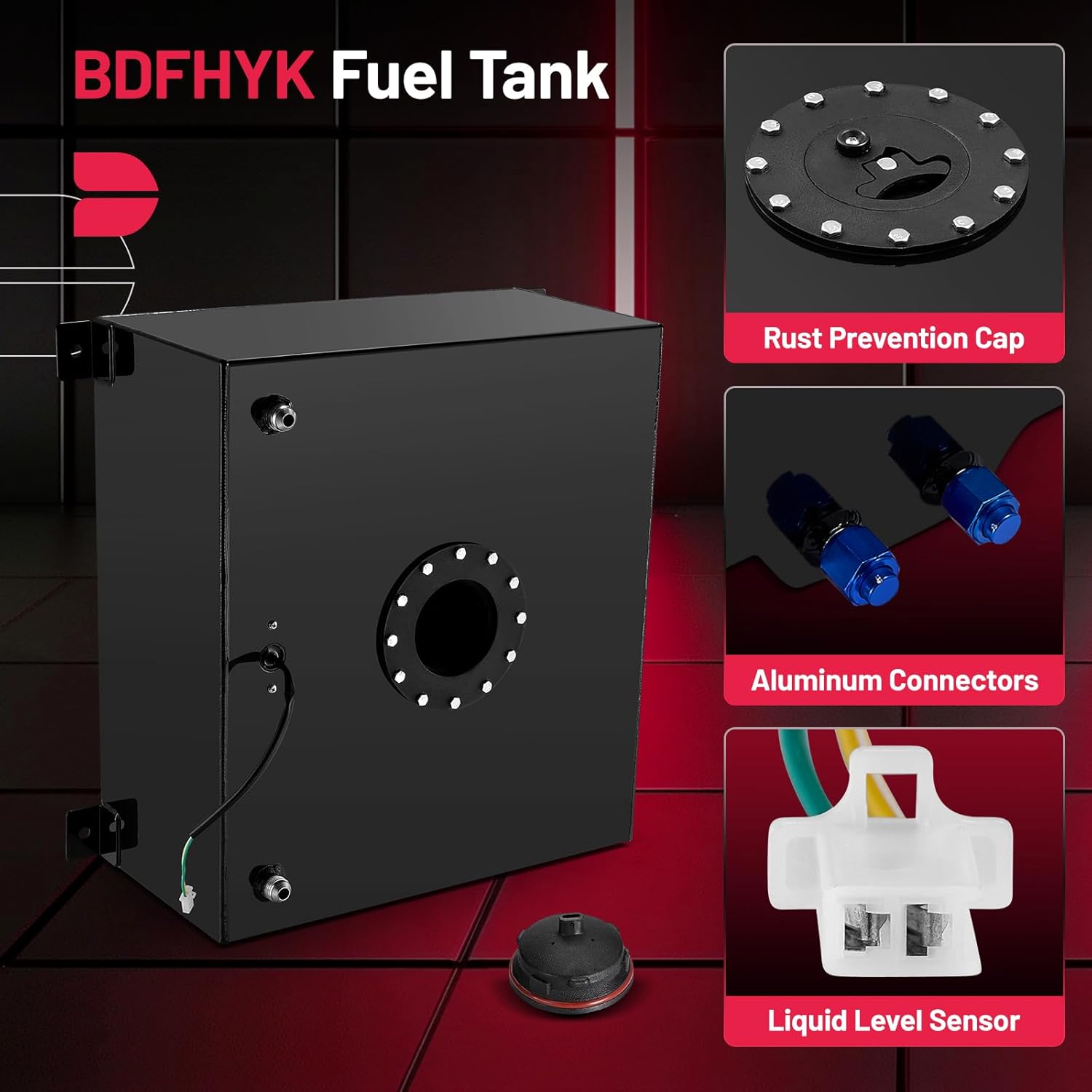

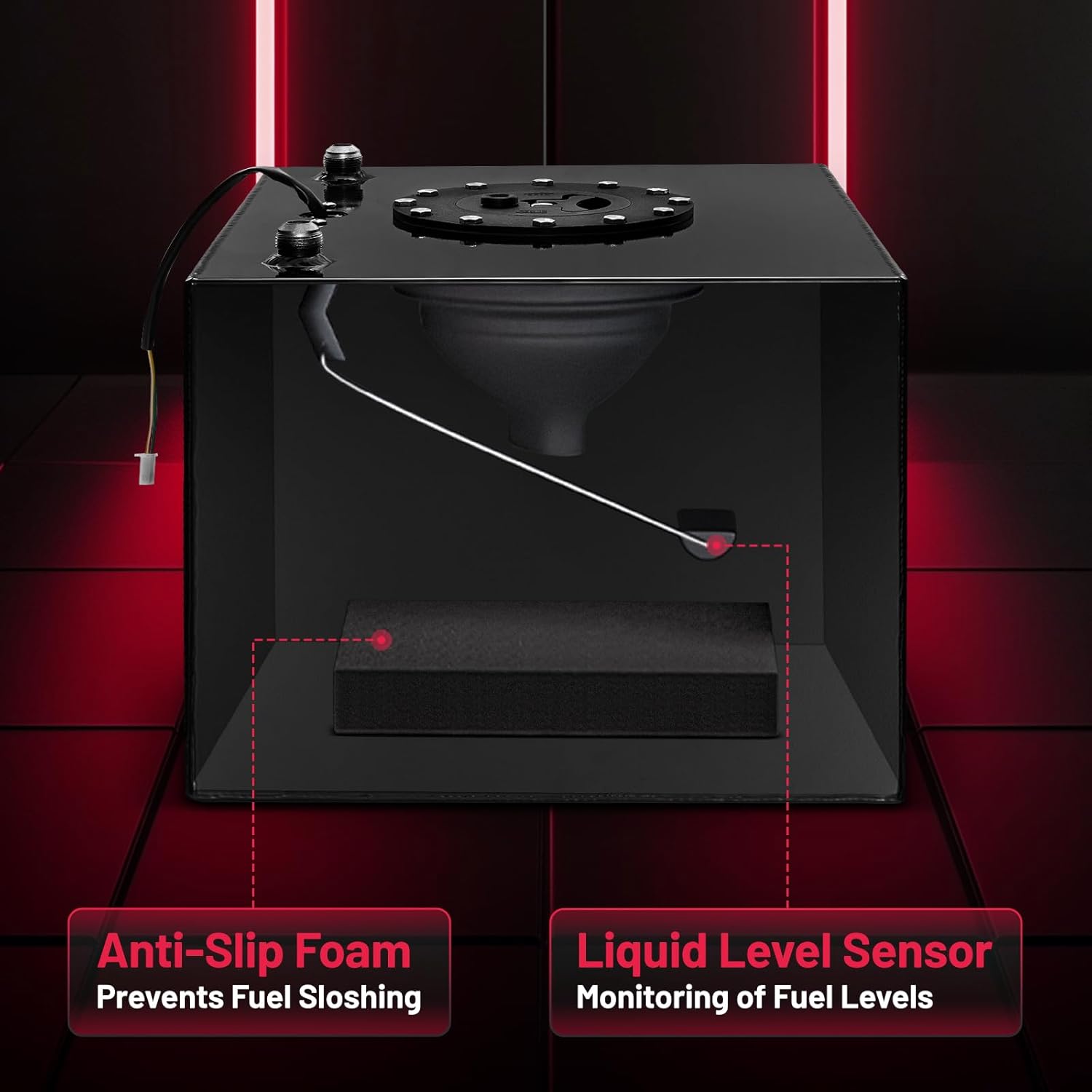

A: The product includes the 12-gallon aluminum tank, 3–90 ohm level sender, a plastic fuel cap, and splash-control foam. A fuel pump, regulator, filter, hoses, mounting hardware, vent, and rollover valve are not confirmed as included.

Q: What size are the inlet and outlet connections?

A: The listed inlet and outlet fitting size is AN10. Confirm the required adapters, hose size, supply and return arrangement, and system pressure before installation.

Q: Will the included level sender work with my fuel gauge?

A: The included sender is rated at 3–90 ohms. Confirm that the intended gauge uses the same resistance range, and verify the wiring, ground, and sender-arm movement before connecting it.

Q: Can this tank be used with gasoline, diesel, ethanol, or methanol?

A: Compatibility must be verified for the complete system. Confirm the tank, internal foam, sender, cap, seals, fittings, hoses, pump, filter, and regulator for the exact fuel before use.

Q: Can this tank be connected as a gravity-feed auxiliary tank?

A: Do not assume it can be gravity-fed into a factory fuel system. Auxiliary-feed layouts require suitable controls, venting, rollover protection, overflow prevention, fuel-compatible plumbing, and compliance with vehicle and local requirements.

Q: Does the internal foam make this a certified racing fuel cell?

A: No certification is specified. Splash-control foam does not by itself establish FIA, SFI, DOT, FMVSS, or CARB certification. Confirm the rules of the intended racing organization or road-use jurisdiction.

Q: Does this tank include a vent or rollover valve?

A: A vent or rollover valve is not specified as included. The completed installation must use suitable venting and rollover protection designed for the application.

Q: Where should this fuel cell tank be mounted?

A: Mounting is application-specific. Use a rigid, protected location with secure supports and clearance from exhaust heat, sparks, driveline parts, suspension travel, road debris, and passenger areas as required by the application.

Q: How should the tank and foam be maintained?

A: Inspect the tank, cap, fittings, sender, mounting points, hoses, and connections regularly. Check the internal foam for swelling, deterioration, or loose debris and replace it when its condition or fuel compatibility is uncertain.

Q: Is this fuel cell tank street legal or 50-state legal?

A: No universal road-use or 50-state legal claim is provided. Legality depends on the vehicle, installation, emissions-system integration, fuel type, and local requirements.

Q: Is this a factory-branded or vehicle-specific replacement tank?

A: No. This is a BDFHYK universal-style aftermarket tank for custom installation, not a factory-branded part or a vehicle-specific direct replacement.
