BDFHYK AN6 PTFE Fuel Line Kit 20FT, 21/64" ID, E85 LS Swap

BDFHYK AN6 PTFE Braided Fuel Line Kit for E85 and LS Swap Routing

Planning an LS swap, EFI conversion, or custom fuel system requires checking the hose liner, actual inner diameter, AN connection size, fitting angles, pressure range, temperature exposure, and available routing space. This BDFHYK AN6 PTFE fuel line kit includes a 20FT black nylon braided PTFE hose, ten aluminum swivel hose ends, insulation tape, and an installation tool. The hose measures 21/64 inch (0.328 inch) ID and 15/32 inch (0.468 inch) OD, uses 9/16-18 UNF AN6 connections, and carries a stated 1500 PSI working-pressure rating. The PTFE liner is listed for E85 and ethanol-blend fuel systems, but every pump, filter, regulator, rail, seal, and adapter must also match the intended fuel and operating conditions.

PTFE Hose and Connection Compatibility

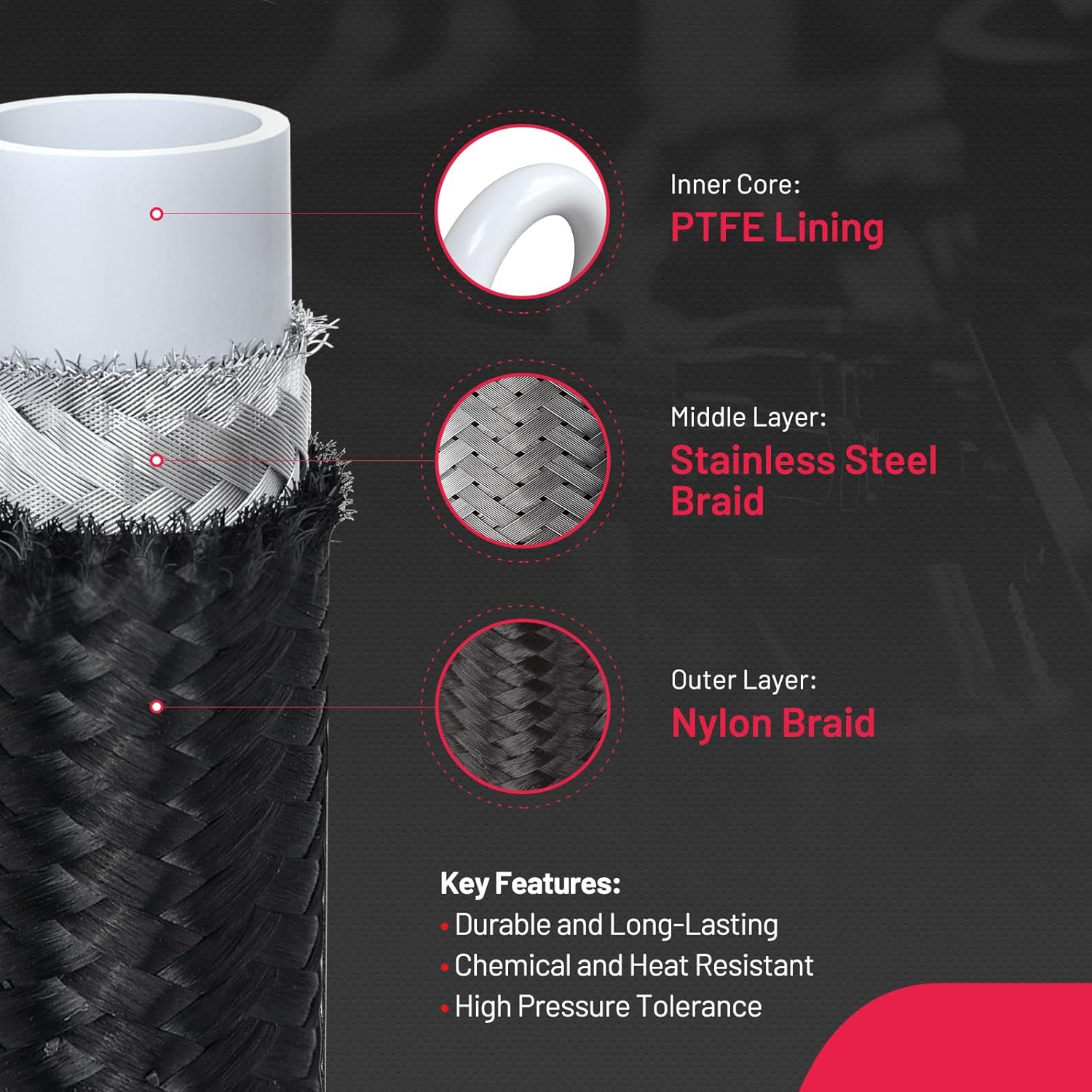

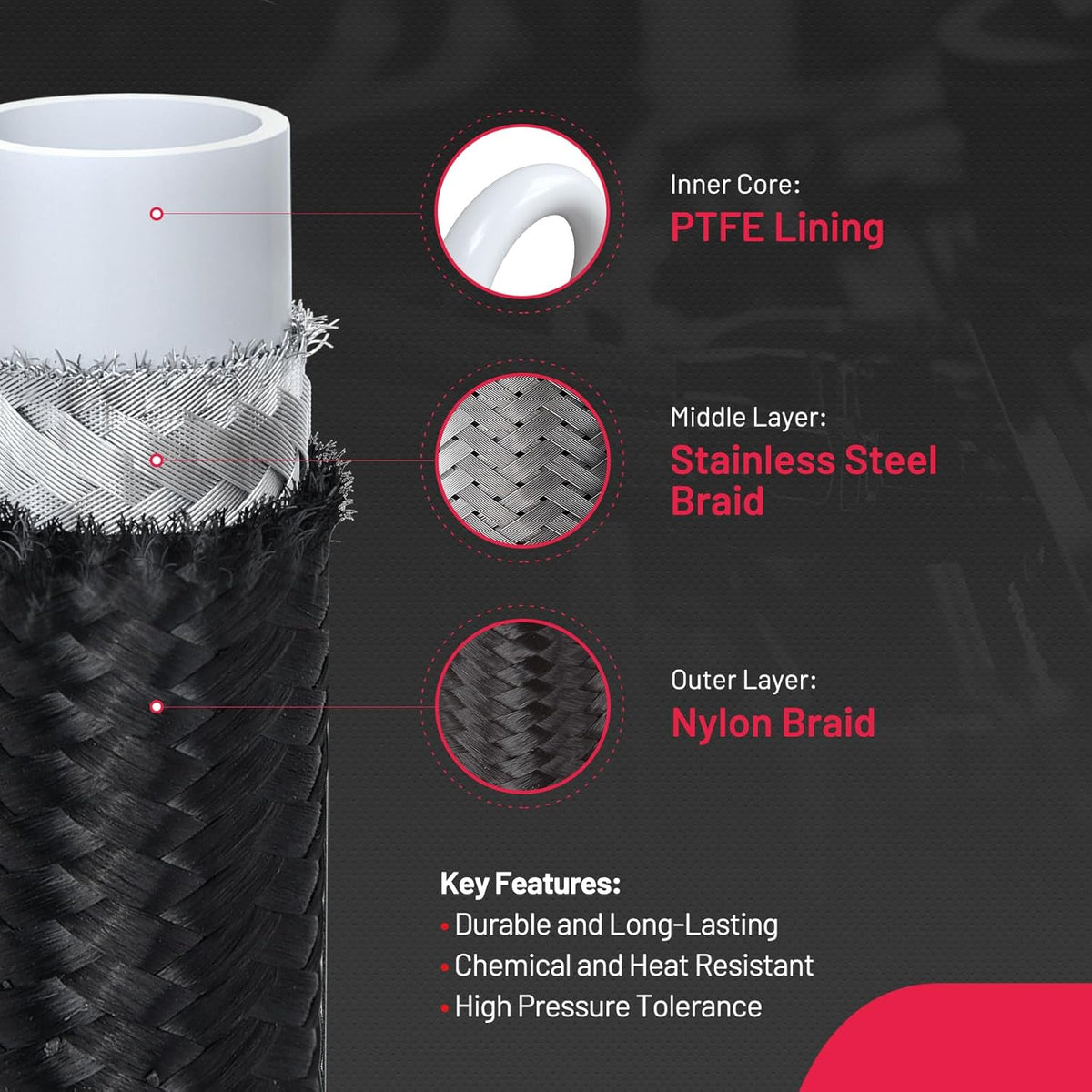

• Hose construction: PTFE inner liner with stainless steel braid reinforcement and a black nylon outer braid.
• AN6 connection: The included swivel hose ends use 9/16-18 UNF AN6 connections. Confirm the thread, AN flare seat, and adapter requirements at every component.

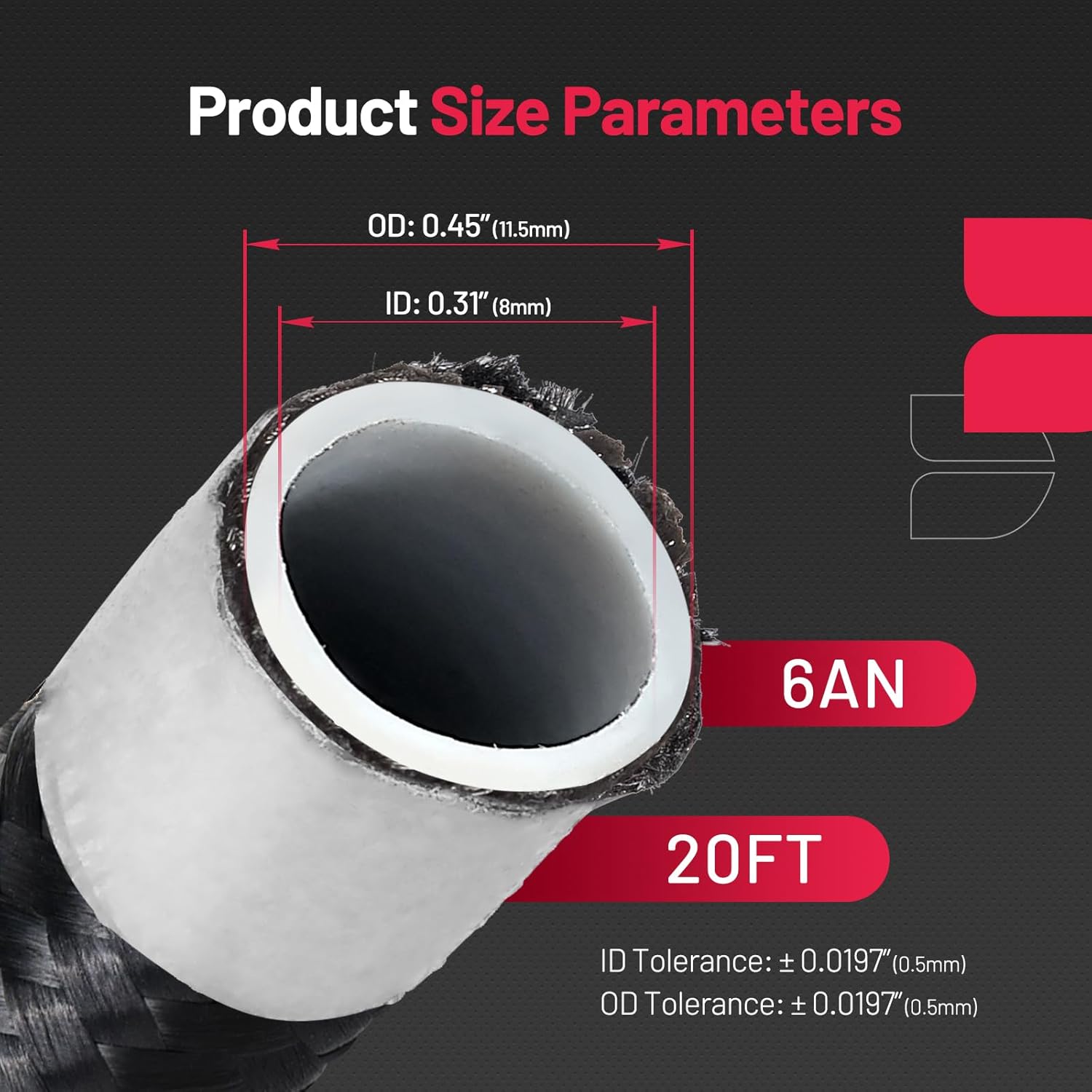

• Actual hose dimensions: The hose has a 21/64 inch (0.328 inch) inner diameter and a 15/32 inch (0.468 inch) outer diameter. The AN6 designation identifies the connection size, not a guaranteed hose passage across every construction.
• PTFE-specific fittings: Assemble this hose only with hose ends designed for compatible AN6 PTFE hose. CPE, rubber, and PTFE hose ends should not be treated as interchangeable.
• Routing options: The kit includes four straight, two 45-degree, two 90-degree, and two 180-degree hose ends for different component positions and line directions.

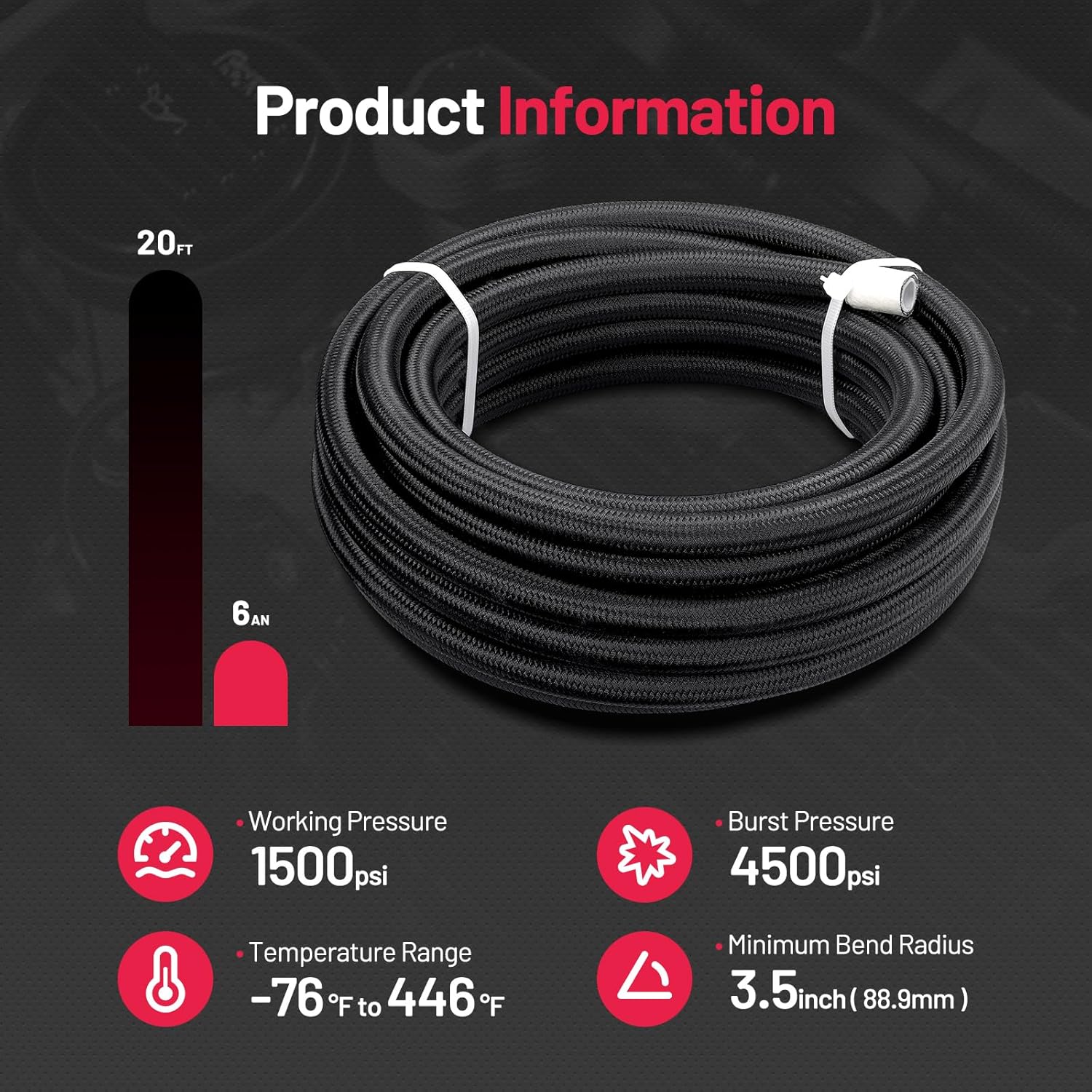

Key Specifications

• Hose size: AN6
• Hose length: 20FT (6 m)
• Inner diameter: 21/64 inch (0.328 inch)
• Outer diameter: 15/32 inch (0.468 inch)
• Connection specification: 9/16-18 UNF (AN6)
• Working pressure: 1500 PSI
• Burst pressure: 4500 PSI
• Temperature range: -76°F to 446°F (-60°C to 230°C)
• Minimum bend radius: 88.9 mm

Fuel and Fluid Compatibility

• The PTFE liner is listed for E85, ethanol blends, gasoline, diesel, and compatible automotive fuel-system applications.
• Selected lubricants and coolants may be suitable only when the fluid formulation, temperature, pressure, seals, and every connected component are confirmed.
• Do not assume that E85-compatible hose makes the entire system E85-compatible. Pumps, filters, regulators, O-rings, injectors, fittings, and tank components must also support the fuel.
• The complete line is limited by the lowest-rated hose end, adapter, seal, and connected component in the system.

Before You Order

• This braided fuel line kit is not vehicle-specific. Confirm each pump, filter, regulator, fuel rail, tank, cooler, and adapter separately.
• Verify that the AN6 connection size, 21/64 inch (0.328 inch) ID, 15/32 inch (0.468 inch) OD, 20FT length, and included fitting angles match the required flow and routing layout.
• Use 1500 PSI as the stated working-pressure rating. The 4500 PSI burst value is not the recommended continuous operating pressure.
• PTFE hose is less flexible than many CPE or rubber hoses. Plan the route before cutting and maintain at least the specified 88.9 mm bend radius.
• This hose is designed for external fuel and fluid routing. It is not intended for in-tank or marine applications. For these uses, choose a hose specifically rated as submersible or marine-grade.

Installation and Leak-Check Notes

• Relieve system pressure and work away from ignition sources before disconnecting or assembling fuel lines.
• Wrap the cut area, cut the braided hose squarely with a suitable tool, remove debris, and inspect the PTFE liner before installing each hose end.
• Do not apply thread sealant to an AN flare sealing surface. Inspect every flare seat for scratches, contamination, or misalignment.
• Avoid kinks, folding, twisting, side load, exhaust heat, sharp edges, steering components, suspension travel, belts, and fans.
• Support long runs with appropriate clamps. Do not use the hose to support pumps, filters, regulators, or other components.
• Prime and pressure-test the completed system before starting the engine. Inspect every connection for seepage and recheck after the first heat cycle.

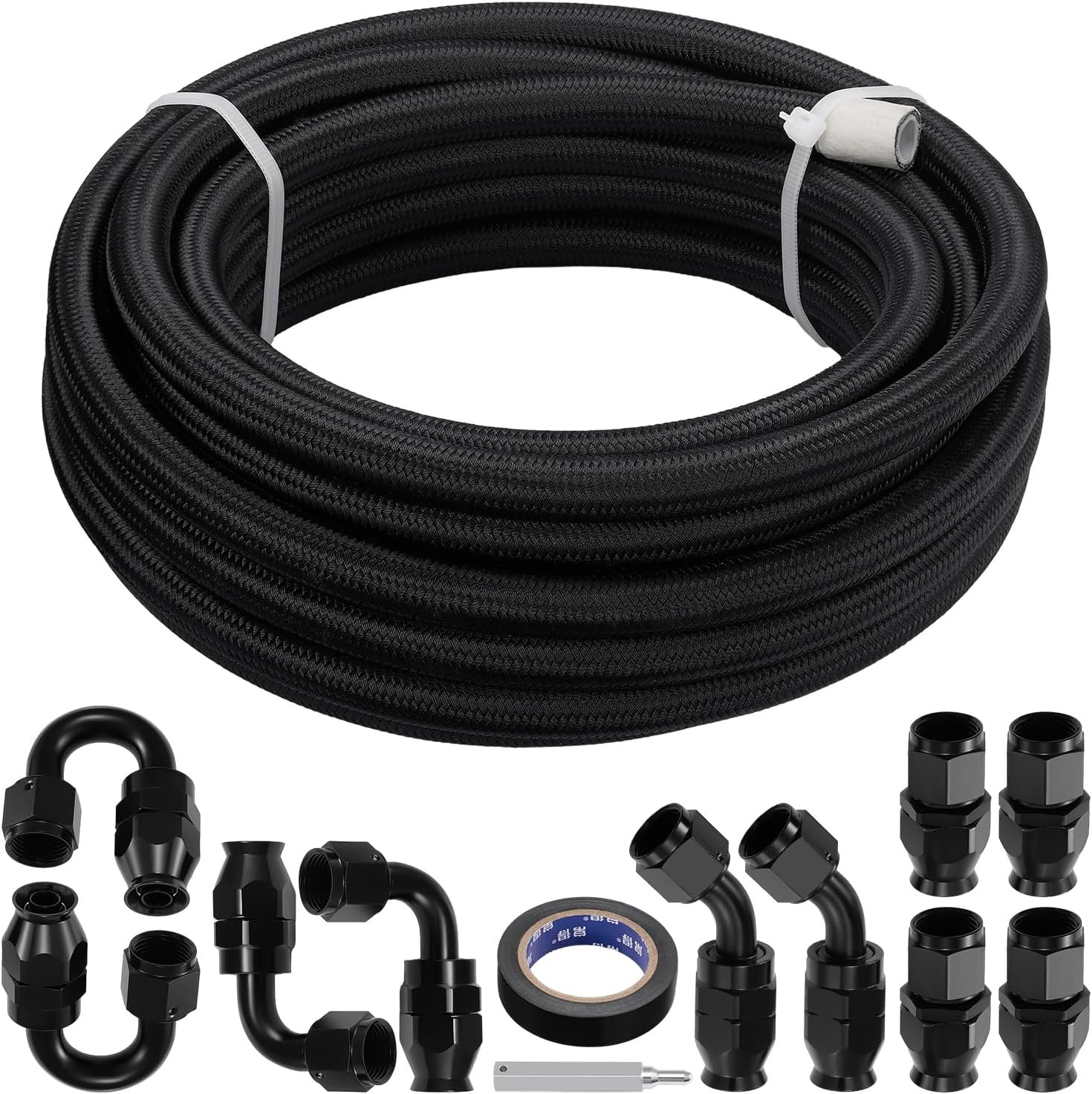

Package Contents

• 1 × 20FT AN6 PTFE braided hose
• 4 × AN6 straight swivel hose ends
• 2 × AN6 45-degree swivel hose ends
• 2 × AN6 90-degree swivel hose ends
• 2 × AN6 180-degree swivel hose ends
• 1 × insulation tape
• 1 × installation tool

Critical note: Confirm hose material, actual dimensions, AN connection size, pressure, fuel compatibility, fitting angles, adapter requirements, and installation clearance before ordering.
