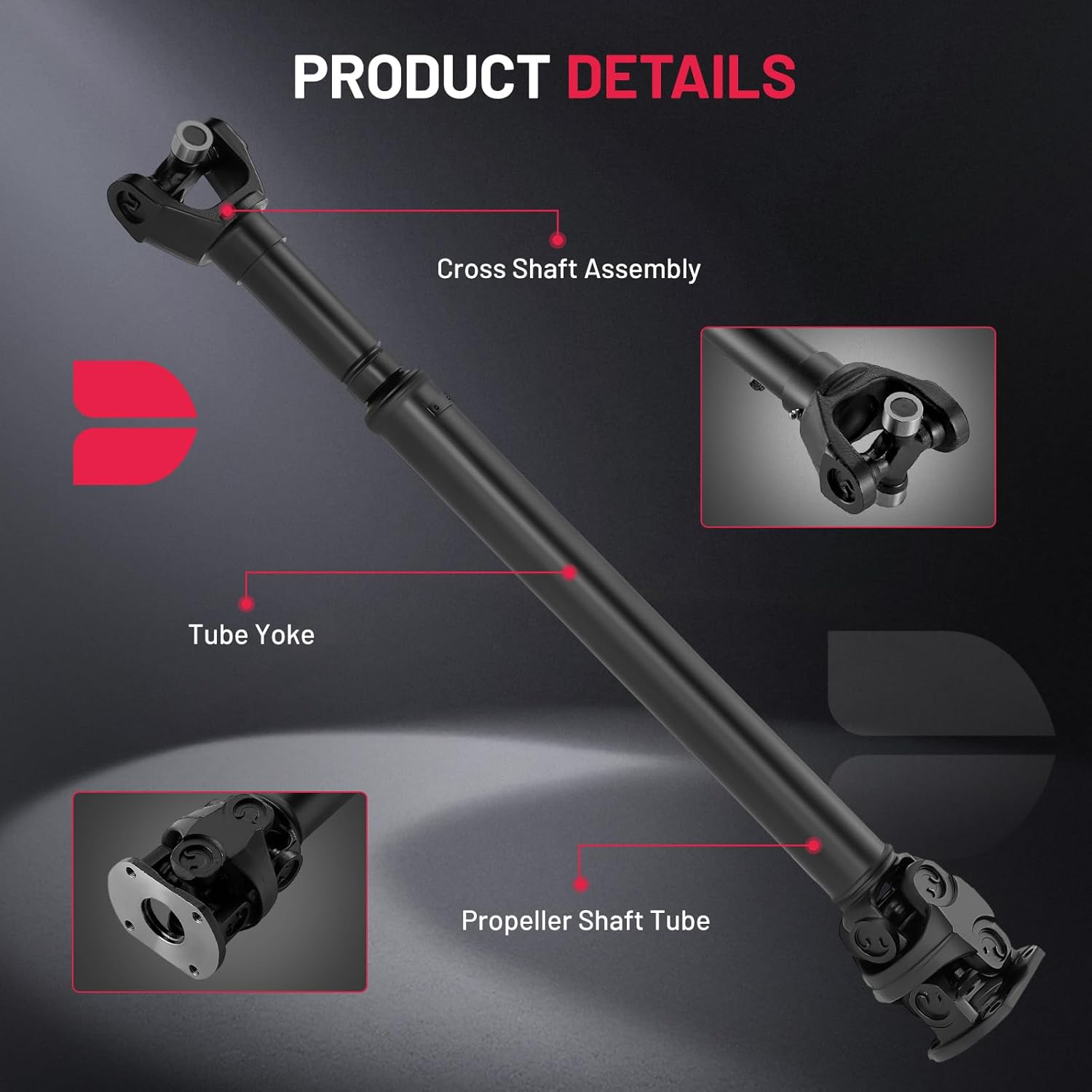

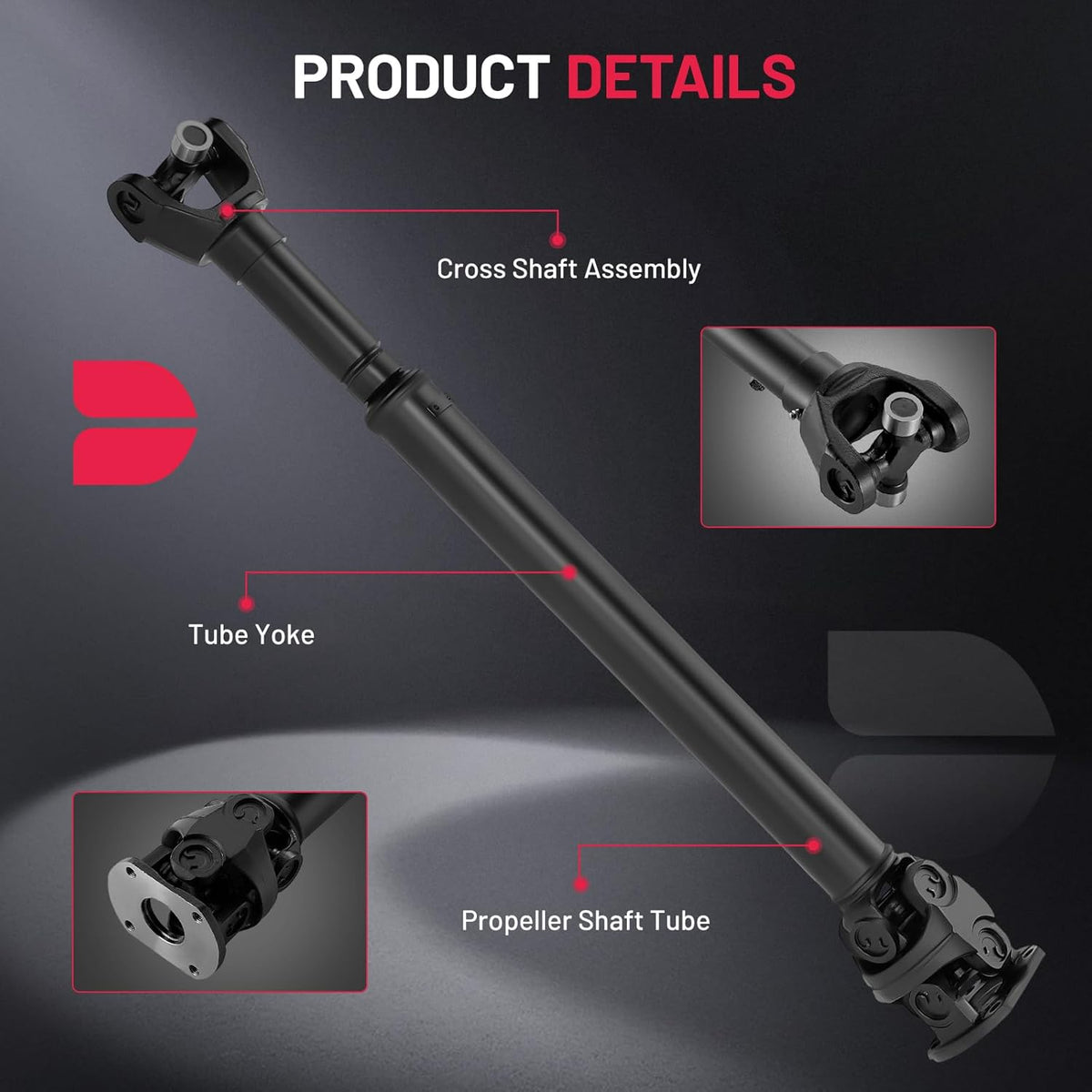

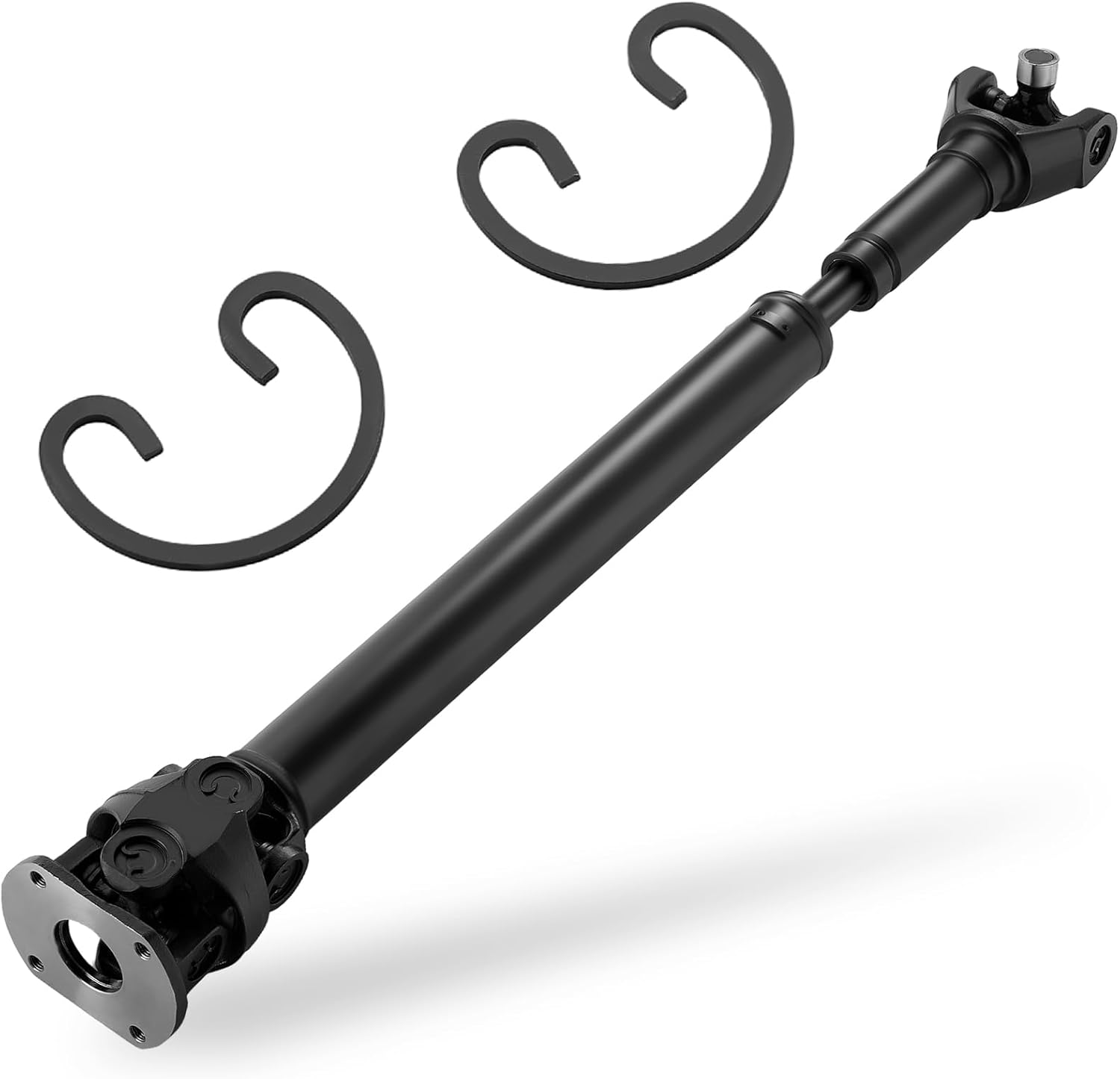

Front Driveshaft Assembly for 2003-2010 Ford F-250 Super Duty F-350 Super Duty 6.0L 6.4L V8 4WD Automatic Replace 5C344A376DA | BDFHYK

Ford Super Duty Front Drive Shaft 5C344A376DA FAQs

Q: Why does my F-250 or F-350 vibrate mainly when 4WD is engaged?

A: Super Duty owner discussions commonly narrow 4WD-only vibration toward the loaded front driveline, but the front driveshaft is not the only possible source. Inspect the shaft and joints together with transfer-case output, front axle components, hubs and wheels/tires.

Q: Can a clink, clunk or ticking sound under the truck come from the front driveshaft?

A: Yes, a worn or binding joint can create noise, but axle U-joints, hubs, transfer-case components, mounts and other driveline clearances can sound similar. Locate the noise and inspect for abnormal play or binding before replacing the shaft.

Q: How do I tell a front driveshaft U-joint problem from a front axle U-joint or hub problem?

A: Check where the play, binding or noise occurs. The driveshaft joints are in the propeller-shaft path between the transfer case and front axle, while axle U-joints and hubs are at the wheel-end axle assemblies. A road test plus physical inspection is needed because symptoms can overlap.

Q: Can a U-joint be failing even if it does not feel very loose?

A: Yes. A joint can bind or become notchy before major free play appears. Inspect articulation, rust powder, seals and any abnormal stiffness according to the Ford service procedure.

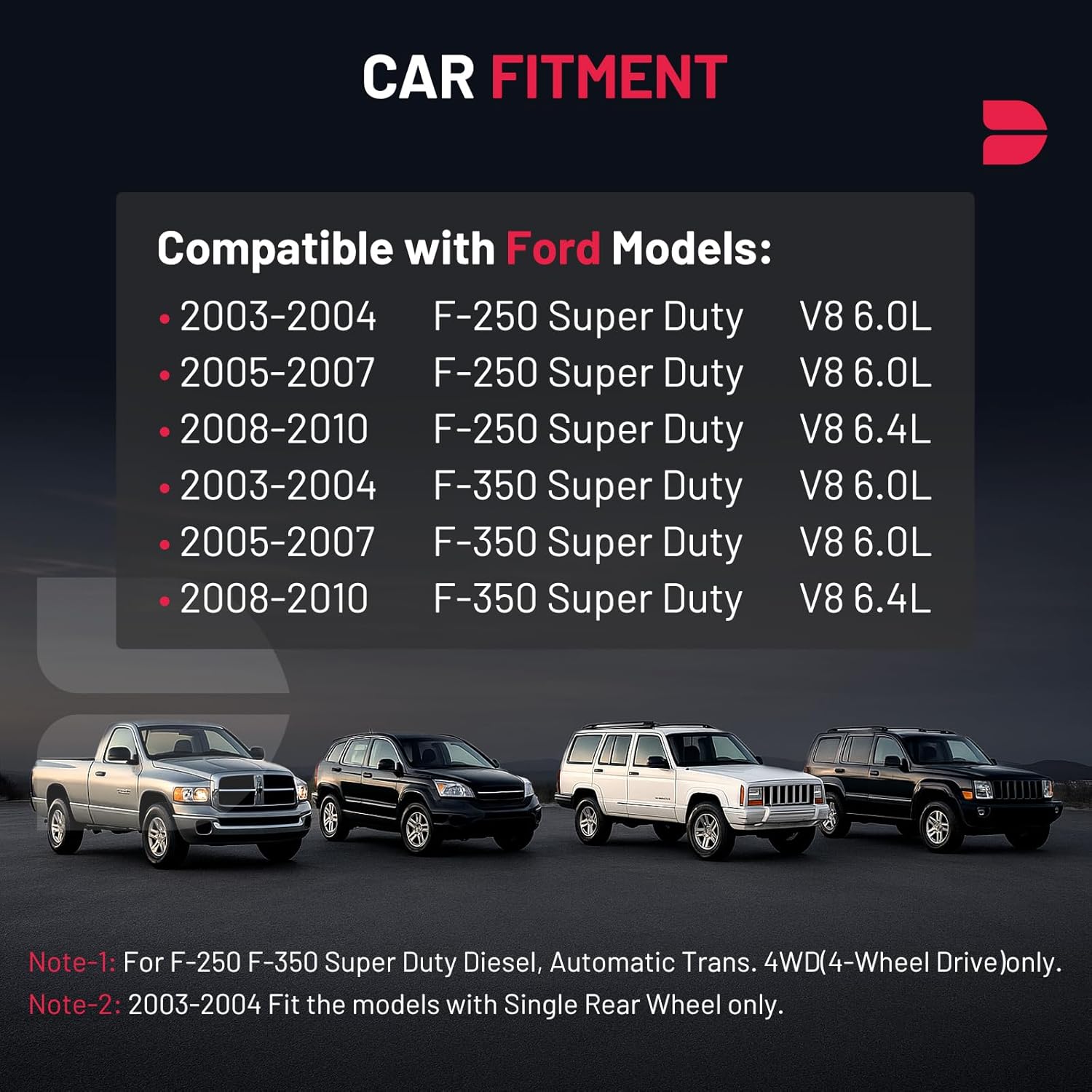

Q: Does 5C344A376DA fit every 2003-2010 F-250 or F-350?

A: Do not assume that. Confirm 4WD, automatic transmission, front position, exact vehicle configuration and the original OE/interchange number. Cross-reference catalogs can distinguish axle or body configurations even within the same model year.

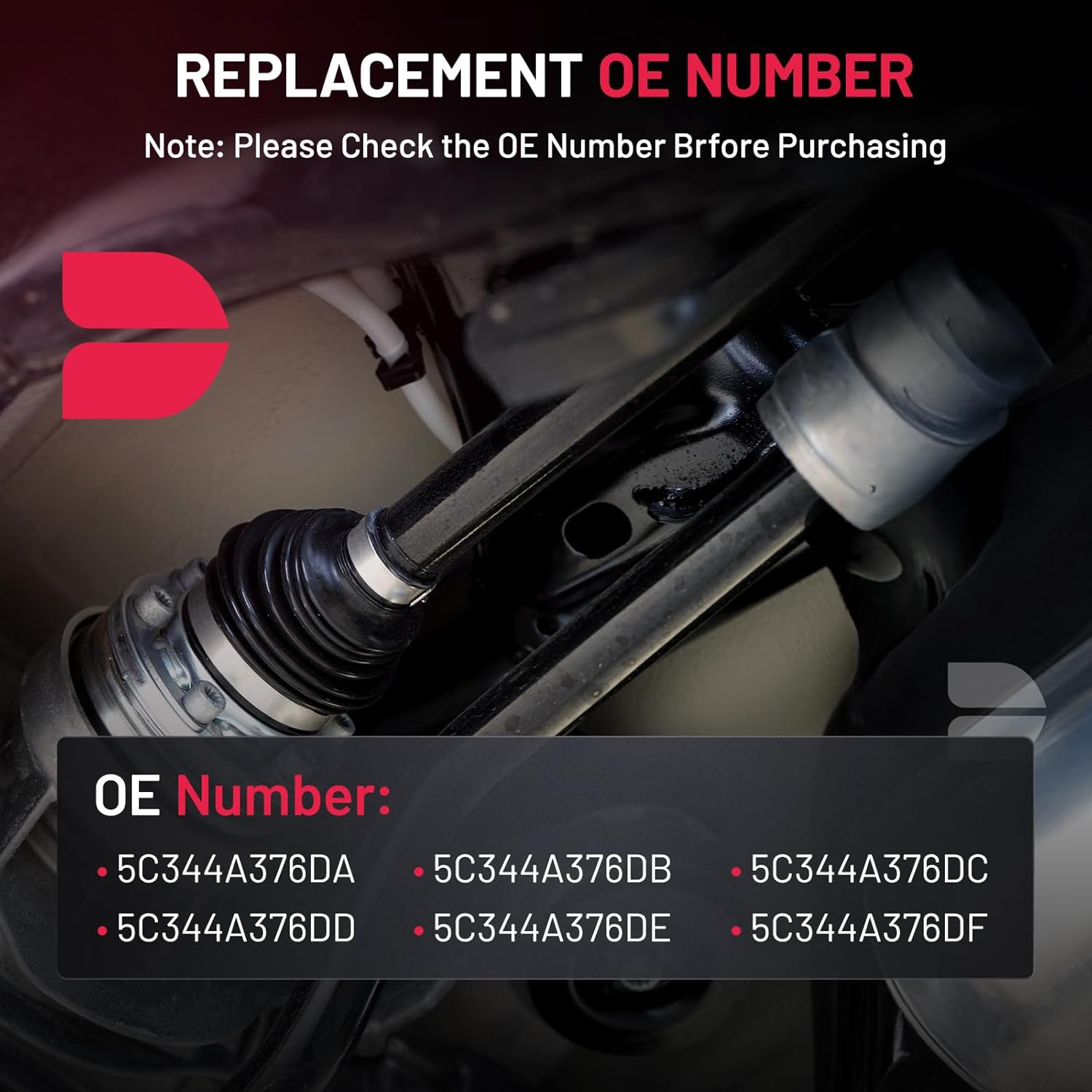

Q: Why are there several 5C344A376 suffixes in the interchange list?

A: DA, DB, DC, DD, DE and DF are OE/interchange suffixes used to identify related applications or revisions. Match the original number or verify through a VIN-based catalog rather than assuming every suffix fits every Super Duty configuration.

Q: Will this front drive shaft automatically fit a lifted Super Duty?

A: Not necessarily. Lift height changes operating angle and can increase joint loading or alter clearance. Verify the modified truck's driveline geometry before ordering.

Q: Is some movement at the slip area or joints normal?

A: There is no universal hand-feel amount that proves a shaft is good or bad. Check for abnormal rotational play, binding, damaged splines, joint wear and contact using the service procedure and compare with the removed shaft.

Q: What should I check if highway vibration remains after installing a new front driveshaft?

A: Recheck flange seating, fasteners, required orientation and joint movement, then inspect wheels/tires, front axle/hubs, mounts and transfer-case components. A balanced replacement shaft cannot correct vibration from another source.

Q: Can a lift-related operating-angle problem damage a new driveshaft or joint?

A: Excessive or mismatched operating angles can increase joint loading and vibration. The correct geometry depends on the exact suspension and driveline setup, so do not use a single universal angle limit as a fitment rule.

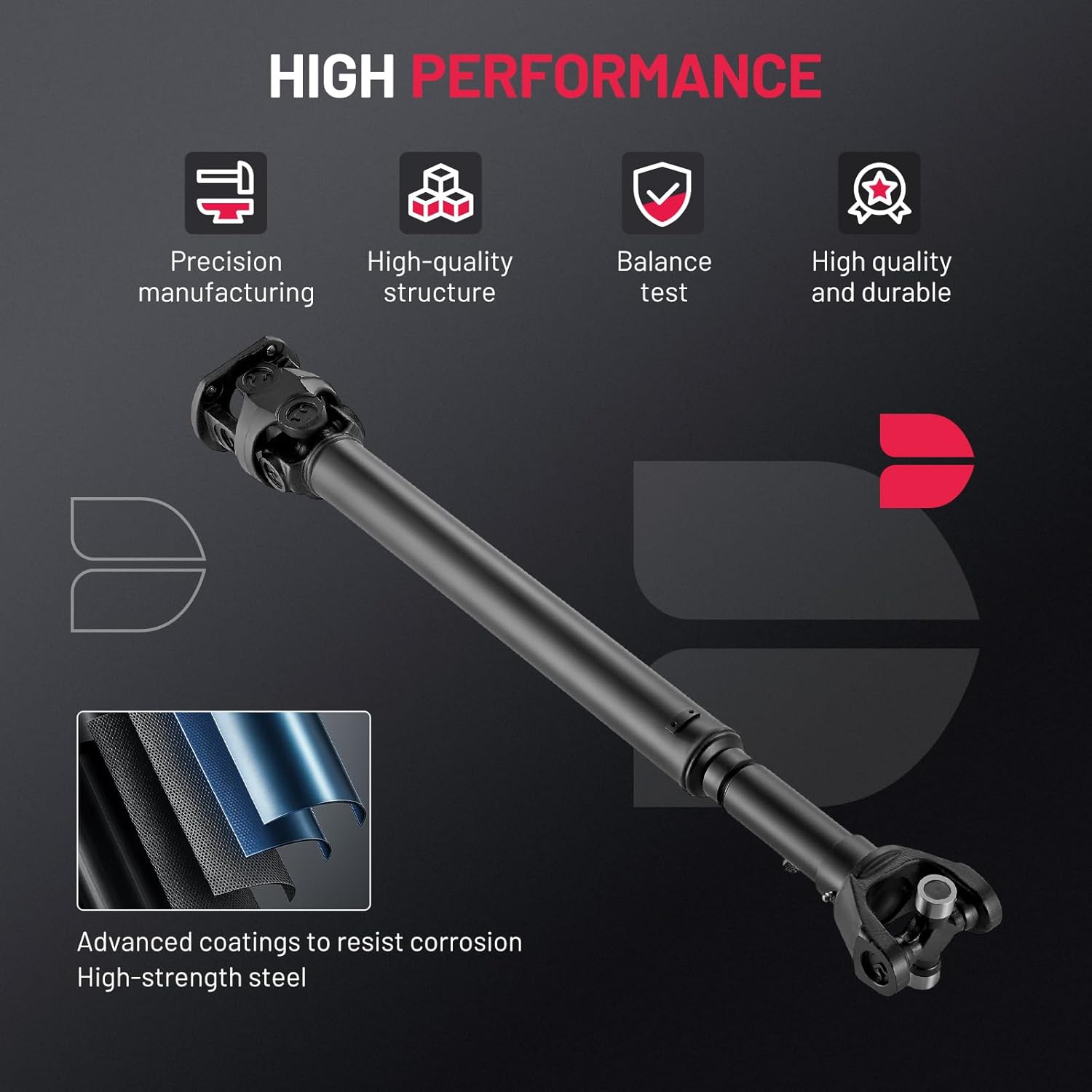

Q: Does high-speed dynamic balancing guarantee the truck will be vibration-free?

A: No. Dynamic balance addresses the shaft assembly itself. Installation, joint angle, wheel/tire balance, hubs, axle components, mounts and transfer-case issues can still cause vibration.

Q: Is this a genuine Ford factory driveshaft?

A: No. This is a BDFHYK aftermarket replacement driveshaft. Ford OE/interchange numbers are used only for application identification and fitment comparison.
