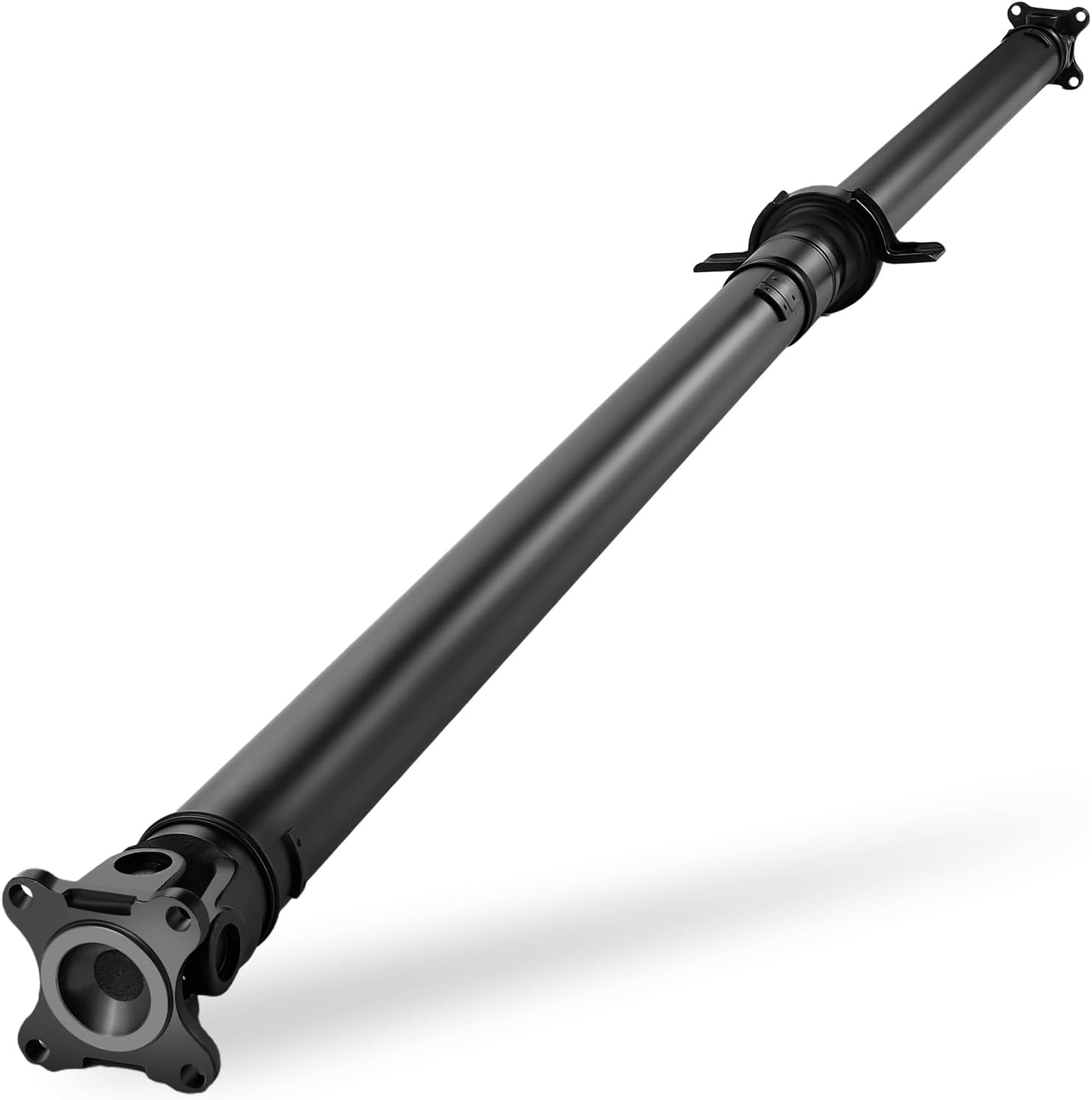

Rear Driveshaft Assembly for 2009-2015 Honda Pilot 3.5L V6 AWD Automatic Replace OE Reference | BDFHYK

Honda Pilot Rear Drive Shaft 936-024 FAQs

Q: Why does my Honda Pilot shudder or vibrate more under acceleration?

A: Load-related vibration can involve the rear propeller shaft or its joints and support areas, but CV axles, engine or transmission mounts, wheels and tires and other AWD driveline components can create similar symptoms. Confirm the source before replacing parts.

Q: Can noise or movement around the center support area cause a Pilot driveline vibration?

A: Yes. Wear or damage around a propeller-shaft support area can contribute to noise or vibration. Inspect the support, shaft tube, joints and nearby components for abnormal movement or damage rather than diagnosing from sound alone.

Q: Can a clunk when getting on or off the throttle come from the rear driveshaft?

A: It can if a joint, spline or driveline connection has abnormal play, but mounts, differential and other AWD driveline clearances can create a similar clunk. Locate the play before deciding on replacement.

Q: How do I tell a driveshaft vibration from a CV axle, wheel or mount problem?

A: Compare when the symptom occurs, whether it changes with load or vehicle speed, and physically inspect the shaft, joints, axles, mounts and wheel/tire assemblies. These faults can overlap, so symptom pattern alone is not enough.

Q: Will 936-024 fit every 2009-2015 Honda Pilot?

A: Do not assume that. The current BDFHYK listing is for 2009-2015 Honda Pilot 3.5L V6 AWD automatic applications in the rear position. Confirm the OE/interchange reference and original shaft before ordering.

Q: Which OE or interchange numbers should I compare?

A: Compare 936-024, 40100-SZA-A01 and 40100-SZA-A02, including the equivalent no-hyphen formats, with the original part or a reliable VIN-based catalog.

Q: Is this driveshaft for the front or rear of the Honda Pilot?

A: This SKU is listed for the rear driveshaft position. Do not substitute front driveline or CV axle fitment for this rear propeller-shaft application.

Q: Are numeric length and spline specifications available for this SKU?

A: The current product data lists weld-to-weld, compressed and extended length and spline count as OE matched but does not provide numeric values. Compare the removed shaft and OE/interchange references rather than guessing from another catalog's measurement.

Q: What should I check before installing the replacement rear driveshaft?

A: Compare the replacement with the removed shaft, including rear position, length method, connection points and OE references. Check adjacent joints and supports and follow the Honda service procedure for fastener tightening and required orientation.

Q: What if the Pilot still vibrates after the driveshaft is replaced?

A: Recheck installation and shaft seating, then inspect CV axles, mounts, wheels and tires, support components and other AWD driveline parts. A replacement shaft cannot correct vibration caused elsewhere.

Q: Does high-speed dynamic balancing guarantee that the Pilot will be vibration-free?

A: No. Dynamic balancing addresses the driveshaft assembly itself. Installation, joint wear, mounts, axles, wheel and tire imbalance and other drivetrain conditions can still create vibration.

Q: Is this a genuine Honda OEM driveshaft?

A: No. This is a BDFHYK aftermarket replacement driveshaft. Honda OE/interchange numbers are provided only for application identification and fitment comparison.
