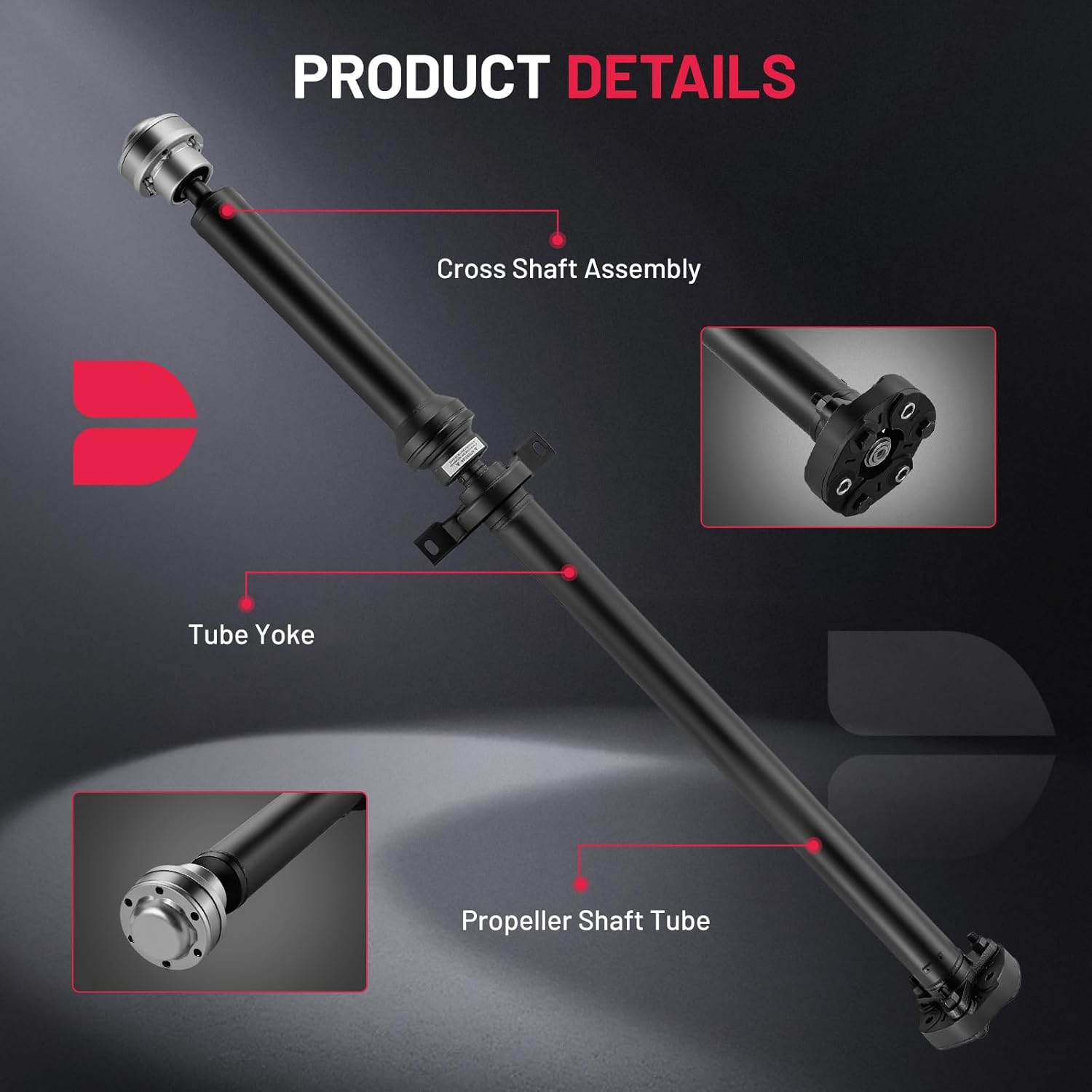

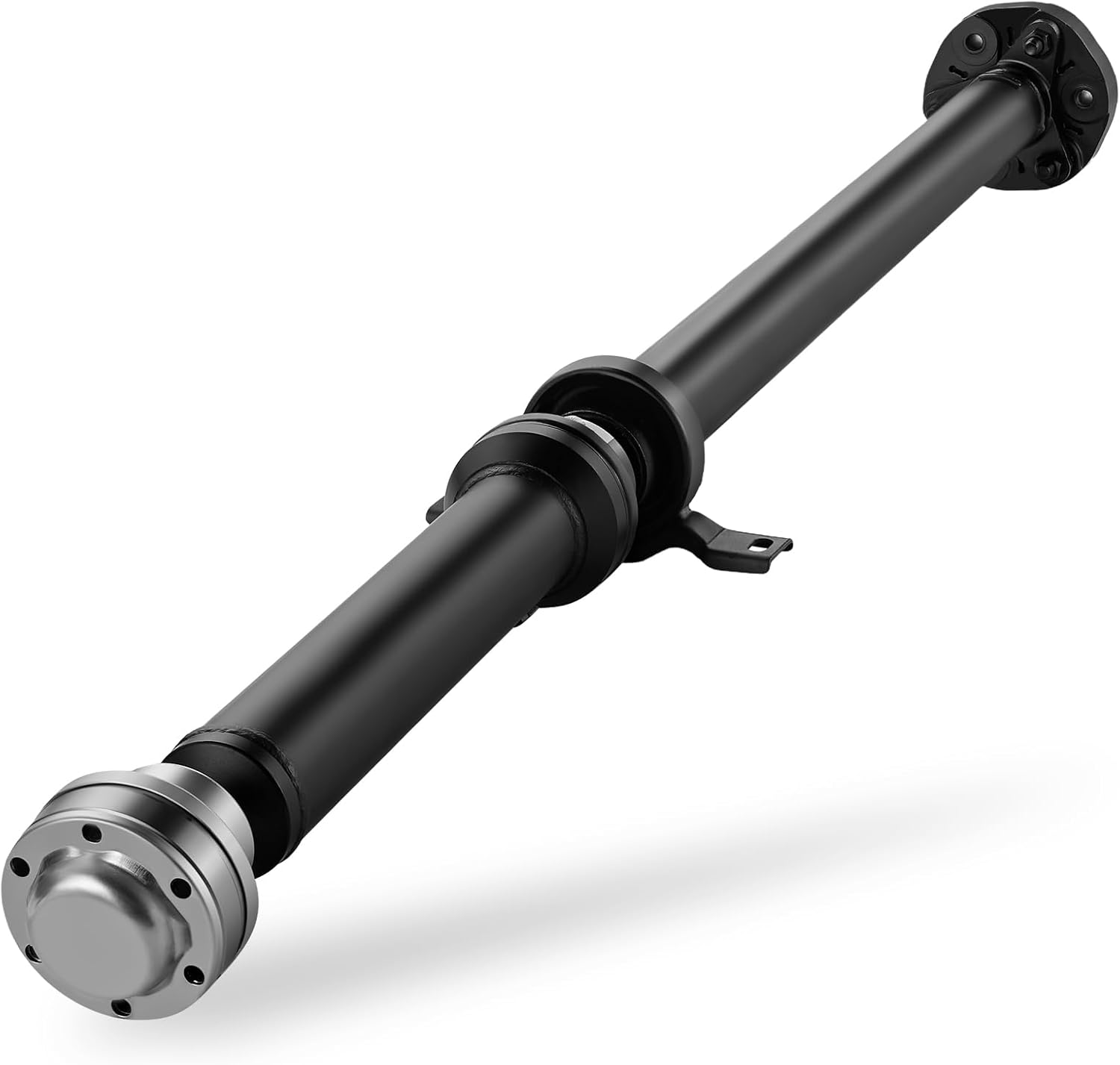

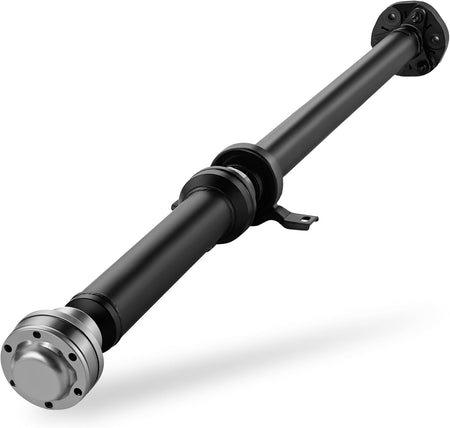

Rear Driveshaft Assembly for 2008-2014 Cadillac CTS 2.0L 3.0L 3.6L 6.2L AWD Automatic Replace 976-426, 22819507 | BDFHYK

Cadillac CTS AWD Rear Drive Shaft 976-426 FAQs

Q: Can a broken center support bearing make a CTS AWD thump or shudder under the floor?

A: Yes. CTS owner discussions describe underbody thumping and shudder when the driveline support is damaged. Still inspect the shaft joints, couplers, differential mounts and other driveline components because the same area can transmit noise from several sources.

Q: What if the center support feels tight but the car still shudders on acceleration or in turns?

A: A support that does not feel loose by hand does not rule out other causes. Inspect joints, flex couplers where equipped, differential/mount bushings, shaft alignment and wheel/tire condition before replacing another driveshaft.

Q: Can a clunk when selecting Drive or Reverse come from the rear drive shaft?

A: It can, but on-off-load clunks can also come from worn mounts, differential bushings, couplers or driveline lash. Check movement at the shaft and its mating components while following safe service procedures.

Q: Why does my CTS vibrate mainly at highway speed?

A: A narrow-speed vibration can come from shaft balance or alignment, but wheel/tire imbalance, support alignment, joints, couplers and other rotating parts can create the same symptom. Diagnose by speed/load pattern and physical inspection.

Q: Why is driveshaft orientation important during removal and installation?

A: GM service information for the 22819507 propeller-shaft application calls for marking the relationship of the driveshaft couplers to the differential pinion yoke and transmission so the relationship can be restored during reinstallation. Follow the exact vehicle service procedure.

Q: What should I check if vibration remains after installing a replacement driveshaft?

A: Recheck coupler/flange orientation, shaft seating, support alignment and fasteners, then inspect flex couplers where equipped, differential/transmission mounts and wheel/tire condition. A balanced shaft cannot correct an unrelated vibration source.

Q: Can a cracked flex disc or coupler feel like a bad driveshaft?

A: Yes, where the vehicle is equipped with flexible couplers, cracking, deformation or looseness can create clunking or vibration. Inspect the couplers during driveshaft diagnosis; do not assume they are included with this BDFHYK assembly unless the exact package listing says so.

Q: Does 976-426 fit every 2008-2014 Cadillac CTS?

A: No. Cross-reference catalogs specify AWD with automatic transmission, and for 2014 they identify Coupe and Wagon applications. Verify the exact body style, drivetrain and OE/interchange number before ordering.

Q: Can I choose 976-426 by engine size alone?

A: No. Engine listings vary between catalogs and are not a sufficient fitment key by themselves. Use AWD, automatic transmission, year/body style and OE/interchange references such as 976-426 or 22819507 to confirm the application.

Q: What do the 976-426 and 22819507 numbers tell me?

A: They are interchange/reference numbers used to compare the replacement with the original application. They should be checked together with vehicle configuration rather than treated as a guarantee based on one number alone.

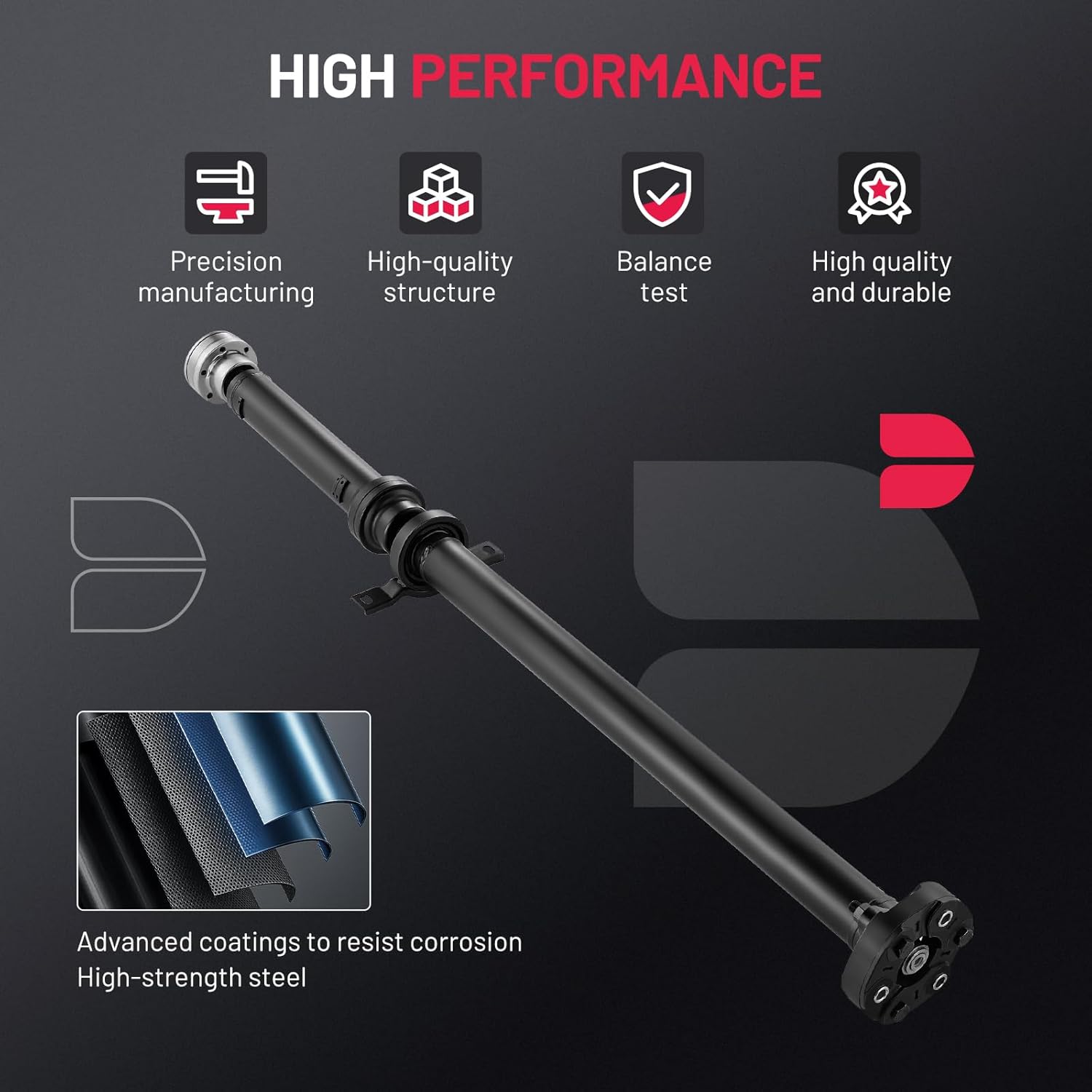

Q: Does high-speed dynamic balancing guarantee the new shaft will eliminate the vibration?

A: No. Dynamic balance applies to the shaft assembly. Installation orientation, support position, wheels/tires, couplers, mounts, differential components and other driveline faults can still cause vibration.

Q: Is this a genuine GM/Cadillac OEM driveshaft?

A: No. This is a BDFHYK aftermarket replacement driveshaft. GM/OE numbers are provided only for identification and fitment comparison.
