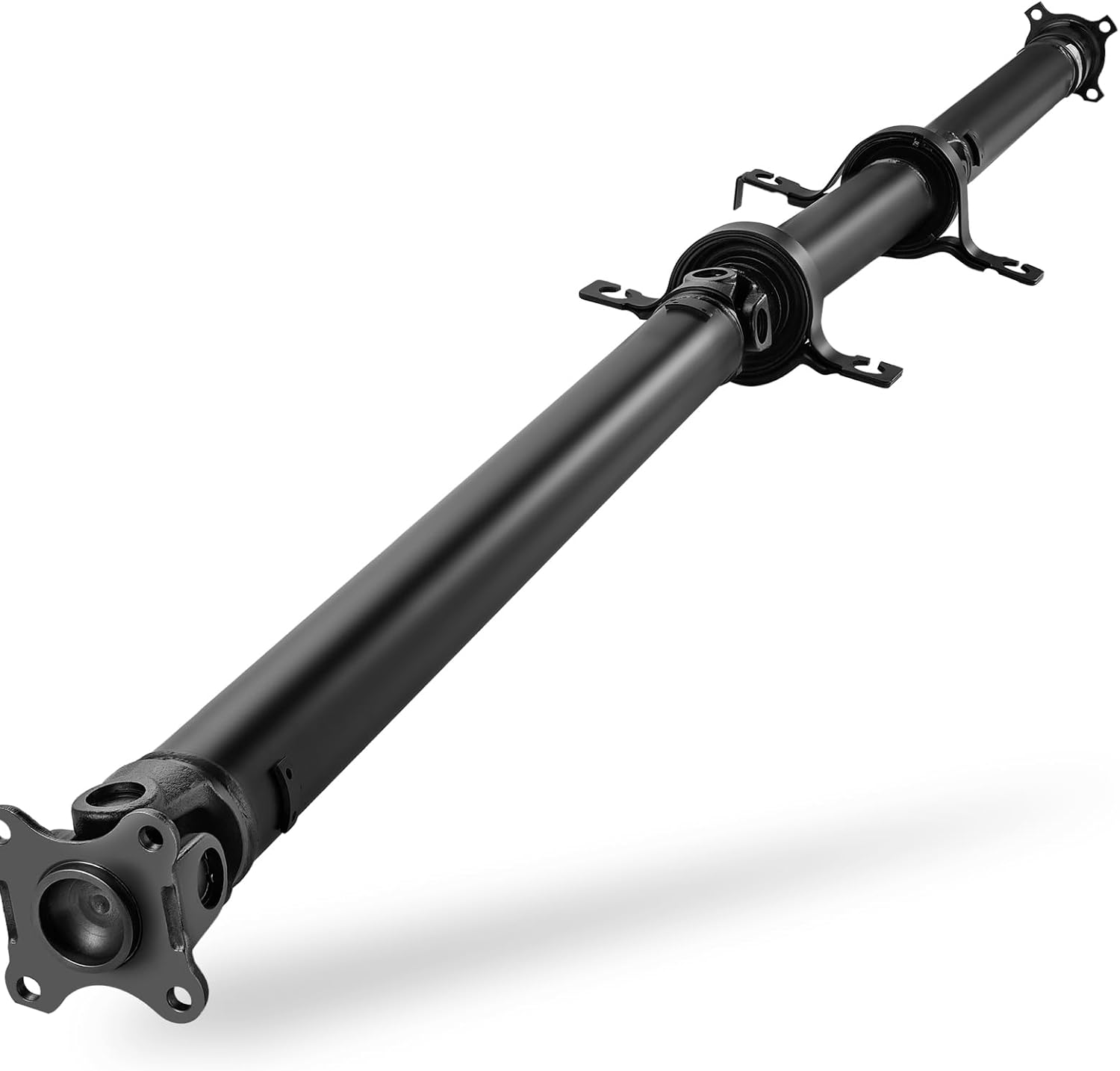

Rear drive shaft assembly for 2007-2014 Mazda CX-9 AWD applications

BDFHYK 976-780 Rear Drive Shaft Complete DriveShaft Assembly Compatible with Mazda 2007 CX-9 V6 3.5L, 2008-2014 CX-9 V6 3.7L, Sport Utility, AWD

$349.99

Product Detail

Type Drive Shaft Assembly
SKU BDDLZ-BD-05-03-00012BK-000-W
OE Number 976-780, KG03-25-100D-9U, KG03-25-100C, KG03-25-100D

⛟ Estimated Delivery: Calculating... · Ships by Calculating... · Free Shipping

Trust & Assurance

Free Shipping · 2–7 Business Days

12-Month Warranty

30-Day Return

Secured Payment

This BDFHYK rear drive shaft is listed for AWD Mazda CX-9 applications: 2007 models with the 3.5L V6 and 2008-2014 models with the 3.7L V6. Before ordering, confirm the exact model year, AWD drivetrain, rear position, original shaft configuration and the 976-780 / Mazda interchange references rather than relying on the CX-9 model name alone.

Mazda CX-9 Rear Driveshaft Fitment

2007 Mazda CX-9: 3.5L V6, AWD, rear position.
2008-2014 Mazda CX-9: 3.7L V6, AWD, rear position.

Product Specifications

Product Type	Complete Driveshaft Assembly
Position	Rear
Drive Type	AWD
Listed Shaft Length	83.2 in
Listed Shaft Diameter	2.5 in
Wall Thickness	0.083 in
Material	Steel
Balance	Dynamically Balanced
OE / Interchange References	976-780, KG03-25-100D-9U, KG03-25-100C, KG03-25-100D

What to Check Before Ordering

Match the exact model year and listed V6 engine.
Confirm AWD drivetrain and rear position.
Compare the 976-780 / KG03-25-100 series references with the original part.
Compare shaft length, end connections and the original multi-section layout before installation.

Driveline Symptoms and Diagnosis

Vibration, clunking or shudder can be associated with a driveshaft, joint or support-related problem, but similar symptoms may come from wheel and tire assemblies, mounts, differential components, transmission or transfer components, or other driveline parts. Inspect the system before replacement.

Installation Notes

Support the shaft during removal and installation and compare the new assembly with the removed unit before fitting. Preserve required orientation or phasing information and follow the vehicle manufacturer's service procedure and tightening specifications. This is an aftermarket replacement part.

Technical Specifications

Brand	BDFHYK
Product Type	Complete Driveshaft Assembly
Position	Rear
Drive Type	AWD
Listed Vehicle Fitment	2007-2014 Mazda CX-9
Engine Applications	2007: 3.5L V6; 2008-2014: 3.7L V6
Listed Shaft Length	83.2 in
Listed Shaft Diameter	2.5 in
Wall Thickness	0.083 in
Shaft Material	Steel
Balance Method	Dynamically Balanced
OE / Interchange References	976-780, KG03-25-100D-9U, KG03-25-100C, KG03-25-100D
Includes	1 Driveshaft Assembly
Important Note	Confirm model year, listed engine, AWD drivetrain, rear position, OE/interchange references and original shaft configuration before ordering.

Mazda CX-9 Rear Drive Shaft FAQs

Q: Will this rear drive shaft fit my Mazda CX-9?

A: The listed fitment is 2007-2014 Mazda CX-9 AWD in the rear position, with engine coverage split by model year.

Q: Which engine is listed for the 2007 CX-9?

A: The current product data lists the 3.5L V6 for the 2007 Mazda CX-9 application.

Q: Which engine is listed for 2008-2014 CX-9 models?

A: The current product data lists the 3.7L V6 for 2008-2014 Mazda CX-9 applications.

Q: Is this driveshaft for AWD applications?

A: Yes. The listed CX-9 fitment is AWD.

Q: Is this a front or rear driveshaft?

A: This product is listed for the rear position.

Q: Which OE or interchange numbers should I compare?

A: Compare 976-780, KG03-25-100D-9U, KG03-25-100C and KG03-25-100D with the original part or a reliable catalog.

Q: What material and dimensions are listed?

A: The current listing states steel construction, an 83.2-inch shaft length, a 2.5-inch shaft diameter and a 0.083-inch wall thickness.

Q: Is the driveshaft dynamically balanced?

A: Yes. The current product data states that the assembly is dynamically balanced. A specific balance RPM is not published.

Q: What should I compare before ordering?

A: Confirm model year, listed engine, AWD drivetrain, rear position, OE/interchange references and the original shaft's length and connection layout.

Q: Can vibration or clunking prove that the driveshaft is bad?

A: No. Similar symptoms can come from joints, supports, wheel and tire assemblies, mounts, transmission or transfer components, differential components and other driveline parts.

Q: What should I check before installation?

A: Compare the replacement with the removed shaft, including overall layout, length and connection points, then follow the vehicle manufacturer's service procedure.

Q: Is this a genuine Mazda OEM driveshaft?

A: No. This is a BDFHYK aftermarket replacement driveshaft. OE/interchange references are provided for identification and fitment comparison.
