BDFHYK 19.7 in Heavy-Duty Universal Gas Spring Lift Support
If an existing lift support no longer holds a heavy-duty tonneau cover, RV access panel, bench box lid, floor hatch, or similar larger lift-up panel securely open, replacement should be selected by specifications rather than appearance alone. This BDFHYK universal gas spring is listed at 150 lb / 667 N. Before ordering, compare the original support's extended length, compressed clearance, force rating, end fittings, mounting geometry, and quantity.

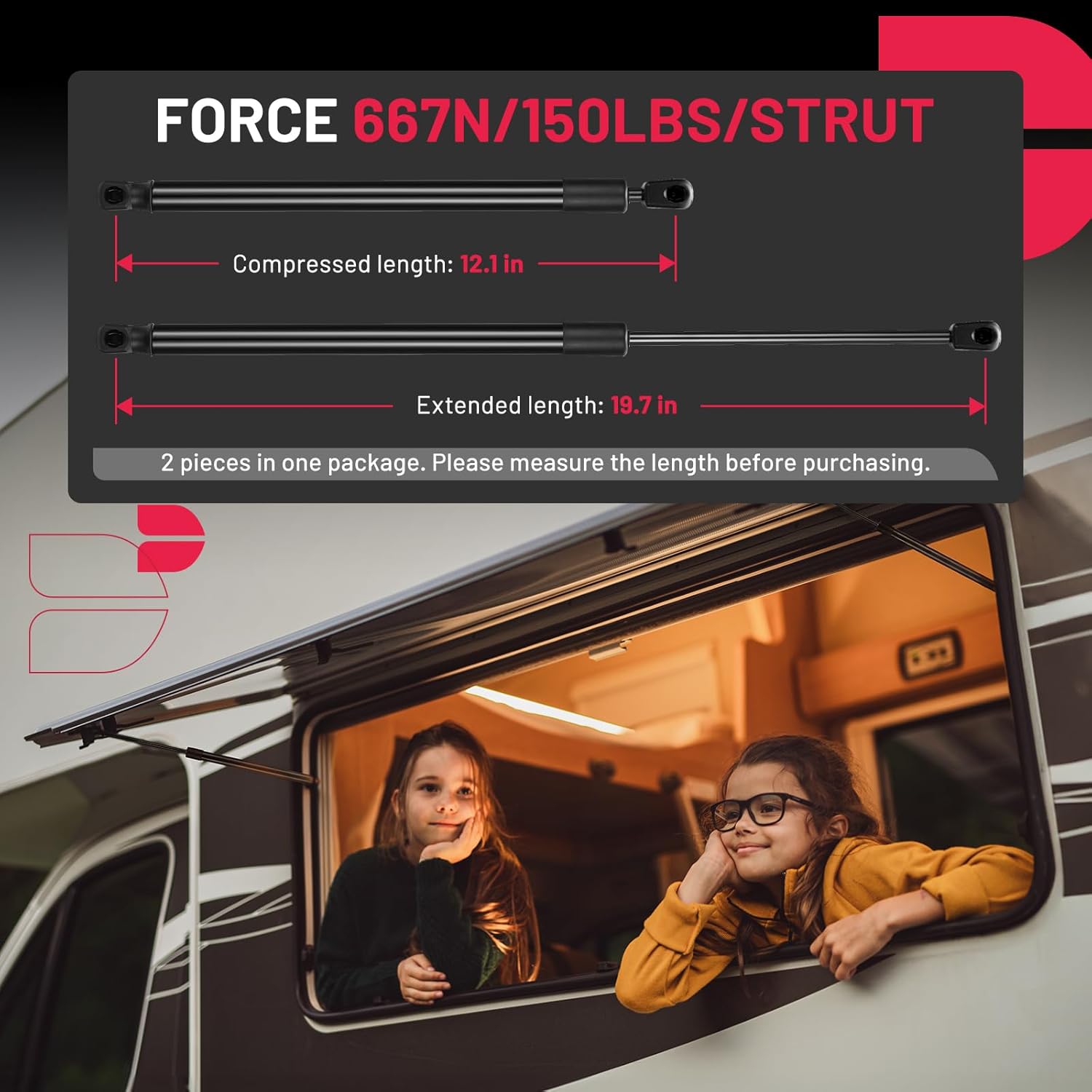

Key Specifications
| Product Type | Heavy-Duty Universal Gas Spring / Lift Support |
|---|---|
| Fitment Type | Universal / specification-based |
| Extended Length | 19.7 in |
| Force Rating | 150 lb / 667 N |
| Package Quantity | 2 PCS |
Force note: 150 lb / 667 N is the listed gas-spring force rating, not a universal panel-weight capacity. Required force depends on panel weight, hinge position, mounting points, opening angle, and the number of supports.
Common Applications
Heavy-duty tonneau cover; truck camper or RV access panel; bench box lid; storage box; floor hatch; trap door or large access panel.
These are application examples, not direct vehicle fitment. Similar covers and panels can require different gas springs depending on dimensions, force, end fittings, mounting points, panel weight, and geometry.
How to Select the Correct Gas Spring
- Match the existing support's extended length.
- Confirm sufficient compressed clearance through full travel.
- Match the required force rating; stronger is not automatically better.

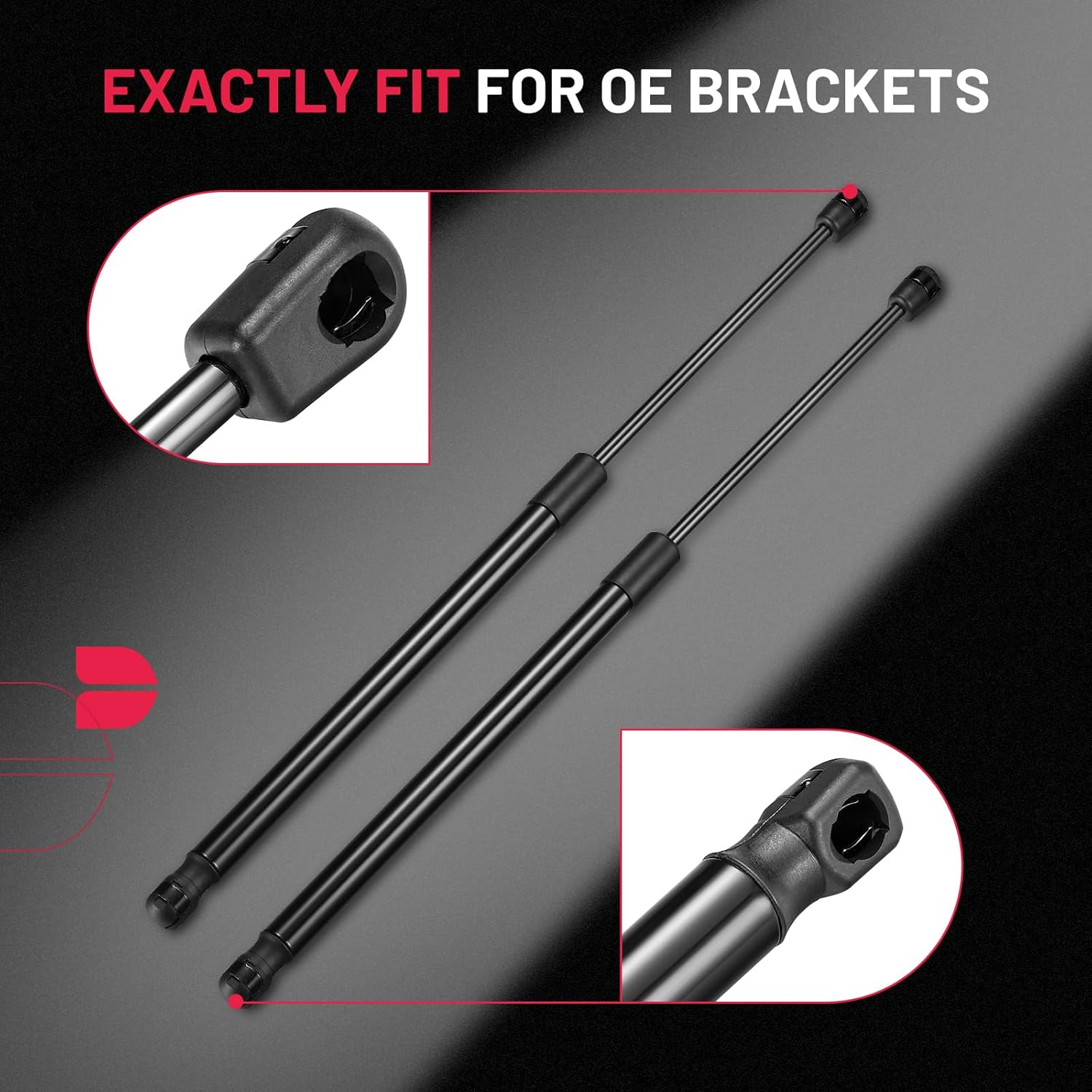

- Check both end fittings and mounting geometry.
- Confirm the number of supports used before comparing total support force.
Listed Reference / Interchange Numbers
C16-17566.
Reference numbers are comparison starting points. Actual dimensions, force, end fittings, mounting geometry, and quantity take priority.

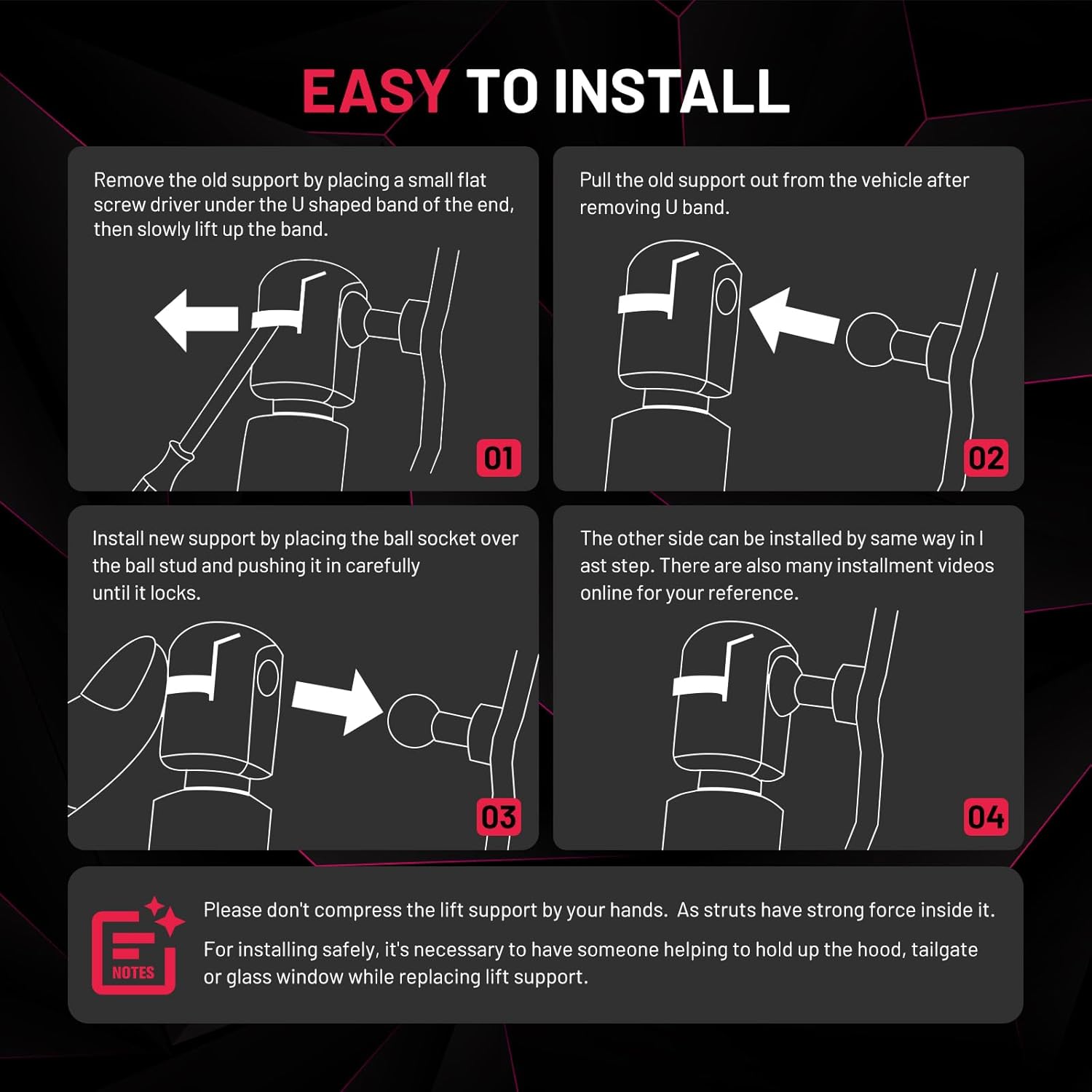

Installation & Safety Notes
- Securely support the panel before removal.
- Do not clamp, scratch, bend, heat, puncture, cut, weld, or open the pressurized gas spring.
- Protect the piston rod from damage and contamination.
- Inspect brackets, ball studs, hinges, and mounting points.
- Do not force the panel closed if the support binds or reaches the end of travel.
- Verify orientation and mounting geometry against the original installation.
