BDFHYK E3817M fuel pump module for 2009 Silverado Sierra 1500

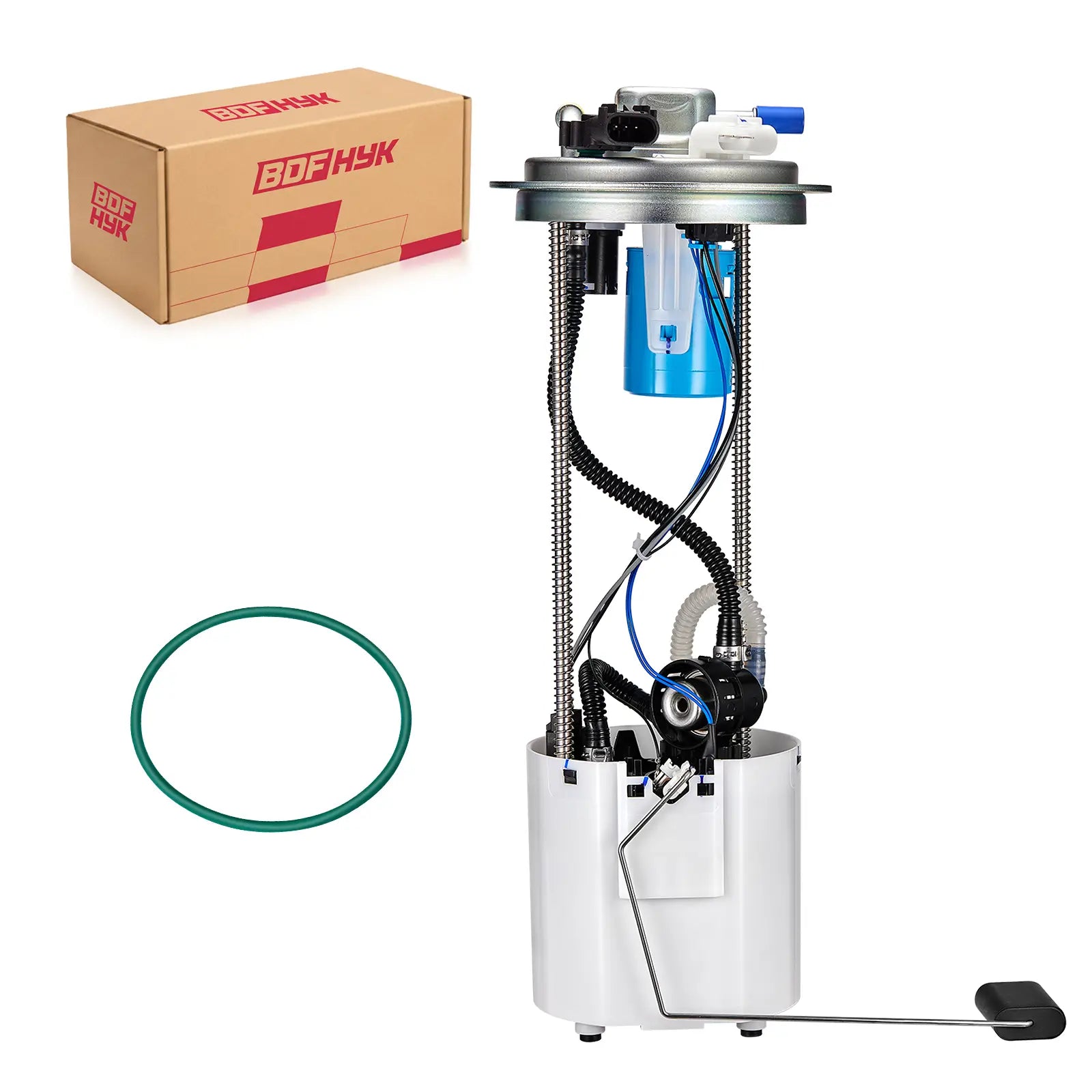

E3817M complete pump sender reservoir and float-arm assembly

E3817M connector fuel outlet pressure sensor and flange details

E3817M 2009 Silverado Sierra engine and body fitment reference

E3817M electrical connector and fuel-line connection details

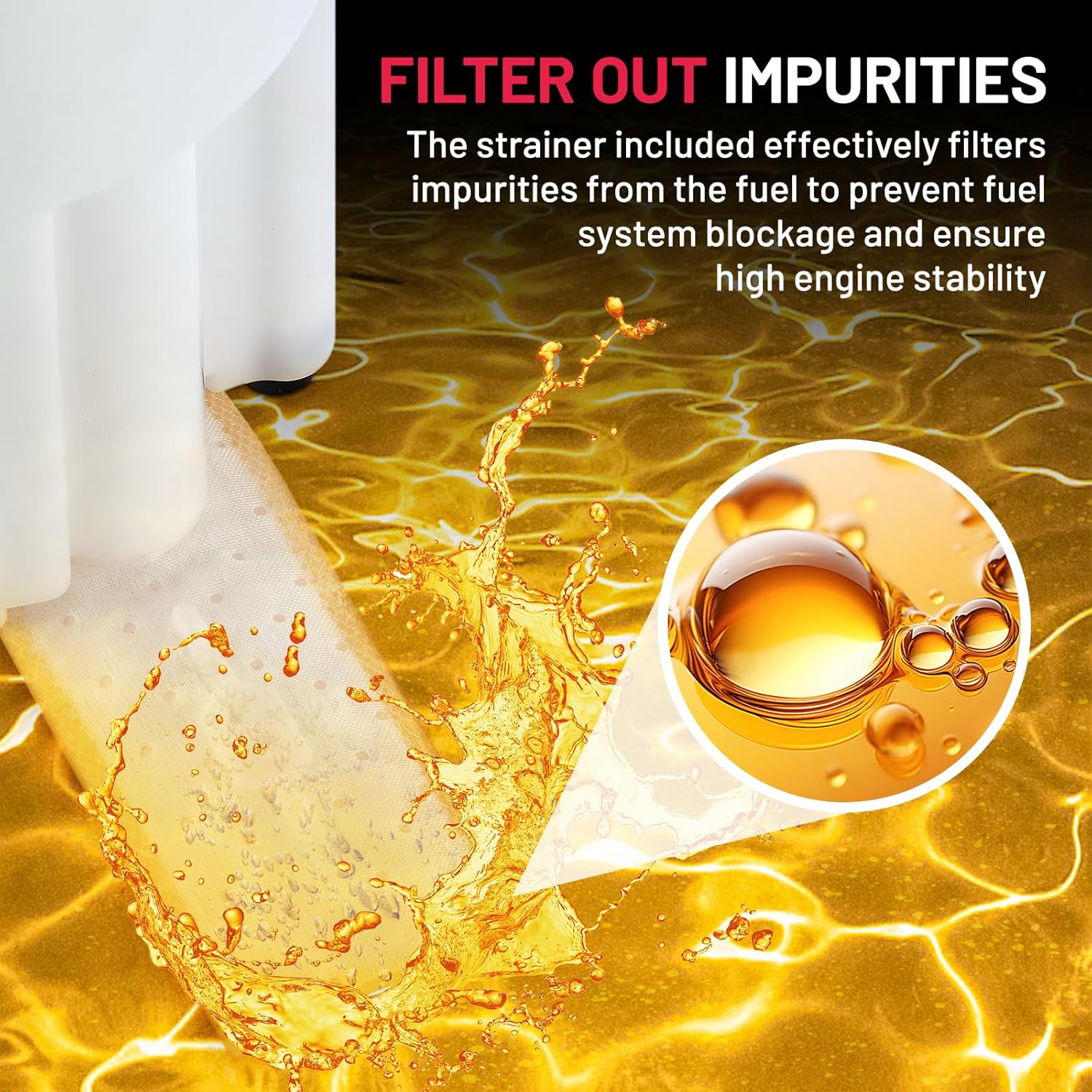

E3817M inlet strainer reservoir and pump components

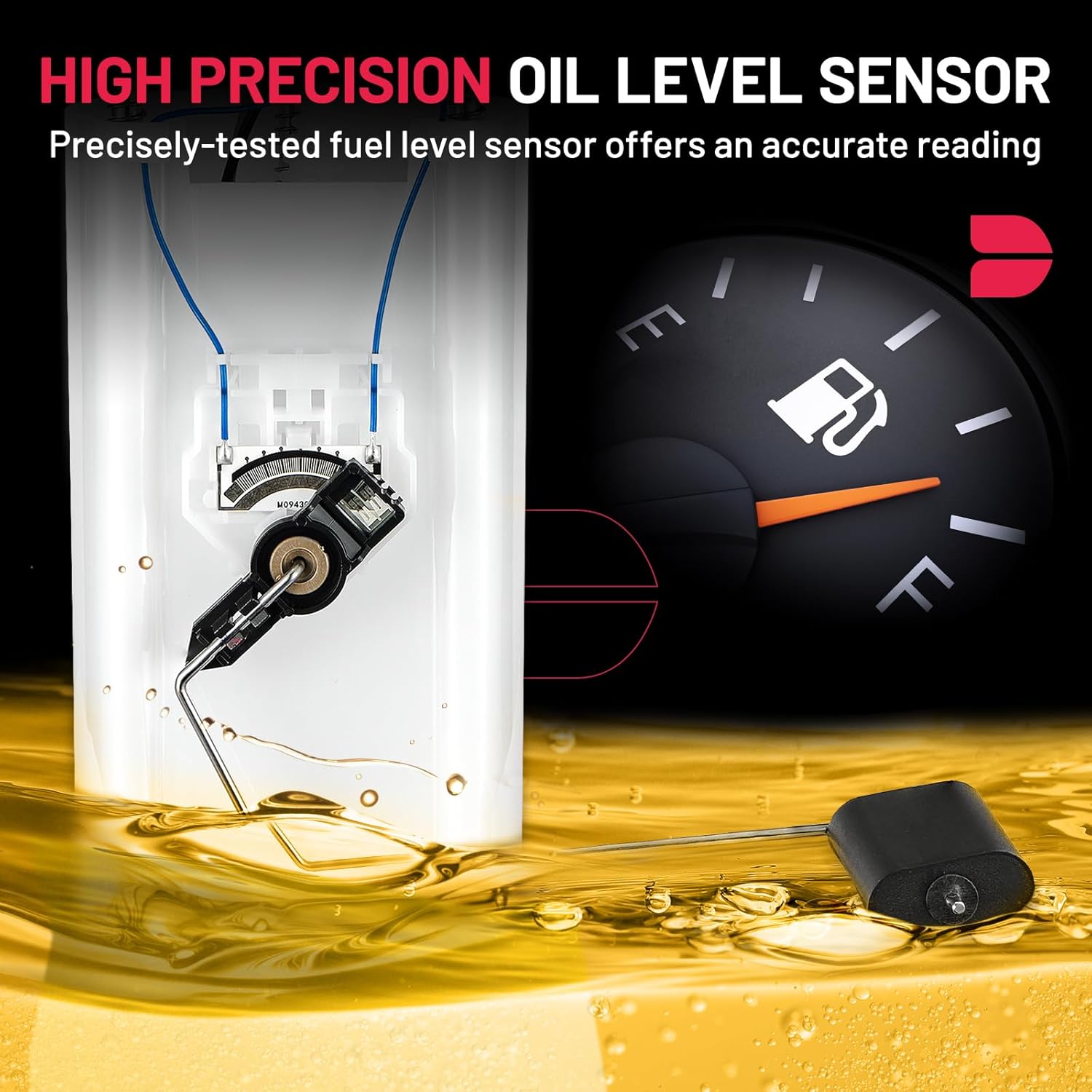

E3817M fuel-level sender and float-arm geometry

E3817M module height OE number and tank layout reference

Chevy Silverado 1500 GMC Sierra 1500 Fuel Pump Module Assembly 2009 4.8L 5.3L 6.0L V8 Replacement E3817M BDFHYK

$68.99

Product Detail

Type Fuel Pump Assembly
SKU BDDLZ-BD-05-07286WT
Make
- GMC
- Chevrolet
OE Number 255GE, F2828A, FG1057, P76507M, F2828A, E3817M, 19206536, SP6627M, M10209 , 69986, 19206535, 19256389, 19257093, 19368800

Trust & Assurance

Free Shipping · 3–7 Business Days

12-Month Warranty

30-Day Return

Secured Payment

Technical Specifications

Part Number	E3817M
Product Type	In-Tank Fuel Pump Module Assembly
Installation Location	Inside the fuel tank
Operating Voltage	12 V
Fuel Type	Gasoline, flex fuel and listed hybrid applications vary by VIN and configuration
Application	Selected 2009 Chevrolet Silverado 1500 and GMC Sierra 1500
Engine Coverage	4.8L, 5.3L and 6.0L V8; verify fuel type and hybrid status
Cab and Bed Check	Common gasoline coverage includes extended- or crew-cab trucks with 5.75- or 6.5-foot beds
Module Functions	Fuel delivery, reservoir pickup, tank-pressure sensing and fuel-level reporting
Fuel Level Sending Unit	Included
Sender Resistance	Approximately 40 ohms at full in listed interchange data; verify original calibration
Strainer and Tank Seal	Gasket or seal and inlet strainer are listed with common configurations
Electrical Connector	Compare terminal count, shape and keying with the removed module
Fuel Outlet	Quick-connect outlet; verify diameter and orientation
Wiring Harness	Not included in listed Airtex specifications; inspect the vehicle connector
OE References	19206535, 19206536, 19368798, 19368800
Interchange References	E3817M, FG1057, SP6627M, M10209
Configuration Exclusions	Do not select by year and engine alone; fuel type, hybrid system, cab, bed and tank layout matter
Fitment Priority	VIN, engine, fuel type, hybrid status, cab, bed, OE number, connectors and module layout

This electric fuel pump module assembly is a direct OE replacement fuel system part for Chevrolet Silverado 1500 and GMC Sierra 1500 pickup trucks. Designed for 2009 models with 4.8L, 5.3L, and 6.0L V8 gasoline engines, it helps restore stable fuel pressure and reliable fuel delivery for daily driving, towing, work truck use, and pickup truck repair applications.

Vehicle Fitment & OE Replacement Reference

Year	Vehicle	Engine	Notes
2009	Chevrolet Silverado 1500	4.8L V8 / 5.3L V8 / 6.0L V8	Gasoline Pickup Truck
2009	GMC Sierra 1500	4.8L V8 / 5.3L V8 / 6.0L V8	Gasoline Pickup Truck

OE Replacement Reference

E3817M

Product Details

Item	Details
Product Type	Fuel Pump Module Assembly
Function	Delivers fuel from the tank to the engine while maintaining stable fuel pressure
Fuel System	Gasoline Fuel Delivery System
Installation Location	Inside Fuel Tank (Tank-Mounted)
Assembly Includes	Electric Fuel Pump + Fuel Sending Unit + Pressure Sensor
Operation Mode	Electric
Mounting Type	Tank Mount
Vehicle Application	Chevrolet Silverado 1500 / GMC Sierra 1500 Pickup Truck Repair

Common Failure Symptoms

A failing fuel pump may cause the following issues:

Hard Starting: Engine requires extended cranking before starting.
Engine Hesitation: Vehicle may hesitate during acceleration due to unstable fuel delivery.
Loss of Power: Insufficient fuel pressure may reduce engine performance, especially under load.
Engine Stalling: Fuel supply interruption may cause unexpected engine shutdown.

Features & Benefits

Direct OE Replacement Fit
Designed to match original fuel system specifications for compatible Silverado 1500 and Sierra 1500 models.

Complete Fuel Pump Module
Includes the electric fuel pump, fuel sending unit, and pressure sensor for a complete replacement solution.

Stable Fuel Delivery
Helps maintain consistent fuel pressure and reliable fuel flow for engine operation.

Built for Pickup Truck Applications
Designed for daily driving, towing, work truck use, and full-size pickup repair needs.

Installation Guide

Step 1: Relieve Fuel Pressure
Disconnect battery power and release fuel system pressure before removal.

Step 2: Remove Fuel Tank
Support and lower the fuel tank to access the original fuel pump module.

Step 3: Replace Fuel Pump Assembly
Remove the old module and install the replacement assembly using the supplied seal and connections.

Step 4: Reconnect & Test
Reconnect fuel lines and wiring, prime the system, and check for proper operation and leaks.

What’s Included in This Fuel Pump Assembly

Complete fuel pump module
Integrated fuel level sending unit
Fuel strainer (filter sock)
Housing and mounting components

This fuel pump assembly is designed as a direct replacement unit that restores proper fuel delivery and fuel level monitoring.

Estimated Installation Time

Professional mechanic: 1–2 hours
DIY installation: 2–4 hours

Fuel pump replacement usually requires accessing the fuel tank or service panel depending on the vehicle design. Always disconnect the battery and relieve fuel system pressure before installation.

Pump Only vs Fuel Pump Assembly

Option	Description
Replace Pump Only	Lower parts cost but requires disassembling the existing module and reusing older components.
Replace Complete Assembly	A complete module designed for direct installation, helping restore reliable fuel delivery more efficiently.

Most modern vehicles use integrated fuel pump modules, which makes replacing the full assembly the more reliable solution.

Q: Which vehicles use the E3817M module?

A: It covers selected 2009 Chevrolet Silverado 1500 and GMC Sierra 1500 configurations.

Q: Which engines are listed?

A: Verified listings include selected 4.8L, 5.3L and 6.0L V8 applications.

Q: Does fuel type matter?

A: Yes. Gasoline, flex-fuel and listed hybrid applications can use configuration-specific modules, so VIN and OE verification are required.

Q: Do cab and bed dimensions matter?

A: Yes. Common gasoline listings specify extended- or crew-cab trucks with 5.75- or 6.5-foot beds.

Q: Is the fuel-level sender included?

A: Yes. The complete module includes the sender and float arm.

Q: Is a service wiring harness included?

A: A separate service harness is not listed in the Airtex specifications; inspect the vehicle connector and actual package.

Q: Which OE numbers should be checked?

A: Compare 19206535, 19206536, 19368798 or 19368800 with the original module.

Q: What should be tested before replacement?

A: Test fuel pressure, pump voltage and ground under load, fuse and relay operation, wiring, fuel-line restriction, and sender continuity before replacing the module.

Q: Can a gasoline module replace a hybrid or flex-fuel module?

A: Not without an exact catalog match. Pump control, tank layout, sensor and connector requirements can differ.

Q: What checks are required after installation?

A: Prime the system, inspect the flange and fuel connections for leaks, measure fuel pressure, and confirm normal fuel-gauge operation.
