Chevy S10 GMC Sonoma Isuzu Hombre Fuel Pump Module Assembly 1997-2002 4.3L V6 Replacement E3952M P75006M FG0070 BDFHYK

$43.99

Product Detail

Type Fuel Pump Assembly
SKU BDDLZ-BD-05-07289WT
Make
- Chevrolet
- GMC
- Isuzu
OE Number 530-2220, F2963A, FG0070, P75006M, E3952M, 67420

Trust & Assurance

Free Shipping · 3–7 Business Days

12-Month Warranty

30-Day Return

Secured Payment

Technical Specifications

Part Number	E3952M
Product Type	In-Tank Fuel Pump Module Assembly
Installation Location	Inside the fuel tank
Operating Voltage	12 V
Fuel Type	Gasoline
Application	Selected Chevrolet S10, GMC Sonoma and Isuzu Hombre compact pickups
Model Year Coverage	S10 and Sonoma 1997–2002; Hombre 1997–2000 in listed 4.3L applications
Engine Coverage	4.3L V6
2002 Configuration Check	Crew-cab and standard-cab long-bed applications are commonly listed; verify exact body and tank
Module Functions	Fuel delivery and fuel-level reporting
Fuel Level Sending Unit	Included in the listed complete-module configuration
Float Arm and Reservoir	Included
Strainer and Tank Seal	Check actual package and replace the tank seal during service
Electrical Connector	Compare connector and any service-harness requirement with the removed module
Fuel Outlet and Ports	Compare port quantity, size and orientation
Pressure Sensor	Configuration must match the original module and tank system
OE References	Verify the OE number on the removed module or by VIN
Interchange References	E3952M, P75006M, FG0070, MU111
Fitment Priority	Model, year, 4.3L engine, cab, bed length, tank, OE number, connectors, ports and dimensions

This electric fuel pump module assembly is a direct OE replacement fuel system part for Chevrolet S10, GMC Sonoma, and Isuzu Hombre pickup trucks. Designed for 1997-2002 applications with a 4.3L V6 gasoline engine, it helps restore stable fuel pressure and reliable fuel delivery for daily driving, work truck use, and pickup truck repair applications.

Vehicle Fitment & OE Replacement Reference

Year	Vehicle	Engine	Notes
1997-2002	Chevrolet S10	4.3L V6	Gasoline Compact Pickup Truck
1997-2002	GMC Sonoma	4.3L V6	Gasoline Compact Pickup Truck
1997-2000	Isuzu Hombre	4.3L V6	Gasoline Compact Pickup Truck

OE Replacement Reference

E3952M, P75006M, FG0070

Product Details

Item	Details
Product Type	Fuel Pump Module Assembly
Function	Delivers fuel from the tank to the engine while maintaining stable fuel pressure
Fuel System	Gasoline Fuel Delivery System
Installation Location	Inside Fuel Tank (Tank-Mounted)
Assembly Includes	Electric Fuel Pump + Fuel Sending Unit
Operation Mode	Electric
Mounting Type	Tank Mount
Vehicle Application	Chevrolet S10 / GMC Sonoma / Isuzu Hombre Pickup Repair

Common Failure Symptoms

A failing fuel pump may cause the following issues:

Hard Starting: Engine requires extended cranking before starting.
Engine Hesitation: Vehicle may hesitate during acceleration due to unstable fuel delivery.
Loss of Power: Insufficient fuel pressure may reduce engine performance, especially under load.
Engine Stalling: Fuel supply interruption may cause unexpected engine shutdown.

Features & Benefits

Direct OE Replacement Fit
Designed to match original fuel system specifications for compatible S10, Sonoma, and Hombre models.

Complete Fuel Pump Module
Includes the electric fuel pump and fuel sending unit for a complete replacement solution.

Stable Fuel Delivery
Helps maintain consistent fuel pressure and reliable fuel flow for engine operation.

Built for Pickup Truck Applications
Designed for daily driving, light-duty work, and compact pickup truck repair needs.

Installation Guide

Step 1: Relieve Fuel Pressure
Disconnect battery power and release fuel system pressure before removal.

Step 2: Remove Fuel Tank
Support and lower the fuel tank to access the original fuel pump module.

Step 3: Replace Fuel Pump Assembly
Remove the old module and install the replacement assembly using the supplied seal and connections.

Step 4: Reconnect & Test
Reconnect fuel lines and wiring, prime the system, and check for proper operation and leaks.

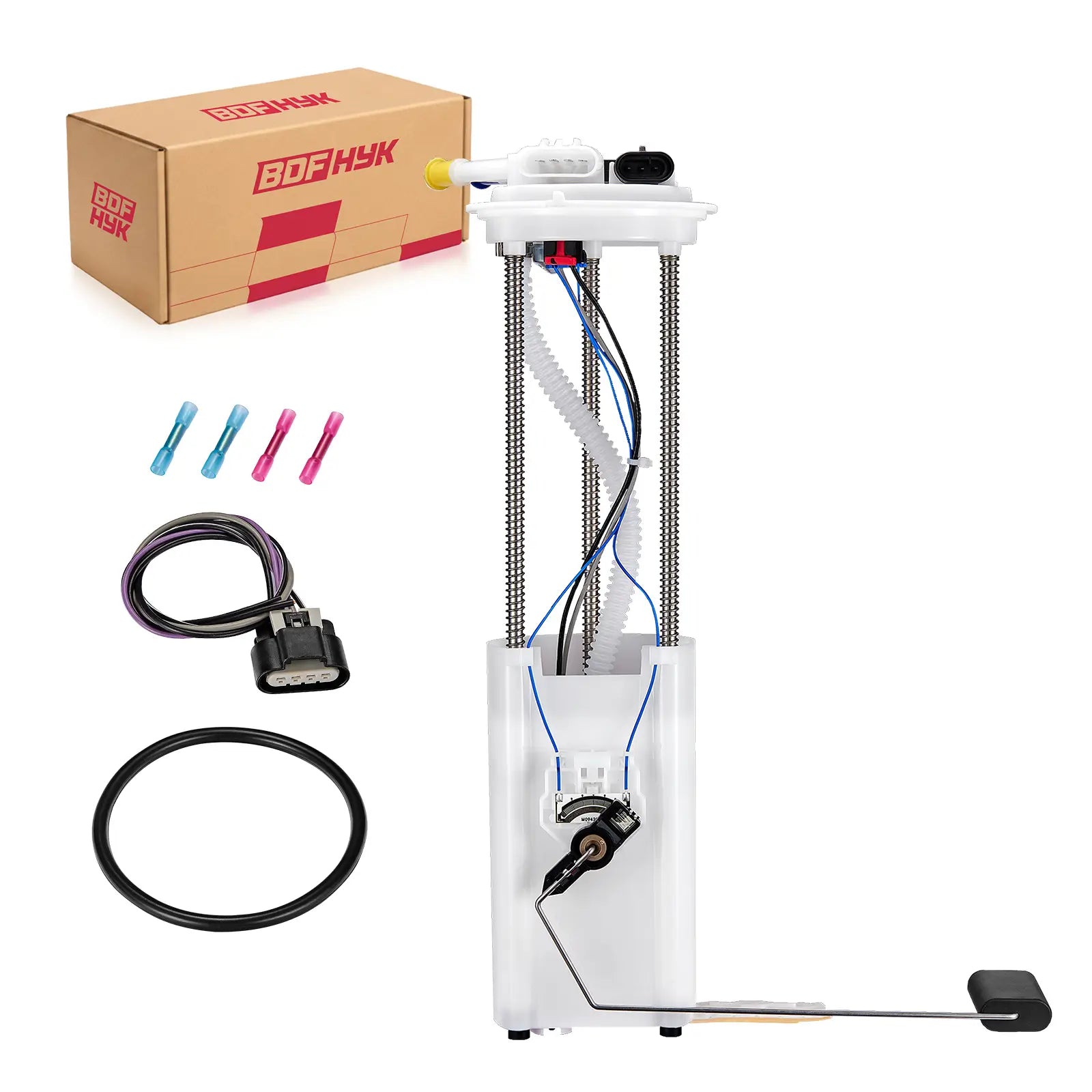

What’s Included in This Fuel Pump Assembly

Complete fuel pump module

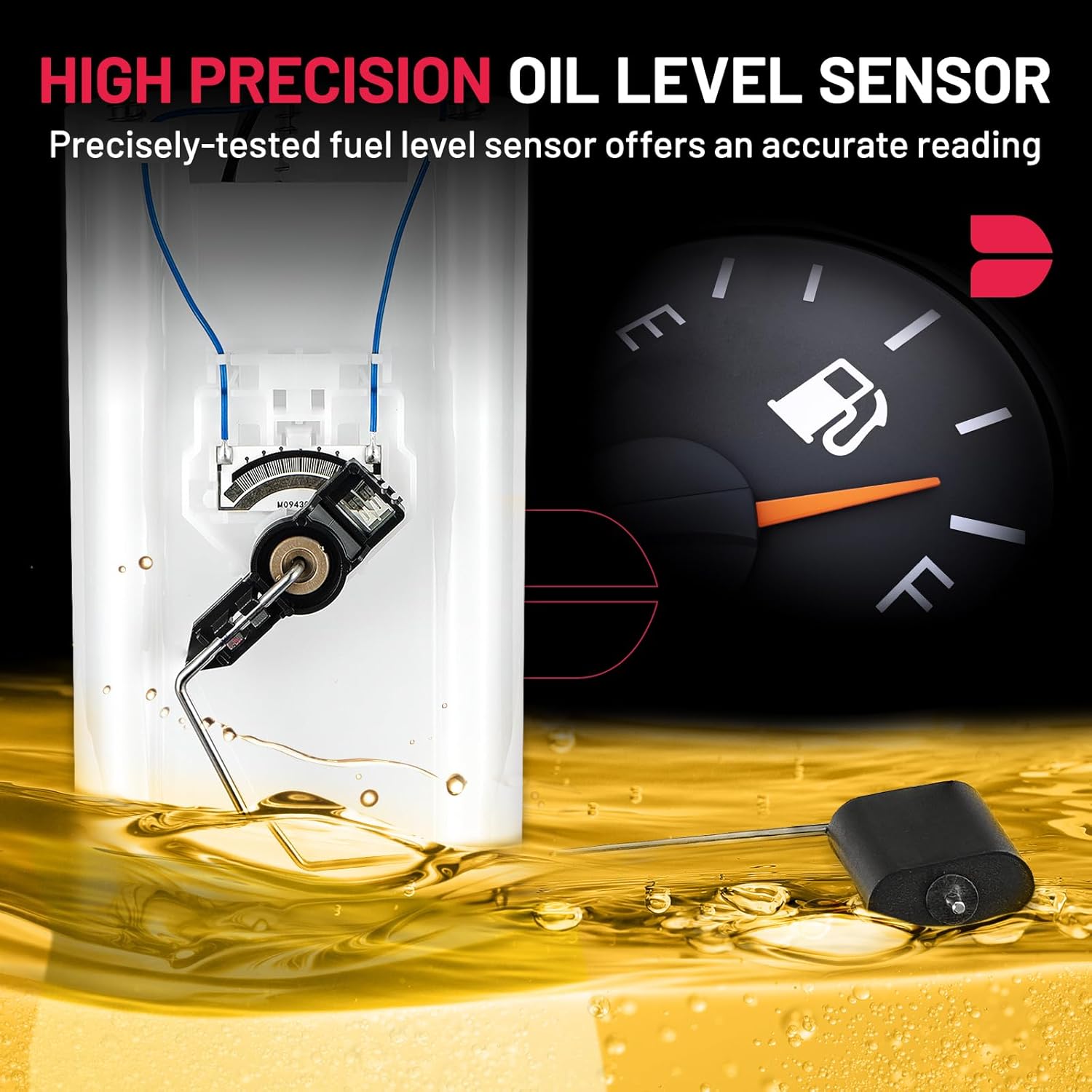

Integrated fuel level sending unit

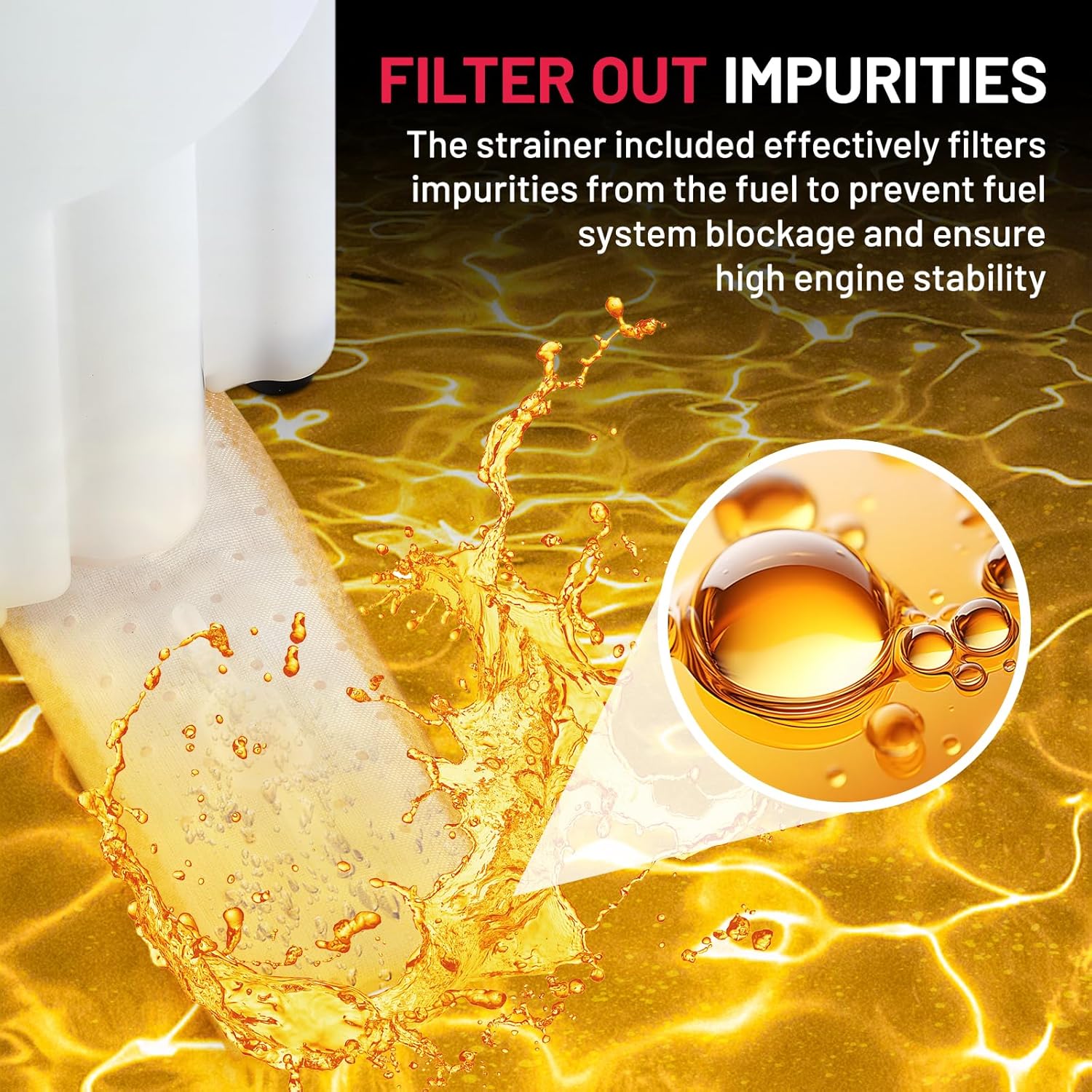

Fuel strainer (filter sock)
Housing and mounting components

This fuel pump assembly is designed as a direct replacement unit that restores proper fuel delivery and fuel level monitoring.

Estimated Installation Time

Professional mechanic: 1–2 hours
DIY installation: 2–4 hours

Fuel pump replacement usually requires accessing the fuel tank or service panel depending on the vehicle design. Always disconnect the battery and relieve fuel system pressure before installation.

Pump Only vs Fuel Pump Assembly

Option	Description
Replace Pump Only	Lower parts cost but requires disassembling the existing module and reusing older components.
Replace Complete Assembly	A complete module designed for direct installation, helping restore reliable fuel delivery more efficiently.

Most modern vehicles use integrated fuel pump modules, which makes replacing the full assembly the more reliable solution.

Q: Which vehicles use the E3952M module?

A: It covers selected 1997–2002 Chevrolet S10 and GMC Sonoma trucks and selected 1997–2000 Isuzu Hombre trucks with the 4.3L V6.

Q: Does it fit 2.2L four-cylinder trucks?

A: No. The verified E3952M application is for the 4.3L V6 module family.

Q: Why does the 2002 cab and bed configuration matter?

A: Common listings limit 2002 coverage to crew-cab and standard-cab long-bed trucks, so body and tank details must be checked.

Q: Is the fuel-level sending unit included?

A: The listed complete-module configuration includes the sender and float arm.

Q: Is a pressure sensor included?

A: The sensor and connector arrangement must be compared with the original module because configuration listings vary.

Q: Which interchange numbers should be checked?

A: Compare E3952M with P75006M, FG0070 or MU111 and verify the OE number by VIN.

Q: What physical details should be compared?

A: Compare the flange, module height, connector, fuel ports, reservoir and float-arm direction.

Q: What should be tested before replacement?

A: Test fuel pressure, pump voltage and ground under load, fuse and relay operation, wiring, fuel-line restriction, and sender continuity before replacing the module.

Q: Can an S10 module with a different engine or bed be substituted?

A: No. Engine, cab, bed, tank, connector and sender geometry can differ.

Q: What checks are required after installation?

A: Prime the system, inspect the flange and fuel connections for leaks, measure fuel pressure, and confirm normal fuel-gauge operation.
