E7186M Fuel Pump Module Assembly For 2004-C2006 Dodge Ram 1500 3.7L/4.7L/5.7L (Short Bed w/26 Gal. Tank)

$51.99

Product Detail

Type Fuel Pump Assembly
SKU BDDLZ-BD-05-07291WT
Make
- Dodge
OE Number 520-2370, F3197A, FG0817, P76259M, 5104694AB, 5104694AC, 5134554AC, 5134554AE, E7186M

Trust & Assurance

Free Shipping · 3–7 Business Days

12-Month Warranty

30-Day Return

Secured Payment

Technical Specifications

Brand	BDFHYK
SKU	BDDLZ-BD-05-07291WT
Reference Part Number	E7186M
Product Type	Fuel Pump Module Assembly
Installation Type	In-tank
Application	2004–2006 Dodge Ram 1500 gasoline truck with short bed and 26-gallon tank
Engine Coverage	3.7L V6; 4.7L V8; 5.7L V8
Tank Configuration	26-gallon gasoline tank
Bed Configuration	Short bed
OE / Interchange	E7186M; 520-2370; F3197A; FG0817; P76259M; 5104694AB; 5104694AC; 5134554AC; 5134554AE
Installation Position	In-tank main fuel pump module
Module Functions	Electric pump, pickup/strainer arrangement, and fuel-level sender configuration
Fuel Type	Gasoline application; alternative-fuel compatibility is not verified
Fitment Verification	Match year, engine, cab, bed, tank capacity, connector, flange, lines, depth, float arm, and OE number
Included Components	Fuel pump module assembly; confirm seal, lock ring, adapters, and hardware from images and package
Common Symptoms	Extended cranking, no-start, low pressure, hesitation, stalling, pump-circuit fault, or inaccurate gauge
Related Parts	Relay, fuse, wiring, connector, ground, pressure-control components, seal, and lock ring
Installation Note	Relieve pressure, disconnect battery, clean tank, compare modules, prime, test pressure and gauge, and inspect for leaks
Product Positioning	Aftermarket replacement; not factory OEM
Critical Note	Only for specified short-bed Ram 1500 with 26-gallon gasoline tank; not for diesel applications

Extended cranking, intermittent no-start conditions, low or unstable fuel pressure, hesitation under load, stalling, or an inaccurate fuel gauge can indicate a problem inside the fuel tank. These symptoms can also be caused by wiring, relays, grounds, pressure-control components, or contaminated fuel. The BDFHYK E7186M fuel pump module assembly is an aftermarket replacement for specific 2004–2006 Dodge Ram 1500 gasoline trucks with a short bed and 26-gallon tank. Diagnose the fuel system and compare the original module before installation.

E7186M Fuel Pump Module Assembly for 2004–2006 Dodge Ram 1500

This in-tank module combines the electric fuel pump, pickup and strainer arrangement, and float-arm fuel-level sender configuration. It is not a universal Ram 1500 pump and should not be selected by model name alone.

Confirm E7186M Ram 1500 Fitment

2004–2006 Dodge Ram 1500 Gasoline Engines

3.7L V6
4.7L V8
5.7L V8

Required Bed and Fuel Tank Configuration

Short-bed pickup configuration
26-gallon gasoline fuel tank
Not intended for diesel applications

Verify cab style, bed length, tank capacity, connector, top flange, fuel line ports, module depth, pickup position, float arm, and sender arrangement.

E7186M OE and Interchange Number Check

Reference numbers include E7186M, 520-2370, F3197A, FG0817, P76259M, 5104694AB, 5104694AC, 5134554AC, and 5134554AE. Match both the number and the physical module.

Diagnose the Ram 1500 Fuel System Before Replacement

Measure fuel pressure against the vehicle service specification.
Check the fuse, relay, connector, power supply, voltage drop, and ground.
Inspect pressure-control components and the tank for water, rust, sediment, or degraded fuel.
Diagnose the gauge circuit separately when the only complaint is an inaccurate fuel level.

2004–2006 Ram 1500 Installation Notes

Relieve fuel pressure, disconnect the battery, and work away from sparks or flame.
Support and clean the tank before opening it.
Compare the old and new module, seal, lock-ring interface, connector, lines, depth, pickup, and float travel.
Clean contamination and repair wiring or connector faults before installation.
Prime the system, verify pressure and gauge operation, and inspect every connection for leaks.

Before Ordering the E7186M Fuel Pump Assembly

Critical fitment note: This module is limited to the specified short-bed, 26-gallon gasoline tank configuration. BDFHYK supplies it as an aftermarket replacement, not a factory OEM part. Confirm package contents because seals, lock rings, adapters, and hardware can vary.

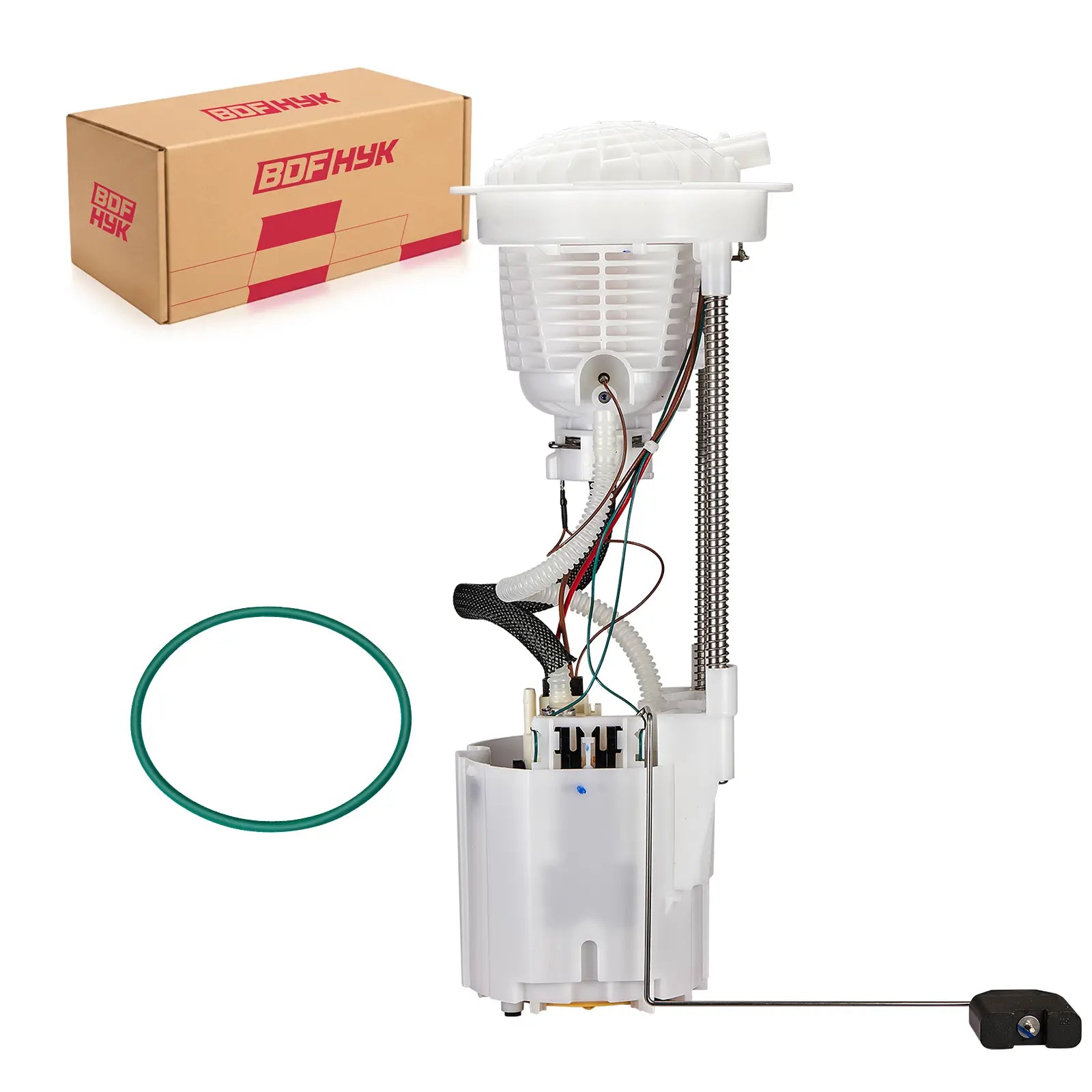

What’s Included in This Fuel Pump Assembly

Complete fuel pump module
Integrated fuel level sending unit
Fuel strainer (filter sock)
Housing and mounting components

This fuel pump assembly is designed as a direct replacement unit that restores proper fuel delivery and fuel level monitoring.

Estimated Installation Time

Professional mechanic: 1–2 hours
DIY installation: 2–4 hours

Fuel pump replacement usually requires accessing the fuel tank or service panel depending on the vehicle design. Always disconnect the battery and relieve fuel system pressure before installation.

Pump Only vs Fuel Pump Assembly

Option	Description
Replace Pump Only	Lower parts cost but requires disassembling the existing module and reusing older components.
Replace Complete Assembly	A complete module designed for direct installation, helping restore reliable fuel delivery more efficiently.

Most modern vehicles use integrated fuel pump modules, which makes replacing the full assembly the more reliable solution.

Q: What vehicles does the E7186M fuel pump module fit?

A: It is intended for specific 2004–2006 Dodge Ram 1500 gasoline trucks with 3.7L, 4.7L, or 5.7L engines, a short bed, and a 26-gallon tank.

Q: Does E7186M fit every 2004–2006 Ram 1500?

A: No. Bed length and tank capacity are critical. Confirm the short-bed and 26-gallon gasoline tank configuration.

Q: Does this module fit diesel Ram trucks?

A: No. This listing is for specified gasoline applications and is not intended for diesel fuel systems.

Q: Which E7186M interchange numbers can be checked?

A: References include 520-2370, F3197A, FG0817, P76259M, 5104694AB, 5104694AC, 5134554AC, and 5134554AE.

Q: Does the module use a fuel-level sender?

A: The assembly uses a float-arm fuel-level sender configuration. Compare the sender layout and float travel with the original module.

Q: Do hard starting and hesitation prove the pump is bad?

A: No. Test fuel pressure and check the fuse, relay, wiring, connector, power, ground, pressure-control components, and engine-management faults.

Q: Should the fuel tank be cleaned during replacement?

A: Yes. Remove water, rust, sediment, and degraded fuel that could restrict or damage the replacement pump.

Q: Are a seal and lock ring always included?

A: Package contents can vary. Confirm the product images and package before disassembly and replace damaged sealing parts.

Q: Is the E7186M a factory OEM part?

A: No. It is a BDFHYK aftermarket replacement intended to match the specified original configuration.

Q: What should be checked after installation?

A: Prime the system, verify pressure and gauge operation, confirm normal starting, and inspect all connections for leaks.
