Chevy Silverado GMC Sierra Fuel Pump Module Assembly 2004-2007 4.8L 5.3L 6.0L Replacement E3609M 19133450 BDFHYK

$62.99

Product Detail

Type Fuel Pump Assembly
SKU BDDLZ-BD-05-07284WT
Make
- Chevrolet
OE Number 530-2263 | E3609M | 953-5126 | F2610A | FG0340 | FG0383 | FG0392 | FPA61911 | HP2610A | P76232M | 075GE | SKEFP016 | 19133450 | 19133455 | 19133456 | 88965371

Trust & Assurance

Free Shipping · 3–7 Business Days

12-Month Warranty

30-Day Return

Secured Payment

Technical Specifications

Part Number	E3609M
Product Type	In-Tank Fuel Pump Module Assembly
Installation Location	Inside the fuel tank
Operating Voltage	12 V
Fuel Type	Gasoline
Application	Selected 2004–2007 Chevrolet Silverado and GMC Sierra pickup applications
Model Year Coverage	2004–2006 and selected 2007 Classic configurations; verify body generation and VIN
Engine Coverage	Selected 4.8L, 5.3L and 6.0L V8 applications; catalog coverage varies by truck configuration
Truck Configuration Check	Verify 1500/2500 series, Classic designation, cab, bed length, tank capacity and drivetrain
Module Functions	Fuel delivery, reservoir pickup, tank-pressure sensing and fuel-level reporting
Fuel Level Sending Unit	Included in the listed complete-module configuration
Float Arm and Reservoir	Included
Strainer and Tank Seal	Check actual package contents and install the correct new tank seal
Electrical Connector	Compare terminal count, connector shape, keying and any service-harness requirement
Fuel Outlet and Ports	Compare port quantity, diameter and orientation with the removed module
Fuel Tank Pressure Sensor	Listed with the current configuration; match sensor position and electrical connector
OE References	19133449, 19133450, 88965371, 25349027
Interchange References	E3609M, FG0340, P76232M, SP3609M, MU1415
Fitment Priority	VIN, Classic/new-body status, series, engine, cab, bed, tank, OE number, connector, ports and dimensions

This electric fuel pump module assembly is a direct OE replacement fuel system part for Chevrolet Silverado and GMC Sierra pickup trucks. Designed for 2004-2007 models with 4.8L V8, 5.3L V8, and 6.0L V8 engines, it helps restore stable fuel pressure and reliable fuel delivery for daily driving, work truck use, and pickup truck repair applications.

Vehicle Fitment & OE Replacement Reference

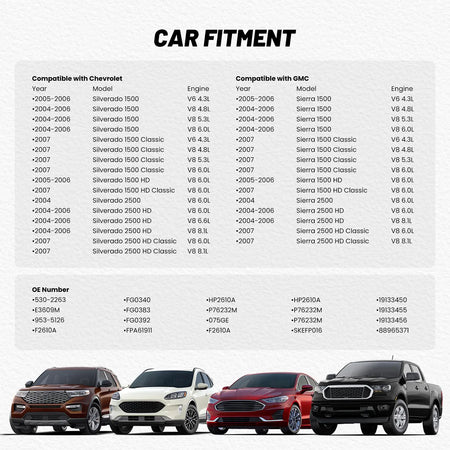

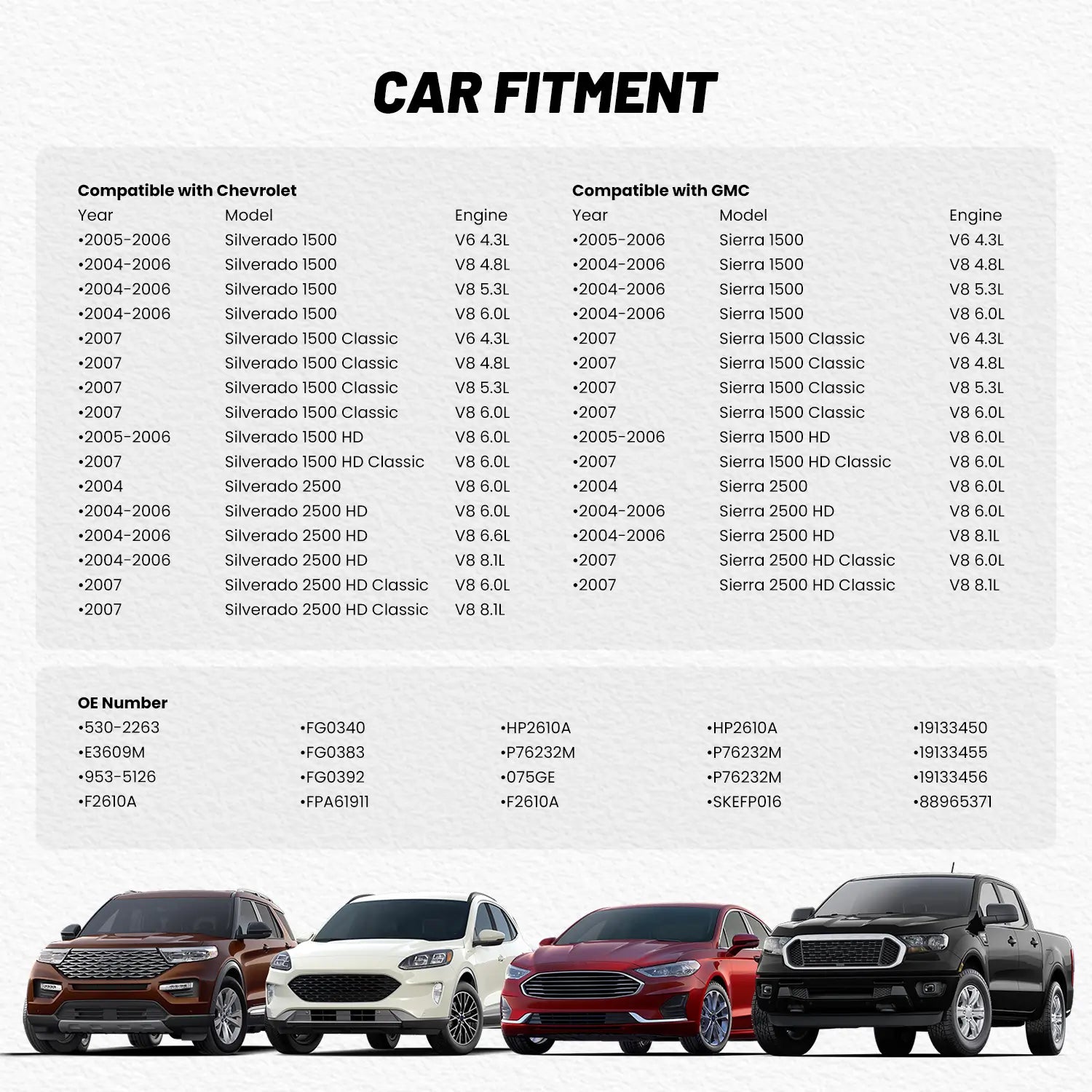

Year	Vehicle	Engine	Notes
2004-2007	Chevrolet Silverado	4.8L V8 / 5.3L V8 / 6.0L V8	Gasoline Pickup Truck
2004-2007	GMC Sierra	4.8L V8 / 5.3L V8 / 6.0L V8	Gasoline Pickup Truck

OE Replacement Reference

E3609M, 19133450, 88965371

Product Details

Item	Details
Product Type	Fuel Pump Module Assembly
Function	Delivers fuel from the tank to the engine while maintaining stable fuel pressure
Fuel System	Gasoline Fuel Delivery System
Installation Location	Inside Fuel Tank (Tank-Mounted)
Assembly Includes	Electric Fuel Pump + Fuel Sending Unit + Pressure Sensor
Operation Mode	Electric
Mounting Type	Tank Mount
Vehicle Application	Chevrolet Silverado / GMC Sierra Pickup Truck Repair

Common Failure Symptoms

A failing fuel pump may cause the following issues:

Hard Starting: Engine requires extended cranking before starting.
Engine Hesitation: Vehicle may hesitate during acceleration due to unstable fuel delivery.
Loss of Power: Insufficient fuel pressure may reduce engine performance, especially under load.
Engine Stalling: Fuel supply interruption may cause unexpected engine shutdown.

Features & Benefits

Direct OE Replacement Fit
Designed to match original fuel system specifications for compatible Silverado and Sierra models.

Complete Fuel Pump Module
Includes the electric fuel pump, sending unit, and pressure sensor for a complete replacement solution.

Stable Fuel Delivery
Helps maintain consistent fuel pressure and reliable fuel flow for engine operation.

Built for Pickup Truck Applications
Designed for daily driving, work truck use, and full-size pickup truck repair.

Installation Guide

Step 1: Relieve Fuel Pressure
Disconnect battery power and release fuel system pressure before removal.

Step 2: Remove Fuel Tank
Support and lower the fuel tank to access the original fuel pump module.

Step 3: Replace Fuel Pump Assembly
Remove the old module and install the replacement assembly using the supplied seal and connections.

Step 4: Reconnect & Test
Reconnect fuel lines and wiring, prime the system, and check for proper operation and leaks.

What’s Included in This Fuel Pump Assembly

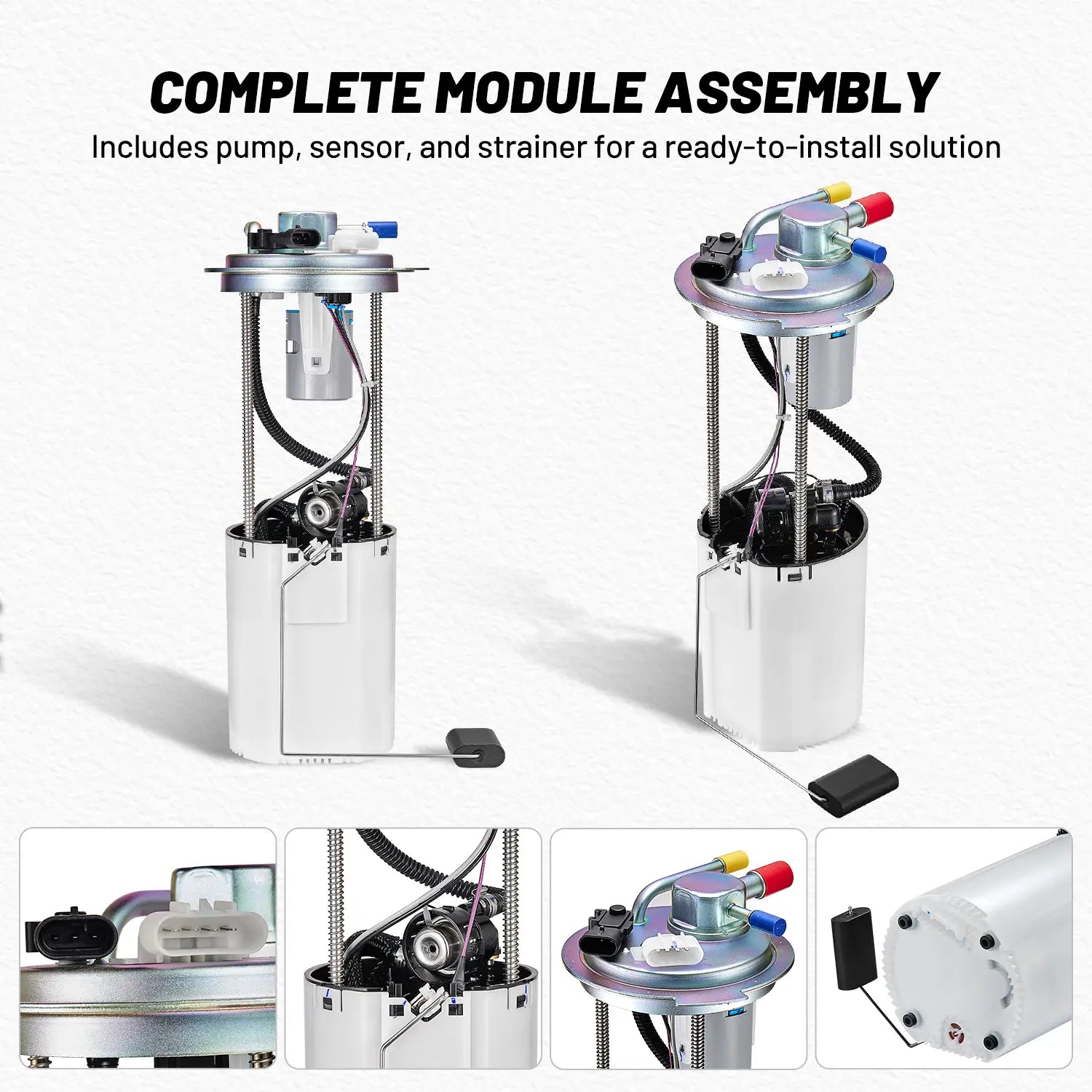

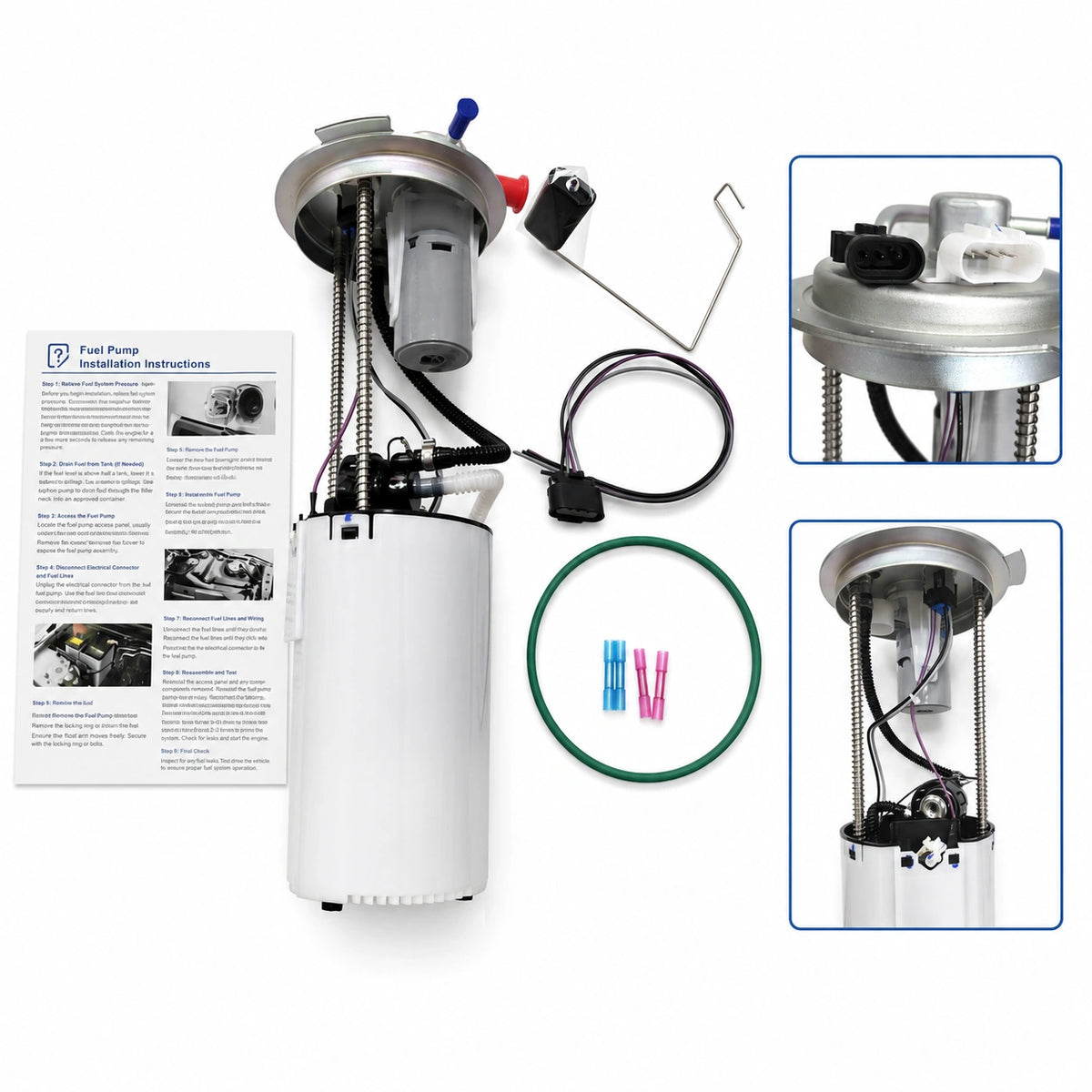

Complete fuel pump module
Integrated fuel level sending unit
Fuel strainer (filter sock)
Housing and mounting components

This fuel pump assembly is designed as a direct replacement unit that restores proper fuel delivery and fuel level monitoring.

Estimated Installation Time

Professional mechanic: 1–2 hours
DIY installation: 2–4 hours

Fuel pump replacement usually requires accessing the fuel tank or service panel depending on the vehicle design. Always disconnect the battery and relieve fuel system pressure before installation.

Pump Only vs Fuel Pump Assembly

Option	Description
Replace Pump Only	Lower parts cost but requires disassembling the existing module and reusing older components.
Replace Complete Assembly	A complete module designed for direct installation, helping restore reliable fuel delivery more efficiently.

Most modern vehicles use integrated fuel pump modules, which makes replacing the full assembly the more reliable solution.

Q: Which vehicles use the E3609M module?

A: It covers selected 2004–2007 Chevrolet Silverado and GMC Sierra gasoline truck configurations.

Q: Why must the 2007 body style be checked?

A: The 2007 Classic and new-body trucks use different fuel-system configurations, so the VIN and body generation must be confirmed.

Q: Which engines are listed?

A: Selected 4.8L, 5.3L and 6.0L V8 applications are associated with this module family.

Q: Is the fuel-level sending unit included?

A: The listed complete-module configuration includes the sender and float arm.

Q: Is this a front-mounted component?

A: No. E3609M is an in-tank module; the previous Front Mount and Front Position Specs entries were incorrect.

Q: Which OE numbers should be checked?

A: Compare 19133449, 19133450, 88965371 or 25349027 with the removed module.

Q: What physical details should be compared?

A: Compare the flange, module height, connector, ports, pressure sensor, reservoir and float-arm orientation.

Q: What should be tested before replacement?

A: Test fuel pressure, voltage and ground under load, fuse and relay operation, wiring, line restriction, tank venting and sender continuity.

Q: Can a similar 2004–2007 truck module be substituted?

A: No. Series, cab, bed, tank, body generation, connector and sender geometry can differ.

Q: What checks are required after installation?

A: Prime the system, inspect the tank flange and fuel connections for leaks, measure pressure and confirm gauge operation.
