BDFHYK E8688M right-side fuel pump module for BMW 1 Series, 3 Series, and X1

E8688M BMW passenger-side in-tank fuel pump module with sender and strainer

E8688M right-side fuel pump module flange, connector, and outlet details

E8688M BMW low-pressure fuel pump module construction and component details

E8688M BMW 16147163298 application and OE interchange reference

E8688M right-side module dimensions and sender configuration

E8688M BMW fuel pump module package and included component reference

E8688M Electric Fuel Pump Module Assembly For 2006-2015 BMW X1/128i/135i/135is/328i/328i xDrive/335i/335i

$59.89

Product Detail

Type Fuel Pump Assembly
SKU BDDLZ-BD-05-10473-FP
Make
- BMW
OE Number E8688M,A2C53025280,16147163298,FG0917,P76486M,228235018007Z

Trust & Assurance

Free Shipping · 3–7 Business Days

12-Month Warranty

30-Day Return

Secured Payment

Technical Specifications

Brand	BDFHYK
SKU	BDDLZ-BD-05-10473-FP
Reference Part Number	E8688M
Product Type	Right-Side In-Tank Fuel Pump Module Assembly
Installation Type	BMW saddle-tank replacement; chassis, engine, production date, and side verification required
Application	Specified 2006–2015 BMW 1 Series, 3 Series, and X1 applications associated with OE 16147163298
Engine Coverage	Selected BMW gasoline applications; verify engine and chassis code rather than displacement alone
OE / Interchange References	E8688M; 16147163298; 16 14 7 163 298; A2C53025280; FG0917; P76486M; SP5009M; 228235018007Z
Module Functions	Right-side low-pressure fuel delivery and fuel-level measurement through the module sender
Fuel Type	Gasoline
Fitment Verification	Confirm chassis, engine, drivetrain, production date, right/passenger-side position, flange, connector, outlet, module depth, sender, and OE number
Included Components	Fuel pump module, sender arrangement, strainer, reservoir, and seal/components as pictured
Installation Position	Right side / passenger side of the fuel tank
Fitment Priority	BMW OE number, chassis code, and tank side take priority over model name or engine displacement
Symptoms to Check	Extended cranking; no start; low-side pressure fault; stalling; weak acceleration; fuel-transfer or gauge fault
Related Parts to Check	Pump-control module; fuse; wiring; ground; connector; opposite-side sender/transfer unit; high-pressure pump where equipped; tank condition
Installation Note	Relieve pressure, disconnect the battery, identify the right-side module, replace the seal, prime, and verify leaks, low-side pressure, transfer, and gauge operation
Part Classification	OE-style aftermarket replacement fuel pump module
Replacement Part Note	Do not confuse this right-side in-tank module with the opposite-side sender, pump-control module, or engine high-pressure pump

Extended cranking, intermittent no-start, stalling, low fuel pressure, weak acceleration, or an inaccurate fuel gauge can indicate a fault in the low-pressure tank system. The BDFHYK E8688M is a right-side or passenger-side in-tank fuel pump module for specified BMW 1 Series, 3 Series, and X1 applications associated with OE 16147163298. Confirm the chassis code, engine, right-side position, flange, connector, fuel outlet, module height, sender layout, and OE reference against the removed assembly before installation.

E8688M Right-Side Fuel Pump Module for Selected BMW Applications

Listed BMW Model Coverage

2006 BMW 325i, 325xi, 330i, and 330xi
2007–2013 BMW 328i and 335i
2007–2008 BMW 328xi and 335xi
2009–2013 BMW 328i xDrive and 335i xDrive
2008–2013 BMW 128i and 135i
2011 BMW 1 Series M
2011–2013 BMW 335is
2013 BMW 135is
2013–2015 BMW X1 configurations associated with this module

Body style, chassis code, engine code, drivetrain, and production date must be checked. A broad BMW model name or engine displacement is not sufficient to confirm the correct tank module.

Confirm the Right or Passenger-Side Tank Position

This module is associated with the right side of the saddle-style fuel tank. Compare the removed unit with the product images and verify the flange, electrical socket, fuel outlet, reservoir, module depth, seal, and fuel-level sender arrangement. Do not confuse the right-side pump module with the opposite-side level sensor or transfer unit.

E8688M and BMW 16147163298 Cross-Reference

Common references include E8688M, 16147163298, 16 14 7 163 298, A2C53025280, FG0917, P76486M, SP5009M, and 228235018007Z. Match the OE number to the exact chassis and physical module before opening the tank.

Separate Low-Pressure Pump Faults From Other BMW Fuel Faults

Scan the vehicle for fuel-pressure, mixture, voltage, and pump-control faults.
Check the low-pressure pump fuse, wiring, ground, connector, and pump-control module command.
Measure low-side fuel pressure and voltage under load.
Separate the in-tank low-pressure pump from the engine-mounted high-pressure pump where applicable.
Check the opposite-side transfer system and fuel-level sensor when the gauge or fuel transfer is abnormal.
Inspect the tank for water, sediment, or contaminated fuel.

Replacing the tank module will not correct a failed pump-control module, high-pressure pump, wiring fault, transfer problem, or engine-management issue. Complete the relevant BMW diagnostic procedure first.

BMW Saddle-Tank Installation and Final Checks

Relieve fuel pressure and disconnect the battery.
Clean the service opening before removing the right-side module.
Record the fuel line, connector, flange, and sender orientation.
Inspect the opposite side and transfer path when fuel distribution is uneven.
Install a new seal and seat the retaining ring correctly.
Keep the float arm, strainer, and internal transfer connections unobstructed.
Reconnect the line and electrical plug without forcing aged plastic fittings.
Prime the low-pressure system and inspect for leaks.
Verify low-side pressure, engine starting, transfer operation, and fuel-gauge response.

Do not run the pump dry. Confirm that the module is installed on the correct tank side before reconnecting the battery.

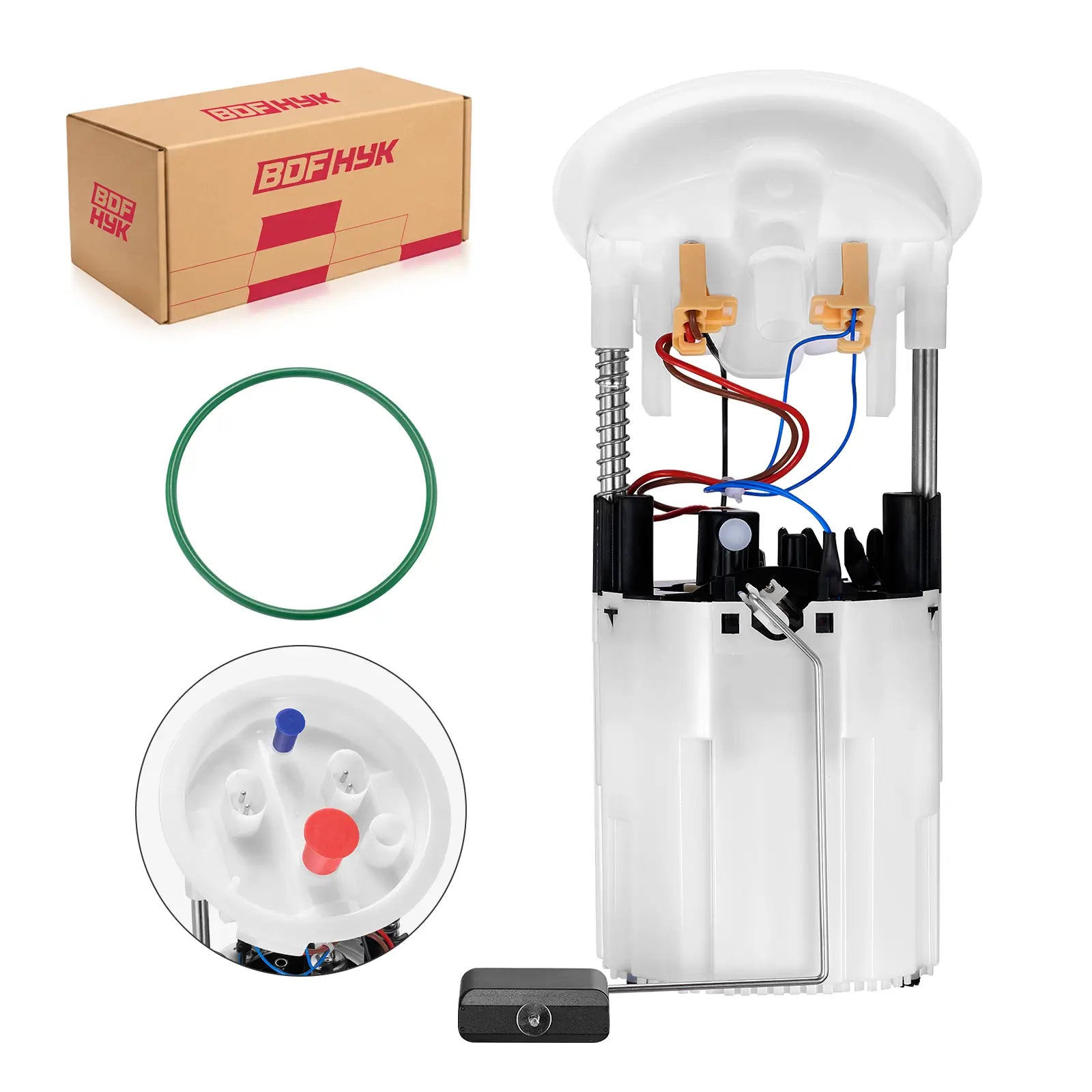

What’s Included in This Fuel Pump Assembly

Complete fuel pump module
Integrated fuel level sending unit
Fuel strainer (filter sock)
Housing and mounting components

This fuel pump assembly is designed as a direct replacement unit that restores proper fuel delivery and fuel level monitoring.

Estimated Installation Time

Professional mechanic: 1–2 hours
DIY installation: 2–4 hours

Fuel pump replacement usually requires accessing the fuel tank or service panel depending on the vehicle design. Always disconnect the battery and relieve fuel system pressure before installation.

Pump Only vs Fuel Pump Assembly

Option	Description
Replace Pump Only	Lower parts cost but requires disassembling the existing module and reusing older components.
Replace Complete Assembly	A complete module designed for direct installation, helping restore reliable fuel delivery more efficiently.

Most modern vehicles use integrated fuel pump modules, which makes replacing the full assembly the more reliable solution.

Q: Which BMW models are listed for E8688M?

A: Specified BMW 1 Series, 3 Series, and X1 applications associated with OE 16147163298 are listed. Exact chassis and engine verification is required.

Q: Which side of the tank does E8688M fit?

A: It is associated with the right or passenger side of the saddle-style fuel tank.

Q: Does the module include a fuel-level sender?

A: The E8688M/16147163298 configuration includes the right-side pump and fuel-level sensor arrangement. Compare the pictured assembly with the removed unit.

Q: Can E8688M replace the opposite-side sender?

A: No. The opposite side can use a separate level sensor or transfer component with a different design and function.

Q: Which reference numbers should be checked?

A: Check E8688M, BMW 16147163298, A2C53025280, FG0917, P76486M, SP5009M, and 228235018007Z.

Q: Is the model name enough to confirm fitment?

A: No. Confirm chassis code, engine code, drivetrain, production date, right-side position, and physical module configuration.

Q: Is this the engine-mounted high-pressure fuel pump?

A: No. This is the low-pressure in-tank module. Some BMW engines also use a separate high-pressure pump.

Q: What electrical parts should be diagnosed?

A: Check the pump-control module, fuse, wiring, ground, connector, command signal, and voltage under load.

Q: What should be checked on a saddle tank?

A: Inspect fuel transfer between tank chambers and the opposite-side sensor or transfer unit when the gauge or fuel supply becomes irregular.

Q: What must be verified after installation?

A: Prime the low-pressure system, inspect for leaks, confirm pressure and starting, and verify fuel transfer and gauge response.
