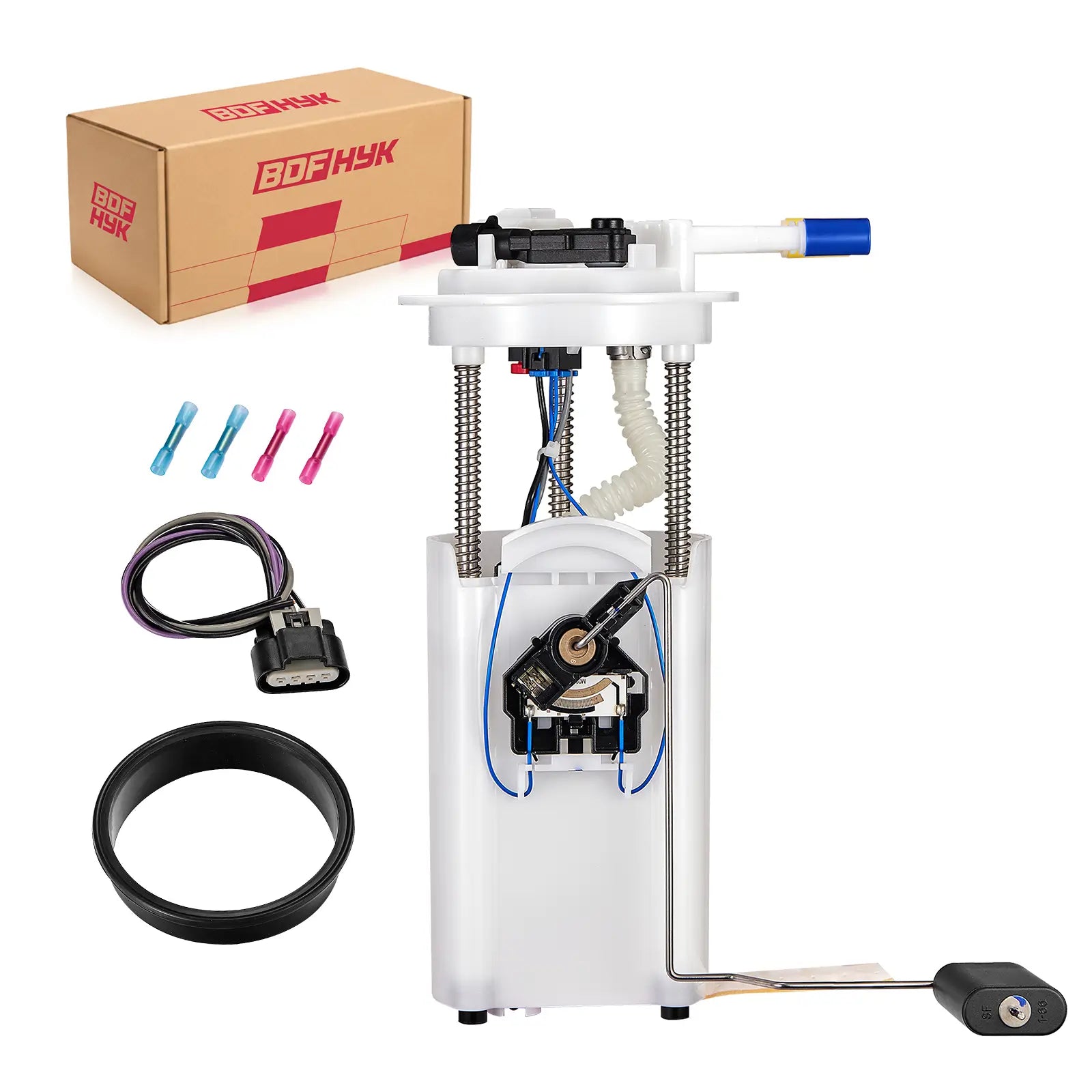

E3508M complete pump sender reservoir and float-arm assembly

E3508M electrical connector fuel ports and flange details

E3508M Tahoe Yukon Escalade engine fitment reference

E3508M tank-pressure sensor and connector layout

E3508M inlet strainer reservoir and pump components

E3508M 15205627 FG0324 interchange reference

E3508M module height sender and float-arm orientation

Cadillac Escalade Chevy Tahoe GMC Yukon Fuel Pump Module Assembly 2000-2003 4.8L 5.3L 6.0L Replacement E3508M BDFHYK

$46.99

Product Detail

Type Fuel Pump Assembly
SKU BDDLZ-BD-05-07303WT
Make
- Cadillac
- Chevrolet
- GMC
OE Number 2630356 530-2060 953-0030 FG0324 SKEFP017 P74832M F2519A E3508M 15205627 19121628 19122465 19153713 25169302 MU1615 MU1321 MU170 MU1804

Trust & Assurance

Free Shipping · 3–7 Business Days

12-Month Warranty

30-Day Return

Secured Payment

Technical Specifications

Part Number	E3508M
Product Type	In-Tank Fuel Pump Module Assembly
Installation Location	Inside the fuel tank
Operating Voltage	12 V
Fuel Type	Gasoline
Application	Selected Chevrolet Tahoe, GMC Yukon and Cadillac Escalade
Model Year Coverage	Tahoe and Yukon 2000–2003; Escalade 2002–2003
Engine Coverage	Tahoe 4.8L/5.3L; Yukon 4.8L/5.3L/6.0L; Escalade 5.3L/6.0L as cataloged
Body and Series Check	Four-door half-ton SUV configurations; verify C/K, AWD/4WD and VIN
Module Functions	Fuel delivery and fuel-level reporting
Fuel Level Sending Unit	Included
Float Arm and Reservoir	Included
Strainer and Tank Seal	Check actual package and install the correct new seal
Electrical Connector	Compare terminal count, shape and keying
Fuel Outlet and Ports	Compare quantity, diameter and orientation with the original
Pressure Sensor	Verify whether the original module carries the tank-pressure sensor and match the configuration
OE References	15205627
Interchange References	E3508M, FG0324, MU1518, MU1615, MU170
Fitment Priority	Model, year, engine, body/series, VIN, OE number, connector, ports, sensor and module dimensions

This electric fuel pump module assembly is a direct OE replacement fuel system part for Cadillac Escalade, Chevrolet Tahoe, and GMC Yukon SUVs. Designed for 2000-2003 applications with 4.8L, 5.3L, and 6.0L gasoline engines, it helps restore stable fuel pressure and reliable fuel delivery for daily driving, towing, and full-size SUV repair applications.

Vehicle Fitment & OE Replacement Reference

Year	Vehicle	Engine	Notes
2002-2003	Cadillac Escalade	5.3L V8 / 6.0L V8	Gasoline Full-Size SUV
2000-2003	Chevrolet Tahoe	4.8L V8 / 5.3L V8	Gasoline Full-Size SUV
2000-2003	GMC Yukon	4.8L V8 / 5.3L V8	Gasoline Full-Size SUV

OE Replacement Reference

E3508M

Product Details

Item	Details
Product Type	Fuel Pump Module Assembly
Function	Delivers fuel from the tank to the engine while maintaining stable fuel pressure
Fuel System	Gasoline Fuel Delivery System
Installation Location	Inside Fuel Tank (Tank-Mounted)
Assembly Includes	Electric Fuel Pump + Fuel Sending Unit
Operation Mode	Electric
Mounting Type	Tank Mount
Vehicle Application	Cadillac Escalade / Chevrolet Tahoe / GMC Yukon SUV Repair

Common Failure Symptoms

A failing fuel pump may cause the following issues:

Hard Starting: Engine requires extended cranking before starting.
Engine Hesitation: Vehicle may hesitate during acceleration due to unstable fuel delivery.
Loss of Power: Insufficient fuel pressure may reduce engine performance, especially under load.
Engine Stalling: Fuel supply interruption may cause unexpected engine shutdown.

Features & Benefits

Direct OE Replacement Fit
Designed to match original fuel system specifications for compatible Escalade, Tahoe, and Yukon models.

Complete Fuel Pump Module
Includes the electric fuel pump and fuel sending unit for a complete replacement solution.

Stable Fuel Delivery
Helps maintain consistent fuel pressure and reliable fuel flow for engine operation.

Built for Full-Size SUV Applications
Designed for daily driving, towing, and full-size SUV repair needs.

Installation Guide

Step 1: Relieve Fuel Pressure
Disconnect battery power and release fuel system pressure before removal.

Step 2: Remove Fuel Tank
Support and lower the fuel tank to access the original fuel pump module.

Step 3: Replace Fuel Pump Assembly
Remove the old module and install the replacement assembly using the supplied seal and connections.

Step 4: Reconnect & Test
Reconnect fuel lines and wiring, prime the system, and check for proper operation and leaks.

What’s Included in This Fuel Pump Assembly

Complete fuel pump module
Integrated fuel level sending unit
Fuel strainer (filter sock)
Housing and mounting components

This fuel pump assembly is designed as a direct replacement unit that restores proper fuel delivery and fuel level monitoring.

Estimated Installation Time

Professional mechanic: 1–2 hours
DIY installation: 2–4 hours

Fuel pump replacement usually requires accessing the fuel tank or service panel depending on the vehicle design. Always disconnect the battery and relieve fuel system pressure before installation.

Pump Only vs Fuel Pump Assembly

Option	Description
Replace Pump Only	Lower parts cost but requires disassembling the existing module and reusing older components.
Replace Complete Assembly	A complete module designed for direct installation, helping restore reliable fuel delivery more efficiently.

Most modern vehicles use integrated fuel pump modules, which makes replacing the full assembly the more reliable solution.

Q: Which vehicles use the E3508M module?

A: It covers selected 2000–2003 Chevrolet Tahoe and GMC Yukon models and selected 2002–2003 Cadillac Escalade models.

Q: Which engines are covered?

A: Coverage varies by model and includes selected 4.8L, 5.3L and 6.0L gasoline V8 applications.

Q: Does it fit Suburban, Yukon XL, Escalade ESV or EXT models?

A: Not under the E3508M application group. Extended-wheelbase and utility-truck models commonly use another module family.

Q: Is the fuel-level sending unit included?

A: Yes. The listed complete module includes the sender and float arm.

Q: Is a tank-pressure sensor included?

A: The original module and actual package must be checked because sensor placement can vary by application.

Q: Which OE number should be checked?

A: GM reference 15205627 is associated with this application family; confirm by VIN and the removed module.

Q: Which interchange numbers are commonly listed?

A: E3508M, FG0324, MU1518, MU1615 and MU170 are common references.

Q: What should be tested before replacement?

A: Test fuel pressure, pump voltage and ground under load, fuse and relay operation, wiring, fuel-line restriction, and sender continuity before replacing the module.

Q: Can a similar full-size GM SUV module be substituted?

A: No. Wheelbase, tank, engine, connector, ports, sensor and sender geometry can differ.

Q: What checks are required after installation?

A: Prime the system, inspect the flange and fuel connections for leaks, measure fuel pressure, and confirm normal fuel-gauge operation.
