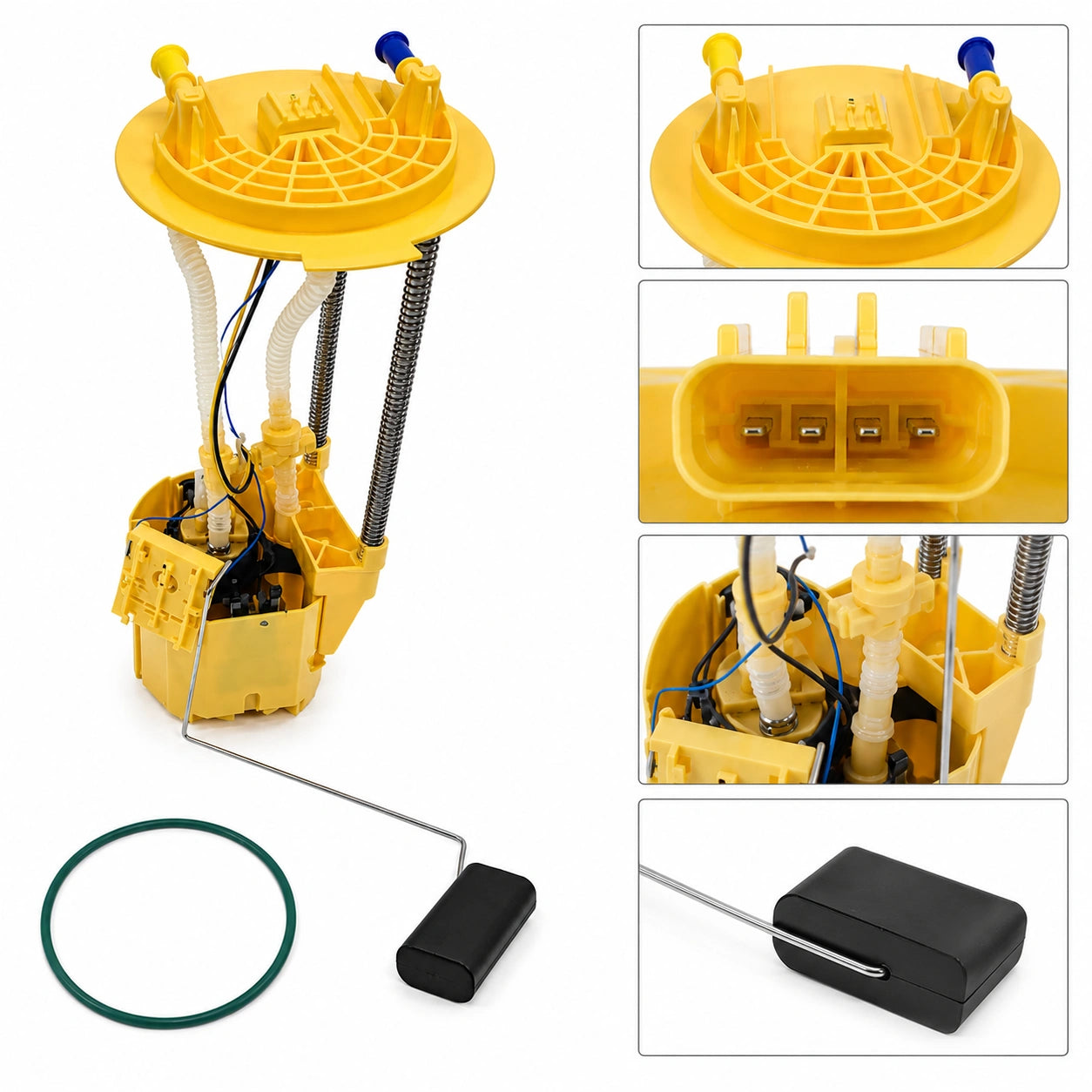

BDFHYK E7181M diesel fuel module for 2005–2009 Ram 2500 3500

E7181M 34-gallon tank fuel sender and pickup assembly

E7181M electrical connector diesel outlet and flange details

E7181M Ram Cummins engine tank and cab fitment reference

E7181M inlet strainer reservoir and diesel supply components

E7181M OE 5143160AA 68002062AA interchange reference

E7181M module height float arm and tank-depth geometry

E7181M diesel fuel module installation and seal reference

Dodge Ram 2500 3500 Fuel Pump Module Assembly 2005-2009 5.9L Cummins Diesel Replacement E7181M BDFHYK

$78.99

Product Detail

Type Fuel Pump Assembly
SKU BDDLZ-BD-05-JN-FS23-00075000
Make
- Dodge
OE Number 5143160AA, 5143160AB, RL143160AB, E7181M, FG1224, P76148M, SP7181M

Trust & Assurance

Free Shipping · 3–7 Business Days

12-Month Warranty

30-Day Return

Secured Payment

Technical Specifications

Part Number	E7181M
Product Type	In-Tank Diesel Fuel Supply Module Assembly
Installation Location	Inside the fuel tank
Operating Voltage	12 V
Fuel Type	Diesel
Application	Selected 2005–2009 Dodge Ram 2500 and 3500 heavy-duty trucks
Model Year Coverage	2005–2009
Engine Coverage	E7181M catalogs list selected 5.9L and 6.7L Cummins applications; current page targets 5.9L
Fuel Tank Requirement	34-gallon fuel tank
Truck Configuration Check	Verify cab style, wheelbase, tank capacity, engine, VIN and production date
Module Functions	Low-pressure diesel supply, tank pickup and fuel-level reporting
Fuel Level Sending Unit	Included in common complete-module configurations
Float Arm and Reservoir	Included; compare tank-depth geometry
Strainer and Tank Seal	Check actual package contents and install the correct new tank seal
Electrical Connector	Compare terminal count, connector shape and keying
Fuel Outlet and Ports	Compare supply-line connection and orientation
OE References	5143160AA, 5143160AB, 68002062AA
Interchange References	E7181M, FG1224, SP7181M
Fitment Priority	VIN, engine, 34-gallon tank, cab/wheelbase, OE number, connector, outlet and module dimensions

This fuel pump module assembly is a direct OE replacement fuel system part for Dodge Ram 2500 and Ram 3500 pickup trucks equipped with 5.9L Cummins Diesel engines. Designed for heavy-duty truck repair, it helps restore reliable fuel delivery and consistent engine performance by replacing worn fuel pump assemblies.

Vehicle Fitment & OE Replacement Reference

Year	Vehicle	Engine	Notes
2005-2009	Dodge Ram 2500	5.9L L6 Cummins Diesel	Heavy Duty Pickup Truck
2007-2009	Dodge Ram 3500	5.9L L6 Cummins Diesel	Heavy Duty Pickup Truck

OE Replacement Reference

E7181M, FG0817, FG0473, P76841M, 5134554AC, 5134554AF, 68004489AA, 68004518AA

Product Details

Item	Details
Product Type	Fuel Pump Module Assembly
Function	Provides fuel delivery from tank to engine and maintains consistent fuel supply
Fuel System	Diesel Fuel Delivery System
Installation Location	Inside Fuel Tank (Tank-Mounted)
Assembly Includes	Complete Fuel Pump Module Assembly
Vehicle Application	Dodge Ram Heavy Duty Truck Repair

Common Failure Symptoms

A failing fuel pump may cause the following issues:

Hard Starting: Engine requires extended cranking before starting.
Engine Hesitation: Reduced fuel delivery may cause hesitation during acceleration.
Loss of Power: Insufficient fuel supply may reduce engine performance.
Engine Stalling: Fuel delivery interruption may cause unexpected shutdown.

Features & Benefits

Direct OE Replacement Fit
Designed to match original fuel system specifications for compatible Dodge Ram trucks.

Complete Fuel Pump Module
Provides a complete replacement solution for worn fuel pump assemblies.

Reliable Diesel Fuel Delivery
Helps maintain consistent fuel supply for Cummins diesel applications.

Built for Heavy-Duty Trucks
Designed for Dodge Ram 2500 and 3500 repair needs.

Installation Guide

Step 1: Relieve Fuel Pressure
Disconnect battery power and prepare the fuel system before removal.

Step 2: Access Fuel Pump Module
Remove or lower the fuel tank to access the original assembly.

Step 3: Replace Fuel Pump Assembly
Remove the old module and install the replacement assembly.

Step 4: Reconnect & Test
Reconnect fuel lines and wiring, then verify proper operation.

What’s Included in This Fuel Pump Assembly

Complete fuel pump module
Integrated fuel level sending unit
Fuel strainer (filter sock)
Housing and mounting components

This fuel pump assembly is designed as a direct replacement unit that restores proper fuel delivery and fuel level monitoring.

Estimated Installation Time

Professional mechanic: 1–2 hours
DIY installation: 2–4 hours

Fuel pump replacement usually requires accessing the fuel tank or service panel depending on the vehicle design. Always disconnect the battery and relieve fuel system pressure before installation.

Pump Only vs Fuel Pump Assembly

Option	Description
Replace Pump Only	Lower parts cost but requires disassembling the existing module and reusing older components.
Replace Complete Assembly	A complete module designed for direct installation, helping restore reliable fuel delivery more efficiently.

Most modern vehicles use integrated fuel pump modules, which makes replacing the full assembly the more reliable solution.

Q: Which vehicles use the E7181M module?

A: It covers selected 2005–2009 Dodge Ram 2500 and 3500 heavy-duty truck configurations.

Q: What fuel-tank size is required?

A: E7181M listings specify a 34-gallon fuel tank.

Q: Which engines are associated with E7181M?

A: Catalogs list selected 5.9L and 6.7L Cummins applications; this product page currently targets the 5.9L, so verify the VIN and engine.

Q: Do cab and wheelbase matter?

A: Yes. Cab, wheelbase and tank configuration can affect the module and float-arm geometry.

Q: Is the fuel-level sending unit included?

A: It is included in common complete-module configurations; compare the assembly with the original.

Q: Which OE numbers should be checked?

A: Compare 5143160AA, 5143160AB or 68002062AA.

Q: What should be tested before replacement?

A: Test low-pressure diesel supply, pump voltage and ground, relay operation, wiring, restrictions, air intrusion and sender continuity.

Q: Can this module be used with a tank other than 34 gallons?

A: No fitment should be assumed because module height and sender geometry are tank-specific.

Q: What should be inspected during installation?

A: Inspect tank contamination, connector, supply line, seal surface, lock ring and fuel-tank venting.

Q: What checks are required after installation?

A: Prime the diesel supply system, inspect for leaks or air intrusion, verify supply pressure and confirm gauge operation.
