E2651M Fuel Pump Module Assembly For Ford F-150 2015-2020 3.5L 2.7L V6, Replace FL3Z-9H307-D

E2651M Fuel Pump Module for 2015–2020 Ford F-150 2.7L and 3.5L V6

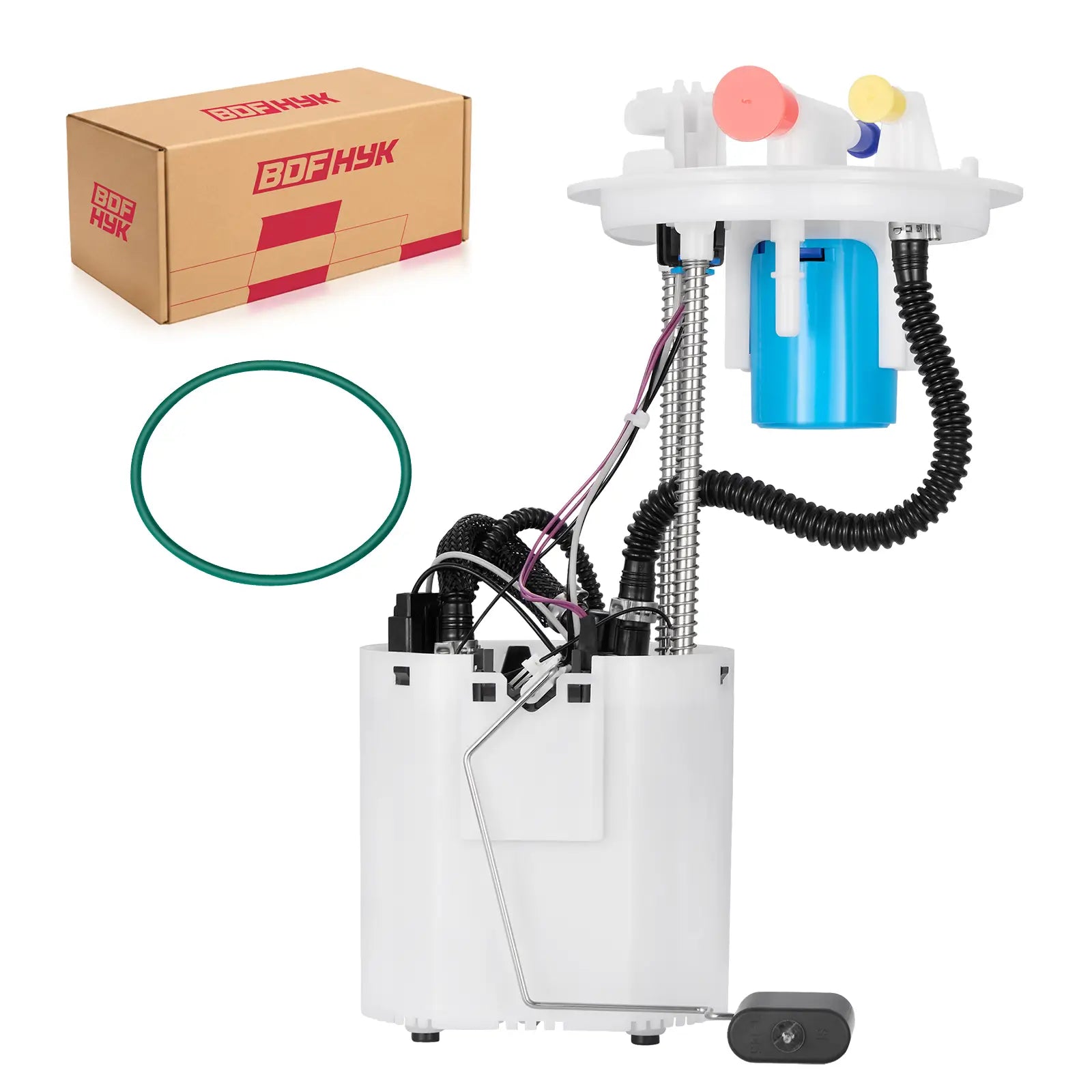

Extended cranking, intermittent no-start, fuel-pressure loss under acceleration, stalling, or an inaccurate fuel-gauge reading can involve the in-tank module. This BDFHYK E2651M electric fuel pump module assembly is an aftermarket replacement for listed 2015–2020 Ford F-150 2.7L and 3.5L turbocharged V6 applications without the extended-range fuel tank. Confirm wheelbase, tank capacity, connector, module depth, sender layout, and OE number before installation.

Confirm E2651M Ford F-150 Fitment

2.7L and 3.5L Turbocharged V6 Applications

The listed engine coverage is 2015–2020 Ford F-150 with the 2.7L turbocharged V6 or 3.5L turbocharged V6 where the original module and tank configuration match E2651M or the listed OE references.

Non-Extended-Range Tank and Wheelbase Check

E2651M is associated with non-extended-range tank configurations and 141-, 145-, 157-, or 163-inch wheelbases. Do not use this module for the 122-inch wheelbase or an extended-range tank without exact OE and physical verification. Tank capacity can vary by year and configuration.

E2651M and FL3Z-9H307-D Cross-Reference

Listed OE and Interchange Numbers

E2651M, FL3Z-9H307-D, FL3Z-9H307-G, FL3Z-9H307-M, FG1972, SP2554M, and P77122M.

Match the Reference to the Exact F-150 Tank

Confirm the OE number with the tank type, wheelbase, module flange, connector, line fittings, overall height, pickup, reservoir, pressure sensor where equipped, sender, and float-arm geometry. A module for an extended-range tank can produce incorrect fitment or gauge operation in a standard tank, and the reverse also applies.

Check the 2015–2020 F-150 Fuel System First

Fuel Pressure and Electrical Diagnosis

• Measure fuel pressure during key-on, cranking, idle, and load
• Check voltage, ground, relay, fuse, wiring, and connector condition
• Inspect fuel lines, tank venting, pressure-control components, and injectors
• Check the fuel-level circuit and tank pressure sensor circuit where equipped

Inspect the Tank and Original Module

Check the tank for water, sediment, degraded fuel, debris, or damage. Record the original module number and compare the connector, line fittings, pressure sensor, module depth, pickup, sender, float arm, seal, and lock-ring design before installation.

2015–2020 Ford F-150 Installation Notes

Support the Tank and Protect the Sealing Surface

Relieve fuel pressure, disconnect the battery, support the vehicle and tank correctly, and clean the top of the tank before opening it. Prevent dirt from entering the tank and use a seal that matches the module opening.

Prime, Leak-Test, and Check the Fuel Gauge

After installation, prime the system according to the Ford service procedure. Verify fuel pressure, inspect the tank seal and line connections for leaks, confirm the fuel-gauge reading, and check for stored fuel-level or tank-pressure faults.

Before Ordering the E2651M Fuel Pump Assembly

F-150 Tank and Wheelbase Checklist

• Confirm 2015–2020 F-150 with the applicable 2.7L or 3.5L turbocharged V6
• Verify a non-extended-range tank configuration
• Confirm the 141-, 145-, 157-, or 163-inch wheelbase where applicable
• Match FL3Z-9H307-D, FL3Z-9H307-M, E2651M, or the applicable reference
• Compare connector, line fittings, pressure sensor, module depth, sender, and float arm
• Confirm seals, lock rings, and hardware shown with the product

This is a BDFHYK aftermarket replacement fuel pump module assembly, not a Ford factory OEM component.
