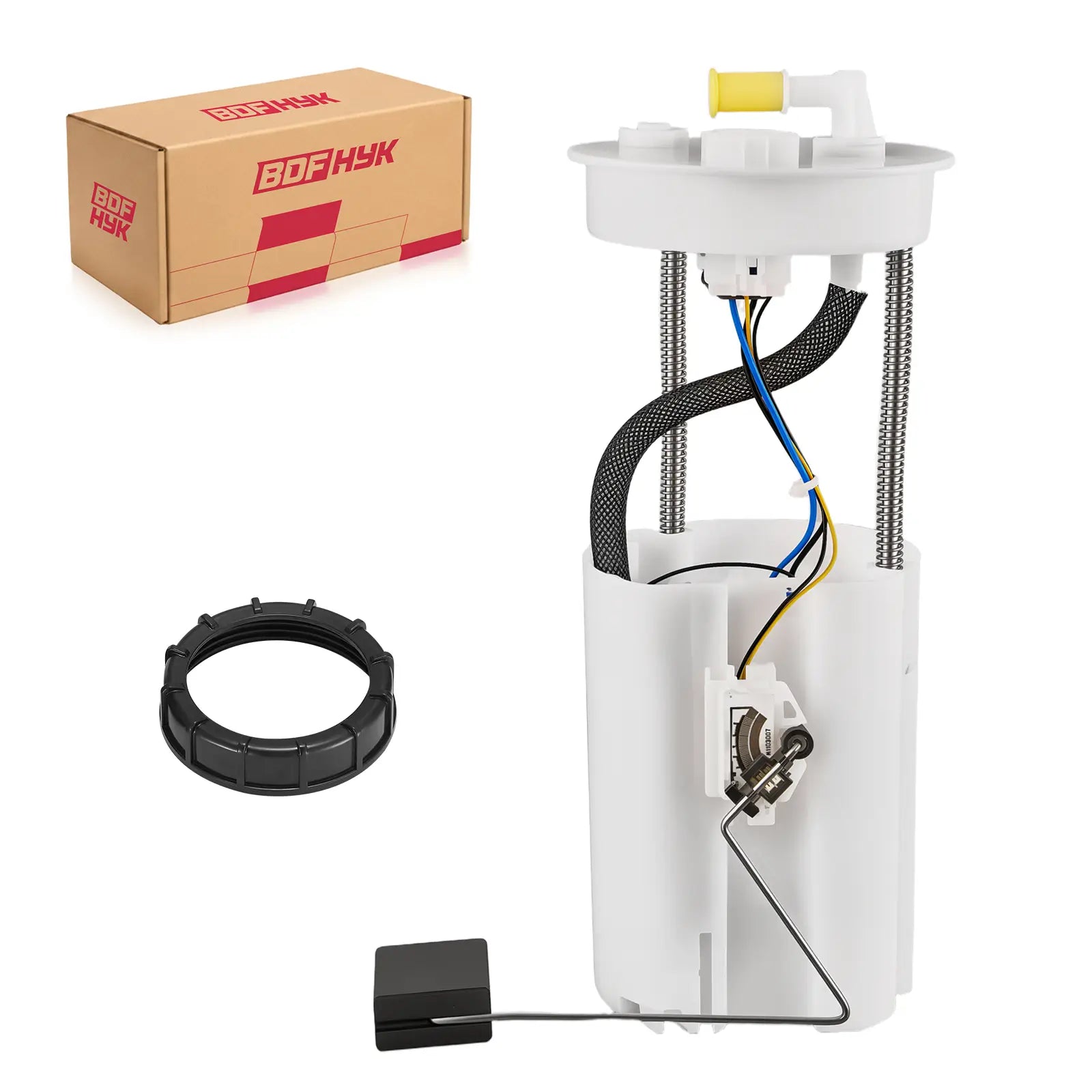

BDFHYK E8693M fuel pump module for 2003–2007 Honda Accord 3.0L V6

E8693M Accord V6 in-tank fuel pump module with reservoir, sender, and strainer

E8693M fuel pump module flange, connector, and fuel outlet details

E8693M electric fuel pump module construction and component details

E8693M Honda Accord 3.0L V6 fitment and OE reference

E8693M fuel pump module dimensions and float-arm configuration

E8693M Accord V6 module package and included component reference

E8693M Fuel Pump Module Assembly For Honda Accord 2003-2007 3.0L V6

$92.99

Product Detail

Type Fuel Pump Assembly
SKU BDDLZ-BD-05-FS23-00087WT-002-W
Make
- Honda
OE Number 17045-SDB-A00, 17045-SDB-A30, 17045SDBA00, 17045SDBA30, E8693M, FG0914, P76380M, SP8003M

Trust & Assurance

Free Shipping · 3–7 Business Days

12-Month Warranty

30-Day Return

Secured Payment

Technical Specifications

Brand	BDFHYK
SKU	BDDLZ-BD-05-FS23-00087WT-002-W
Reference Part Number	E8693M
Product Type	In-Tank Fuel Pump Module Assembly
Installation Type	Vehicle-specific replacement for the listed Accord V6 configuration
Application	Specified 2003–2007 Honda Accord 3.0L V6 applications
Engine Coverage	3.0L V6 gasoline engine; not the four-cylinder module configuration
OE / Interchange References	E8693M; 17045-SDB-A00; 17045-SDB-A30; 17045SDBA00; 17045SDBA30; FG0914; P76380M; SP8003M
Module Functions	Supplies fuel from the tank and supports fuel-level measurement through the module sender
Fuel Type	Gasoline
Fitment Verification	Confirm year, 3.0L V6 engine, body/production configuration, flange, connector, outlet, module depth, float arm, and OE reference
Included Components	Fuel pump module assembly with reservoir, strainer, float arm, and connections as pictured
Installation Position	Inside the fuel tank
Fitment Priority	3.0L V6 engine and original module configuration take priority over the Accord model name
Symptoms to Check	Long cranking; intermittent no start; stalling; low fuel pressure; weak acceleration; inaccurate fuel gauge
Related Parts to Check	PGM-FI main relay; fuse; wiring; ground; connector; fuel line; tank condition; pressure-control components
Installation Note	Relieve pressure, disconnect the battery, clean the service opening, replace the seal, prime, and verify leaks, pressure, and gauge operation
Part Classification	OE-style aftermarket replacement fuel pump module
Replacement Part Note	Do not substitute a four-cylinder Accord module or a physically different flange configuration

Long cranking, intermittent no-start, stalling, low fuel pressure, loss of power, or an inaccurate fuel gauge can indicate a problem inside the fuel tank, but the circuit should be tested before replacement. The BDFHYK E8693M is an in-tank fuel pump module for specified 2003–2007 Honda Accord models with the 3.0L V6. Confirm the body style, production configuration, flange, electrical connector, fuel outlet, module depth, float-arm direction, and OE reference against the removed assembly.

E8693M Fuel Pump Module for 2003–2007 Honda Accord V6

Application Coverage

2003–2007 Honda Accord 3.0L V6 configurations associated with E8693M

The four-cylinder Accord uses a different fuel-system configuration. Year and model alone are not sufficient; the 3.0L V6 engine and physical tank module must match.

Confirm the Accord V6 Module Before Ordering

Compare the top flange, connector, fuel-line fitting, reservoir, strainer, module height, float-arm shape, and locking method with the removed unit. Coupe and sedan production details can affect catalog results, so verify the OE number and physical assembly together.

E8693M OE and Interchange References

Common references include E8693M, 17045-SDB-A00, 17045-SDB-A30, 17045SDBA00, 17045SDBA30, FG0914, P76380M, and SP8003M. Confirm that the reference is attached to the original 3.0L V6 module rather than relying on a general Accord search.

Check the Accord Fuel and Electrical Systems First

Verify battery voltage and cranking speed.
Check the PGM-FI main relay, pump fuse, power feed, and ground.
Measure voltage at the module connector while the pump is commanded on.
Measure fuel pressure and residual pressure.
Separate a fuel-level sender fault from a pump-pressure fault.
Inspect the tank for water, sediment, rust, or deteriorated fuel.

A failed main relay, wiring fault, immobilizer issue, ignition fault, or injector-control problem can create similar symptoms. Diagnose the circuit before opening the tank.

Honda Accord Module Installation Notes

Relieve fuel-system pressure and disconnect the battery.
Clean the tank access area before opening the fuel tank.
Record the flange, connector, fuel-line, strainer, and float-arm orientation.
Remove contaminated fuel and correct damaged tank, line, or wiring conditions.
Install a new seal and fully secure the retaining ring.
Keep the strainer and float arm clear of internal tank structures.
Reconnect the fuel line and electrical connector without forcing the fittings.
Prime the system and inspect every disturbed connection for leaks.
Verify fuel pressure, starting, engine operation, and fuel-gauge response.

Do not energize the pump while dry. Correct overheated terminals, poor ground, or tank contamination before returning the vehicle to service.

What’s Included in This Fuel Pump Assembly

Complete fuel pump module
Integrated fuel level sending unit
Fuel strainer (filter sock)
Housing and mounting components

This fuel pump assembly is designed as a direct replacement unit that restores proper fuel delivery and fuel level monitoring.

Estimated Installation Time

Professional mechanic: 1–2 hours
DIY installation: 2–4 hours

Fuel pump replacement usually requires accessing the fuel tank or service panel depending on the vehicle design. Always disconnect the battery and relieve fuel system pressure before installation.

Pump Only vs Fuel Pump Assembly

Option	Description
Replace Pump Only	Lower parts cost but requires disassembling the existing module and reusing older components.
Replace Complete Assembly	A complete module designed for direct installation, helping restore reliable fuel delivery more efficiently.

Most modern vehicles use integrated fuel pump modules, which makes replacing the full assembly the more reliable solution.

Q: Which vehicle is listed for E8693M?

A: Specified 2003–2007 Honda Accord models with the 3.0L V6 are listed.

Q: Does E8693M fit a four-cylinder Accord?

A: No. This listing is for the specified 3.0L V6 module configuration.

Q: What should be compared before ordering?

A: Compare the flange, connector, fuel outlet, module height, reservoir, strainer, float arm, and OE number.

Q: Which OE references should be checked?

A: Check E8693M, 17045-SDB-A00, 17045-SDB-A30, FG0914, P76380M, and SP8003M.

Q: Does the module include a fuel-level sender?

A: A float-arm sender configuration is included as pictured. Gauge faults should still be diagnosed independently.

Q: Can a bad PGM-FI main relay prevent pump operation?

A: Yes. The main relay, fuse, wiring, ground, and connector should be tested before replacing the module.

Q: Should fuel pressure be tested first?

A: Yes. Pressure and residual-pressure testing help confirm whether the in-tank pump is failing.

Q: Should the tank be inspected for contamination?

A: Yes. Remove water, sediment, rust, or deteriorated fuel before installing the replacement module.

Q: Can the new pump be run dry?

A: No. Do not energize the electric pump outside fuel.

Q: What checks are required after installation?

A: Prime the system, inspect for leaks, verify fuel pressure and starting, and confirm normal engine and fuel-gauge operation.
