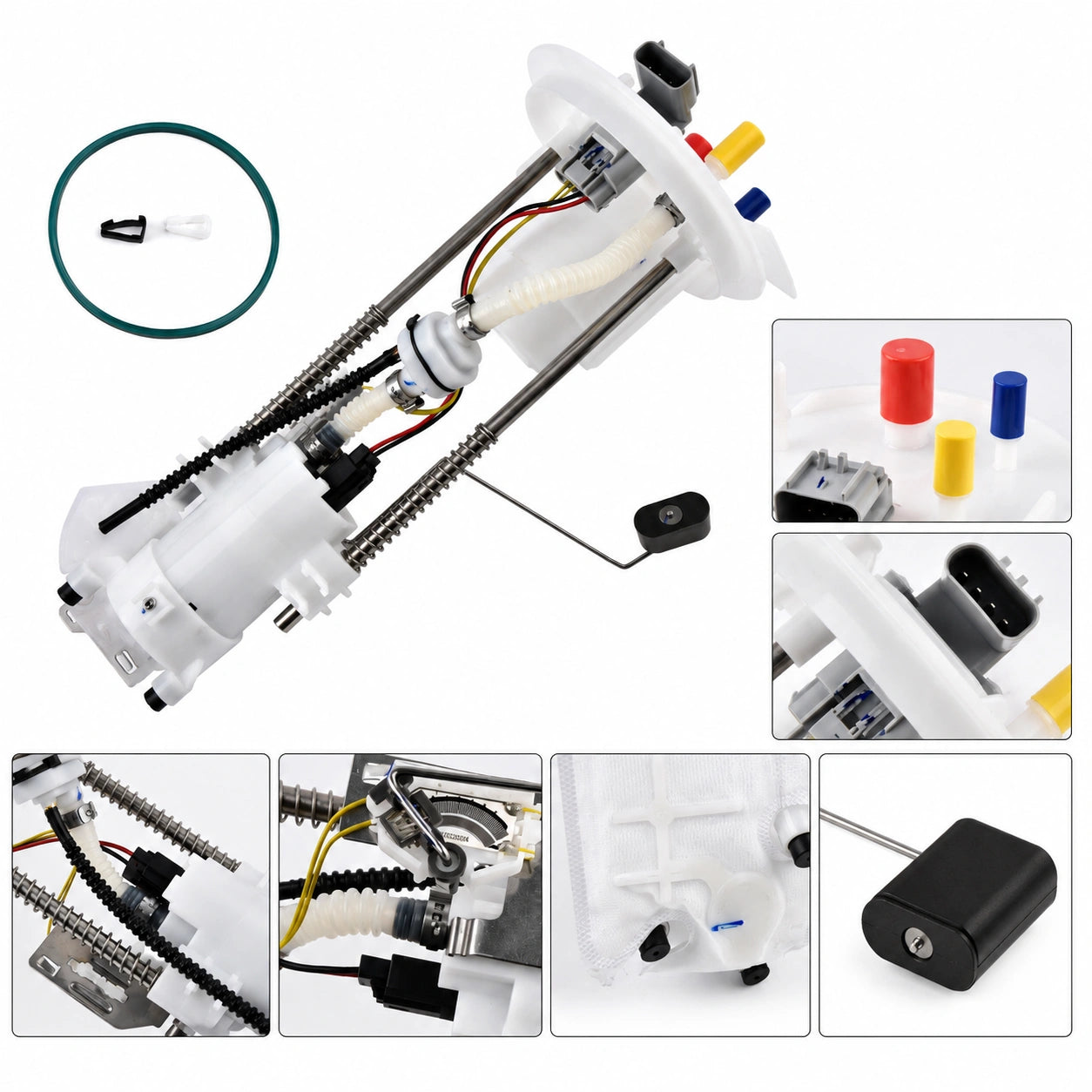

BDFHYK E2441M fuel pump module for 35.7-gallon Ford F-150 Lincoln Mark LT

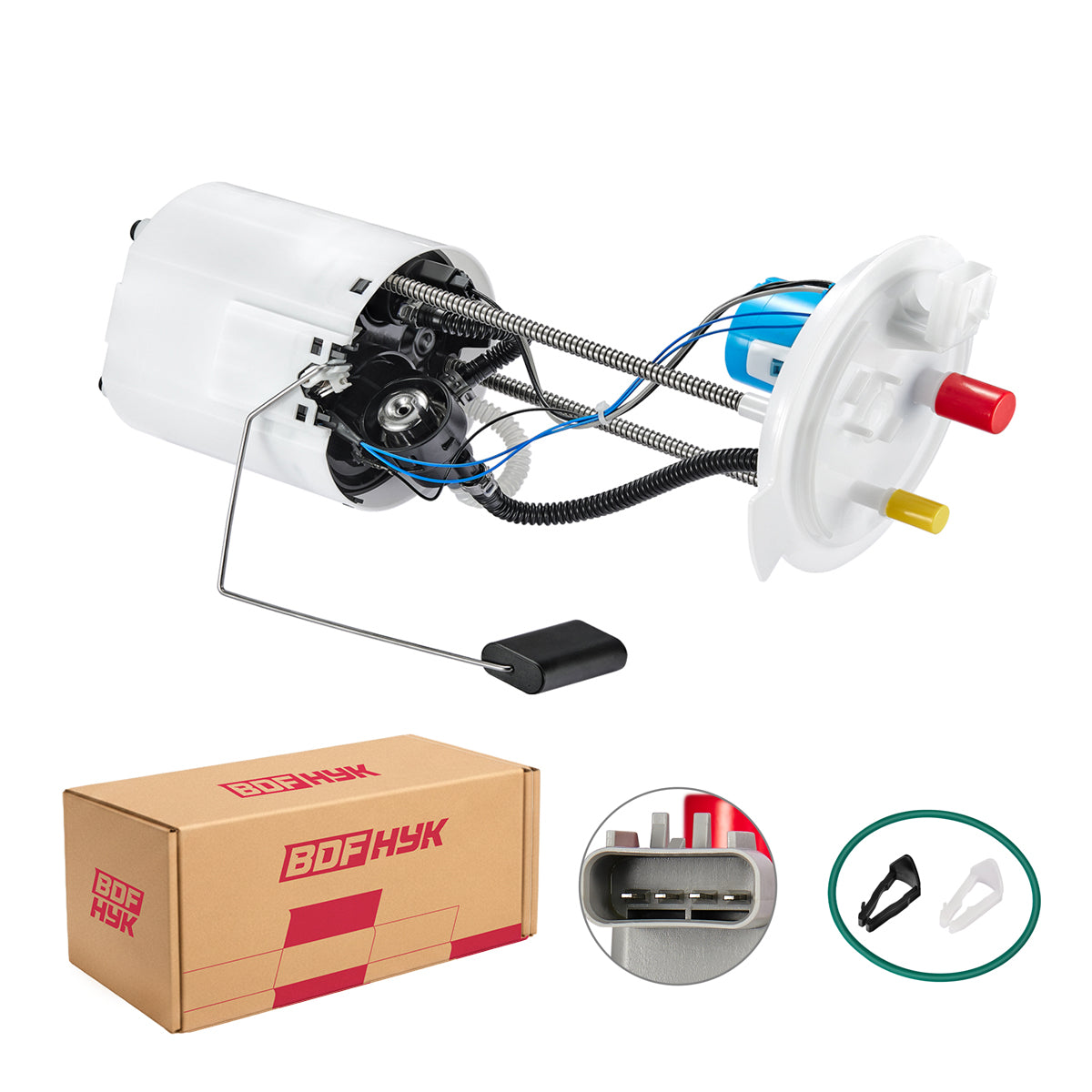

E2441M in-tank pump sender reservoir and float assembly

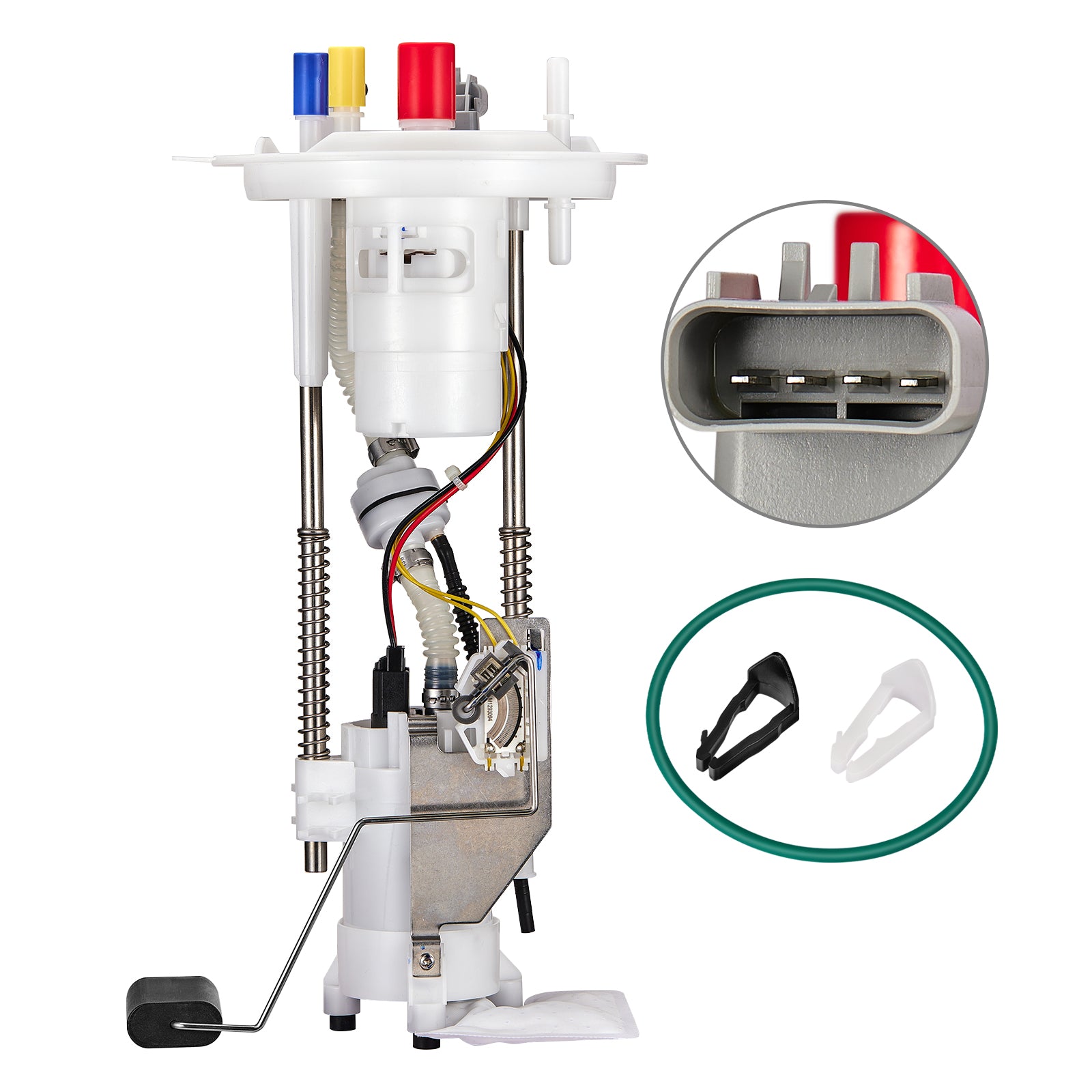

E2441M four-pin connector quick-connect outlet and flange details

Fuel pump module inlet strainer and tank installation reference

Fuel pump module fuel-level sender and connector reference

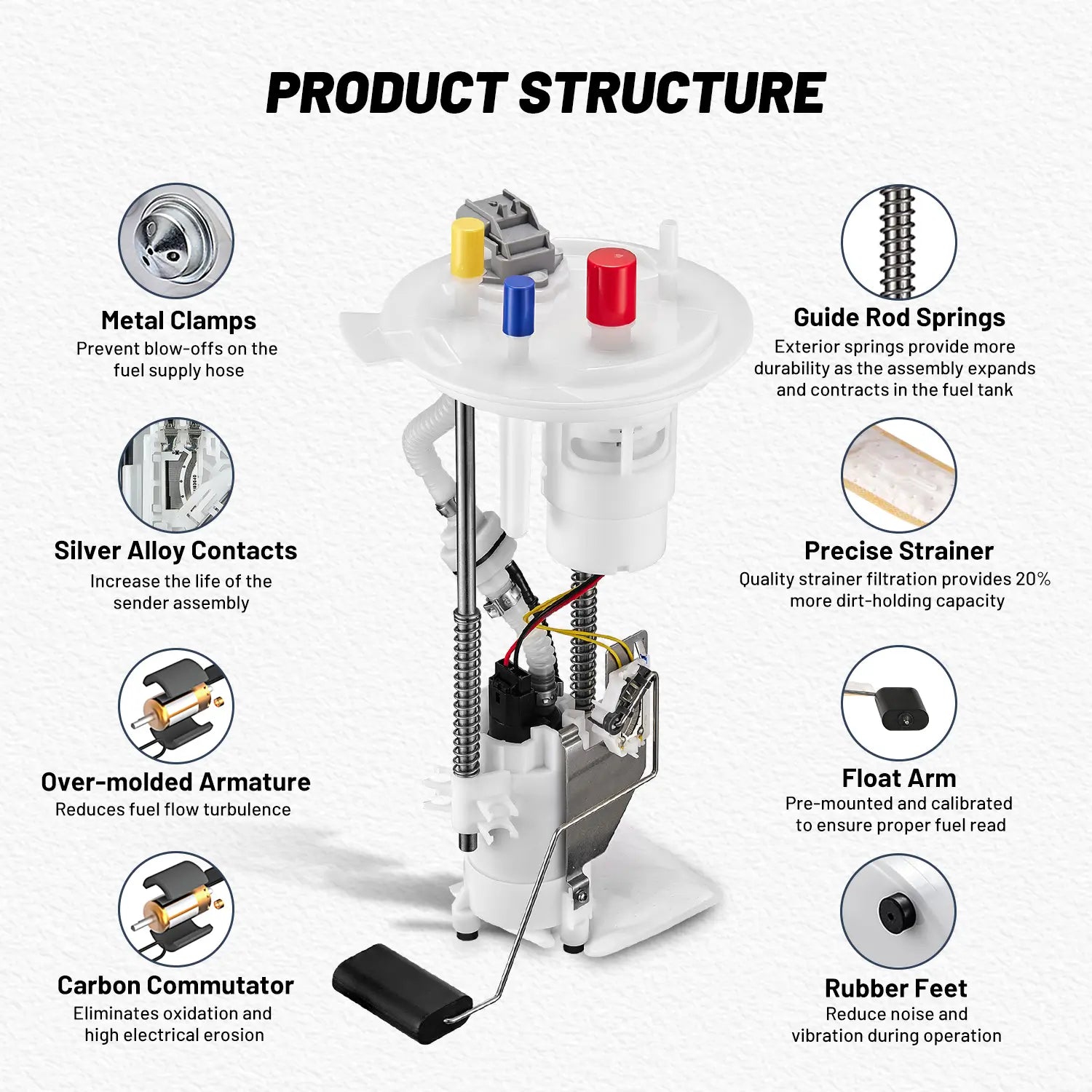

In-tank fuel pump module reservoir and pump component reference

E2441M 4L3Z-9H307-CF OE interchange and wheelbase fitment

E2441M extended-range single-tank module dimensions and orientation

Ford F-150 Lincoln Mark LT Fuel Pump Module Assembly 2004-2008 4.2L 4.6L 5.4L Replacement E2441M 4L3Z-9H307-CF BDFHYK

$52.99

Product Detail

Type Fuel Pump Assembly
SKU BDDLZ-BD-05-07298WT
Make
- Ford
- Lincoln
OE Number 525-2200, FG0850, P76344M, F1452A, P76337M, E2441M, 4L3Z9H307CF, 8L3Z9H307C, SP2005M, ?4L3Z9H307DF, 8L3Z9H307D, 8L3Z9H307H

Trust & Assurance

Free Shipping · 3–7 Business Days

12-Month Warranty

30-Day Return

Secured Payment

Technical Specifications

Part Number	E2441M
Product Type	In-Tank Fuel Pump Module Assembly
Installation Location	Inside the fuel tank
Fuel Type	Gasoline

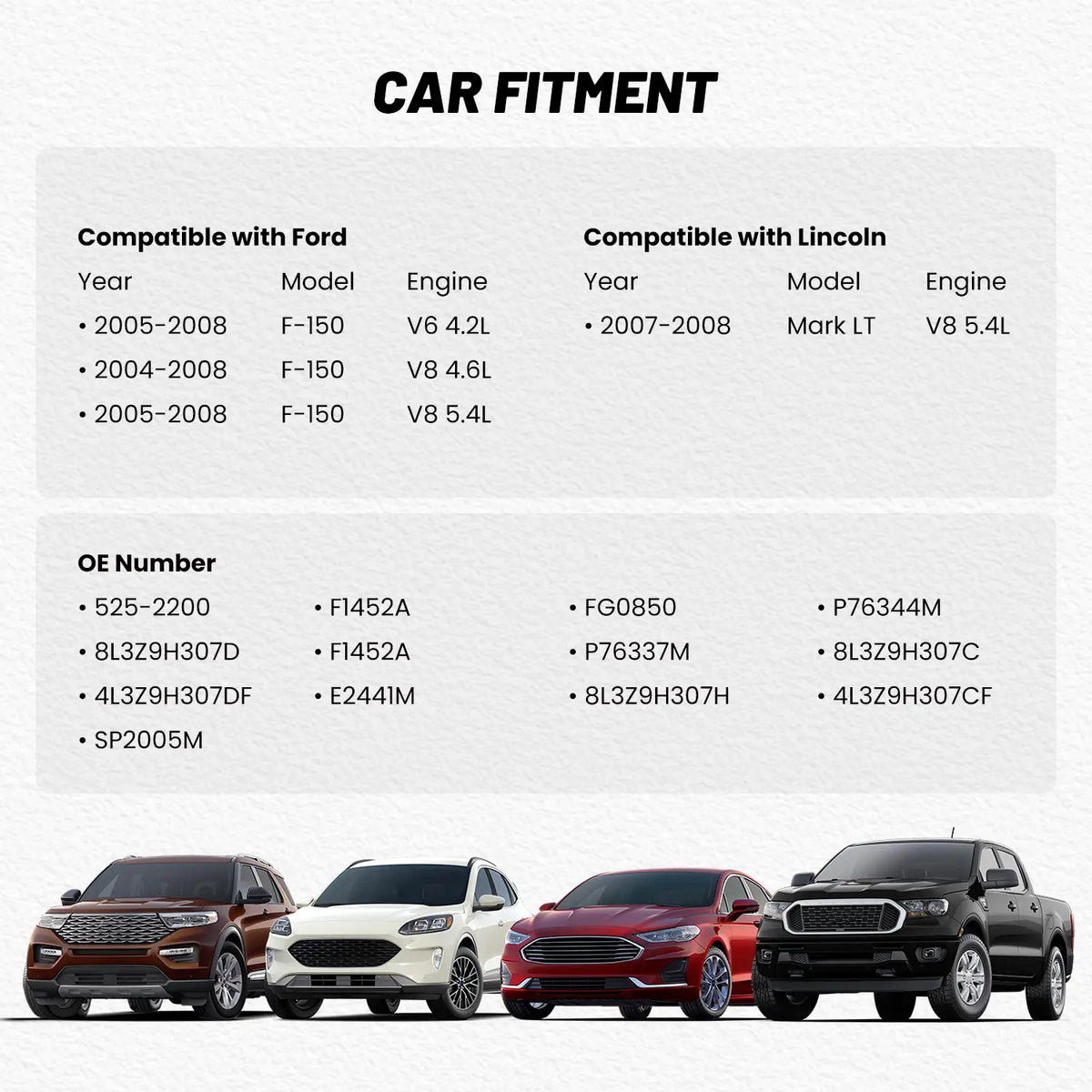

Application	Selected 2004–2008 Ford F-150 and 2007–2008 Lincoln Mark LT
Engine Coverage	F-150 4.2L V6, 4.6L V8 and 5.4L V8; Mark LT 5.4L V8
Tank Capacity	Approximately 35.7-gallon extended-range single tank
Wheelbase Check	Verify approximately 144.5, 144.7, 150.5 or 163.3 inches by year and model
VIN Check	Required for selected 2004 applications and other catalog-specific configurations
Module Functions	Fuel delivery, reservoir pickup and fuel-level reporting
Fuel Level Sender	Included
Float and Reservoir	Included
Fuel Outlet	One 0.375-inch quick-connect outlet
Electrical Connector	Oval connector with four blade terminals
Seal and Lock Ring	Confirm package contents; install a compatible new tank seal
OE References	E2441M, 4L3Z-9H307-CF, 8L3Z-9H307-C, 8L3Z-9H307-D, 8L3Z-9H307-H
Interchange References	SP2005M, FG0850, P76344M
Fitment Priority	Model year, engine, VIN, wheelbase, 35.7-gallon tank, OE number and module layout
Diagnostic Note	Test pressure, voltage, ground, fuse, relay, wiring, fuel line and sender circuit

Extended cranking, low measured fuel pressure, hesitation under load, intermittent stalling, or an inaccurate fuel gauge can indicate an in-tank module fault after the fuse, relay, power supply, ground, wiring, and fuel lines have been tested. This E2441M replacement module is intended for specified 2004–2008 Ford F-150 and 2007–2008 Lincoln Mark LT gasoline trucks equipped with the approximately 35.7-gallon extended-range single tank. Confirm the engine, VIN, wheelbase, tank capacity, OE number, four-terminal connector, fuel outlet, flange, module height, and float-arm layout before ordering.

Fuel Pump Module Fitment for Extended-Range F-150 and Mark LT Tanks

Verified coverage includes selected F-150 4.2L V6, 4.6L V8, and 5.4L V8 applications and selected Mark LT 5.4L V8 applications. Wheelbase, VIN, engine, and tank specifications vary across model years. A standard-capacity or different single-tank module is not interchangeable solely because the mounting flange looks similar.

Fitment Verification

Confirm the approximately 35.7-gallon extended-range single tank.
Verify the engine, VIN, and wheelbase; applicable configurations include approximately 144.5, 144.7, 150.5, and 163.3 inches depending on year.
Match E2441M, 4L3Z-9H307-CF, SP2005M, FG0850, P76344M, or another verified interchange.
Compare the oval four-terminal connector, 3/8-inch quick-connect outlet, flange, reservoir, module height, and float arm.

Module Functions and Service Components

Electric in-tank pump supplies fuel to the engine-side delivery system.
Fuel-level sender, float arm, and reservoir support pickup and gauge reporting.
The quick-connect outlet and electrical connector must match the original module.
Confirm seal, lock-ring, and service-hardware contents before installation and use a compatible new tank seal.

Symptoms and Diagnostic Checks

Measure fuel pressure before replacing the module. Test voltage and ground under load, inspect the fuse and relay, and check the outlet, connector, and sender circuit. An incorrect tank-size module, restricted line, damaged wiring, tank contamination, or an engine-management fault can create similar symptoms.

Installation Notes

Relieve fuel-system pressure, disconnect the battery, and support the extended-range tank safely. Clean the tank and sealing surface, install the correct new seal, protect the float arm, and secure the module evenly. Prime the system, inspect the flange and outlet for leaks, measure fuel pressure, and confirm normal gauge operation.

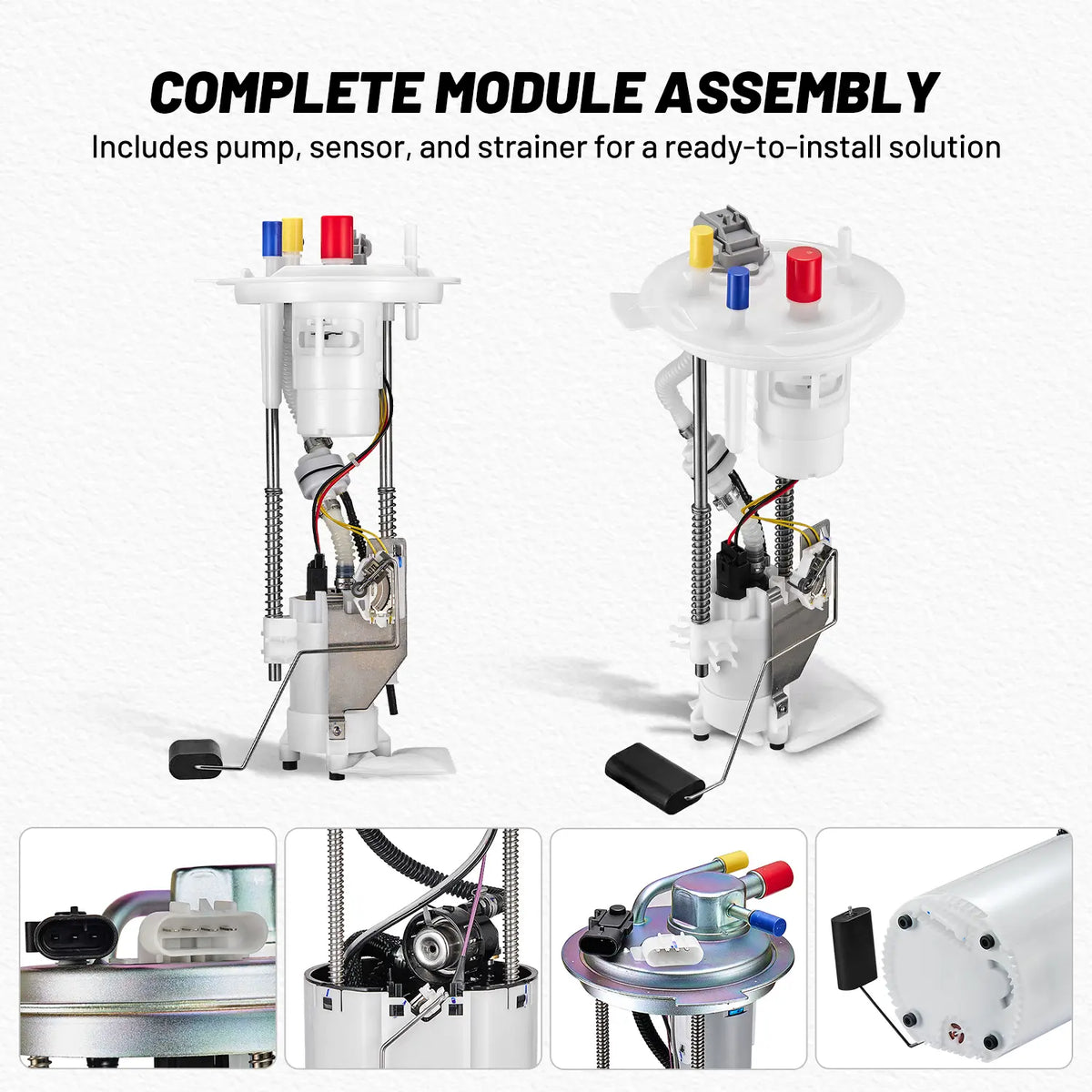

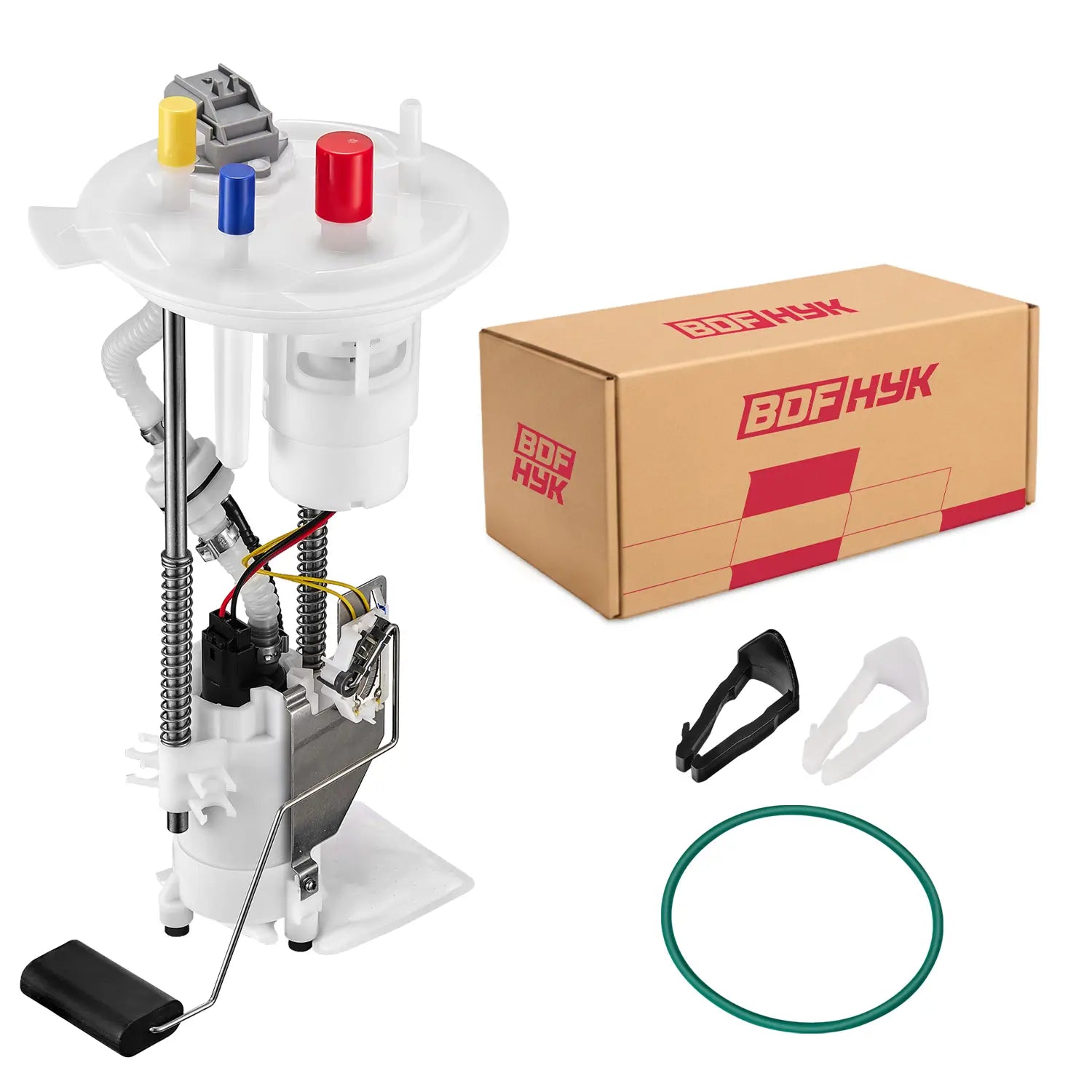

What’s Included in This Fuel Pump Assembly

Complete fuel pump module
Integrated fuel level sending unit
Fuel strainer (filter sock)
Housing and mounting components

This fuel pump assembly is designed as a direct replacement unit that restores proper fuel delivery and fuel level monitoring.

Estimated Installation Time

Professional mechanic: 1–2 hours
DIY installation: 2–4 hours

Fuel pump replacement usually requires accessing the fuel tank or service panel depending on the vehicle design. Always disconnect the battery and relieve fuel system pressure before installation.

Pump Only vs Fuel Pump Assembly

Option	Description
Replace Pump Only	Lower parts cost but requires disassembling the existing module and reusing older components.
Replace Complete Assembly	A complete module designed for direct installation, helping restore reliable fuel delivery more efficiently.

Most modern vehicles use integrated fuel pump modules, which makes replacing the full assembly the more reliable solution.

Q: Which vehicles use the E2441M module?

A: It covers specified 2004–2008 Ford F-150 and 2007–2008 Lincoln Mark LT gasoline trucks with the matching extended-range tank.

Q: What fuel-tank size is required?

A: The verified application uses an approximately 35.7-gallon extended-range single tank.

Q: Does it fit a standard-capacity tank?

A: No. Confirm the original tank capacity and module dimensions before ordering.

Q: Which engines are covered?

A: Coverage includes selected F-150 4.2L, 4.6L, and 5.4L engines and selected Mark LT 5.4L applications.

Q: Why must the VIN and wheelbase be checked?

A: Module fitment varies by model year, engine, VIN, tank, and wheelbase even when the truck name is the same.

Q: Is the fuel-level sender included?

A: Yes. The verified module configuration includes the sender and float arm.

Q: What connector and outlet should be checked?

A: Compare the oval four-terminal connector and single 3/8-inch quick-connect outlet with the removed module.

Q: Are the seal and lock ring included?

A: Package contents can vary. Confirm the supplied hardware and install a compatible new tank seal.

Q: What should be tested before replacement?

A: Test fuel pressure, voltage and ground under load, fuse and relay operation, wiring, fuel line, and sender continuity.

Q: What checks are required after installation?

A: Prime the system, inspect the flange and outlet for leaks, measure pressure, and verify normal gauge operation.
