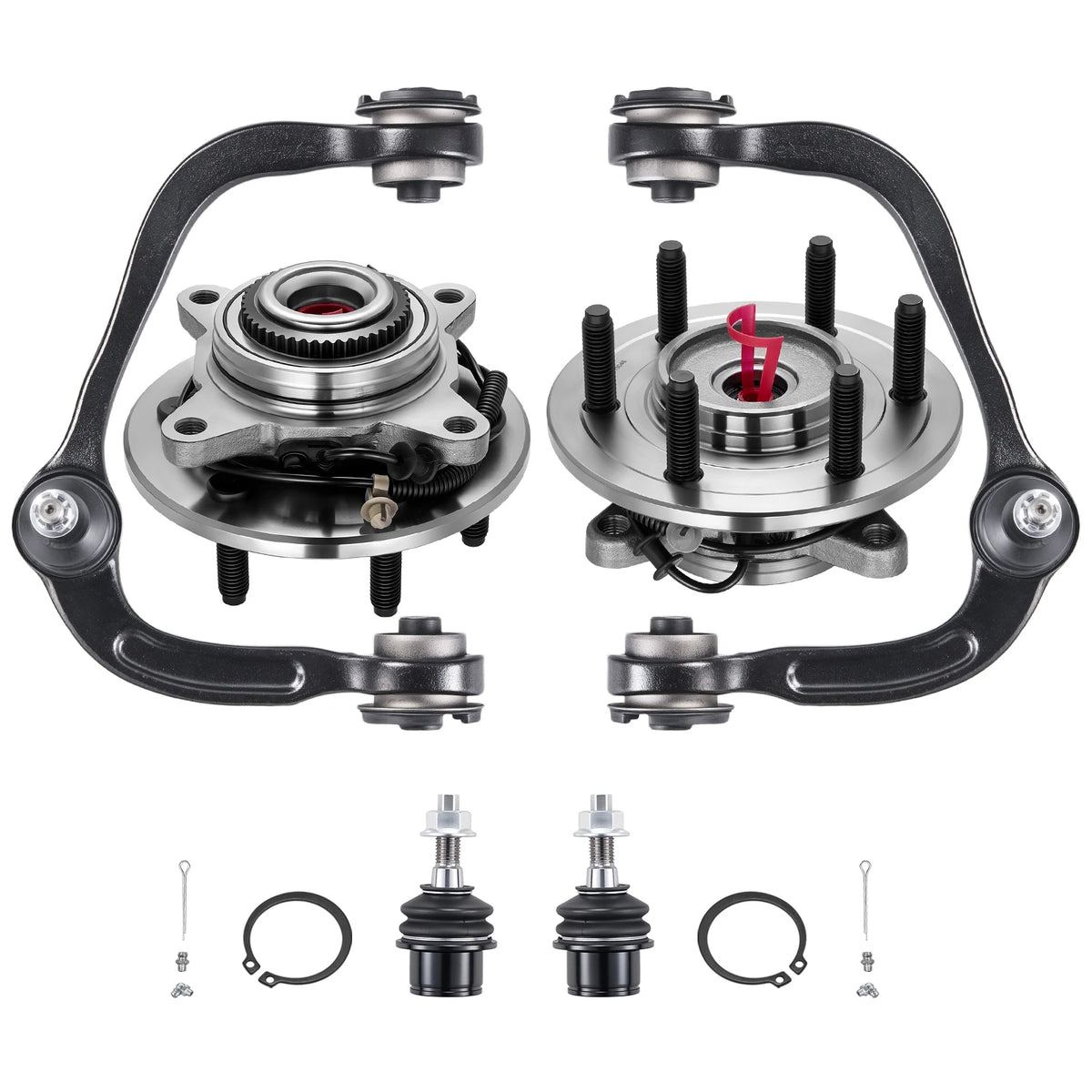

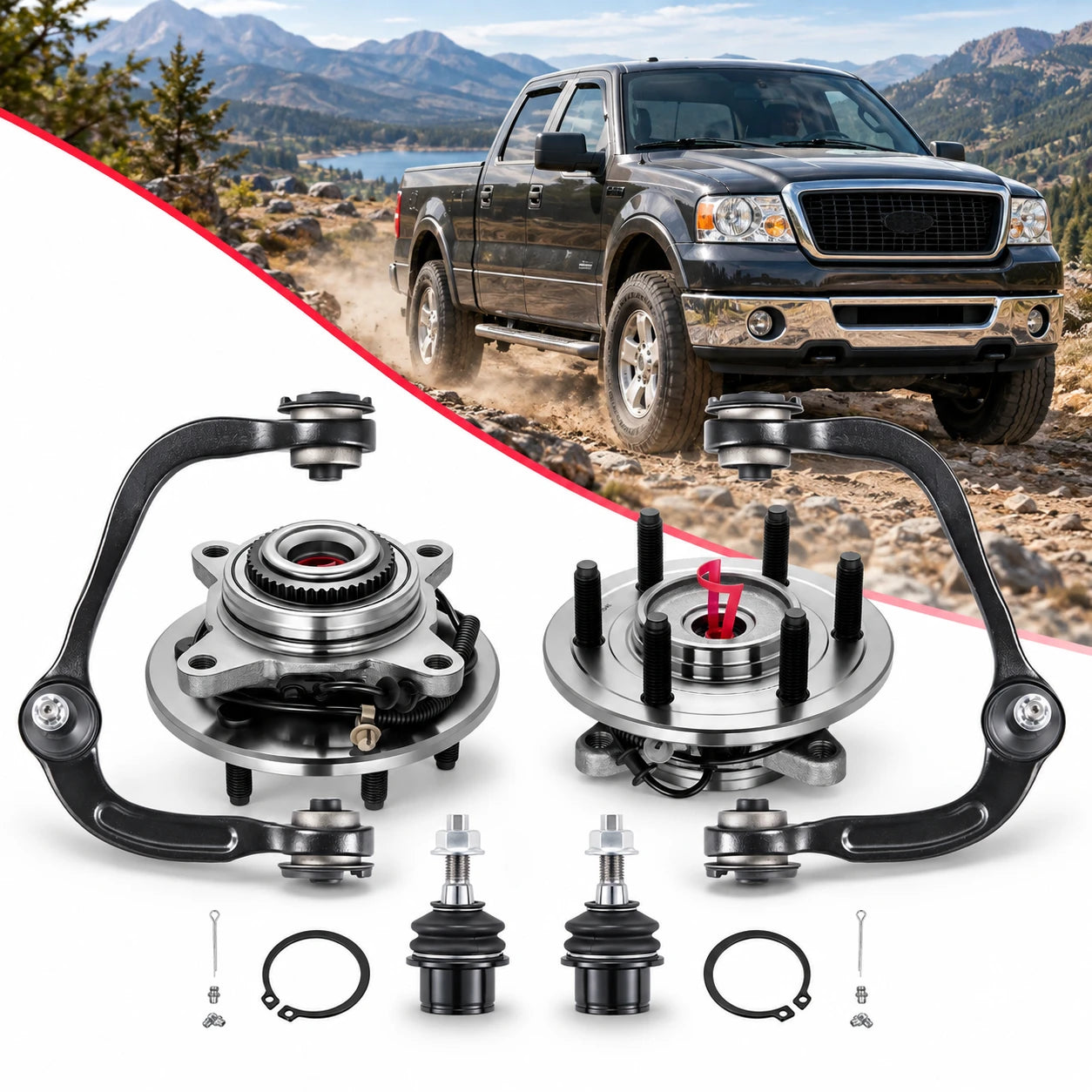

6-PIECE FRONT REPAIR KIT

Control Arm & Wheel Hub Kit for Ford F-150 4WD 6-Lug

This BDFHYK 6-piece control arm and wheel hub kit is designed for select 2004–2008 Ford F-150 and 2006–2008 Lincoln Mark LT models with 4WD and 6-lug front hubs.

The package combines both front wheel bearing and hub assemblies, driver- and passenger-side upper control arm assemblies with ball joints, plus two front lower ball joints for a more complete left- and right-side repair.

Important Fitment:
Fits 4WD models ONLY with 6 wheel studs. 2004 Ford F-150 applications require New Body Style. Select 2005 applications have a production-date restriction. Please verify drivetrain, stud count and build date before ordering.

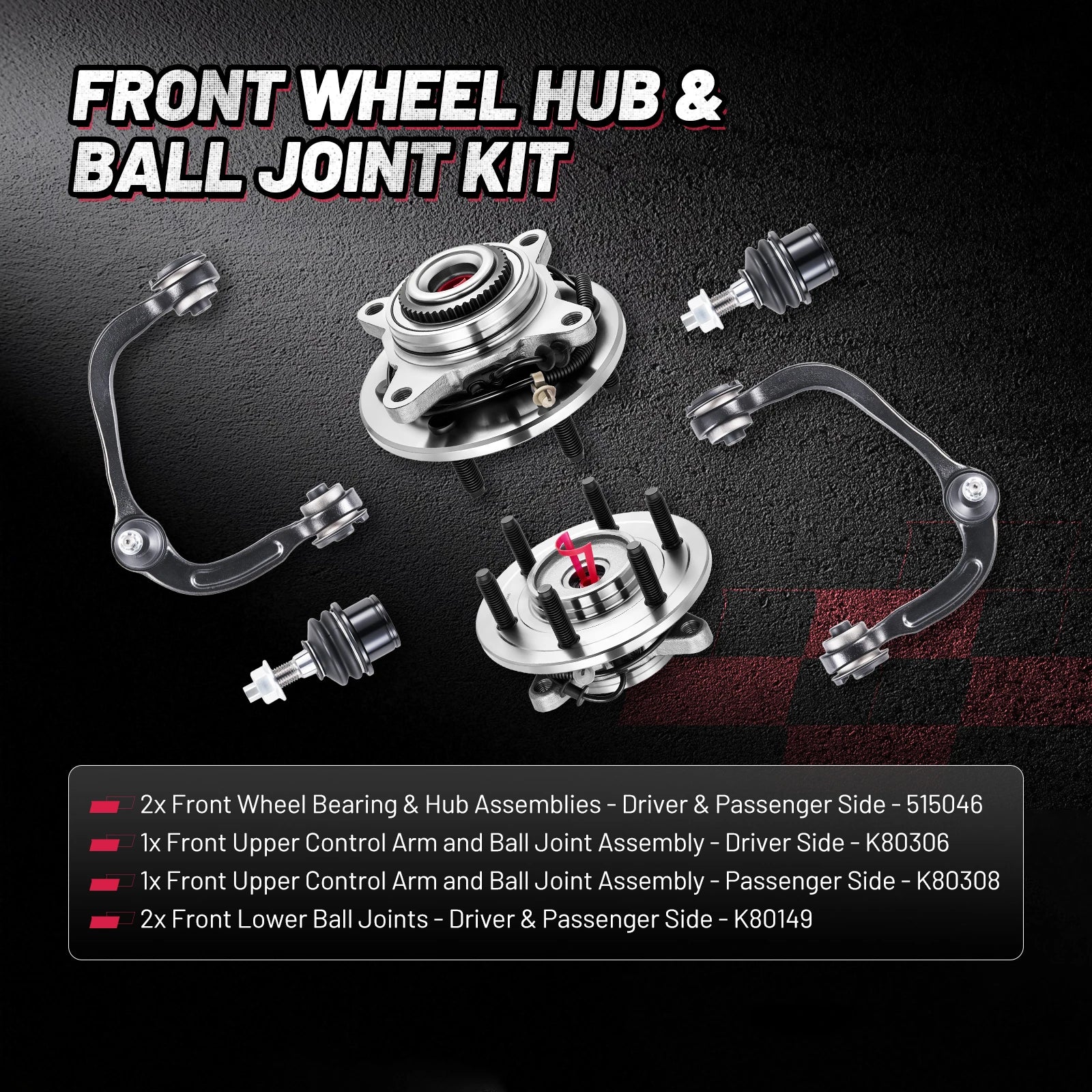

PACKAGE INCLUDES

6 Components for Both Front Sides

Qty Component Position Reference No.
2 Wheel Bearing & Hub Assembly Front Driver + Passenger Side 515046
1 Upper Control Arm & Ball Joint Assembly Front Driver Side K80306
1 Upper Control Arm & Ball Joint Assembly Front Passenger Side K80308
2 Lower Ball Joint Front Driver + Passenger Side K80149

Reference numbers are provided for fitment identification purposes. Compare your original parts and vehicle configuration before installation.

WHY THIS KIT

Control Arms, Ball Joints and Wheel Hubs in One Package

Both Front Sides Covered

Includes driver- and passenger-side upper control arms, lower ball joints and wheel hub assemblies for coordinated front-side service.

Upper Control Arms with Ball Joints

Both upper control arm assemblies include their ball joints, reducing the need to source those components separately.

515046 Hub Assemblies

Includes two front wheel bearing and hub assemblies with integrated ABS sensors for compatible 4WD 6-lug applications.

Vehicle-Specific Configuration

Designed for compatible F-150 and Mark LT applications using the required 4WD and 6-stud front hub configuration.

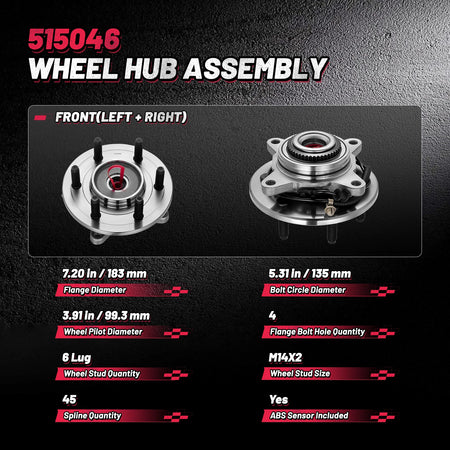

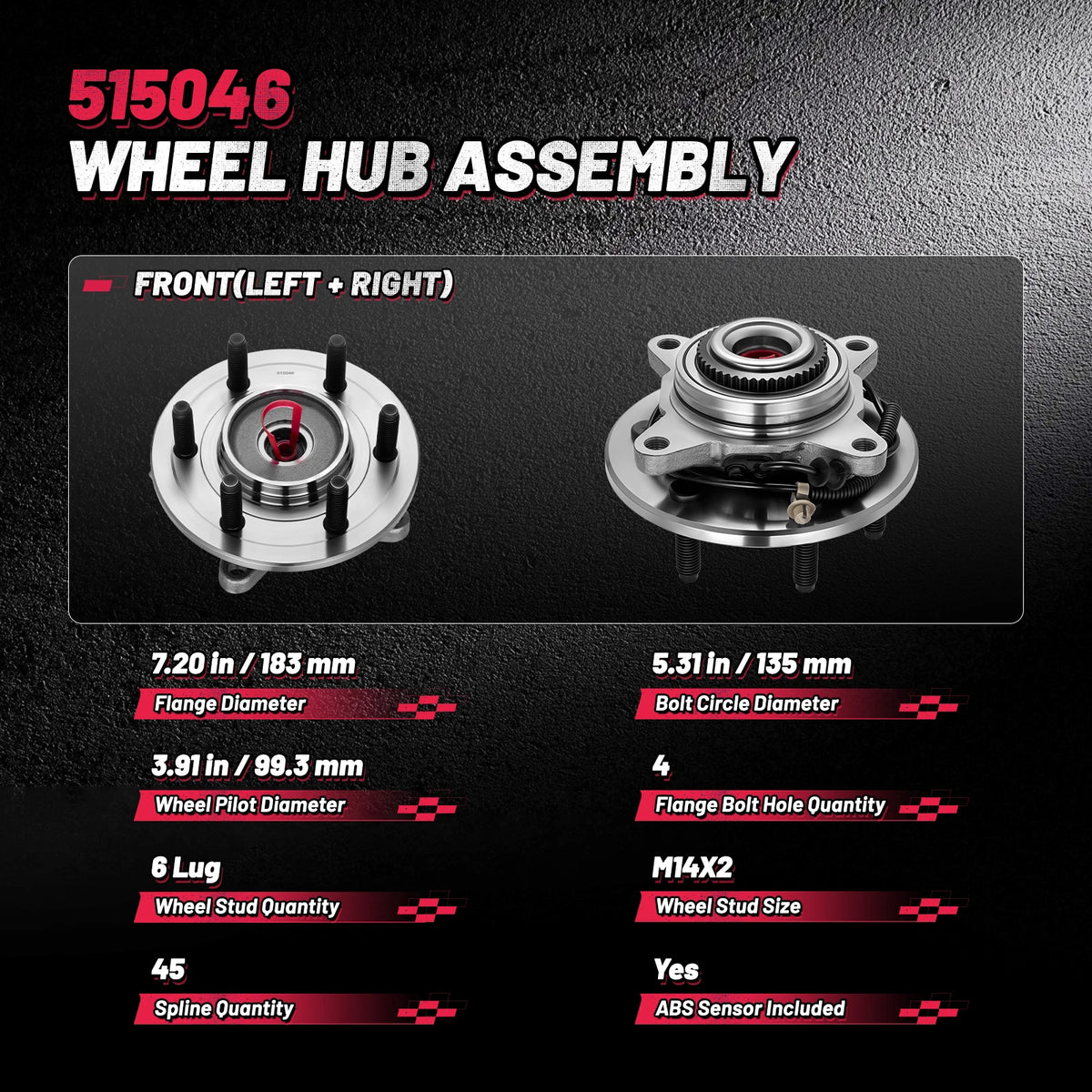

WHEEL HUB SPECIFICATIONS

515046 Front Wheel Bearing & Hub Assembly

Position Front Left & Right
Flange Diameter 7.20 in / 183 mm
Bolt Circle Diameter 5.31 in / 135 mm
Wheel Pilot Diameter 3.91 in / 99.3 mm
Flange Bolt Hole Quantity 4
Wheel Stud Quantity 6
Wheel Stud Size M14 × 2
Spline Quantity 45
ABS Sensor Included
COMMON REPLACEMENT SIGNS

Symptoms That May Point to Worn Control Arm, Ball Joint or Hub Components

  • Clunking or knocking noises over bumps
  • Loose or unstable steering feel
  • Uneven or accelerated front tire wear
  • Front-wheel looseness or vibration
  • Grinding, humming or growling noise while driving
  • ABS or wheel-speed warning symptoms related to a failing hub sensor

These symptoms may have multiple causes. Inspect the vehicle before replacing parts.

VEHICLE FITMENT

Fits Select Ford F-150 & Lincoln Mark LT Models

Make Model Year Engine Fitment Notes
Ford F-150 2004 4.2L V6 4WD; 6 Stud; New Body Style
Ford F-150 2004 4.6L V8 4WD; 6 Stud; New Body Style
Ford F-150 2004 5.4L V8 4WD; 6 Stud; New Body Style
Ford F-150 2005 4.2L V6 4WD; 6 Stud; Built Before 11/29/04
Ford F-150 2005 4.6L V8 4WD; 6 Stud; Built Before 11/29/04
Ford F-150 2005 5.4L V8 4WD; 6 Stud; Built Before 11/29/04
Ford F-150 2006–2008 4.2L V6 4WD; 6 Stud
Ford F-150 2006–2008 4.6L V8 4WD; 6 Stud
Ford F-150 2006–2008 5.4L V8 4WD; 6 Stud
Lincoln Mark LT 2006–2008 5.4L V8 4WD; 6 Stud
VERIFY BEFORE ORDERING

Check These Details Before Purchase

  • Vehicle must be equipped with 4WD.
  • Front hub must use a 6-stud / 6-lug configuration.
  • 2004 F-150 must be New Body Style.
  • Applicable 2005 F-150 models must be built before 11/29/04.
  • Compare the original control arm, ball joint and wheel hub configuration with the product before installation.
INSTALLATION

Professional Installation Recommended

This kit contains front control arm, ball joint and wheel hub components that affect suspension geometry and wheel-end operation. Proper tools, lifting equipment and torque procedures are required.

After replacing control arms or ball joints, a professional wheel alignment is recommended to help restore correct suspension geometry and reduce uneven tire wear.

  • Inspect related suspension and steering components before installation.
  • Clean mounting surfaces before installing the new wheel hubs.
  • Do not reuse damaged or severely corroded mounting hardware.
  • Torque all fasteners to the vehicle manufacturer's specifications.
  • Perform a wheel alignment after control arm or ball joint replacement when required.
CONTROL ARM + HUB COMBINATION

A Practical Kit for Multi-Component Front-Side Repairs

When wheel hubs, upper control arms and lower ball joints need service at the same time, this 6-piece kit brings the major compatible front components together in one package.

Designed for specific 4WD 6-lug Ford F-150 and Lincoln Mark LT applications, it provides a more convenient alternative to purchasing each component separately.
