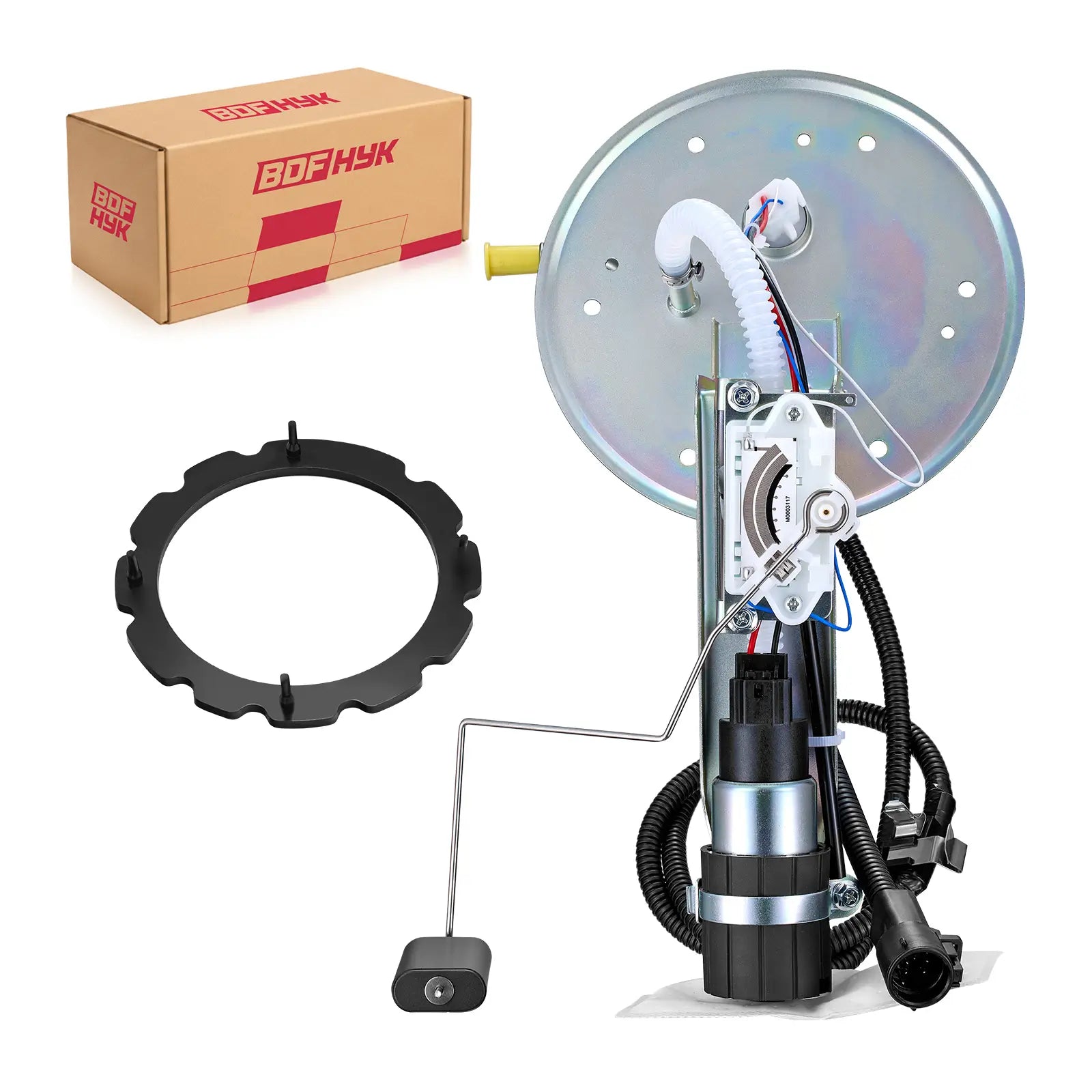

E2336S in-tank fuel pump module with sender, float arm, and strainer

E2336S fuel pump module flange, connector, and fuel outlet details

E2336S electric fuel pump and sender construction details

E2336S Panther-platform build-date and fuel-type fitment reference

E2336S fuel pump module dimensions and float-arm configuration

E2336S fuel pump module package and included component reference

E2336S Crown Victoria Town Car and Grand Marquis OE interchange reference

Electric Fuel Pump Module Assembly For 2003-2010 Ford Crown Victoria, Mercury Grand Marquis Engine 4.6L V8

$59.99

Product Detail

Type Fuel Pump Assembly
SKU BDDLZ-BD-05-7417
Make
- Ford
- Lincoln
- Mercury
OE Number E2336S,EB336S,SP2336H,4W1Z9H307AA,3W1Z9H307AB,5W1Z9H307AC,6W1Z9H307B,6W1Z9H307D,RE0510S,953-4032,1000-01645

Trust & Assurance

Free Shipping · 3–7 Business Days

12-Month Warranty

30-Day Return

Secured Payment

Technical Specifications

Brand	BDFHYK
SKU	BDDLZ-BD-05-7417
Reference Part Number	E2336S
Product Type	In-Tank Fuel Pump and Sender Assembly
Installation Type	Vehicle-specific replacement; production date, fuel type, and tank verification required
Application	Specified Ford Crown Victoria, Lincoln Town Car, Mercury Grand Marquis, and 2003–2004 Mercury Marauder applications
Engine Coverage	4.6L V8 gasoline applications within the verified production configuration
OE / Interchange References	E2336S; EB336S; SP2336H; 3W1Z-9H307-AB; 4W1Z-9H307-AA; 5W1Z-9H307-AC; 6W1Z-9H307-B; 6W1Z-9H307-D; P76025M; RE0510S; 953-4032
Module Functions	Supplies fuel from the tank and measures fuel level through the sender assembly
Fuel Type	Gasoline; verify flexible-fuel restrictions
Fitment Verification	Confirm VIN, model, year, production date, fuel type, wheelbase/fleet configuration, flange, connector, depth, float arm, and OE number
Included Components	Fuel pump and sender assembly with strainer, float arm, and connections as pictured
Installation Position	Inside the fuel tank
Fitment Priority	Production date, fuel type, and original module take priority over the broad model-year range
Symptoms to Check	Long cranking; no start; stalling; low fuel pressure; weak acceleration; inaccurate fuel gauge
Related Parts to Check	Fuse; relay/control circuit; inertia switch; wiring; ground; connector; fuel line; instrument cluster; tank condition
Installation Note	Relieve pressure, disconnect the battery, replace the seal, prime, and verify leaks, pressure, starting, and gauge operation
Part Classification	OE-style aftermarket replacement fuel pump and sender assembly
Replacement Part Note	Police, fleet, limousine, wheelbase, build-date, and flexible-fuel configurations may require a different module

Long cranking, intermittent no-start, stalling, low fuel pressure, or an inaccurate fuel gauge can indicate a fault in the tank module, but the electrical circuit and pressure should be tested first. The BDFHYK E2336S is an in-tank fuel pump and sender assembly for specified Ford Crown Victoria, Lincoln Town Car, Mercury Grand Marquis, and 2003–2004 Mercury Marauder applications. Confirm the production date, fuel type, wheelbase or fleet configuration, flange, connector, module depth, and OE reference before installation.

E2336S Fuel Pump and Sender for Panther-Platform Vehicles

Listed Vehicle Applications

Specified 2003–2010 Ford Crown Victoria 4.6L V8 configurations
Specified 2003–2010 Lincoln Town Car 4.6L V8 configurations
Specified 2003–2010 Mercury Grand Marquis 4.6L V8 configurations
2003–2004 Mercury Marauder 4.6L V8 configurations

Build-date, fuel-type, police, fleet, limousine, wheelbase, and tank restrictions can apply. Do not treat the broad model-year range as universal fitment.

Confirm Production Date, Fuel Type, and Tank Configuration

Compare the locking flange, connector, outlet layout, module height, reservoir, strainer, float arm, and sender resistance arrangement with the removed assembly. Check the door-jamb build date and VIN. Flexible-fuel and later-production configurations can use a different module.

E2336S OE and Interchange References

Common references include E2336S, EB336S, SP2336H, 3W1Z-9H307-AB, 4W1Z-9H307-AA, 5W1Z-9H307-AC, 6W1Z-9H307-B, 6W1Z-9H307-D, P76025M, RE0510S, and 953-4032. Match the original number and physical assembly together.

Panther-Platform Fuel-System Diagnosis

Check battery voltage and cranking speed.
Test the fuel-pump fuse, relay, driver/control circuit, inertia switch, power feed, and ground.
Measure voltage and voltage drop at the module connector under load.
Measure fuel pressure and residual pressure.
Separate pump, sender, gauge, and instrument-cluster faults.
Inspect the tank and connector for contamination, corrosion, or heat damage.

A no-start can also result from ignition, injector-control, crank-sensor, security-system, wiring, or engine-management faults. Complete the relevant diagnosis before lowering the tank.

Installation and Final Verification

Relieve pressure and disconnect the battery.
Clean the tank opening before removal.
Record the flange, connector, outlet, strainer, and float-arm orientation.
Remove contaminated fuel and repair damaged wiring or tank conditions.
Install a new seal and fully secure the retaining ring.
Keep the float arm and strainer clear inside the tank.
Reconnect the fuel line and electrical plug without forcing the fittings.
Prime the system and inspect for leaks.
Verify pressure, starting, engine operation, and fuel-gauge response.

Do not run the pump dry. Recheck build date and fuel type before installation because visually similar modules are not always interchangeable.

What’s Included in This Fuel Pump Assembly

Complete fuel pump module
Integrated fuel level sending unit
Fuel strainer (filter sock)
Housing and mounting components

This fuel pump assembly is designed as a direct replacement unit that restores proper fuel delivery and fuel level monitoring.

Estimated Installation Time

Professional mechanic: 1–2 hours
DIY installation: 2–4 hours

Fuel pump replacement usually requires accessing the fuel tank or service panel depending on the vehicle design. Always disconnect the battery and relieve fuel system pressure before installation.

Pump Only vs Fuel Pump Assembly

Option	Description
Replace Pump Only	Lower parts cost but requires disassembling the existing module and reusing older components.
Replace Complete Assembly	A complete module designed for direct installation, helping restore reliable fuel delivery more efficiently.

Most modern vehicles use integrated fuel pump modules, which makes replacing the full assembly the more reliable solution.

Q: Which vehicles are listed for E2336S?

A: Specified Crown Victoria, Town Car, Grand Marquis, and 2003–2004 Marauder 4.6L applications are listed.

Q: Does E2336S fit every 2003–2010 Panther-platform vehicle?

A: No. Production date, fuel type, wheelbase, fleet package, tank, and OE number must be checked.

Q: What should be compared before ordering?

A: Compare the flange, connector, outlets, module height, reservoir, strainer, float arm, and sender configuration.

Q: Which OE references should be checked?

A: Check E2336S, EB336S, SP2336H, 3W1Z-9H307-AB, 4W1Z-9H307-AA, 5W1Z-9H307-AC, and 6W1Z-series references.

Q: Does the module include the fuel-level sender?

A: Yes, the pictured configuration includes a float-arm sender assembly.

Q: Can the inertia switch or relay stop pump operation?

A: Yes. Test the fuse, relay/control circuit, inertia switch, power, ground, connector, and voltage drop first.

Q: Should fuel pressure be tested before replacement?

A: Yes. Fuel-pressure and residual-pressure tests help identify an in-tank pump fault.

Q: Can flexible-fuel models use a different module?

A: Yes. Fuel type and production date must be confirmed from the VIN and original module.

Q: Can the pump be operated dry?

A: No. Do not energize the electric pump outside fuel.

Q: What must be checked after installation?

A: Prime the system, inspect for leaks, verify pressure and starting, and confirm the gauge responds correctly.
