Electric Fuel Pump Module Assembly For 2004-2008 Ford F-150 4.2L 4.6L 5.4L Replace 4L3Z-9H307-AF

$56.89

Product Detail

Type Fuel Pump Assembly
SKU BDDLZ-BD-05-7410
Make
- Ford
OE Number 323-00127, 323-01855, 4L3Z9H307AF, 4L3Z9H307BF, 4L3Z9H307AF, 4L3Z9H307BF, 6L349H307HB, 6L349H307HC,6L349H307HD, 7L349B357CA, 5L349H307CA, 6L3Z9H307C,E2434M, FG0845, FG0846,FG0850,FG0583,5L3Z9H307AB 4L3Z9H307CF,6L3Z9H3, P76335M,SP2004M,69186,F1445A,2202-420425

Trust & Assurance

Free Shipping · 3–7 Business Days

12-Month Warranty

30-Day Return

Secured Payment

Technical Specifications

Brand	BDFHYK
SKU	BDDLZ-BD-05-7410
Reference Part Number	E2434M
Product Type	In-Tank Fuel Pump Module Assembly
Installation Type	Vehicle-specific replacement; cab, wheelbase, bed, tank, and fuel-type verification required
Application	Specified 2004–2008 Ford F-150 gasoline applications
Engine Coverage	4.2L V6; 4.6L V8; 5.4L V8 within the verified cab, wheelbase, and tank configuration
OE / Interchange References	E2434M; 4L3Z-9H307-AF; 4L3Z-9H307-BF; 4L3Z-9H307-CF; 5L3Z-9H307-AB; 5L34-9H307-CA; 6L34-9H307-HB; 6L34-9H307-HC; 6L34-9H307-HD; FG0845; FG0846; P76335M; P76343M; SP2004M
Module Functions	Supplies fuel from the tank and supports fuel-level measurement through the module sender
Fuel Type	Gasoline; common listings exclude flexible-fuel configurations
Fitment Verification	Confirm VIN, cab, wheelbase, bed length, tank capacity/location, fuel type, flange, connector, outlet, module depth, float arm, and OE reference
Included Components	Fuel pump module assembly with reservoir, strainer, float arm, and connections as pictured
Installation Position	Inside the fuel tank
Fitment Priority	Cab, wheelbase, bed, and tank configuration take priority over F-150 model name or engine size
Symptoms to Check	Extended cranking; no start; stalling; low fuel pressure; weak acceleration; inaccurate fuel gauge
Related Parts to Check	Fuse; relay/driver circuit; inertia switch; wiring; ground; connector; fuel lines; tank condition
Installation Note	Relieve pressure, disconnect the battery, clean the tank opening, replace the seal, prime, and verify leaks, pressure, and gauge operation
Part Classification	OE-style aftermarket replacement fuel pump module
Replacement Part Note	Common E2434M coverage is limited to specific Regular Cab or SuperCab wheelbase/tank combinations; verify the removed module

Extended cranking, no-start, stalling, low fuel pressure, weak acceleration, or an inaccurate fuel gauge can indicate an in-tank module fault, but power, ground, and pressure should be tested first. The BDFHYK E2434M is a fuel pump module for specified 2004–2008 Ford F-150 4.2L, 4.6L, and 5.4L gasoline configurations. Confirm the cab style, wheelbase, bed length, tank capacity and location, fuel type, flange, connector, module depth, and OE reference against the removed assembly.

E2434M Fuel Pump Module for Specific 2004–2008 F-150 Configurations

Engine and Chassis Coverage

4.2L V6 gasoline applications within the listed configuration
4.6L and 5.4L V8 gasoline applications within the listed configuration
Common catalog coverage includes Regular Cab or SuperCab trucks with approximately 126-inch or 133-inch wheelbases

Crew Cab, flexible-fuel, different wheelbase, and alternate tank configurations can require another module. The truck name and engine size alone are not enough to confirm fitment.

Confirm Cab, Wheelbase, Bed, and Fuel Tank

Check the VIN and door-jamb label, then compare the removed module with the product images. Verify cab style, wheelbase, bed length, tank capacity, tank location, locking flange, connector, outlet angle, reservoir, module height, strainer, and float-arm direction.

E2434M OE and Interchange References

Common references include E2434M, 4L3Z-9H307-AF, 4L3Z-9H307-BF, 4L3Z-9H307-CF, 5L3Z-9H307-AB, 5L34-9H307-CA, 6L34-9H307-HB, 6L34-9H307-HC, 6L34-9H307-HD, FG0845, FG0846, P76335M, P76343M, and SP2004M.

F-150 Fuel-System Diagnosis Before Replacement

Verify battery voltage and cranking speed.
Check the fuel-pump fuse, relay or driver circuit, inertia switch, power feed, and ground.
Measure voltage and voltage drop at the module connector under load.
Measure fuel pressure and residual pressure.
Separate pump-pressure faults from sender or instrument-cluster faults.
Inspect the tank for water, sediment, rust, or deteriorated fuel.

Ignition, injector-control, crank-sensor, security-system, wiring, and engine-management faults can create similar symptoms. Complete the appropriate diagnosis before lowering the tank.

F-150 Module Installation and Final Checks

Relieve fuel pressure and disconnect the battery.
Clean the tank opening before removing the module.
Record the flange, connector, line, strainer, and float-arm orientation.
Remove contamination and repair damaged tank, line, or wiring conditions.
Install a new seal and fully secure the retaining ring.
Keep the strainer and float arm clear of baffles.
Reconnect the fuel line and electrical plug without forcing them.
Prime the system and inspect for leaks.
Verify pressure, starting, engine operation, and fuel-gauge response.

Do not operate the pump dry. Confirm the complete cab, wheelbase, bed, and tank configuration before installation.

What’s Included in This Fuel Pump Assembly

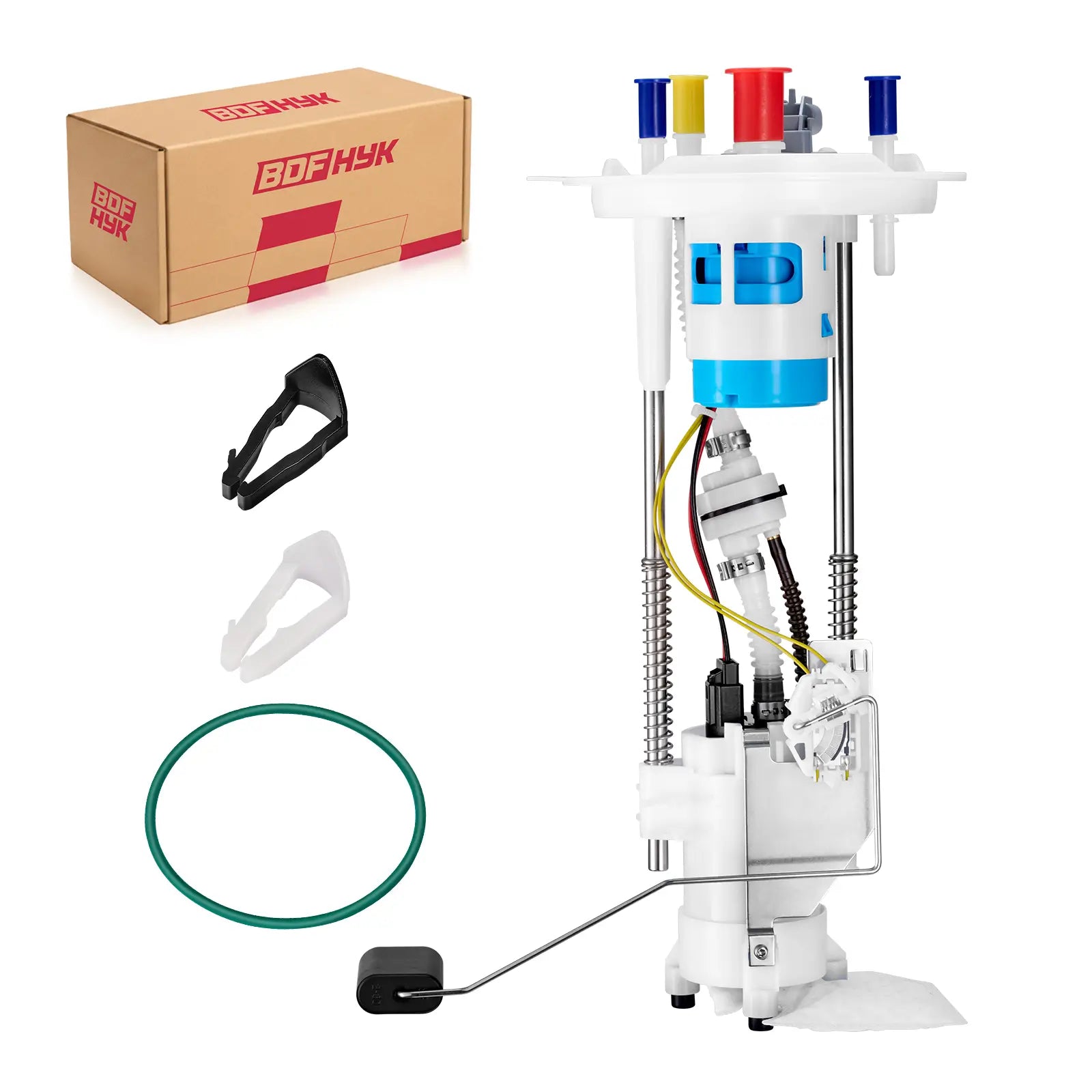

Complete fuel pump module
Integrated fuel level sending unit
Fuel strainer (filter sock)
Housing and mounting components

This fuel pump assembly is designed as a direct replacement unit that restores proper fuel delivery and fuel level monitoring.

Estimated Installation Time

Professional mechanic: 1–2 hours
DIY installation: 2–4 hours

Fuel pump replacement usually requires accessing the fuel tank or service panel depending on the vehicle design. Always disconnect the battery and relieve fuel system pressure before installation.

Pump Only vs Fuel Pump Assembly

Option	Description
Replace Pump Only	Lower parts cost but requires disassembling the existing module and reusing older components.
Replace Complete Assembly	A complete module designed for direct installation, helping restore reliable fuel delivery more efficiently.

Most modern vehicles use integrated fuel pump modules, which makes replacing the full assembly the more reliable solution.

Q: Which F-150 model years are listed for E2434M?

A: Specified 2004–2008 F-150 gasoline configurations are listed.

Q: Does E2434M fit every 2004–2008 F-150?

A: No. Cab style, wheelbase, bed length, tank, fuel type, and OE number must match.

Q: Which cab and wheelbase configurations are commonly associated with E2434M?

A: Common catalog coverage includes Regular Cab or SuperCab trucks with approximately 126-inch or 133-inch wheelbases; verify the VIN and original module.

Q: Does it fit Crew Cab or flexible-fuel trucks?

A: Those configurations can require a different module and should not be assumed to fit.

Q: Which OE references should be checked?

A: Check E2434M, 4L3Z-9H307-AF/BF/CF, 5L3Z-9H307-AB, 6L34-9H307-HB/HC/HD, FG0845, FG0846, and SP2004M.

Q: Does the module include a fuel-level sender?

A: A float-arm sender configuration is included as pictured.

Q: Can an inertia switch or relay fault cause a no-start?

A: Yes. Test the inertia switch, fuse, relay or driver circuit, power, ground, connector, and voltage drop first.

Q: Should fuel pressure be measured before replacement?

A: Yes. Pressure and residual-pressure testing help confirm an in-tank pump fault.

Q: Can the pump be operated dry?

A: No. Do not energize the electric pump outside fuel.

Q: What must be checked after installation?

A: Prime the system, inspect for leaks, verify pressure and starting, and confirm normal fuel-gauge response.
