Ford F-150 Fuel Pump Module Assembly 2009-2014 3.7L 4.6L 5.0L 5.4L 6.2L Replacement E2545M 9L3Z-9H307-F BDFHYK

Name: Ford F-150 Fuel Pump Module Assembly 2009-2014 3.7L 4.6L 5.0L 5.4L 6.2L Replacement E2545M 9L3Z-9H307-F BDFHYK
Brand: BDFHYK
SKU: BDDLZ-BD-05-07623WT
Price: 50.99 USD
Availability: InStock

$50.99

~~$59.99~~ -15% $50.99

Product Detail

Type Fuel Pump Assembly
SKU BDDLZ-BD-05-07623WT
Engine

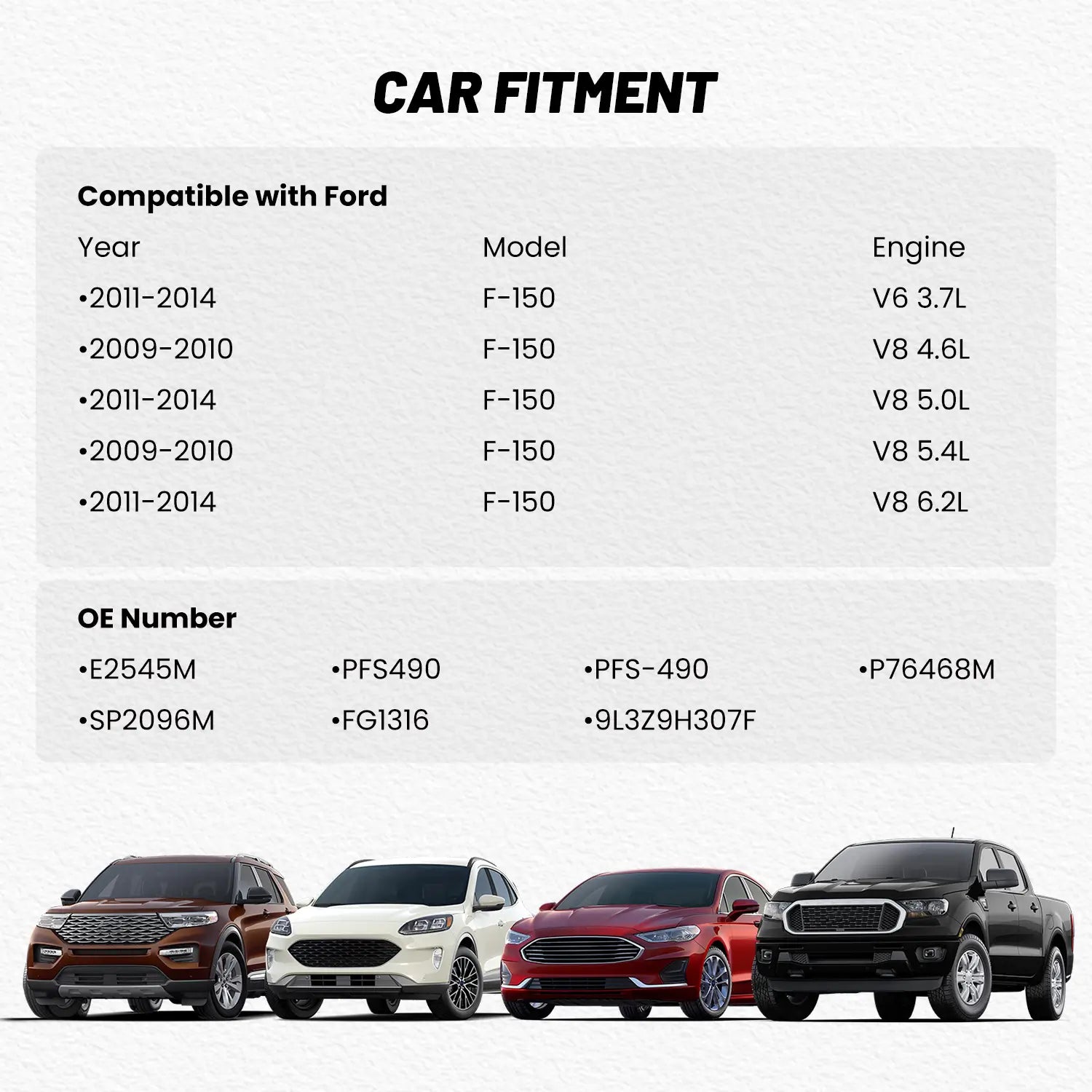

2009–2010 F-150 (4.6L/5.4L V8)
2011–2014 F-150 (3.7L/5.0L/6.2L V8)
Make
- Ford
OE Number E2545M, FG1316, PFS490, PFS-490, P76468M, SP2096M, 9L3Z-9H307-F

Trust & Assurance

Free Shipping · 3–7 Business Days

12-Month Warranty

30-Day Return

Secured Payment

… …

Technical Specifications

Part Number	E2545M
Product Type	In-Tank Fuel Pump Module Assembly
Installation Location	Inside the fuel tank
Fuel Type	Gasoline
Application	Selected 2009–2014 Ford F-150 and SVT Raptor configurations
Engine Coverage	Selected 3.7L V6, 4.6L V8, 5.0L V8, 5.4L V8 and 6.2L V8
Tank Capacity	36-gallon extended-range tank only
Wheelbase Check	Approximately 145, 157 or 163 inches depending on configuration
Module Functions	Fuel delivery, reservoir pickup and fuel-level reporting
Fuel Level Sender	Included
Sender Resistance	Approximately 180 ohms empty and 10 ohms full
Float and Reservoir	Included
Fuel Outlets	Two quick-connect outlets; compare size and orientation
Electrical Connector	Four blade terminals; compare connector keying
Fuel Tank Pressure Sensor	Not included
Lock Ring	Not included
OE References	E2545M, 9L3Z-9H307-F
Fitment Priority	Year, engine, 36-gallon tank, wheelbase, OE number, connector and outlet layout
Diagnostic Note	Test pressure, voltage, ground, fuse, relay, wiring, lines and sender circuit

Extended cranking, low measured fuel pressure, hesitation during acceleration, intermittent stalling, or an inaccurate fuel gauge can indicate an in-tank module fault after the fuse, relay, power supply, ground, wiring, and fuel lines have been tested. This E2545M replacement module is intended for specified 2009–2014 Ford F-150 gasoline trucks equipped with the 36-gallon extended-range tank. Confirm the engine, wheelbase, tank capacity, OE number, four-terminal connector, dual fuel outlets, flange, module height, and float-arm layout before ordering.

Fuel Pump Module Fitment for 36-Gallon Ford F-150 Tanks

Verified applications include selected 3.7L V6 and 4.6L, 5.0L, 5.4L, or 6.2L V8 configurations, including applicable F-150 and SVT Raptor models. This module is not intended for the standard-capacity tank. Vehicle configuration must match the 36-gallon extended-range tank and an applicable wheelbase of approximately 145, 157, or 163 inches.

Fitment Verification

Confirm the 2009–2014 model year, gasoline engine, and 36-gallon tank.
Verify the wheelbase and compare it with the applicable 145-, 157-, or 163-inch configuration.
Match E2545M, 9L3Z-9H307-F, or another verified interchange number.
Compare the four-pin connector, two fuel outlets, flange, reservoir, module height, and float arm.

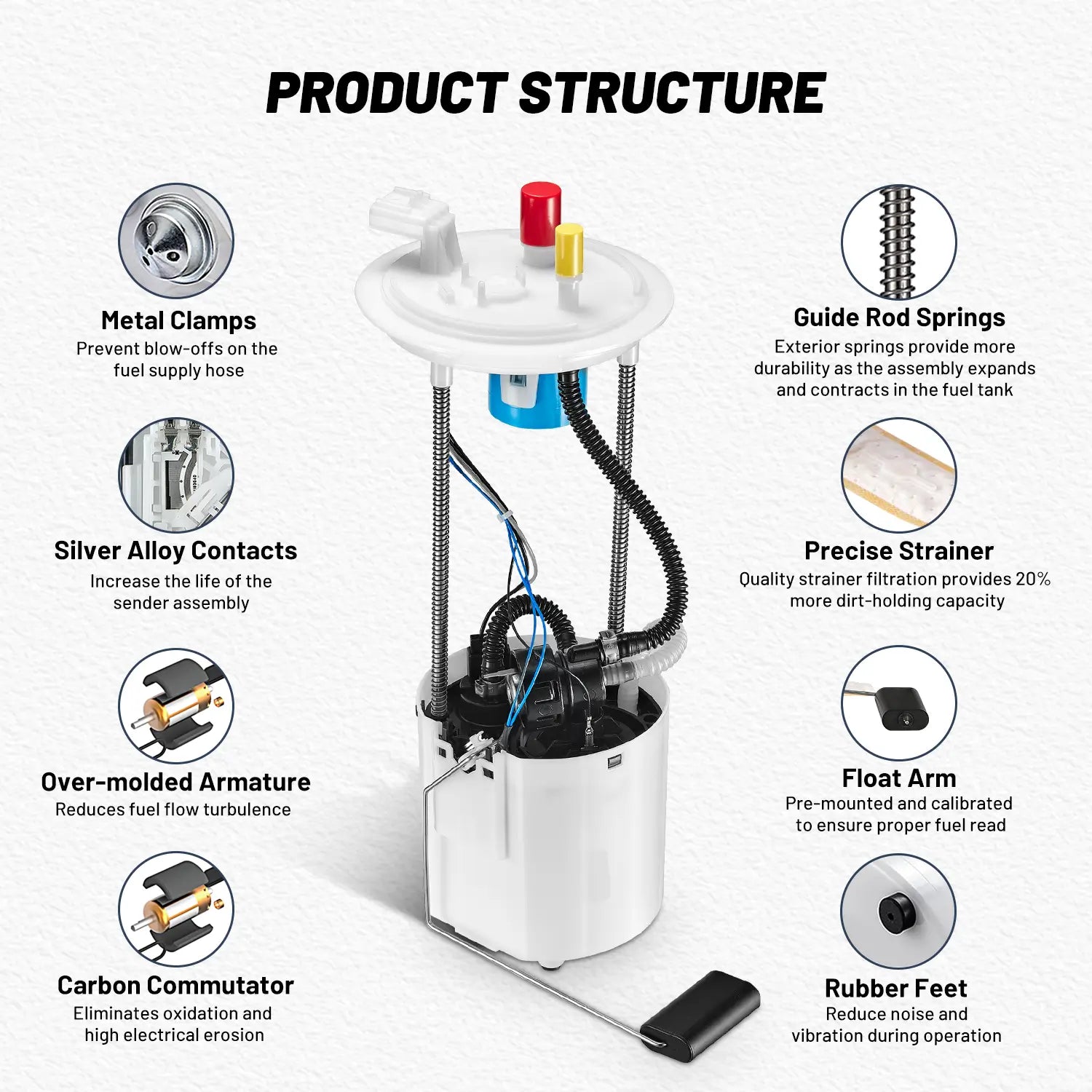

Module Functions and Included Components

Electric in-tank pump supplies fuel to the engine-side delivery system.
Fuel-level sender, float arm, and reservoir support fuel pickup and gauge reporting.
The sender range is approximately 180 ohms at empty and 10 ohms at full.
The verified configuration does not include a fuel-tank pressure sensor or lock ring.

Symptoms and Diagnostic Checks

Measure fuel pressure before replacing the module. Test voltage and ground under load, inspect the fuse and relay, and check both fuel outlets and the electrical connector. Tank misidentification, sender-circuit damage, wiring faults, restricted lines, or an engine-management problem can create similar symptoms.

Installation Notes

Relieve fuel-system pressure, disconnect the battery, and support the 36-gallon tank safely. Clean the tank and sealing surface, use the correct new seal and service hardware, keep the float arm clear, and reconnect both fuel lines correctly. Prime the system, inspect the flange and outlets for leaks, measure fuel pressure, and confirm normal gauge operation.

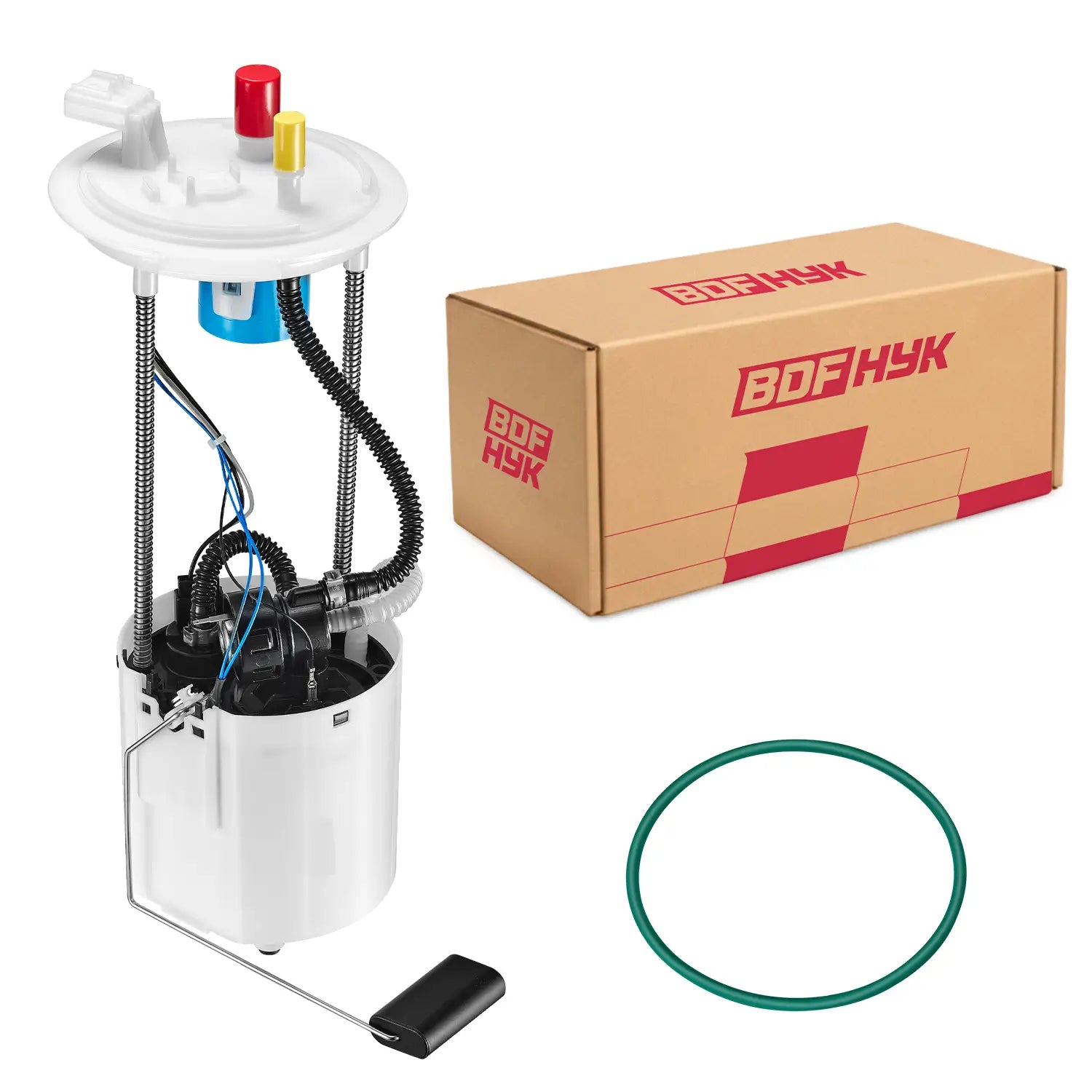

What’s Included in This Fuel Pump Assembly

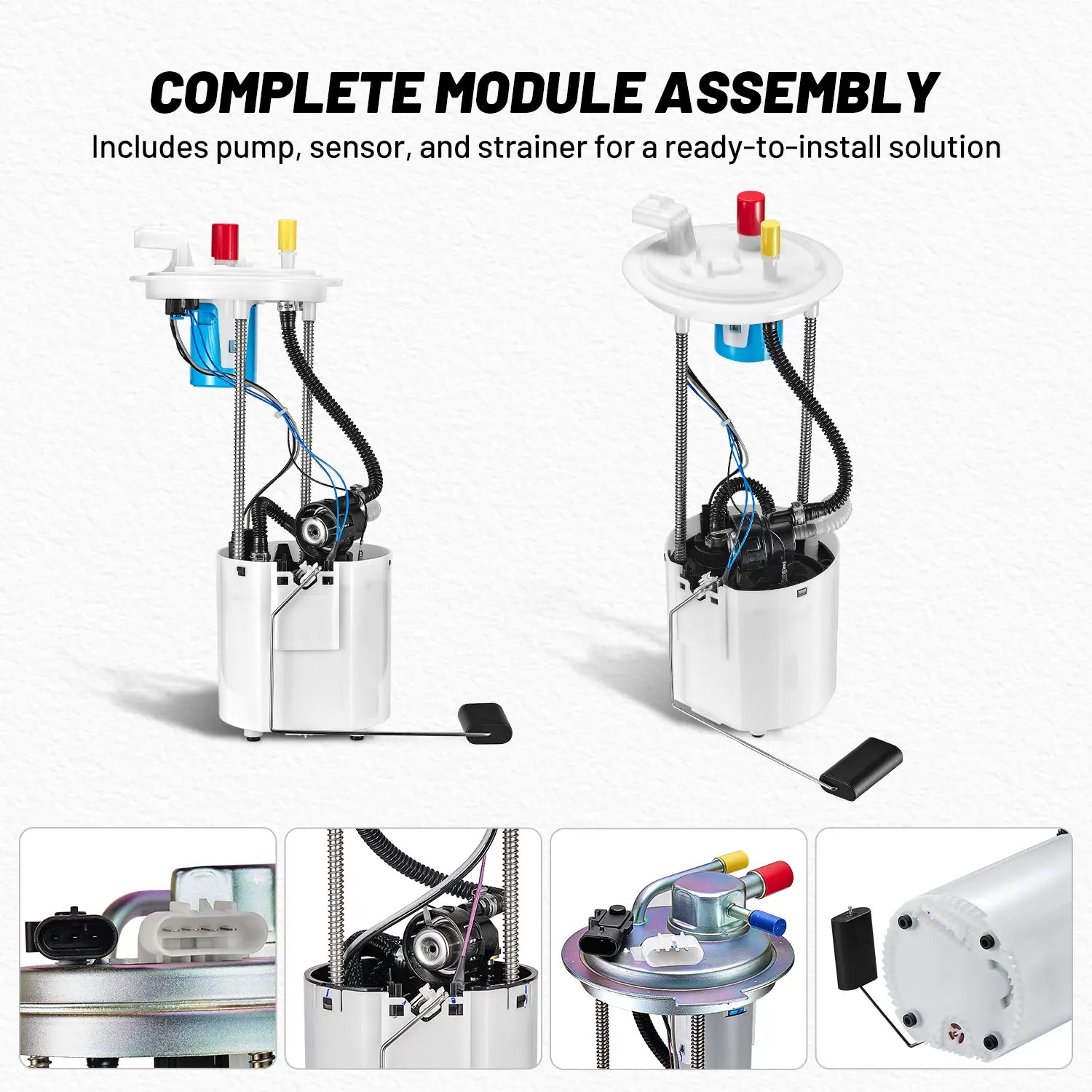

Complete fuel pump module
Integrated fuel level sending unit
Fuel strainer (filter sock)
Housing and mounting components

This fuel pump assembly is designed as a direct replacement unit that restores proper fuel delivery and fuel level monitoring.

Estimated Installation Time

Professional mechanic: 1–2 hours
DIY installation: 2–4 hours

Fuel pump replacement usually requires accessing the fuel tank or service panel depending on the vehicle design. Always disconnect the battery and relieve fuel system pressure before installation.

Pump Only vs Fuel Pump Assembly

Option	Description
Replace Pump Only	Lower parts cost but requires disassembling the existing module and reusing older components.
Replace Complete Assembly	A complete module designed for direct installation, helping restore reliable fuel delivery more efficiently.

Most modern vehicles use integrated fuel pump modules, which makes replacing the full assembly the more reliable solution.

Q: Which vehicles use the E2545M module?

A: It covers specified 2009–2014 Ford F-150 and SVT Raptor gasoline configurations with the 36-gallon extended-range tank.

Q: Does it fit the standard-capacity F-150 tank?

A: No. The verified E2545M application is for the matching 36-gallon extended-range tank.

Q: Which engines are covered?

A: Depending on model year and configuration, coverage includes selected 3.7L, 4.6L, 5.0L, 5.4L, and 6.2L gasoline engines.

Q: Why must the wheelbase be checked?

A: The verified application is associated with specific truck configurations using approximately 145-, 157-, or 163-inch wheelbases.

Q: Is the fuel-level sender included?

A: Yes. The complete module includes the sender and float arm.

Q: What connector and outlet layout should be checked?

A: Compare the four-terminal connector and two quick-connect fuel outlets with the removed module.

Q: Is a fuel-tank pressure sensor included?

A: No. The verified E2545M configuration is listed without a tank-pressure sensor.

Q: Is the lock ring included?

A: No. Reuse only serviceable approved hardware or obtain the correct replacement lock ring and seal.

Q: What should be tested before replacement?

A: Test pressure, voltage and ground under load, fuse and relay operation, wiring, both fuel lines, and sender continuity.

Q: What checks are required after installation?

A: Prime the system, inspect the flange and both outlets for leaks, measure pressure, and verify gauge operation.
