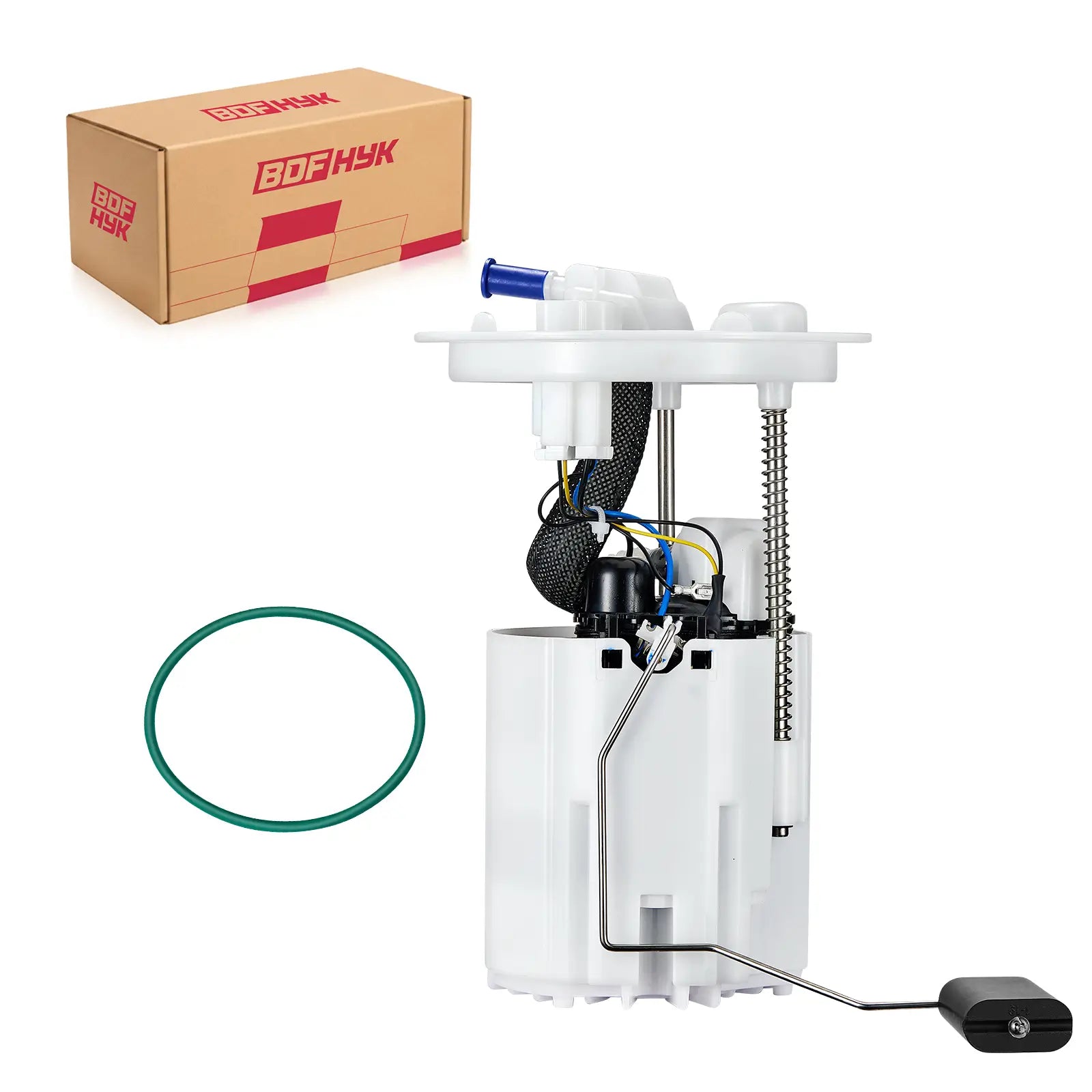

Ford Focus Fuel Pump Module Assembly 2012-2018 1.0L L3 2.0L L4 Replacement E2592M BDFHYK

Extended cranking, low measured fuel pressure, hesitation, intermittent stalling, or an inaccurate fuel gauge can indicate an in-tank module fault after the fuse, relay, power supply, ground, wiring, and fuel lines have been tested. This E2592M replacement module is intended for specified 2012–2018 Ford Focus 2.0L and 2015–2018 Ford Focus 1.0L gasoline applications. It is not intended for Flex-Fuel configurations. Confirm the engine, VIN, fuel type, OE number, four-terminal connector, single fuel outlet, flange, module height, and float-arm layout before ordering.

Fuel Pump Module Fitment for Gasoline Ford Focus

Verified coverage separates the engine ranges: the 2.0L application covers selected 2012–2018 vehicles, while the 1.0L application begins with selected 2015 models. Flex-Fuel vehicles and modules with different senders, connectors, pressure sensors, or tank layouts require a different part.

Fitment Verification

• Confirm a gasoline-only Focus configuration and exclude Flex-Fuel applications.
• Verify the 2.0L 2012–2018 or 1.0L 2015–2018 engine-and-year combination.
• Match E2592M, BV6Z-9H307-AV, FG1532, P76863M, or SP2516M.
• Compare the four-pin buckle-style connector, single 5/16-inch quick-connect outlet, flange, reservoir, module height, and float arm.

Module Functions and Included Components

• Electric in-tank pump supplies fuel to the engine-side delivery system.
• Fuel-level sender, float arm, and reservoir support pickup and gauge reporting.
• Sender resistance is approximately 464 ohms at empty and 51 ohms at full.
• A tank gasket is included in the verified configuration; the strainer and black pressure sensor are not included.

Symptoms and Diagnostic Checks

Measure fuel pressure before replacing the module. Test voltage and ground under load, inspect the fuse and relay, and check the connector, outlet, and sender circuit. A Flex-Fuel mismatch, damaged wiring, restricted line, separate pressure-sensor fault, tank contamination, or engine-management issue can create similar symptoms.

Installation Notes

Relieve fuel-system pressure and disconnect the battery before opening the tank. Clean the tank and sealing surface, install the supplied compatible gasket, keep the float arm clear, and transfer only required service components that are approved for reuse. Prime the system, inspect the flange and outlet for leaks, measure fuel pressure, and confirm normal gauge operation.
