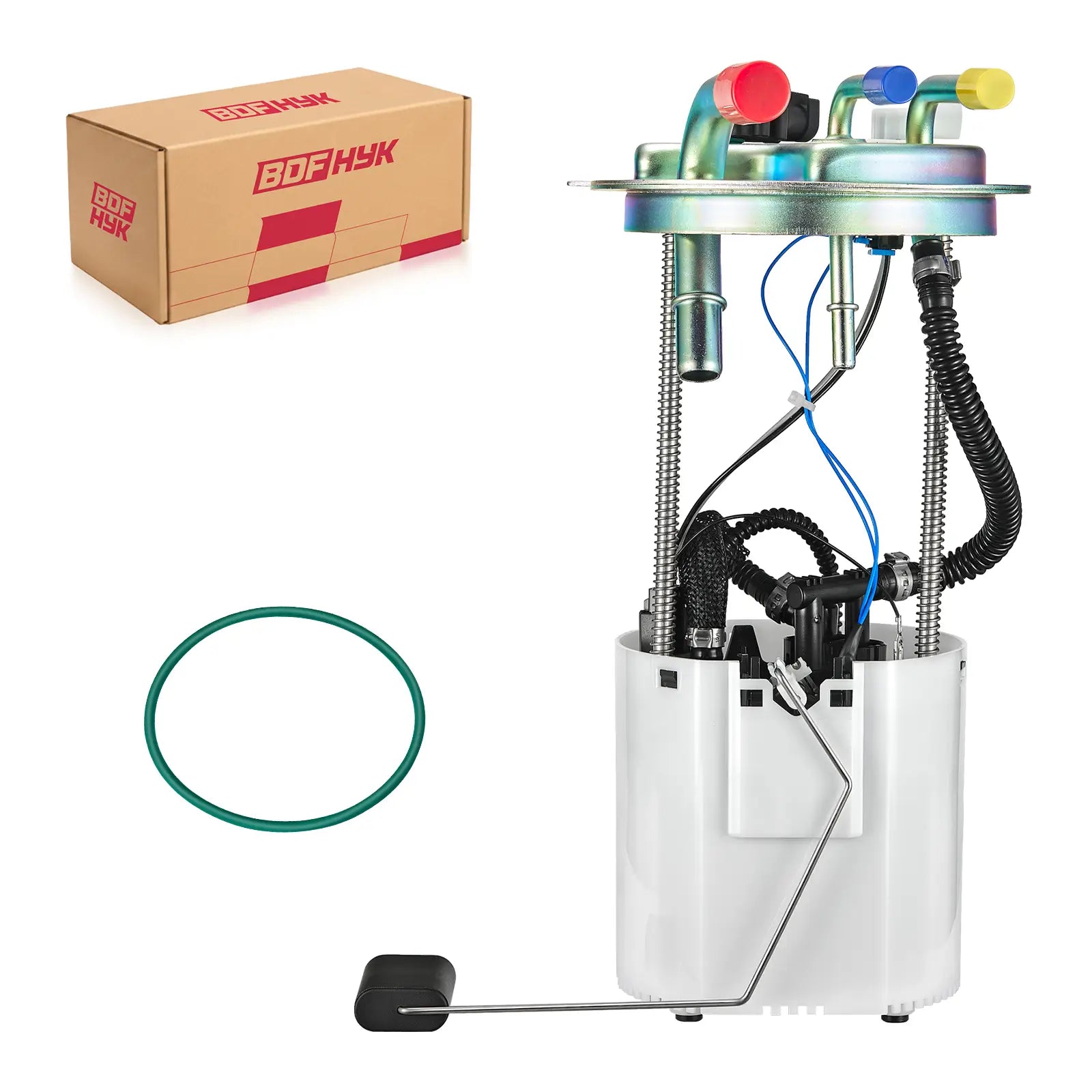

BDFHYK E3765M in-tank fuel pump module for Tahoe Yukon Escalade
E3765M pump reservoir sender and float-arm assembly
E3765M electrical connector fuel outlets and flange details
E3765M hybrid body wheelbase and tank fitment reference
E3765M module height reservoir and float-arm geometry
E3765M in-tank supply module and OE verification reference
BDFHYK E3765M in-tank fuel pump module for Tahoe Yukon Escalade
E3765M pump reservoir sender and float-arm assembly
E3765M electrical connector fuel outlets and flange details
E3765M hybrid body wheelbase and tank fitment reference
E3765M module height reservoir and float-arm geometry
E3765M in-tank supply module and OE verification reference

Chevy Tahoe GMC Yukon Cadillac Escalade Fuel Pump Module Assembly 2008-2012 4.8L 5.3L 6.0L 6.2L Replacement E3765M BDFHYK

$65.99

Product Detail
  • Type Fuel Pump Assembly
  • SKU BDDLZ-BD-05-07630WT
  • Make
    • Cadillac
    • GMC
    • Chevrolet
  • OE Number E3765M SP6050M FG1153 69977 P76299M 19256376 19259398 19300964 19181000
Trust & Assurance
Free Shipping · 3–7 Business Days
12-Month Warranty
30-Day Return
Secured Payment American Express Diners Club Discover JCB Maestro Mastercard PayPal Visa Pay

… …
Specifications Description Buying Guide Compatibility FAQs Returns & Support

Technical Specifications

Part Number E3765M
Product Type In-Tank Fuel Pump Module Assembly
Installation Location Inside the fuel tank
Operating Voltage 12 V low-voltage vehicle fuel system
Fuel Type Gasoline; hybrid status and exact fuel-system configuration must be verified
Application Selected Chevrolet Tahoe, GMC Yukon and Cadillac Escalade applications
Model Year Coverage Common catalogs list 2008–2013 configuration-specific applications; verify model year and VIN
Engine Coverage Selected 6.0L hybrid and other cataloged V8 configurations vary by model and year
Hybrid and Body Check Confirm hybrid status, base/ESV/EXT body, wheelbase, drivetrain and fuel tank
Module Functions In-tank fuel supply, reservoir pickup and fuel-level reporting
Fuel Level Sending Unit Verify included sender package against the product images and removed module
Float Arm and Reservoir Compare geometry and tank-side position with the original
Strainer and Tank Seal Check actual package contents and install the correct new tank seal
Electrical Connector Compare connector shape, terminal count and keying
Fuel Outlet and Ports Compare quantity, diameter and orientation with the removed module
Fuel System Note This is the in-tank supply module, not an external fuel-pump control module
OE References 19368768; verify additional OE numbers by VIN
Interchange References E3765M
Fitment Priority VIN, hybrid status, model/body, engine, wheelbase, tank, OE number, connector, ports and module geometry
