BDFHYK E3768M fuel pump module for Tahoe Yukon base Escalade

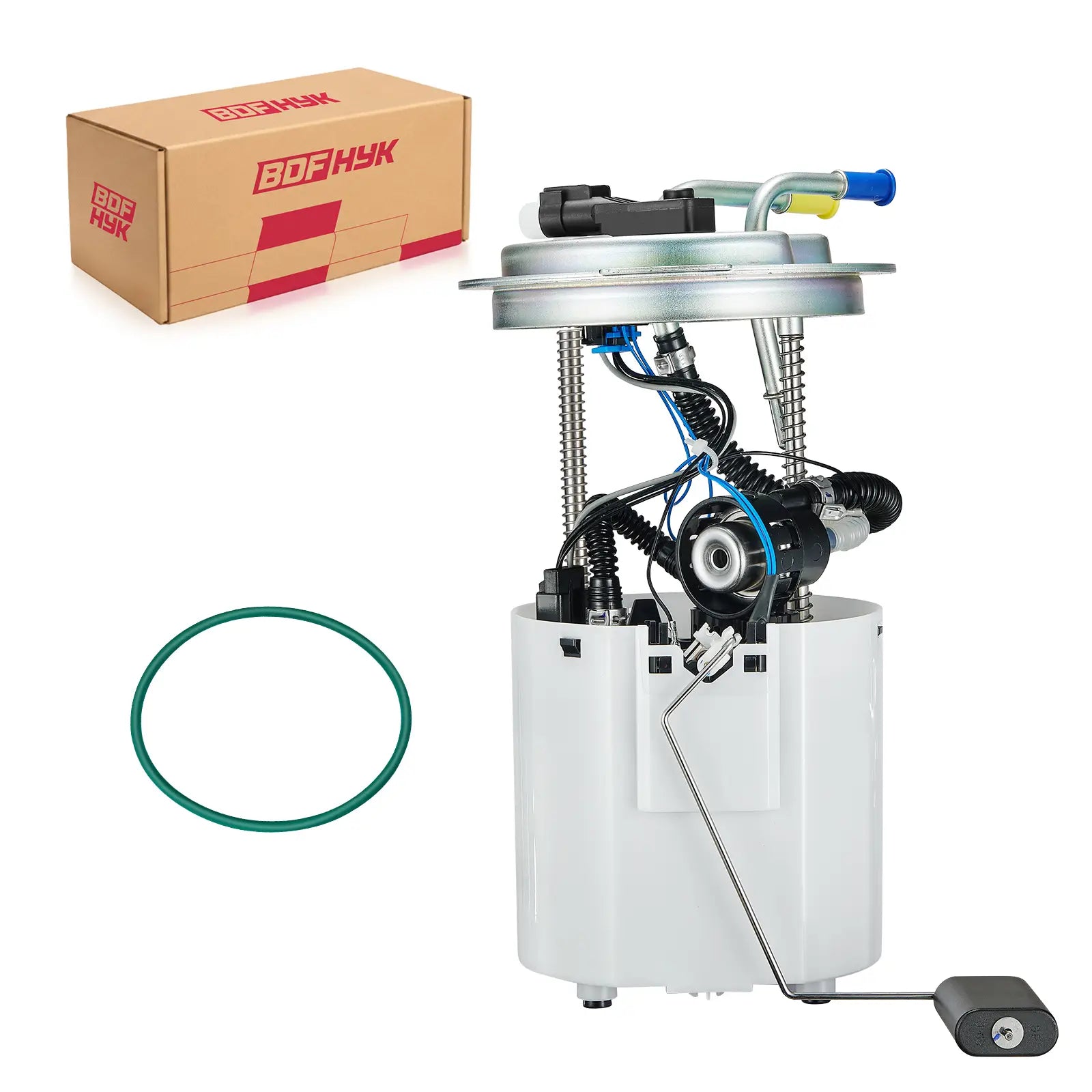

E3768M complete pump sender reservoir and float-arm assembly

E3768M three-terminal connector two-port flange details

E3768M Tahoe Yukon Escalade engine and fuel-type fitment reference

E3768M fuel outlet pressure sensor and EVAP connection details

E3768M inlet strainer reservoir and pump components

E3768M OE numbers module height and float orientation

Cadillac Escalade Chevy Tahoe GMC Yukon Fuel Pump Module Assembly 2008-2014 5.3L 6.2L V8 Replacement E3768M BDFHYK

$65.99

Product Detail

Type Fuel Pump Assembly
SKU BDDLZ-BD-05-07646
Make
- Cadillac
- Chevrolet
- GMC
OE Number E3768M, FG1169, SP9043M, P76820M, 69932, E8937M, P76297M, FG1054, FG0808, FG1153, FG0816

Trust & Assurance

Free Shipping · 3–7 Business Days

12-Month Warranty

30-Day Return

Secured Payment

Technical Specifications

Part Number	E3768M
Product Type	In-Tank Fuel Pump Module Assembly
Installation Location	Inside the fuel tank
Operating Voltage	12 V
Fuel Type	Flex fuel and specified gasoline applications; verify VIN and emissions label
Application	Selected Chevrolet Tahoe, GMC Yukon and Cadillac Escalade
Model Year Coverage	Tahoe/Yukon 2008–2014; base Escalade 2009–2014 as cataloged
Engine Coverage	5.3L and 6.2L V8 applications vary by model, year and VIN
Model Restriction	Base Escalade coverage; many catalogs exclude ESV and EXT
Module Functions	Fuel delivery and fuel-level reporting
Fuel Level Sending Unit	Included
Terminal Quantity	Three terminals listed in Airtex/Carquest specifications
Fuel Ports	Two ports listed; 3/8-inch quick-connect outlet
Strainer and Tank Seal	Gasket and inlet strainer included in listed specifications
Electrical Connector	Compare three-terminal connector shape and keying
Pressure Sensor	Confirm sensor arrangement and EVAP connection against the original
OE References	19179869, 19206650, 19259393
Interchange References	E3768M, P76297M
Fitment Priority	VIN, fuel type, model/body, year, engine, OE number, terminals, ports, sensor and dimensions

This electric fuel pump module assembly is a direct OE replacement fuel system part for Cadillac Escalade, Chevrolet Tahoe, and GMC Yukon SUVs. Designed for 2008-2014 applications with 5.3L and 6.2L V8 gasoline engines, it helps restore stable fuel pressure and reliable fuel delivery for daily driving, towing, and full-size SUV repair applications.

Vehicle Fitment & OE Replacement Reference

Year	Vehicle	Engine	Notes
2009-2014	Cadillac Escalade	6.2L V8	Gasoline Full-Size SUV
2008-2014	Chevrolet Tahoe	5.3L V8	Gasoline Full-Size SUV
2008-2014	GMC Yukon	5.3L V8 / 6.2L V8	Gasoline Full-Size SUV

OE Replacement Reference

E3768M

Product Details

Item	Details
Product Type	Fuel Pump Module Assembly
Function	Delivers fuel from the tank to the engine while maintaining stable fuel pressure
Fuel System	Gasoline Fuel Delivery System
Installation Location	Inside Fuel Tank (Tank-Mounted)
Assembly Includes	Electric Fuel Pump + Fuel Sending Unit
Operation Mode	Electric
Mounting Type	Tank Mount
Vehicle Application	Cadillac Escalade / Chevrolet Tahoe / GMC Yukon SUV Repair

Common Failure Symptoms

A failing fuel pump may cause the following issues:

Hard Starting: Engine requires extended cranking before starting.
Engine Hesitation: Vehicle may hesitate during acceleration due to unstable fuel delivery.
Loss of Power: Insufficient fuel pressure may reduce engine performance, especially under load.
Engine Stalling: Fuel supply interruption may cause unexpected engine shutdown.

Features & Benefits

Direct OE Replacement Fit
Designed to match original fuel system specifications for compatible Escalade, Tahoe, and Yukon models.

Complete Fuel Pump Module
Includes the electric fuel pump and fuel sending unit for a complete replacement solution.

Stable Fuel Delivery
Helps maintain consistent fuel pressure and reliable fuel flow for engine operation.

Built for Full-Size SUV Applications
Designed for daily driving, towing, and full-size SUV repair needs.

Installation Guide

Step 1: Relieve Fuel Pressure
Disconnect battery power and release fuel system pressure before removal.

Step 2: Remove Fuel Tank
Support and lower the fuel tank to access the original fuel pump module.

Step 3: Replace Fuel Pump Assembly
Remove the old module and install the replacement assembly using the supplied seal and connections.

Step 4: Reconnect & Test
Reconnect fuel lines and wiring, prime the system, and check for proper operation and leaks.

What’s Included in This Fuel Pump Assembly

Complete fuel pump module
Integrated fuel level sending unit
Fuel strainer (filter sock)
Housing and mounting components

This fuel pump assembly is designed as a direct replacement unit that restores proper fuel delivery and fuel level monitoring.

Estimated Installation Time

Professional mechanic: 1–2 hours
DIY installation: 2–4 hours

Fuel pump replacement usually requires accessing the fuel tank or service panel depending on the vehicle design. Always disconnect the battery and relieve fuel system pressure before installation.

Pump Only vs Fuel Pump Assembly

Option	Description
Replace Pump Only	Lower parts cost but requires disassembling the existing module and reusing older components.
Replace Complete Assembly	A complete module designed for direct installation, helping restore reliable fuel delivery more efficiently.

Most modern vehicles use integrated fuel pump modules, which makes replacing the full assembly the more reliable solution.

Q: Which vehicles use the E3768M module?

A: It covers selected 2008–2014 Chevrolet Tahoe and GMC Yukon models and selected 2009–2014 base Cadillac Escalade models.

Q: Does it fit Escalade ESV or EXT models?

A: Many E3768M catalogs exclude ESV and EXT, so body style and VIN must be checked.

Q: Which engines are listed?

A: Selected 5.3L and 6.2L V8 applications are listed, with coverage varying by model, year and VIN.

Q: Does fuel type matter?

A: Yes. Many applications are flex-fuel, while selected gasoline configurations may also be cataloged. Verify VIN and emissions label.

Q: Is the fuel-level sender included?

A: Yes. The listed module includes the sender and float arm.

Q: What connector and outlet details are listed?

A: Airtex/Carquest data lists three terminals, two ports and a 3/8-inch quick-connect outlet.

Q: Which OE numbers should be checked?

A: Compare 19179869, 19206650 or 19259393 with the removed module.

Q: What should be tested before replacement?

A: Test fuel pressure, pump voltage and ground under load, fuse and relay operation, wiring, fuel-line restriction, and sender continuity before replacing the module.

Q: Can a Tahoe module be used in every Yukon or Escalade?

A: No. Body style, engine, fuel type, VIN, ports, sensor and module dimensions must match.

Q: What checks are required after installation?

A: Prime the system, inspect the flange and fuel connections for leaks, measure fuel pressure, and confirm normal fuel-gauge operation.
