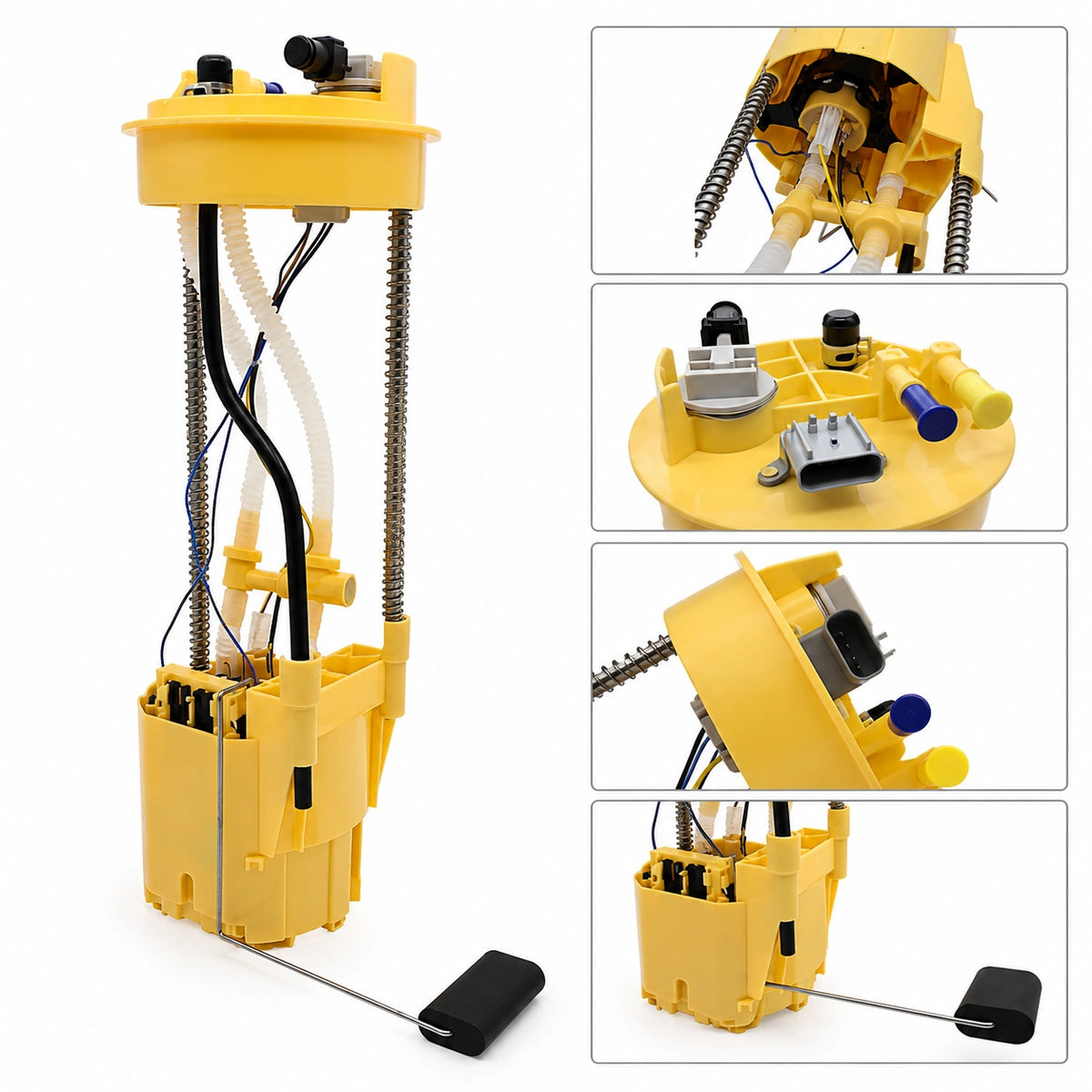

BDFHYK E7187M in-tank diesel module for 1998–2004 Ram Cummins

E7187M diesel pickup sender reservoir and float-arm assembly

E7187M electrical connector supply outlet and flange details

E7187M engine-mounted pump versus in-tank conversion reference

E7187M OE 4897668AC SP7036M interchange reference

E7187M module height tank depth and float-arm geometry

Dodge Ram 2500 3500 Fuel Pump Module Assembly 1998-2004 5.9L Cummins Diesel Replacement E7187M BDFHYK

$63.99

Product Detail

Type Fuel Pump Assembly
SKU BDDLZ-BD-05-7422
Make
- Dodge
OE Number E7187M,4897668AF,5179873AB,RL179873AB,4897668AC,5174262AB,SP7036M,P76473M,05174262AB,323-01412,323-01687,150301,FG1080,PN3124

Trust & Assurance

Free Shipping · 3–7 Business Days

12-Month Warranty

30-Day Return

Secured Payment

Technical Specifications

Part Number	E7187M
Product Type	Updated-Style In-Tank Diesel Fuel Supply Module
Installation Location	Inside the fuel tank
Operating Voltage	12 V
Fuel Type	Diesel
Application	Selected 1998–2004 Dodge Ram 2500 and 3500 5.9L Cummins applications
Model Year Coverage	1998–2002 OE-style applications and selected 2003–2004 trucks converted to an in-tank supply pump
Engine Coverage	5.9L inline-six Cummins diesel
Conversion Status Check	For 2003–2004 trucks, confirm whether the engine-mounted transfer pump was removed and an in-tank conversion installed
Module Functions	Low-pressure diesel supply and tank pickup; included sender configuration must match the original
Fuel Level Sending Unit	Verify the sender and float package against the removed module
Float Arm and Reservoir	Compare geometry and tank depth
Strainer and Tank Seal	Check actual package contents and install the correct new tank seal
Electrical Connector	Compare terminal count, shape, keying and conversion wiring
Fuel Outlet and Ports	Compare supply-line connection and orientation
Fuel System Note	Not interchangeable with an engine-mounted transfer-pump setup that has not been converted
OE References	4897668AC/AF, 5174262AB, 5179873AB, RL179873AB
Interchange References	E7187M, P76473M, SP7036M
Fitment Priority	Model year, 5.9L engine, in-tank conversion status, tank, OE number, wiring, outlet and module geometry

This fuel pump module assembly is a direct OE replacement fuel system part for Dodge Ram 2500 and Ram 3500 pickup trucks equipped with 5.9L Cummins Diesel engines. Designed as a complete fuel delivery solution, it helps restore reliable fuel supply and consistent engine performance for heavy-duty truck repair applications.

Vehicle Fitment & OE Replacement Reference

Year	Vehicle	Engine	Notes
1998-2004	Dodge Ram 2500	5.9L L6 Cummins Diesel	Heavy Duty Pickup Truck
1998-2004	Dodge Ram 3500	5.9L L6 Cummins Diesel	Heavy Duty Pickup Truck

OE Replacement Reference

E7187M, 5015588AA, 5015588AB, 5015588AC, FG0078, P74710M

Product Details

Item	Details
Product Type	Fuel Pump Module Assembly
Function	Provides fuel delivery from tank to engine and maintains consistent fuel supply
Fuel System	Diesel Fuel Delivery System
Installation Location	Inside Fuel Tank (Tank-Mounted)
Assembly Includes	Complete Fuel Pump Module Assembly
Vehicle Application	Dodge Ram Heavy Duty Truck Repair

Common Failure Symptoms

A failing fuel pump may cause the following issues:

Hard Starting: Engine requires extended cranking before starting.
Engine Hesitation: Reduced fuel delivery may cause hesitation during acceleration.
Loss of Power: Insufficient fuel supply may reduce engine performance under load.
Engine Stalling: Fuel delivery interruption may cause unexpected shutdown.

Features & Benefits

Direct OE Replacement Fit
Designed to match original fuel system specifications for compatible Dodge Ram trucks.

Complete Fuel Pump Module
Provides a complete replacement solution for worn or failed fuel pump assemblies.

Reliable Diesel Fuel Delivery
Helps maintain consistent fuel supply for Cummins diesel truck applications.

Built for Heavy-Duty Trucks
Designed for Dodge Ram 2500 and 3500 repair needs.

Installation Guide

Step 1: Relieve Fuel Pressure
Disconnect battery power and prepare the fuel system before removal.

Step 2: Access Fuel Pump Module
Remove or lower the fuel tank to access the original assembly.

Step 3: Replace Fuel Pump Assembly
Remove the old module and install the replacement assembly.

Step 4: Reconnect & Test
Reconnect fuel lines and wiring, then verify proper operation.

What’s Included in This Fuel Pump Assembly

Complete fuel pump module
Integrated fuel level sending unit
Fuel strainer (filter sock)
Housing and mounting components

This fuel pump assembly is designed as a direct replacement unit that restores proper fuel delivery and fuel level monitoring.

Estimated Installation Time

Professional mechanic: 1–2 hours
DIY installation: 2–4 hours

Fuel pump replacement usually requires accessing the fuel tank or service panel depending on the vehicle design. Always disconnect the battery and relieve fuel system pressure before installation.

Pump Only vs Fuel Pump Assembly

Option	Description
Replace Pump Only	Lower parts cost but requires disassembling the existing module and reusing older components.
Replace Complete Assembly	A complete module designed for direct installation, helping restore reliable fuel delivery more efficiently.

Most modern vehicles use integrated fuel pump modules, which makes replacing the full assembly the more reliable solution.

Q: Which vehicles use the E7187M module?

A: It covers selected 1998–2004 Dodge Ram 2500 and 3500 trucks with the 5.9L Cummins diesel.

Q: Why must 2003–2004 trucks be inspected before ordering?

A: Those trucks may retain an engine-mounted transfer pump or may have been converted to an in-tank supply pump.

Q: How can the conversion status be identified?

A: Inspect the rear of the fuel filter on the driver side of the engine for the transfer pump, block-off plate or conversion tube.

Q: Is this module interchangeable with an unconverted engine-mounted pump system?

A: No. The fuel supply layout and wiring must match the installed configuration.

Q: Is the fuel-level sending unit included?

A: The sender package must be compared with the product and removed module before installation.

Q: Which OE numbers should be checked?

A: Compare 4897668AC or AF, 5174262AB, 5179873AB or RL179873AB.

Q: What should be tested before replacement?

A: Test low-pressure supply, voltage and ground, wiring, relay operation, restrictions, air intrusion and sender continuity.

Q: Can E7187M be used for a gasoline Ram?

A: No. It is associated with selected 5.9L Cummins diesel fuel-system configurations.

Q: What should be inspected while the tank is removed?

A: Inspect tank contamination, wiring, connector, supply line, seal surface and lock ring.

Q: What checks are required after installation?

A: Prime the diesel supply system, inspect for leaks or air intrusion, verify supply pressure and confirm gauge operation.
