BDFHYK E7210M fuel pump module for Chrysler 200 Sebring Avenger

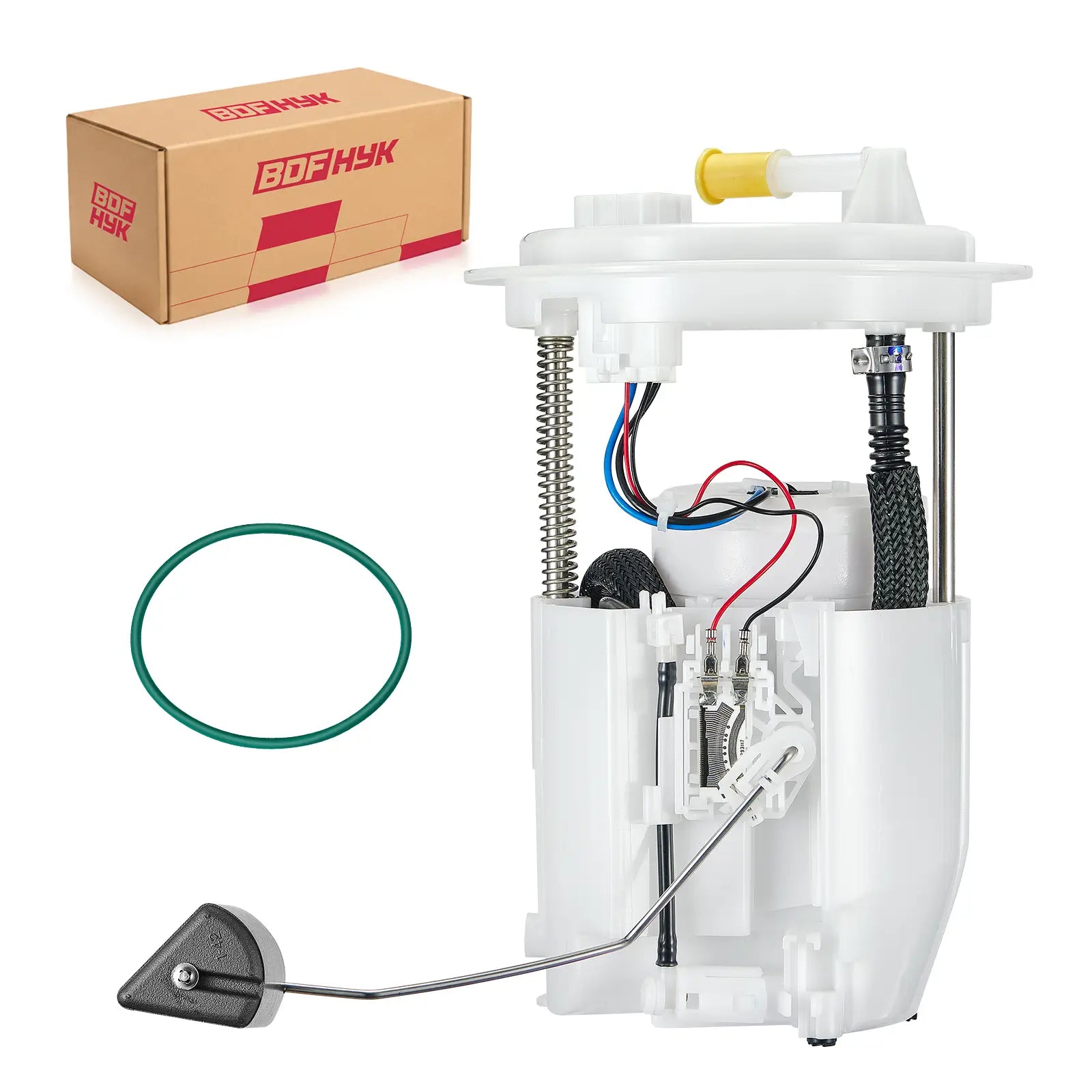

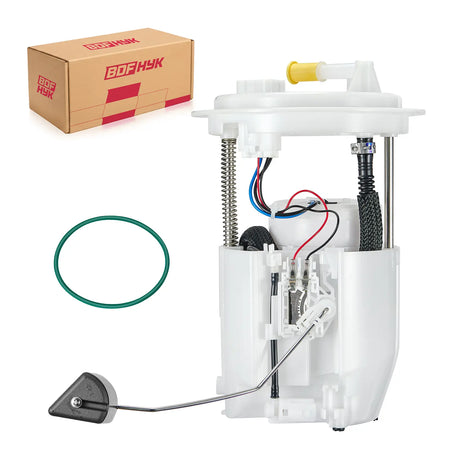

E7210M complete pump sender reservoir and float-arm assembly

E7210M electrical connector fuel outlet and flange details

E7210M sedan convertible engine and fuel-type fitment reference

E7210M inlet strainer reservoir and pump components

E7210M OE 68004475AA interchange reference

E7210M module height sender and float-arm orientation

E7210M tank seal fuel-line and installation reference

Chrysler 200 Sebring Dodge Avenger Fuel Pump Module Assembly 2007-2014 2.4L L4 2.7L V6 Replacement E7210M BDFHYK

$58.99

Product Detail

Type Fuel Pump Assembly
SKU BDDLZ-BD-05-07658
Make
- Chrysler
- Dodge
OE Number E7210M, P76509M, FG1139, SP7095M, 150148, 68004475

Trust & Assurance

Free Shipping · 3–7 Business Days

12-Month Warranty

30-Day Return

Secured Payment

Technical Specifications

Part Number	E7210M
Product Type	In-Tank Fuel Pump Module Assembly
Installation Location	Inside the fuel tank
Operating Voltage	12 V
Fuel Type	Gasoline; verify flex-fuel status where applicable
Application	Selected Chrysler 200, Chrysler Sebring and Dodge Avenger
Model Year Coverage	Sebring 2007–2010; Avenger 2008–2014; Chrysler 200 2011–2014
Engine Coverage	Current listing targets 2.4L L4 and 2.7L V6; catalog coverage varies by engine and fuel type
Body and Fuel Check	Confirm sedan/convertible body, engine, flex-fuel status, VIN and fuel-tank configuration
Module Functions	Fuel delivery, reservoir pickup and fuel-level reporting
Fuel Level Sending Unit	Included in common complete-module configurations
Float Arm and Reservoir	Included
Strainer and Tank Seal	Check actual package contents and install the correct new tank seal
Electrical Connector	Compare terminal count, shape and keying
Fuel Outlet and Ports	Compare outlet size, locking style and orientation
Fuel System Note	Do not select by model name and year range alone; engine and body configuration matter
OE References	68004475AA–AE, 68033083AB–AE, RL004475AB
Interchange References	E7210M, FG1139, P76509M, SP7095M
Fitment Priority	Model, year, body, engine, fuel type, VIN, OE number, connector, outlet and module geometry

This electric fuel pump module assembly is a direct OE replacement fuel system part for Chrysler 200, Chrysler Sebring, and Dodge Avenger models. Designed for 2007-2014 applications with 2.4L L4 and 2.7L V6 gasoline engines, it helps restore stable fuel pressure and reliable fuel delivery for daily driving and vehicle repair applications.

Vehicle Fitment & OE Replacement Reference

Year	Vehicle	Engine	Notes
2011-2014	Chrysler 200	2.4L L4	Gasoline Passenger Vehicle
2007-2010	Chrysler Sebring	2.4L L4 / 2.7L V6	Gasoline Passenger Vehicle
2008-2014	Dodge Avenger	2.4L L4 / 2.7L V6	Gasoline Passenger Vehicle

OE Replacement Reference

E7210M

Product Details

Item	Details
Product Type	Fuel Pump Module Assembly
Function	Delivers fuel from the tank to the engine while maintaining stable fuel pressure
Fuel System	Gasoline Fuel Delivery System
Installation Location	Inside Fuel Tank (Tank-Mounted)
Assembly Includes	Electric Fuel Pump + Fuel Sending Unit
Operation Mode	Electric
Mounting Type	Tank Mount
Vehicle Application	Chrysler / Dodge Passenger Vehicle Repair

Common Failure Symptoms

A failing fuel pump may cause the following issues:

Hard Starting: Engine requires extended cranking before starting.
Engine Hesitation: Vehicle may hesitate during acceleration due to unstable fuel delivery.
Loss of Power: Insufficient fuel pressure may reduce engine performance.
Engine Stalling: Fuel supply interruption may cause unexpected engine shutdown.

Features & Benefits

Direct OE Replacement Fit
Designed to match original fuel system specifications for compatible Chrysler and Dodge models.

Complete Fuel Pump Module
Includes the electric fuel pump and fuel sending unit for a complete replacement solution.

Stable Fuel Delivery
Helps maintain consistent fuel pressure and reliable fuel flow for engine operation.

Built for Daily Driving
Designed for dependable sedan repair and daily-use applications.

Installation Guide

Step 1: Relieve Fuel Pressure
Disconnect battery power and release fuel system pressure before removal.

Step 2: Access Fuel Pump Module
Access the original fuel pump module through the service opening or fuel tank, depending on vehicle configuration.

Step 3: Replace Fuel Pump Assembly
Remove the old module and install the replacement assembly using the supplied seal and connections.

Step 4: Reconnect & Test
Reconnect fuel lines and wiring, prime the system, and check for proper operation and leaks.

What’s Included in This Fuel Pump Assembly

Complete fuel pump module
Integrated fuel level sending unit
Fuel strainer (filter sock)
Housing and mounting components

This fuel pump assembly is designed as a direct replacement unit that restores proper fuel delivery and fuel level monitoring.

Estimated Installation Time

Professional mechanic: 1–2 hours
DIY installation: 2–4 hours

Fuel pump replacement usually requires accessing the fuel tank or service panel depending on the vehicle design. Always disconnect the battery and relieve fuel system pressure before installation.

Pump Only vs Fuel Pump Assembly

Option	Description
Replace Pump Only	Lower parts cost but requires disassembling the existing module and reusing older components.
Replace Complete Assembly	A complete module designed for direct installation, helping restore reliable fuel delivery more efficiently.

Most modern vehicles use integrated fuel pump modules, which makes replacing the full assembly the more reliable solution.

Q: Which vehicles use the E7210M module?

A: It covers selected 2007–2014 Chrysler 200, Sebring and Dodge Avenger gasoline applications.

Q: Which engines are targeted on this page?

A: The current listing targets selected 2.4L four-cylinder and 2.7L V6 applications.

Q: Do sedan and convertible body styles matter?

A: Yes. Body style and fuel-tank configuration can change the required module.

Q: Does flex-fuel status matter?

A: Yes. Confirm the VIN, emissions label and original module before ordering.

Q: Is the fuel-level sending unit included?

A: It is included in common complete-module configurations; compare the actual product and original assembly.

Q: Which OE references should be checked?

A: Common references include 68004475AA through AE, 68033083AB through AE and RL004475AB.

Q: What physical details should be compared?

A: Compare the flange, module height, connector, outlet, reservoir and float-arm direction.

Q: What should be tested before replacement?

A: Test fuel pressure, voltage and ground, fuse and relay operation, wiring, line restriction and sender continuity.

Q: Can an E7210M module be used for every engine offered in these cars?

A: No. Engine, fuel type, body, connector and tank depth must match the catalog application.

Q: What checks are required after installation?

A: Prime the system, inspect for leaks, verify fuel pressure and confirm normal gauge operation.

Returns & Refunds

We accept returns within 30 days of delivery for eligible items. If the product is unused and in original condition, you may request a return according to our refund policy. Full policy details: View Refund Policy . We recommend contacting our support team before initiating a return to ensure the fastest resolution.

Customer Support

If you purchased the wrong part, received an incompatible item, or need installation assistance, please contact us directly.

Email: service@bdfhyk.com

Business Hours:

Mon–Fri 9:00–18:00 (GMT+8)

Mon–Fri 19:00–04:00 (UTC−6 / CST)

Manufacturing Standards

Direct Factory Supply, Cost Saving
Integrated R&D, production, and warehousing. Eliminate middleman markups: same quality at lower prices, superior quality at same prices.

Precision Inspection, Commitment to Excellence
Rigorous inspection process, international certification standards. Each product includes individual inspection.

5 stars: 13 (68%)
4 stars: 2 (11%)
3 stars: 2 (11%)
2 stars: 0 (0%)
1 star: 2 (11%)

Some of the reviews shown are from related products the merchant grouped with this one.

My last cheapo pump lasted five years

Good price, works well so far. When installing a new tank..it is the right time to install a new pump and sending unit.

Quieter than oem

I can barely hear it turn on. It would have to be 3 o'clock in the morning to hear it clearly but not during the day. 400 miles in and so far so good. Plenty of pics attached. Oem in pic

1000 Mile update: when filling tank will say full until tank is 5/8-3/4. There's no in between. No "real" issue there

Easy installation

Easy installation, very good

Works great

Probably should have taken a photo but I was busy installing. works great and is exactly what we needed thank you

Broke

Came broke right out of the box

Make sure of your model before ordering

Fit perfectly works good

Todo bien

El producto est�� bien

Fuel pump

Yes it was a perfect fit works flawlessly great products will order again excellent thanku

Fuel pump for gmc seirra 1500 5.3l

Worked great on my 2008 Gmc sierra 5.3L engine. Different by design but works and fit nice.

Pump it up

Seems like a good replacement. The wiring instructions are incorrect and caused it to not turn on. After looking up the proper diagram on line it came right on.

It works.

Easy install. Works as advertised. Great price. Filter is included in the assembly.

Perfect match

It matched up perfect to my 2005 chevy Silverado 1500 8 cylinder. 6 liter engine.

Don't fit on Chrysler 200 v6

Looks good but don't fit on my 2011 Chrysler 200 v6 like the description says, top part is different and connector don't fit!

Same as your local auto parts dealer.

I paid about a third of what they wanted from the local supply house. Same pump. Going on my 3rd week and it's performing great. Save yourself some cash and buy it.

Do not buy

Horrible. Don't go cheap ! I bought for a temporary replacement but it still didn't. Work. The fuel pump wasn't giving out any fuel pressure came to find out it wasn't giving any current.

Bonne qualité

Fonctionne bien après 3 lois

Good price.

Good price and works as it should.

It works

Could be better but works fine.

Good fit, don't forget a locking nut.

Bought for a 2013 GMC sierra 4.8lt. Works great. Been installed for a year. Working as It should. I did silicone around electrical connections. They didn't look very liquid tite.
