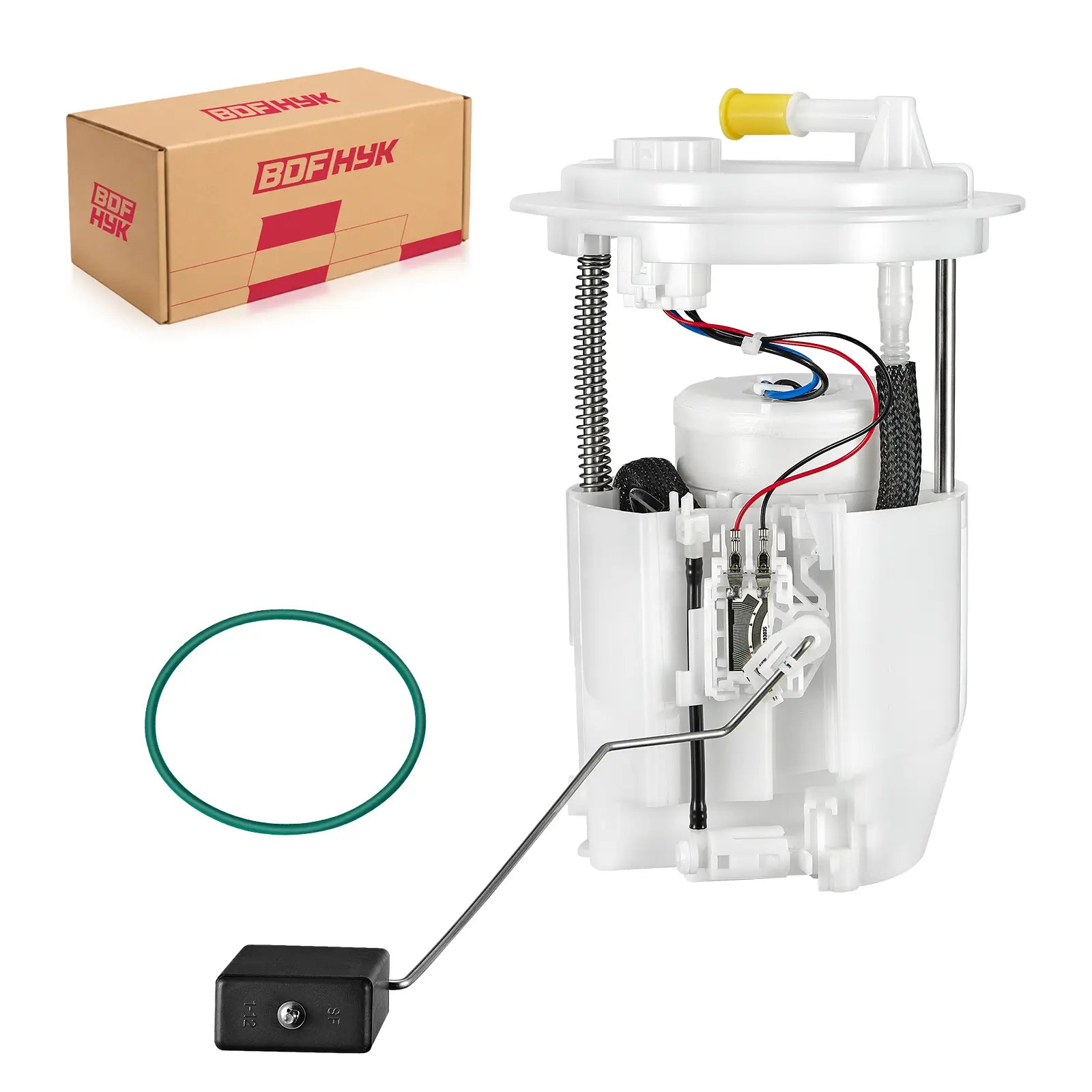

E7220M Fuel pump module assembly for 2007-2011 Dodge Caliber, Jeep Compass L4 2.0L 2.4L

$58.99

Product Detail

Type Fuel Pump Assembly
SKU BDDLZ-BD-05-07628WT
Make
- Dodge
- Jeep
OE Number E7220M 5183201AB 5183202AA 5183201AD P76268M SP7040M

Trust & Assurance

Free Shipping · 3–7 Business Days

12-Month Warranty

30-Day Return

Secured Payment

Technical Specifications

Brand	BDFHYK
SKU	BDDLZ-BD-05-07628WT
Reference Part Number	E7220M
Product Type	Fuel Pump Module Assembly
Installation Type	In-tank
Application	Select Dodge Caliber, Jeep Compass, and Jeep Patriot gasoline applications
Engine Coverage	1.8L L4; 2.0L L4; 2.4L L4
Configuration Note	Verify model year, engine, FWD/4WD drivetrain, tank, connector, flange, lines, module height, sender, and OE number
OE / Interchange	E7220M; 5183201AB; 5183202AA; 5183201AD; P76268M; SP7040M; FG1140; USEP7220M
Installation Position	In-tank main fuel pump module
Module Functions	Electric pump, pickup/strainer arrangement, and fuel-level sender configuration
Fuel Type	Original gasoline application; alternative-fuel compatibility is not verified
Fitment Verification	Match year, model, engine, drivetrain, tank, connector, flange, lines, depth, float arm, and OE number
Included Components	Fuel pump module assembly; confirm seal, lock ring, adapters, and hardware from images and package
Common Symptoms	Long cranking, no-start, low pressure, hesitation, stalling, pump-circuit fault, or inaccurate gauge
Related Parts	Relay, fuse, wiring, connector, ground, pressure-control components, seal, and lock ring
Installation Note	Relieve pressure, disconnect battery, clean tank, compare modules, prime, test pressure and gauge, and inspect for leaks
Product Positioning	Aftermarket replacement; not factory OEM
Critical Note	Compass and Patriot applications require drivetrain and tank verification; not every FWD/4WD configuration uses the same module

Extended cranking, intermittent no-start, low fuel pressure, hesitation, stalling, or an inaccurate fuel gauge can indicate an in-tank module problem, but relay, wiring, ground, pressure-control, drivetrain-specific tank, and contamination issues must also be checked. The BDFHYK E7220M is an aftermarket fuel pump module for select Dodge Caliber, Jeep Compass, and Jeep Patriot gasoline applications. Confirm model year, engine, drivetrain, tank, connector, flange, lines, module height, sender, and OE number.

E7220M Fuel Pump Module for Dodge Caliber, Jeep Compass, and Jeep Patriot

This assembly combines the electric fuel pump, pickup and strainer arrangement, and a fuel-level sender configuration. It is not universal across every Compass or Patriot drivetrain.

Confirm E7220M Vehicle and Drivetrain Fitment

Dodge Caliber Applications

2007–2009 Caliber 1.8L L4
2007–2012 Caliber 2.0L L4 or 2.4L L4

Jeep Compass and Patriot Applications

Select 2007–2017 Compass 2.0L or 2.4L
Select 2007–2017 Patriot 2.0L or 2.4L
Verify front-wheel-drive versus four-wheel-drive tank configuration

E7220M OE and Interchange Number Check

Reference numbers include E7220M, 5183201AB, 5183202AA, 5183201AD, P76268M, SP7040M, FG1140, and USEP7220M. Compare the top flange, connector, fuel line ports, module depth, pickup, float arm, sender layout, and seal surface.

Diagnose the Fuel System Before Replacing E7220M

Measure fuel pressure and confirm pump command, power, and ground.
Check fuse, relay, connector condition, voltage drop, and wiring.
Inspect tank contamination and pressure-control components.
Diagnose the fuel gauge circuit separately when fuel delivery is normal.

Caliber, Compass, and Patriot Installation Notes

Relieve pressure, disconnect the battery, and remove ignition sources.
Support and clean the tank before opening it.
Compare drivetrain-specific tank, connector, flange, lines, depth, pickup, float travel, seal, and lock ring.
Repair wiring and contamination faults before fitting the replacement.
Prime the system, verify pressure and gauge operation, and inspect for leaks.

Before Ordering the E7220M Assembly

Critical fitment note: Do not assume the same module fits every Compass or Patriot. Drivetrain and tank configuration matter. BDFHYK supplies an aftermarket replacement, not a factory OEM component. Confirm package contents before starting the repair.

What’s Included in This Fuel Pump Assembly

Complete fuel pump module
Integrated fuel level sending unit
Fuel strainer (filter sock)
Housing and mounting components

This fuel pump assembly is designed as a direct replacement unit that restores proper fuel delivery and fuel level monitoring.

Estimated Installation Time

Professional mechanic: 1–2 hours
DIY installation: 2–4 hours

Fuel pump replacement usually requires accessing the fuel tank or service panel depending on the vehicle design. Always disconnect the battery and relieve fuel system pressure before installation.

Pump Only vs Fuel Pump Assembly

Option	Description
Replace Pump Only	Lower parts cost but requires disassembling the existing module and reusing older components.
Replace Complete Assembly	A complete module designed for direct installation, helping restore reliable fuel delivery more efficiently.

Most modern vehicles use integrated fuel pump modules, which makes replacing the full assembly the more reliable solution.

Q: What vehicles does the E7220M module fit?

A: It fits select Dodge Caliber, Jeep Compass, and Jeep Patriot gasoline applications with the listed engines.

Q: Does E7220M fit both FWD and 4WD vehicles?

A: Do not assume it does. Verify drivetrain and tank configuration against the original module and OE number.

Q: Which Dodge Caliber engines are listed?

A: Listed applications include 1.8L, 2.0L, and 2.4L engines, with model-year coverage depending on engine.

Q: Which interchange numbers can be checked?

A: References include 5183201AB, 5183202AA, 5183201AD, P76268M, SP7040M, FG1140, and USEP7220M.

Q: Does the module use a fuel-level sender?

A: It uses a fuel-level sender configuration. Compare the sender and float-arm layout with the original part.

Q: Do no-start symptoms prove the pump is faulty?

A: No. Test fuel pressure and check the fuse, relay, wiring, connector, power, ground, pressure control, and engine-management faults.

Q: Should the tank be cleaned during installation?

A: Yes. Water, rust, sediment, and degraded fuel can restrict or damage the replacement pump.

Q: Are the seal and lock ring included?

A: Package contents vary. Confirm the images and package and replace damaged sealing parts.

Q: Is E7220M a factory OEM part?

A: No. It is a BDFHYK aftermarket replacement for the specified configuration.

Q: What should be checked after installation?

A: Prime the system, verify pressure and gauge operation, confirm normal starting, and inspect all connections for leaks.
