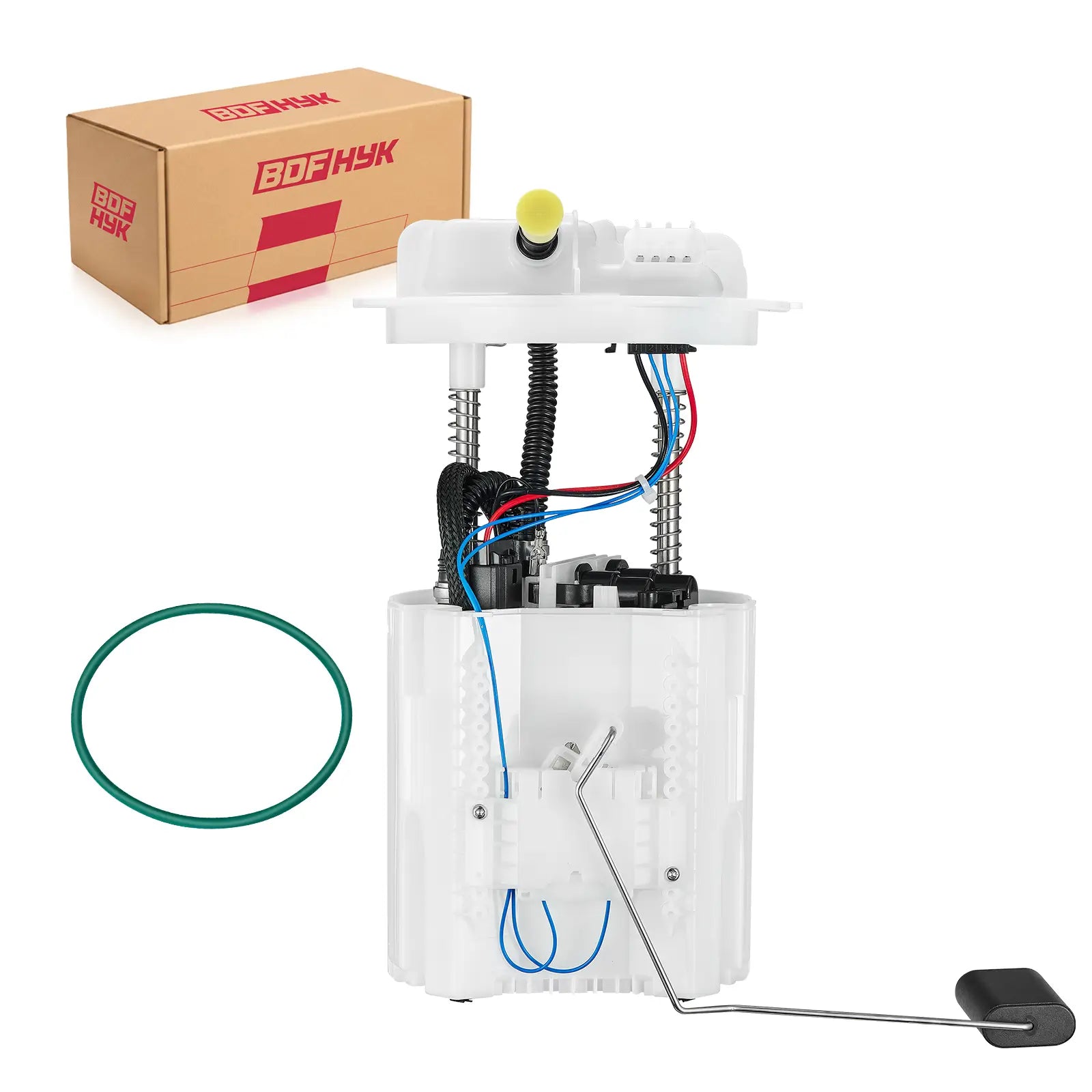

BDFHYK E7272M fuel pump module for Grand Caravan Town and Country

E7272M pump reservoir fuel-level sender and float-arm assembly

E7272M four-pin electrical connector fuel outlet and flange details

E7272M minivan and Ram C V 3.6L fitment reference

E7272M inlet strainer reservoir and pump components

E7272M OE 68060507AB interchange reference

E7272M module height float orientation and tank installation reference

Chrysler Town & Country Dodge Grand Caravan Volkswagen Routan Ram C/V Fuel Pump Module Assembly 2011-2020 3.6L V6 Replacement E7272M BDFHYK

$68.99

Product Detail

Type Fuel Pump Assembly
SKU BDDLZ-BD-05-07653
Make
- Chrysler
- Dodge
- Ram
- Volkswagen
OE Number E7272M, CFG0890, M2520928, P76703M, P76743M, 68060507AB, SP7057M, SP7080M, FP22058S, 7B0919051A, 7B0919673, 7B0919673A, SP7080M, FG0890

Trust & Assurance

Free Shipping · 3–7 Business Days

12-Month Warranty

30-Day Return

Secured Payment

Technical Specifications

Part Number	E7272M
Product Type	In-Tank Fuel Pump and Fuel-Level Module Assembly
Installation Location	Inside the fuel tank
Operating Voltage	12 V
Fuel Type	Gasoline
Application	Selected Chrysler Town & Country, Dodge Grand Caravan, Volkswagen Routan and Ram C/V
Model Year Coverage	Town & Country 2011–2016; Grand Caravan 2011–2020; Routan 2011–2014; Ram C/V 2012–2015
Engine Coverage	3.6L V6
Body Configuration Check	Confirm passenger-minivan or cargo-van model, VIN, production date and fuel-tank configuration
Module Functions	Fuel delivery, reservoir pickup and fuel-level reporting
Fuel Level Sending Unit	Included in the listed Mopar module-kit configuration
Float Arm and Reservoir	Included
Strainer and Tank Seal	Check actual package contents and install the correct new tank seal
Electrical Connector	Four-pin configuration is commonly listed; compare connector shape and keying
Fuel Outlet and Ports	Compare outlet size, locking style and orientation
Fuel System Note	Verify the module against the original before lowering or reinstalling the tank
OE References	68060507AB, 68060507AC
Interchange References	E7272M, P76743M, FP22058S, SP7080M
Fitment Priority	Model, year, 3.6L engine, body use, VIN, OE number, connector, outlet, flange and module dimensions

This electric fuel pump module assembly is a direct OE replacement fuel system part for Chrysler Town & Country, Dodge Grand Caravan, Volkswagen Routan, and Ram C/V models. Designed for 2011-2020 applications with 3.6L V6 gasoline engines, it helps restore stable fuel pressure and reliable fuel delivery for family van, cargo van, fleet, and vehicle repair applications.

Vehicle Fitment & OE Replacement Reference

Year	Vehicle	Engine	Notes
2011-2016	Chrysler Town & Country	3.6L V6	Gasoline Minivan
2011-2020	Dodge Grand Caravan	3.6L V6	Gasoline Minivan
2011-2014	Volkswagen Routan	3.6L V6	Gasoline Minivan
2012-2015	Ram C/V	3.6L V6	Gasoline Cargo Van

OE Replacement Reference

E7272M

Product Details

Item	Details
Product Type	Fuel Pump Module Assembly
Function	Delivers fuel from the tank to the engine while maintaining stable fuel pressure
Fuel System	Gasoline Fuel Delivery System
Installation Location	Inside Fuel Tank (Tank-Mounted)
Assembly Includes	Electric Fuel Pump + Fuel Sending Unit
Operation Mode	Electric
Mounting Type	Tank Mount
Vehicle Application	Minivan / Cargo Van Repair

Common Failure Symptoms

A failing fuel pump may cause the following issues:

Hard Starting: Engine requires extended cranking before starting.
Engine Hesitation: Vehicle may hesitate during acceleration due to unstable fuel delivery.
Loss of Power: Insufficient fuel pressure may reduce engine performance, especially under load.
Engine Stalling: Fuel supply interruption may cause unexpected engine shutdown.

Features & Benefits

Direct OE Replacement Fit
Designed to match original fuel system specifications for compatible Chrysler, Dodge, Volkswagen, and Ram models.

Complete Fuel Pump Module
Includes the electric fuel pump and fuel sending unit for a complete replacement solution.

Stable Fuel Delivery
Helps maintain consistent fuel pressure and reliable fuel flow for engine operation.

Built for Minivan and Fleet Applications
Designed for family transport, cargo service, fleet maintenance, and daily-driving repair needs.

Installation Guide

Step 1: Relieve Fuel Pressure
Disconnect battery power and release fuel system pressure before removal.

Step 2: Access Fuel Pump Module
Support and lower the fuel tank to access the original module.

Step 3: Replace Fuel Pump Assembly
Remove the old module and install the replacement assembly using the supplied seal and connections.

Step 4: Reconnect & Test
Reconnect fuel lines and wiring, prime the system, and check for proper operation and leaks.

What’s Included in This Fuel Pump Assembly

Complete fuel pump module
Integrated fuel level sending unit
Fuel strainer (filter sock)
Housing and mounting components

This fuel pump assembly is designed as a direct replacement unit that restores proper fuel delivery and fuel level monitoring.

Estimated Installation Time

Professional mechanic: 1–2 hours
DIY installation: 2–4 hours

Fuel pump replacement usually requires accessing the fuel tank or service panel depending on the vehicle design. Always disconnect the battery and relieve fuel system pressure before installation.

Pump Only vs Fuel Pump Assembly

Option	Description
Replace Pump Only	Lower parts cost but requires disassembling the existing module and reusing older components.
Replace Complete Assembly	A complete module designed for direct installation, helping restore reliable fuel delivery more efficiently.

Most modern vehicles use integrated fuel pump modules, which makes replacing the full assembly the more reliable solution.

Q: Which vehicles use the E7272M module?

A: It covers selected Town & Country, Grand Caravan, Routan and Ram C/V models equipped with the 3.6L V6.

Q: What are the listed model-year ranges?

A: Town & Country 2011–2016, Grand Caravan 2011–2020, Routan 2011–2014 and Ram C/V 2012–2015.

Q: Does it fit engines other than the 3.6L V6?

A: No fitment should be assumed for another engine; verify the VIN and OE number.

Q: Is the fuel-level sending unit included?

A: The listed Mopar module-kit configuration includes the pump and fuel-level function.

Q: How many connector pins are commonly listed?

A: A four-pin configuration is commonly associated with E7272M, but connector shape and keying must also match.

Q: Which OE numbers should be checked?

A: Compare 68060507AB or 68060507AC with the original module.

Q: What should be tested before replacement?

A: Test fuel pressure, pump voltage and ground, fuse and relay operation, wiring, line restriction and sender continuity.

Q: Can a module from a different minivan engine be substituted?

A: No. Engine, connector, outlet, tank depth and sender calibration can differ.

Q: What should be inspected during installation?

A: Inspect the tank interior, electrical connector, lock ring, flange, fuel line and EVAP connections.

Q: What checks are required after installation?

A: Prime the system, inspect for leaks, verify fuel pressure and confirm accurate fuel-gauge operation.
