BDFHYK E7280M fuel pump module for Chrysler 200 Dart Cherokee

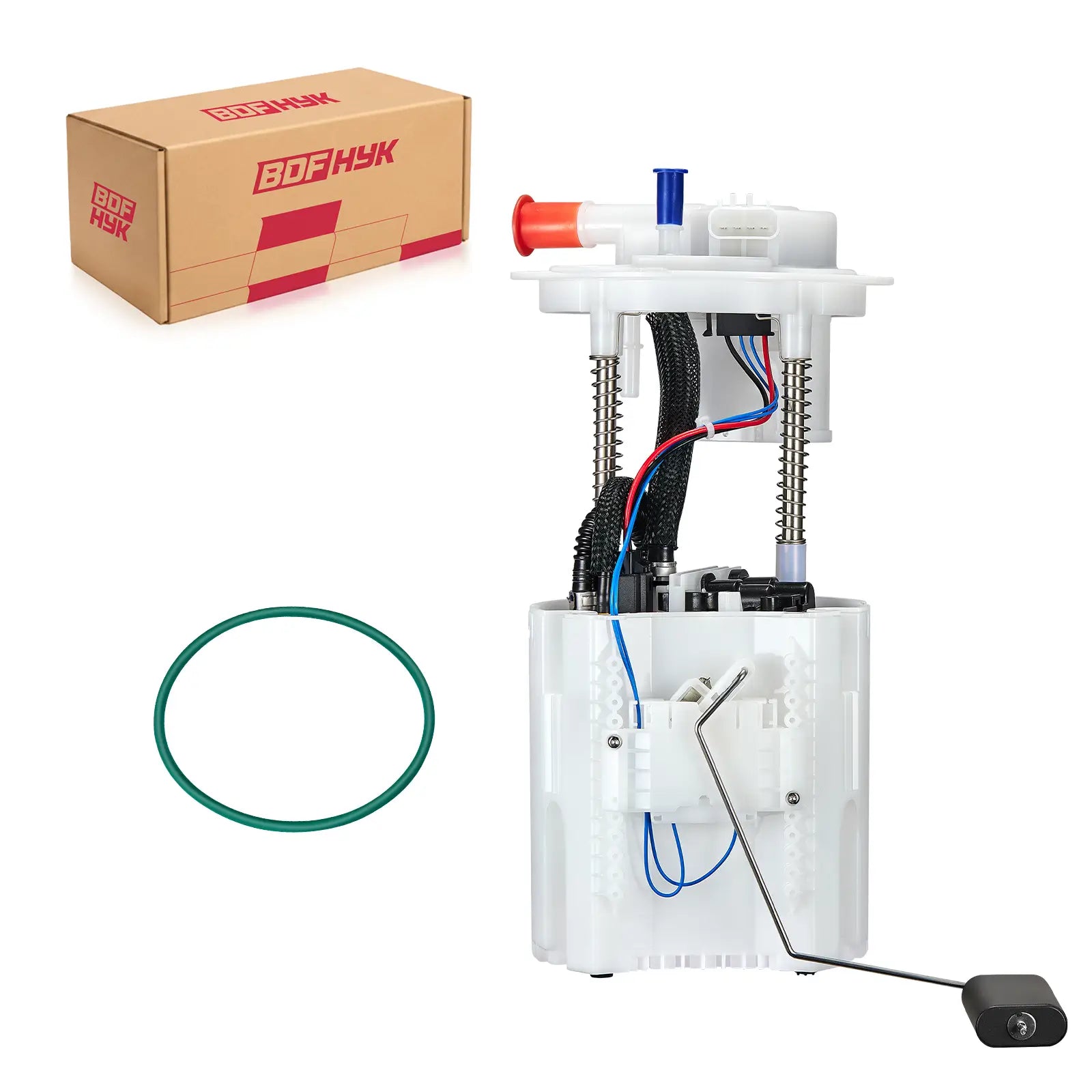

E7280M complete pump sender reservoir and float-arm assembly

E7280M electrical connector fuel outlet and flange details

E7280M Start Stop drivetrain and fuel-tank fitment reference

E7280M inlet strainer reservoir and pump components

E7280M OE 68166589AA interchange reference

E7280M module height sender and float-arm orientation

Chrysler 200 Dodge Dart Jeep Cherokee Fuel Pump Module Assembly 2013-2016 2.0L 2.4L Replacement E7280M BDFHYK

$98.99

Product Detail

Type Fuel Pump Assembly
SKU BDDLZ-BD-05-07683
OE Number P77057M, FG1560, SP7224M, 68166589AC, E7280M

🚚 Estimated Delivery: Calculating... · Ships by Calculating... · Free Shipping

Trust & Assurance

Free Shipping · 2–7 Business Days

12-Month Warranty

30-Day Return

Secured Payment

This electric fuel pump module assembly is a direct OE replacement fuel system part for Chrysler 200, Dodge Dart, and Jeep Cherokee models. Designed for 2013-2016 applications with 2.0L and 2.4L gasoline engines, it helps restore stable fuel pressure and reliable fuel delivery for daily driving, SUV use, and vehicle repair applications.

Vehicle Fitment & OE Replacement Reference

Year	Vehicle	Engine	Notes
2015-2016	Chrysler 200	2.4L L4	Gasoline Passenger Vehicle
2013-2016	Dodge Dart	2.0L L4 / 2.4L L4	Gasoline Passenger Vehicle
2014-2016	Jeep Cherokee	2.4L L4	Gasoline Compact SUV

OE Replacement Reference

E7280M

Product Details

Item	Details
Product Type	Fuel Pump Module Assembly
Function	Delivers fuel from the tank to the engine while maintaining stable fuel pressure
Fuel System	Gasoline Fuel Delivery System
Installation Location	Inside Fuel Tank (Tank-Mounted)
Assembly Includes	Electric Fuel Pump + Fuel Sending Unit
Operation Mode	Electric
Mounting Type	Tank Mount
Vehicle Application	Chrysler / Dodge / Jeep Vehicle Repair

Common Failure Symptoms

A failing fuel pump may cause the following issues:

Hard Starting: Engine requires extended cranking before starting.
Engine Hesitation: Vehicle may hesitate during acceleration due to unstable fuel delivery.
Loss of Power: Insufficient fuel pressure may reduce engine performance.
Engine Stalling: Fuel supply interruption may cause unexpected engine shutdown.

Features & Benefits

Direct OE Replacement Fit
Designed to match original fuel system specifications for compatible Chrysler, Dodge, and Jeep models.

Complete Fuel Pump Module
Includes the electric fuel pump and fuel sending unit for a complete replacement solution.

Stable Fuel Delivery
Helps maintain consistent fuel pressure and reliable fuel flow for engine operation.

Built for Daily Driving
Designed for dependable passenger vehicle and compact SUV repair applications.

Installation Guide

Step 1: Relieve Fuel Pressure
Disconnect battery power and release fuel system pressure before removal.

Step 2: Access Fuel Pump Module
Access the original fuel pump module through the service opening or fuel tank, depending on vehicle configuration.

Step 3: Replace Fuel Pump Assembly
Remove the old module and install the replacement assembly using the supplied seal and connections.

Step 4: Reconnect & Test
Reconnect fuel lines and wiring, prime the system, and check for proper operation and leaks.

Technical Specifications

Part Number	E7280M
Product Type	In-Tank Fuel Pump Module Assembly
Installation Location	Inside the fuel tank
Operating Voltage	12 V
Fuel Type	Gasoline
Application	Selected Chrysler 200, Dodge Dart and Jeep Cherokee applications
Model Year Coverage	Dart 2013–2016; Cherokee 2014–2016; Chrysler 200 2015–2016
Engine Coverage	Selected 2.0L and 2.4L four-cylinder applications
Configuration Check	Verify Start/Stop feature, FWD/AWD, 15.8-gallon tank where specified, VIN and production date
Module Functions	Fuel delivery, reservoir pickup and fuel-level reporting
Fuel Level Sending Unit	Included in common complete-module configurations
Float Arm and Reservoir	Included
Strainer and Tank Seal	Check actual package contents and install the correct new tank seal
Electrical Connector	Compare terminal count, shape and keying
Fuel Outlet and Ports	Compare outlet size, locking style and orientation
Application Exclusions	Common listings exclude Start/Stop Chrysler 200 configurations and specify FWD Cherokee applications
OE References	68166589AA–AE
Interchange References	E7280M, FG1560, P77057M, SP7224M
Fitment Priority	Model, year, engine, Start/Stop, drivetrain, tank capacity, VIN, OE number, connector and module geometry

Q: Which vehicles use the E7280M module?

A: It covers selected 2013–2016 Dodge Dart, 2014–2016 Jeep Cherokee and 2015–2016 Chrysler 200 applications.

Q: Which engines are listed?

A: Selected 2.0L and 2.4L four-cylinder gasoline applications are associated with this module family.

Q: Does the Start/Stop feature matter?

A: Yes. Common Chrysler 200 listings exclude vehicles equipped with Start/Stop.

Q: Do drivetrain and tank capacity matter?

A: Yes. Common listings specify FWD Cherokee applications and a 15.8-gallon tank for some Dart configurations.

Q: Is the fuel-level sending unit included?

A: It is included in common complete-module configurations; compare the actual product with the original.

Q: Which OE numbers should be checked?

A: Compare the 68166589AA through 68166589AE family with the removed module.

Q: What physical details should be compared?

A: Compare the flange, height, connector, outlet, reservoir and float-arm geometry.

Q: What should be tested before replacement?

A: Test fuel pressure, pump voltage and ground, fuse and relay operation, wiring, line restriction and sender continuity.

Q: Can an AWD or Start/Stop module be substituted?

A: No. Tank layout, pump control, connector and sender calibration can differ.

Q: What checks are required after installation?

A: Prime the system, inspect for leaks, verify fuel pressure and confirm normal gauge operation.
