E8854M Fuel Pump Module Assembly For 2008-2015 Nissan Rogue/Nissan Rogue Selec L4 2.5L Engine 2.5L/L4

Extended cranking, intermittent no-start, stalling, low fuel pressure, weak acceleration, or an inaccurate fuel gauge can indicate an in-tank fuel module fault, but voltage and pressure should be tested first. The BDFHYK E8854M is a fuel pump module for specified 2008–2013 Nissan Rogue and 2014–2015 Rogue Select 2.5L front-wheel-drive applications. Confirm FWD, the JM00-series OE number, flange, connector, outlet layout, module height, float arm, and strainer against the removed assembly.

E8854M FWD Fuel Pump Module for Rogue and Rogue Select

Listed Front-Wheel-Drive Applications

• 2008–2013 Nissan Rogue 2.5L L4 FWD
• 2014–2015 Nissan Rogue Select 2.5L L4 FWD

The AWD configuration uses a different JM10-series module commonly cross-referenced as E8856M. FWD and AWD modules must not be selected by model year and engine alone.

Confirm FWD and the JM00-Series Module

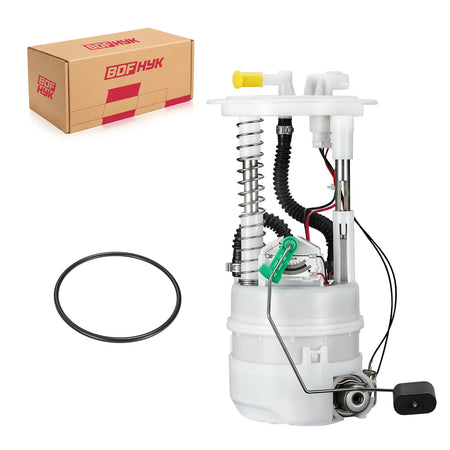

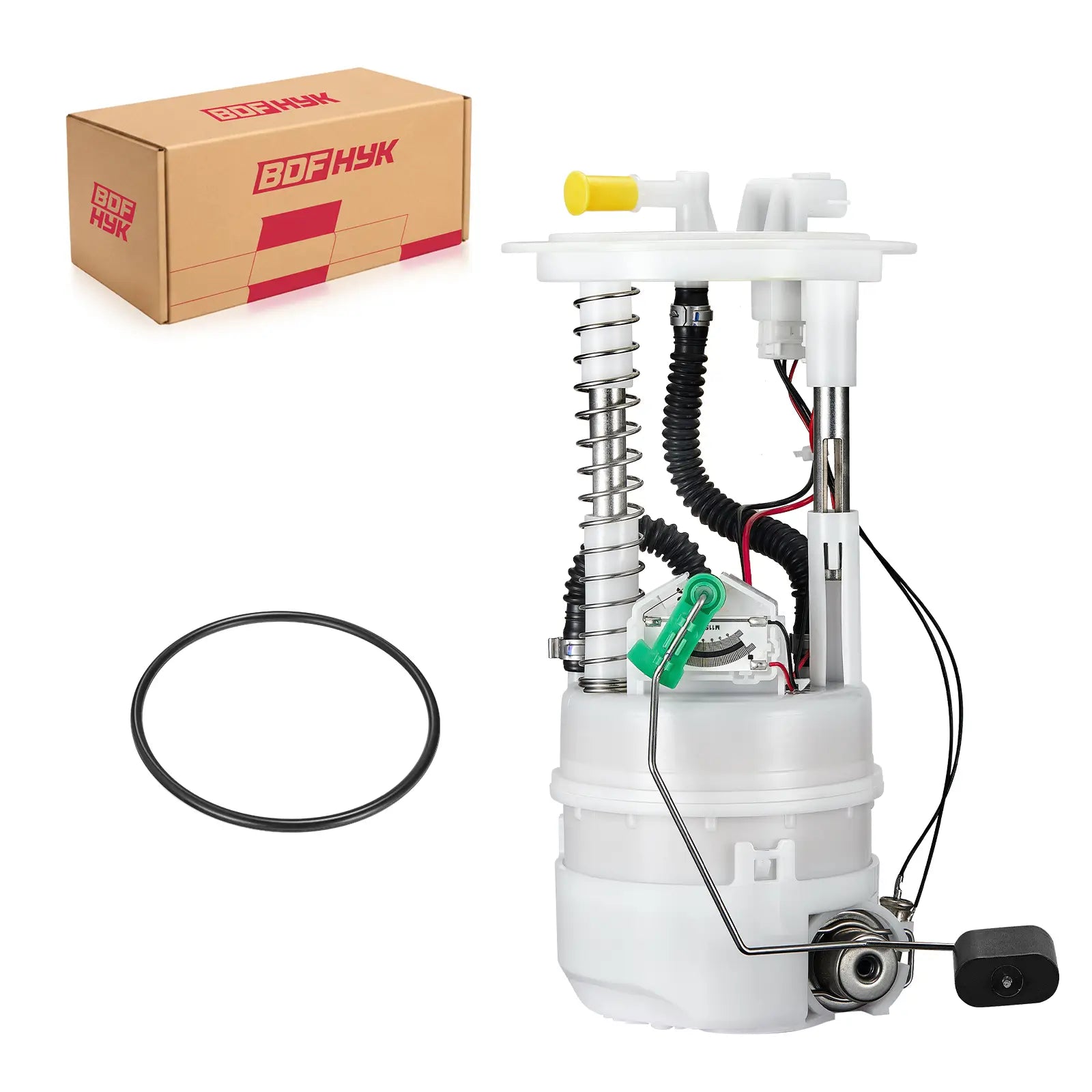

Compare the removed unit with the product images. Verify the JM00-series reference, flange diameter and indexing, electrical connector, fuel outlet, reservoir design, module depth, strainer position, float arm, and retaining method. Do not force an AWD/JM10 module into a FWD tank.

E8854M OE and Interchange References

Common references include E8854M, 17040-JM00A, 17040-JM00B, 17040-JM00C, 17040-JM00D, P76890M, and FG1148. Confirm the drivetrain and original OE number together.

Rogue FWD Fuel-System Checks Before Replacement

• Confirm battery voltage and normal cranking speed.
• Check the fuel-pump fuse, relay or control circuit, power feed, and ground.
• Measure voltage and voltage drop at the module connector under load.
• Measure fuel pressure and residual pressure with the correct service procedure.
• Separate a pump-pressure fault from a fuel-level sender or gauge fault.
• Inspect the tank for water, sediment, rust, or deteriorated fuel.

A no-start can also result from crank/cam sensor, ignition, injector-control, immobilizer, wiring, or engine-management faults. Complete the diagnosis before replacing the module.

Nissan Rogue FWD Installation and Final Checks

1. Relieve fuel-system pressure and disconnect the battery.
2. Clean the tank access area before opening the fuel tank.
3. Record the flange, connector, fuel-line, strainer, and float-arm orientation.
4. Remove contaminated fuel and correct damaged tank, line, or wiring conditions.
5. Install a new seal and fully secure the retaining ring.
6. Keep the strainer and float arm clear of internal tank structures.
7. Reconnect the fuel line and electrical connector without forcing the fittings.
8. Prime the system and inspect every disturbed connection for leaks.
9. Verify fuel pressure, starting, engine operation, and fuel-gauge response.

Do not run the pump dry. Recheck the drivetrain and JM00 reference before installation because E8854M and E8856M are not direct substitutes.
