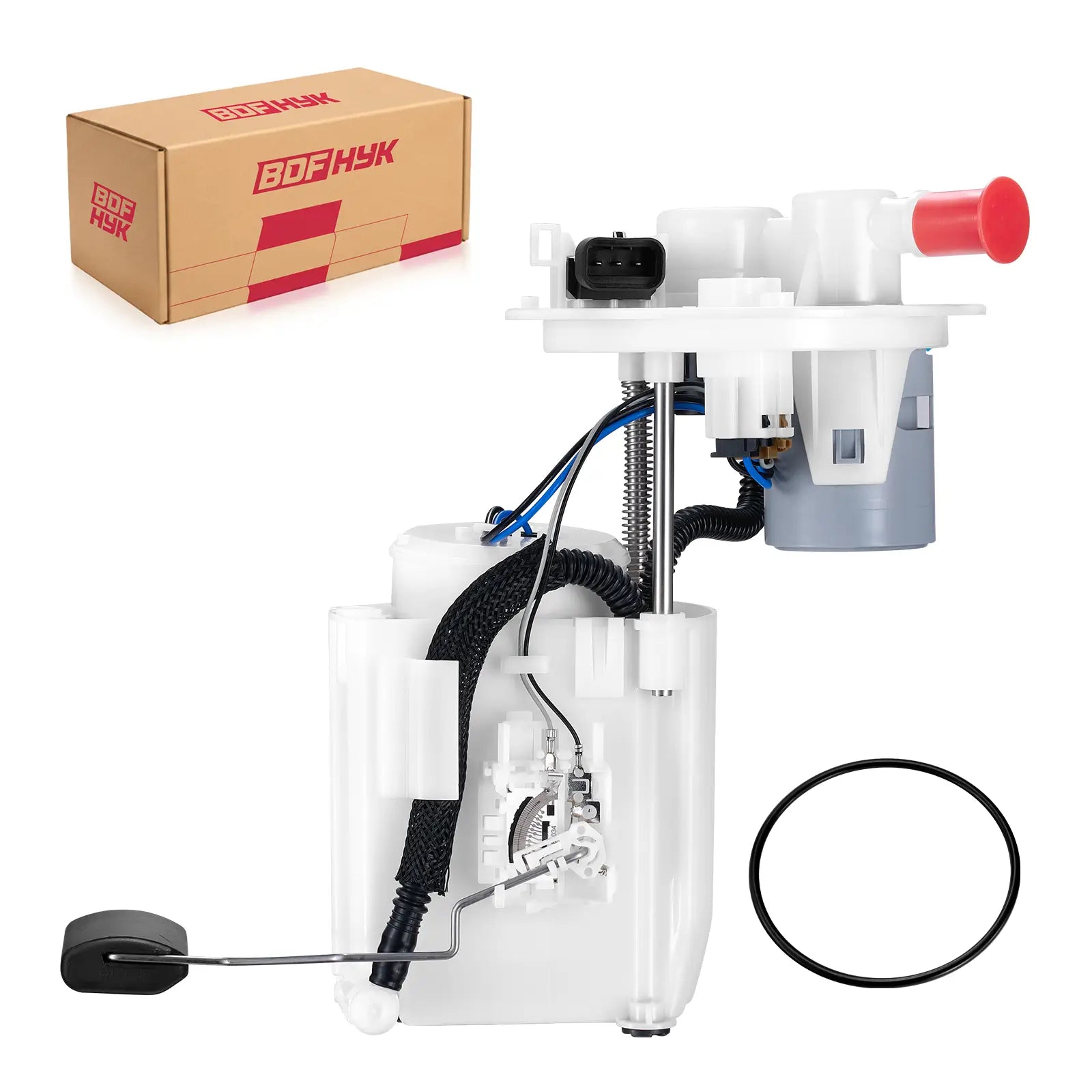

E9110M in-tank fuel pump module sender float reservoir and strainer

E9110M square connector fuel outlets and flange details

E9110M electric fuel pump module internal construction

E9110M Hyundai and Kia model engine fitment reference

E9110M module dimensions and float-arm configuration

E9110M regulator sender and pressure-sensor provision details

E9110M OE 31110-2V500 interchange and included component reference

Electric Fuel Pump Module Assembly For Hyundai Elantra/Elantra Coupe/Elantra GT/Veloster

$79.99

Product Detail

Type Fuel Pump Assembly
SKU BDDLZ-BD-05-7340
Make
- Hyundai
- Kia
OE Number 311102V500,31110-2V500,E9110M,FG1672,P77060M,SP3049M

Trust & Assurance

Free Shipping · 3–7 Business Days

12-Month Warranty

30-Day Return

Secured Payment

Technical Specifications

Part Number	E9110M
Product Type	In-Tank Fuel Pump Module Assembly
Installation Location	Inside the fuel tank
Fuel Type	Gasoline
Application	Selected Hyundai Veloster/Elantra and Kia Forte-family vehicles
Engine Coverage	Selected 1.6L and 2.0L applications
Year Coverage	Model-specific within 2012–2018; verify detailed application
Body Style	Veloster, Elantra sedan/coupe/GT, Forte sedan/Koup/Forte5
Emissions Configuration	Application-dependent; some Kia fitments have federal/California restrictions
Module Functions	Fuel delivery, regulation and fuel-level reporting
Fuel Level Sender	Included
Fuel Tank Pressure Sensor	Interchange data varies; compare original and product images
Strainer and Seal	Included
Outlet Configuration	Application-specific; compare number, size and orientation
Electrical Connector	Square connector; verify terminal arrangement
OE References	E9110M, FG1672, P77060M, SP3049M, 31110-2V500, 31110-3X550
Fitment Priority	Model, engine, body, production date, emissions, OE number and sensor provision
Not Compatible With	Different emissions, flange, connector, outlet or sensor configurations
Diagnostic Note	Test pressure, voltage, ground, relay, wiring and tank condition before replacement

Long cranking, hesitation, low fuel pressure, intermittent stalling, or an inaccurate fuel gauge can result from a failed in-tank module or its electrical circuit. The BDFHYK E9110M fuel pump module is intended for specified Hyundai Veloster, Elantra, Elantra Coupe, Elantra GT and Kia Forte-family applications with compatible 1.6L or 2.0L gasoline fuel systems. Coverage varies by body style, model year, engine, production date and emissions configuration. Confirm OE 31110-2V500 or the verified interchange, connector, outlet count, pressure-sensor arrangement and module height before installation.

E9110M Hyundai and Kia Application

Verified Model Families

Specified 2012–2017 Hyundai Veloster 1.6L applications
Specified 2014–2016 Hyundai Elantra 2.0L and 2014 Elantra Coupe 2.0L
Specified 2014–2017 Hyundai Elantra GT 2.0L
Specified 2014–2018 Kia Forte and Forte5, plus 2014–2016 Forte Koup applications

Fitment Verification

Engine size alone is not sufficient. Some Forte, Forte5 and Forte Koup applications have federal-versus-California emissions restrictions or production-date splits. Match E9110M, FG1672, P77060M, SP3049M or OE 31110-2V500 and compare the flange, square connector, fuel outlets, sender arm, regulator and fuel tank pressure-sensor provision.

Fuel Delivery and Gauge Functions

The assembly combines the electric in-tank pump, reservoir, strainer, regulator, fuel-level sender, float arm and seal shown in the product images. Catalog data for related interchanges differs on the pressure-sensor provision and outlet count, making physical comparison especially important. Do not transfer or omit a sensor unless the original configuration and service procedure require it.

Symptoms and Related Checks

Extended cranking, low measured supply pressure or hesitation under load
Intermittent stalling or fuel-delivery diagnostic codes
Fuel gauge readings that remain fixed or change erratically
Connector heat damage, voltage drop, weak ground or contaminated fuel

Installation Notes

Relieve fuel pressure, disconnect the battery and clean the service opening before removing the module. Compare all ports, connectors and sensor provisions with the original assembly. Clean the tank, install a new seal and confirm free float movement. After installation, prime the system, inspect for leaks, measure fuel pressure and verify normal gauge operation.

What’s Included in This Fuel Pump Assembly

Complete fuel pump module
Integrated fuel level sending unit
Fuel strainer (filter sock)
Housing and mounting components

This fuel pump assembly is designed as a direct replacement unit that restores proper fuel delivery and fuel level monitoring.

Estimated Installation Time

Professional mechanic: 1–2 hours
DIY installation: 2–4 hours

Fuel pump replacement usually requires accessing the fuel tank or service panel depending on the vehicle design. Always disconnect the battery and relieve fuel system pressure before installation.

Pump Only vs Fuel Pump Assembly

Option	Description
Replace Pump Only	Lower parts cost but requires disassembling the existing module and reusing older components.
Replace Complete Assembly	A complete module designed for direct installation, helping restore reliable fuel delivery more efficiently.

Most modern vehicles use integrated fuel pump modules, which makes replacing the full assembly the more reliable solution.

Q: Which vehicles use the E9110M module?

A: It is intended for specified Hyundai Veloster, Elantra, Elantra Coupe, Elantra GT and Kia Forte, Forte Koup and Forte5 applications with compatible 1.6L or 2.0L systems.

Q: What are the main Hyundai year ranges?

A: Coverage commonly includes 2012–2017 Veloster, 2014–2016 Elantra, 2014 Elantra Coupe and 2014–2017 Elantra GT applications.

Q: What are the main Kia year ranges?

A: Coverage commonly includes selected 2014–2018 Forte and Forte5 and 2014–2016 Forte Koup applications.

Q: Does engine size alone confirm fitment?

A: No. Body style, production date, emissions configuration, OE number and physical module layout must also match.

Q: Do federal and California emissions matter?

A: Yes. Some Kia applications are divided by emissions configuration, so the emissions label should be checked.

Q: Is the fuel-level sender included?

A: Yes. The module includes the sender and float arm.

Q: Is the fuel tank pressure sensor included?

A: Interchange catalogs disagree on this detail. Compare the original module and product images before installation.

Q: How many fuel outlets does the module have?

A: Outlet data varies among interchanges. Confirm the number, size and orientation directly against the removed module.

Q: What should be tested before replacement?

A: Measure pressure and test supply voltage, ground, relay operation, connector condition and wiring under load.

Q: What checks are required after installation?

A: Prime the system, inspect the seal and ports for leaks, measure pressure and confirm correct gauge operation.
