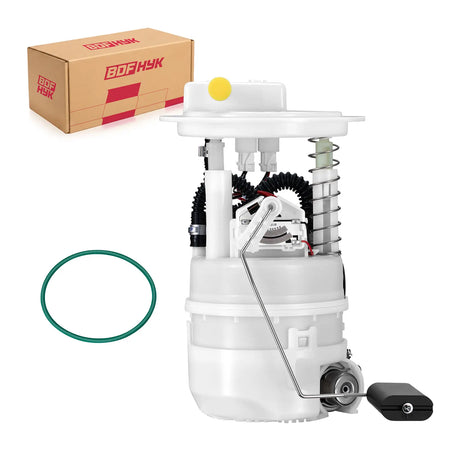

BDFHYK E9213M fuel pump module for 2013–2019 Nissan Sentra 1.8L

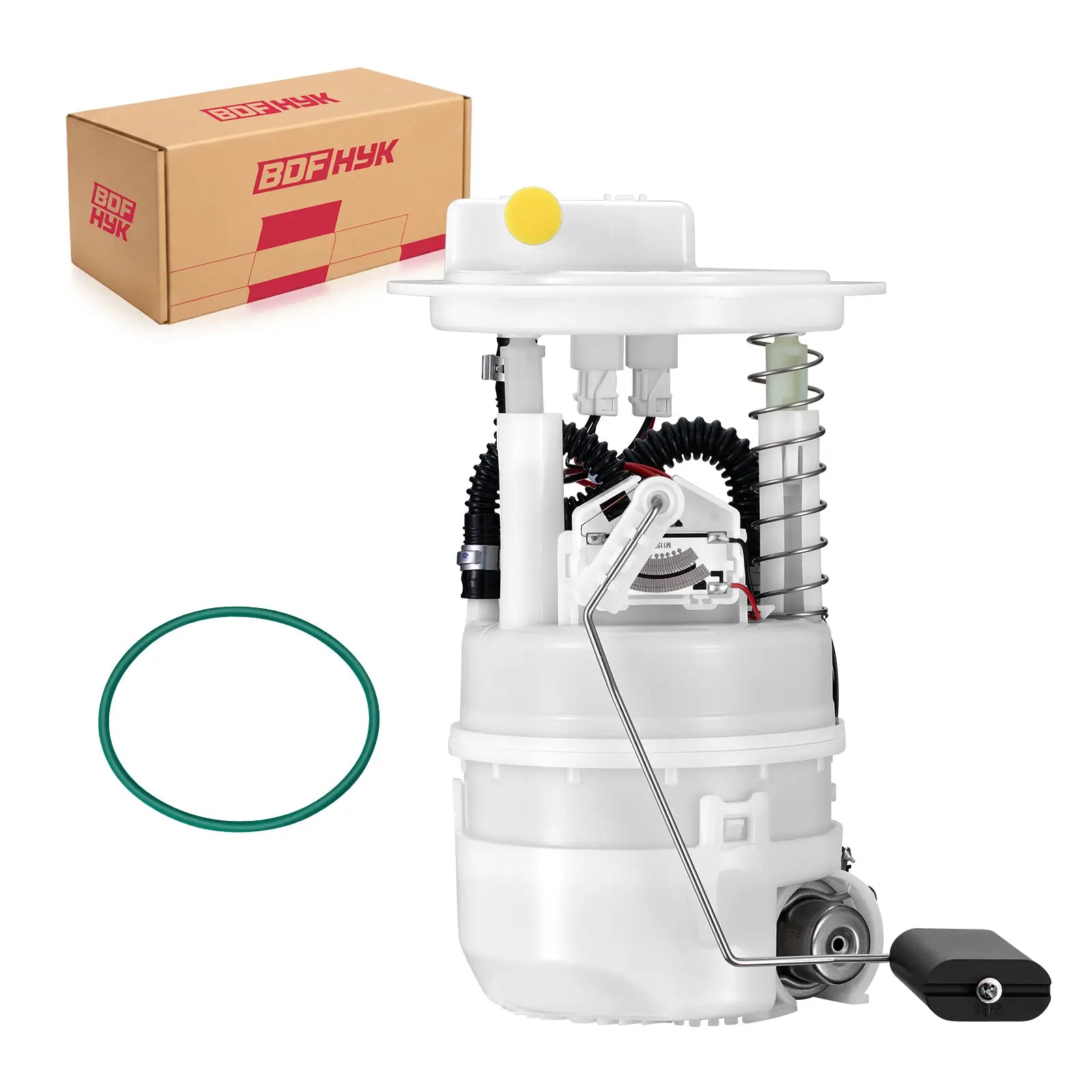

E9213M complete in-tank pump regulator sender and reservoir assembly

E9213M five-pin connector single outlet and flange details

E9213M fuel-level sender float arm and strainer construction

E9213M Nissan Sentra 1.8L year and engine fitment reference

E9213M module dimensions and float-arm configuration

E9213M OE 17040-3SG0 interchange and component reference

E9213M fuel pump module installation and diagnostic reference

Electric Fuel Pump Module Assembly For Nissan Sentra L4 1.8L 2013-2019 Engine 1.8L/L4

$67.99

Product Detail

Type Fuel Pump Assembly
SKU BDDLZ-BD-05-7333
Make
- Nissan
OE Number E9213M,FG1549,SP4097M¡ê?170403SG0C,170403SG0E,170403SG0F

Trust & Assurance

Free Shipping · 3–7 Business Days

12-Month Warranty

30-Day Return

Secured Payment

Technical Specifications

Part Number	E9213M
Product Type	In-Tank Fuel Pump Module Assembly
Installation Location	Inside the fuel tank
Fuel Type	Gasoline
Application	2013–2019 Nissan Sentra sedan
Engine Coverage	1.8L L4
Module Functions	Fuel delivery, regulation and fuel-level reporting
Fuel Level Sender	Included
Float and Reservoir	Included
Regulator	Included
Strainer	Included
Fuel Outlet	One quick-connect outlet
Electrical Connector	Five blade terminals
Vapor Pressure Sensor	Not included in the verified FG1549 configuration
OE References	E9213M, FG1549, SP4097M, 17040-3SG0A/C/D/E/F
Fitment Priority	1.8L engine, body, OE number, connector, outlet and flange
Not Compatible With	Different engine, five-pin layout, flange, outlet or sender configuration
Installation Note	Use a new seal and clean the tank before installation
Diagnostic Note	Test pressure, voltage, ground, relay, wiring and sender circuit

Extended cranking, low measured fuel pressure, hesitation, stalling, or an incorrect fuel-level reading can indicate a fuel pump module problem after the electrical supply, relay, wiring, and fuel lines have been checked. This E9213M replacement module is designed for specified 2013–2019 Nissan Sentra sedans with the 1.8L engine. Confirm the original OE number, five-terminal connector, single quick-connect outlet, flange shape, module height, and float-arm direction before ordering.

E9213M Fitment for Nissan Sentra 1.8L

This module is intended for specified 2013–2019 Nissan Sentra 1.8L gasoline sedan applications. It should not be selected for a different engine, body configuration, connector, flange, outlet, or sender calibration only because the vehicle name and year appear similar.

Fitment Verification

Confirm the 1.8L L4 engine and sedan body configuration.
Match E9213M, FG1549, SP4097M, or the Nissan 17040-3SG0 series number.
Compare the five-blade electrical connector, single quick-connect outlet, flange, module height, and float arm.
Verify whether a separate tank seal is required before beginning installation.

Module Functions and Included Components

Complete in-tank pump module supports low-pressure fuel delivery.
Integrated regulator and inlet strainer are part of the module configuration.
Fuel-level sender and float arm provide tank-level information.
Single outlet and five-terminal electrical connection must match the original module.

Symptoms and Diagnostic Checks

Measure fuel pressure before condemning the module. Test voltage and ground at the connector under load, inspect the relay and fuse, and check for terminal heat damage, restricted lines, tank contamination, or an open sender circuit. Similar symptoms can also result from injector, ignition, air-metering, or engine-control faults.

Installation Notes

Relieve fuel pressure, disconnect the battery, and clean the tank opening before removal. Clean contaminated fuel from the tank, install a new compatible seal, keep the float arm clear of the tank wall, and secure the flange evenly. Prime the pump, inspect for leaks, verify fuel pressure, and confirm accurate gauge movement.

What’s Included in This Fuel Pump Assembly

Complete fuel pump module
Integrated fuel level sending unit
Fuel strainer (filter sock)
Housing and mounting components

This fuel pump assembly is designed as a direct replacement unit that restores proper fuel delivery and fuel level monitoring.

Estimated Installation Time

Professional mechanic: 1–2 hours
DIY installation: 2–4 hours

Fuel pump replacement usually requires accessing the fuel tank or service panel depending on the vehicle design. Always disconnect the battery and relieve fuel system pressure before installation.

Pump Only vs Fuel Pump Assembly

Option	Description
Replace Pump Only	Lower parts cost but requires disassembling the existing module and reusing older components.
Replace Complete Assembly	A complete module designed for direct installation, helping restore reliable fuel delivery more efficiently.

Most modern vehicles use integrated fuel pump modules, which makes replacing the full assembly the more reliable solution.

Q: Which Sentra applications use E9213M?

A: It is intended for specified 2013–2019 Nissan Sentra sedans with the 1.8L gasoline engine.

Q: Does it fit every Sentra from 2013 through 2019?

A: No. Confirm the 1.8L engine, OE number, five-terminal connector, single outlet, flange, and module dimensions.

Q: Is the fuel-level sender included?

A: Yes. The module includes the sender and float arm.

Q: Is a regulator included?

A: Yes. The verified FG1549 configuration includes an integrated regulator.

Q: Is a vapor pressure sensor included?

A: No. The verified FG1549 configuration is listed without a vapor pressure sensor.

Q: What electrical connector should be checked?

A: Compare the five blade terminals, connector shape, locking tab, and keying with the original module.

Q: What symptoms can indicate module failure?

A: Low measured pressure, long cranking, hesitation, stalling, and incorrect gauge readings can indicate a fault after circuit checks.

Q: What should be tested before replacement?

A: Test voltage and ground under load, relay operation, connector condition, fuel pressure, line restriction, and sender continuity.

Q: Why is tank cleaning important?

A: Contamination can restrict the new strainer, damage the pump, and cause repeat low-pressure symptoms.

Q: What should be verified after installation?

A: Prime the system, inspect the seal and outlet for leaks, measure pressure, and confirm normal gauge operation.
