BDFHYK UF502 ignition coil and 7781 ZFR5LP-13G platinum spark plug kit for Chrysler and Dodge V6

6 UF502 ignition coils and 6 7781 fine-wire platinum spark plugs for Chrysler and Dodge V6 applications

UF502 ignition coil pack with ZFR5LP-13G platinum spark plugs for 3.5L and 4.0L V6 service

BDFHYK OE-style UF502 ignition coils for Chrysler 300 Sebring and Dodge applications

Chrysler and Dodge V6 ignition coil and 7781 spark plug replacement set

UF502 coil-on-plug replacement components with 7781 ZFR5LP-13G platinum spark plugs

BDFHYK ignition coils and spark plugs set for listed Chrysler and Dodge V6 applications

BDFHYK Ignition Coil UF502 and Iridium Plugs 7781 Fits Chrysler 300 Sebring,Town & Country,Dodge Avenger3.5L 4.0L V6, Sets of 6

$72.99

Product Detail

Type Ignition Coil + Spark Plug Set
SKU BDDLZ-BD-05-01812-CK
OE Number Coil: UF502, UF-502, 04606869AB, 04606869AA, 4606869AA, 4606869AB, 4606869AC, 4606869AD, 7B0905715, 7B0905715B, 7B0905715D
OE Number For Spark plug:7781, ZFR5LP13G, 04606591AB, SZFR5LP13G, ZFR5LP13G

🚚 Estimated Delivery: Calculating... · Ships by Calculating... · Free Shipping

Trust & Assurance

Free Shipping · 2–7 Business Days

12-Month Warranty

30-Day Return

Secured Payment

UF502 Ignition Coil & 7781 Platinum Spark Plug Kit for Chrysler / Dodge V6

Misfire, rough idle, hard starting, cold-start shaking, or hesitation during acceleration can involve worn ignition components, but wiring, injectors, fuel delivery, intake leaks, sensors, compression, and mechanical faults can create similar symptoms. This BDFHYK UF502 ignition coil and 7781 / ZFR5LP-13G spark plug kit is intended for the listed applications below. Confirm the exact vehicle, engine, connector, and reference numbers before ordering.

UF502 / 7781 / ZFR5LP-13G Vehicle Fitment

Chrysler 300 2006–2010 and Sebring 2007–2010 — listed 3.5L V6 applications
Chrysler Town & Country 2008–2010 — listed 4.0L V6 applications
Dodge Avenger 2008–2010, Challenger 2009–2010, Charger 2006–2010 and Journey 2009–2010 — listed 3.5L V6 applications
Confirm exact engine on any 4.0L V6 application before ordering

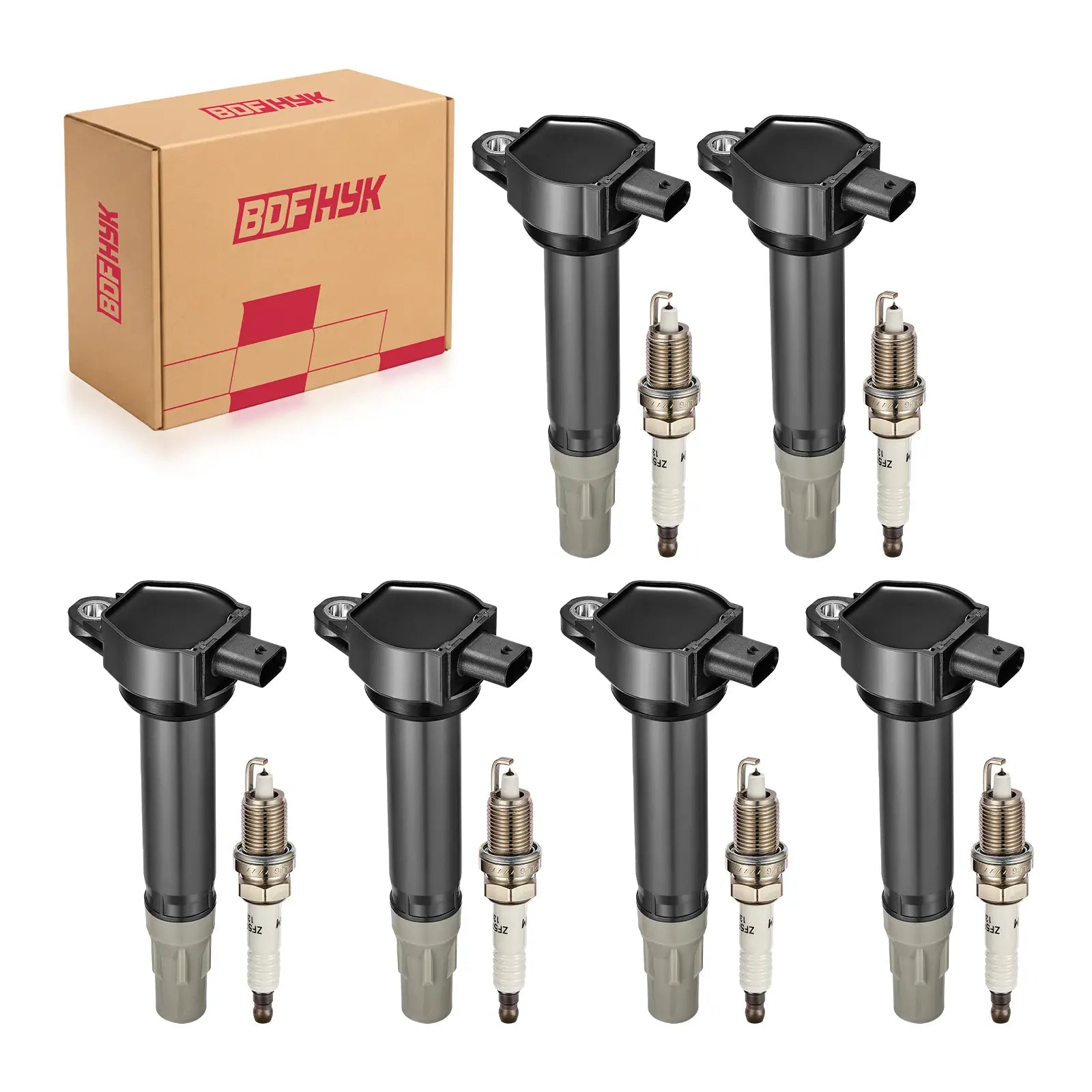

What Is Included?

6 ignition coils
6 Fine-Wire Platinum spark plugs

UF502 Ignition Coil Reference Numbers

UF502, UF-502, 04606869AB, 04606869AA, 4606869AA, 4606869AB, 4606869AC, 4606869AD, 7B0905715

When Should You Inspect the Ignition Coils?

Ignition coils do not have a universal mileage-based replacement interval. A practical time to inspect them is when the spark plugs are due, when the vehicle reaches higher-mileage service, or when symptoms appear. On an older vehicle with roughly 60,000–100,000+ miles and unknown ignition-service history, inspect the coil boots, connectors, plug wells, spark plug wear, and stored misfire codes rather than replacing coils by mileage alone.

Frequent short trips, stop-and-go driving, high-load use, long idling, heat cycling, or oil and moisture in the plug wells can justify earlier inspection. Worn spark plugs can also increase the voltage demand placed on the ignition coils.

What May Improve After Replacing a Confirmed Weak Coil or Worn Plug?

More stable idle when an ignition fault was causing rough running
Easier, more consistent starting when weak spark was part of the problem
More consistent acceleration and load response when misfire or hesitation came from the ignition system
Fewer cylinder-specific misfire events after the actual failed component is corrected

These are restoration benefits, not a promise of extra horsepower or guaranteed fuel-economy gains. If the engine still misfires, continue diagnosis instead of replacing more parts at random.

High-Mileage Ignition Service Scenarios

Spark Plug Service Is Due

When spark plugs are being serviced, inspect the ignition coils at the same time for cracked housings, carbon tracking, damaged boots, loose connectors, oil contamination, or moisture. Replace coils only when testing or physical condition supports replacement.

Cold-Start Shaking or Rough Idle

Check for cylinder-specific misfire codes and inspect the plug and coil on the affected cylinder. A flashing check-engine light can indicate an active misfire and should be addressed promptly because continued misfiring can damage the catalytic converter.

Hesitation Under Acceleration or Load

A weak coil or worn plug may become more noticeable when cylinder pressure rises under acceleration. Confirm the affected cylinder and compare the original coil and plug references before replacement.

Fitment & Installation Checks

Match the exact year, make, model, engine, and cylinder configuration.
Compare connector keying, coil body, mounting point, boot profile, and printed reference numbers.
Confirm spark plug reference 7781 / ZFR5LP-13G for the exact engine.
Follow the vehicle manufacturer's spark plug gap and tightening-torque specification; do not guess.
Inspect wiring, connectors, boots, and plug wells for oil, moisture, corrosion, or physical damage.

Important: These are BDFHYK OE-style aftermarket ignition service components, not factory-branded parts. A diagnostic trouble code alone does not prove that an ignition coil has failed.

Technical Specifications

Brand	BDFHYK
Product Type	Ignition Coil + Spark Plug Kit
Primary Coil Reference	UF502
Spark Plug Reference	7781 / ZFR5LP-13G
Spark Plug Construction	Fine-Wire Platinum
Package Quantity	6 Ignition Coils + 6 Spark Plugs
Includes	6 Ignition Coils + 6 Fine-Wire Platinum Spark Plugs
Listed Vehicle Fitment	Chrysler 300 2006–2010 and Sebring 2007–2010 — listed 3.5L V6 applications; Chrysler Town & Country 2008–2010 — listed 4.0L V6 applications; Dodge Avenger 2008–2010, Challenger 2009–2010, Charger 2006–2010 and Journey 2009–2010 — listed 3.5L V6 applications; Confirm exact engine on any 4.0L V6 application before ordering
OE / Interchange References	UF502, UF-502, 04606869AB, 04606869AA, 4606869AA, 4606869AB, 4606869AC, 4606869AD, 7B0905715
Inspection Guidance	No universal ignition-coil replacement interval. Inspect coils during spark-plug service, around higher-mileage service such as 60,000–100,000+ miles on older vehicles, or sooner if misfire, rough idle, hard starting, hesitation, oil/moisture contamination, or connector damage is present.
Common Service Scenarios	Cold-start misfire, rough idle, hesitation under load, repeated cylinder-specific misfire, spark-plug service, and high-mileage ignition inspection after diagnosis.
Fitment Checks	Confirm exact year, make, model, engine, connector shape/keying, coil body, boot profile, coil reference, spark plug reference, and required service quantity.
Installation Checks	Inspect wiring, connectors and plug wells; compare new components with removed parts; follow exact vehicle spark plug gap and tightening-torque specifications.
Important Note	Replace ignition coils based on diagnosis and component condition, not mileage alone. These are OE-style aftermarket service components, not factory-branded parts.

Difficulty Moderate

Estimated Time 0.5–1 hour

Tools Required

Screwdrivers
Service manual specific to your vehicle
Socket set and ratchet
Wrenches

Pre-Installation Checklist

Stop the engine before disassembling or replacing the ignition coil.
Check the spark plugs and spark plug wires as part of diagnosis.
Keep the installation area clean and dry.
Make sure the ignition coil connections are correct.
Refer to the service manual for your specific vehicle because removal order and connector or fastener details can vary by make and model.
Disconnect the negative battery cable before working on the ignition system.

Installation Steps

Disconnect the battery. Remove the negative battery cable by loosening the clamp bolt with a socket or wrench.
Locate the ignition coils on top of the engine. They may be attached to the engine block or surrounding components.
Disconnect and remove the old ignition coil. Remove the mounting bolts or screws and disconnect the electrical connector(s). The order can vary by vehicle, so follow the vehicle-specific service manual. Remove the old coil once fully disconnected.
If one coil serves multiple spark plugs and has multiple electrical connections, mark or label the connectors so they can be reattached to the correct terminals.
Install the new ignition coil in the reverse order of removal. Secure the mounting bolts or screws and reconnect the electrical connector(s) in the correct positions.
Reconnect the negative battery terminal. Hand-tighten the connection, then tighten the terminal bolt with a socket or wrench. Do not over-tighten.
Close the hood, start the engine with the vehicle in Park, and confirm it starts and idles normally. If it does, test-drive the vehicle.

Post-Installation Verification

Confirm the new ignition coil is securely mounted.
Confirm all electrical connectors are connected to the correct terminals.
Confirm the negative battery terminal is reconnected and tightened sufficiently without over-tightening.
Start the engine in Park and confirm it starts and idles normally.
If idle is normal, test-drive the vehicle and check for remaining misfire or drivability symptoms.

Troubleshooting

Spark plug and wire checks from the manual:
With the engine running, disconnect spark plug wires one at a time and observe engine-speed or roughness changes; the manual states that no significant change can indicate a bad spark plug.
The manual describes checking for spark by holding the end of a disconnected spark plug wire near a metal surface and looking or listening for a spark or cracking sound.
While the engine is cranked, check for spark at each spark plug wire; the manual states that no spark can indicate a dead wire.
Make sure battery, ignition, coil, and spark-plug wire connections are secure. Wiggle connections and retest if a loose connection is suspected.
Keep spark plug ends clean and free of dirt, oil, or grease; clean and retest before replacing a plug.
Inspect wires for cracked, cut, scraped, or burned insulation. Check boots and terminals for damage, corrosion, or poor contact.
Check for corrosion between the boot, spark plug, and ignition coil, and inspect the spark plug for discoloration or damage.
Inspect spring clips and wire retention at the distributor and spark plug ends to make sure connections are held securely.
Ignition coil failure can cause one or more cylinders to misfire, stuttering, sluggishness, and other drivability issues.

BDFHYK Ignition Coil Installation Guide

Q: What is included in the UF502 and 7781 / ZFR5LP-13G kit?
A: The package includes 6 ignition coils and 6 Fine-Wire Platinum spark plugs.

Q: Which vehicles does this ignition kit fit?
A: Use the listed applications as a starting point, then confirm the exact year, model, engine, connector and original part references before ordering.

Q: At what mileage should ignition coils be inspected?
A: Ignition coils do not have one universal replacement mileage. On older vehicles, roughly 60,000–100,000+ miles is a useful inspection window when service history is unknown, but coils should be replaced based on diagnosis and condition rather than mileage alone.

Q: Should ignition coils automatically be replaced at 100,000 miles?
A: No. If the engine runs correctly and the coils test well, mileage alone is not a reason to replace them. Inspect them during spark-plug service and replace failed or physically damaged coils as needed.

Q: Can worn spark plugs put extra stress on ignition coils?
A: Yes. As spark plug electrodes wear and the firing gap becomes harder to bridge, the ignition system can require more voltage. Keeping spark plugs on the correct service schedule can reduce unnecessary stress on the coils.

Q: Can weak ignition coils cause rough idle or hesitation?
A: They can contribute to rough idle, cold-start shaking, hesitation under load, and cylinder-specific misfires. Wiring, injectors, fuel delivery, air leaks, sensors and compression can cause similar symptoms, so diagnosis matters.

Q: What can improve after replacing a confirmed weak coil or worn spark plug?
A: When the ignition components were the cause, the engine may return to a steadier idle, more consistent starting and smoother acceleration. Replacement restores lost ignition performance; it does not create extra rated horsepower.

Q: Should ignition coils and spark plugs always be replaced together?
A: Not automatically. Inspect both systems together. A matched kit is useful when the plugs are due and multiple coils are aged or confirmed weak, but replacement should follow the actual condition and service plan.

Q: What does a flashing check-engine light mean?
A: A flashing check-engine light can indicate an active misfire. Reduce driving and have the fault diagnosed promptly because continued misfiring can overheat and damage the catalytic converter.

Q: What should be checked before installation?
A: Confirm fitment, compare the connector and coil shape, inspect plug wells for oil or moisture, and use the exact vehicle service specification for spark plug gap and tightening torque.

Q: What if the engine still misfires after replacing coils and plugs?
A: Continue diagnosis of wiring, connectors, injectors, fuel pressure or delivery, intake or vacuum leaks, sensors, compression and mechanical timing instead of replacing more parts at random.
