BDFHYK UF751 ignition coil and 4469 iridium spark plug kit for 2.4L L4 applications

UF751 ignition coil pack with 4469 iridium spark plugs for Jeep Cherokee and Renegade 2.4L

Jeep Compass UF751 ignition coil and 4469 spark plug service components

Chrysler 200 UF751 ignition coil pack with 4469 iridium spark plugs

Dodge Dart UF751 ignition coil and 4469 spark plug replacement components

Fiat 500X UF751 ignition coil pack for 2.4L L4 ignition service

BDFHYK OE-style UF751 ignition coil and 4469 iridium spark plug components

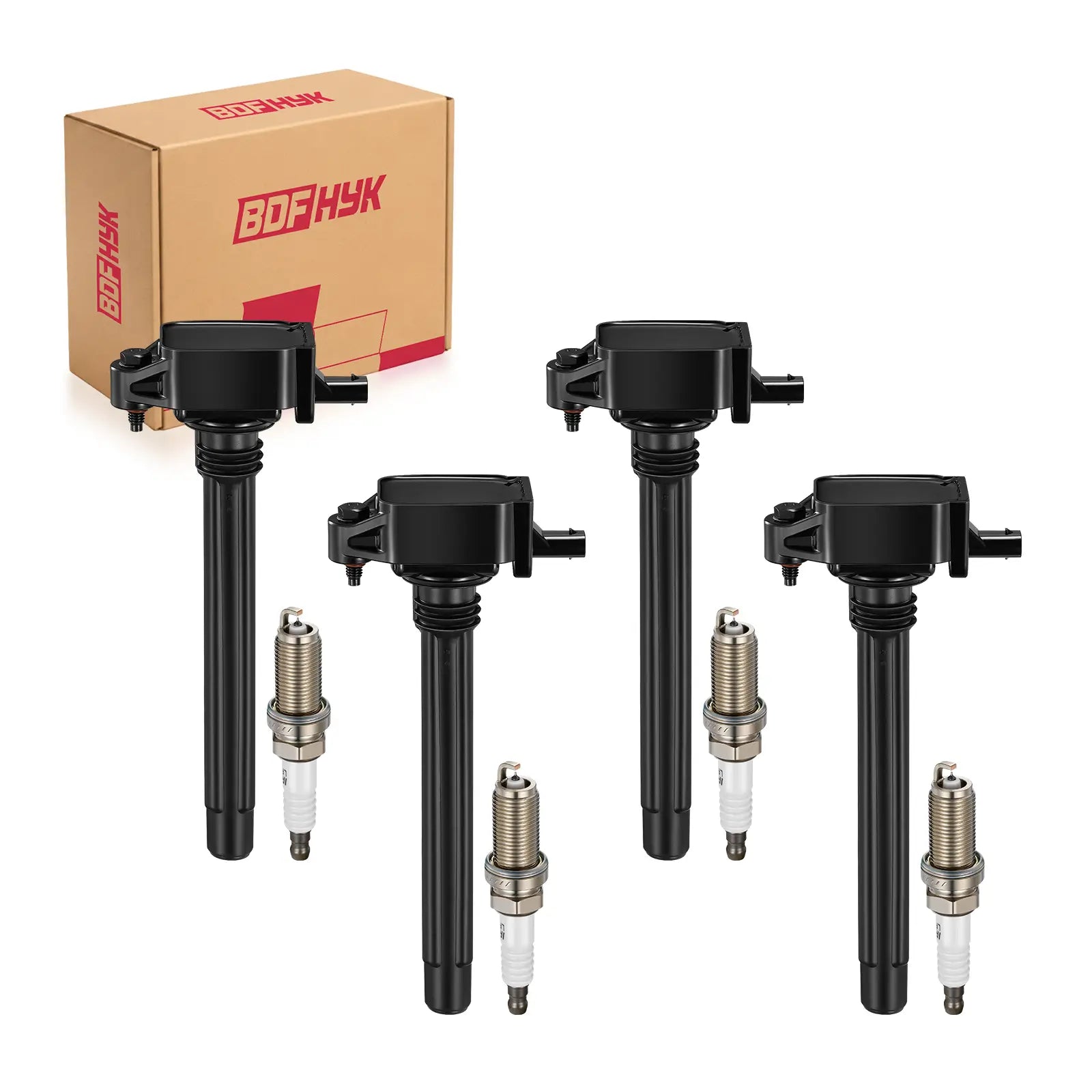

BDFHYK Ignition Coil UF751 and Iridium Plugs 4469 For Jeep Cherokee Compass Renegade,Chrysler 200,Dart,500X 2.4L L4

$63.49

Type Ignition Coil + Spark Plug Set
SKU BDDLZ-BD-05-07368-CK
OE Number For Coil: 68242286AA, 68080580AB, UF751, UF754, GN10738, 49132, C-875, 0221504037, 5C2113, 68242286AB, UF754, COP649, SKIC517, 221504050, C2054, 2-5029, 2-50262, C875, E1251, C2054, IC857, 368265, 250262, C1829, U5364, EBC1029, 1788555, C50042DL, 9212205
OE Number For Spark plug:XP5325, 4469, 9006, LFR5AIX-11, 3191, 9030, 6619, 5588, 41835, 2309, 5343, 5344, 6481, 3656, 6708

Trust & Assurance

Free Shipping · 3–7 Business Days

12-Month Warranty

30-Day Return

Secured Payment

Technical Specifications

Brand	BDFHYK
Product Type	Ignition Coil + Spark Plug Set
Primary Coil Reference	UF751
OE / Interchange References	68242286AA, 68080580AB, 68242286AB, GN10738, C875 and additional interchange references
Spark Plug Reference	4469
Engine	2.4L L4 for the listed applications
Listed Vehicle Fitment	2018–2020 Jeep Compass; 2015–2020 Jeep Renegade; 2014–2020 Jeep Cherokee; 2016–2018 Fiat 500X; 2015–2017 Chrysler 200; 2013–2016 Dodge Dart
Fitment Checks	Confirm exact year, make, model, 2.4L L4 engine, UF751 reference, connector shape/keying, boot profile, 4469 spark plug reference, and required service quantity before ordering.

BDFHYK UF751 Ignition Coil and 4469 Iridium Spark Plug Kit for 2.4L L4 Applications

Rough idle, hard starting, hesitation under load, or a cylinder-specific misfire can involve worn ignition components, but wiring, connectors, fuel delivery, intake leaks, sensors, compression, timing, and other mechanical conditions can create similar symptoms. This BDFHYK ignition coil and spark plug kit uses the UF751 ignition coil reference with 4469 iridium spark plugs for the listed Jeep, Chrysler, Dodge, and Fiat 2.4L L4 applications. Confirm the exact year, engine, connector, and removed component references before ordering.

Listed 2.4L L4 Applications

2018–2020 Jeep Compass
2015–2020 Jeep Renegade
2014–2020 Jeep Cherokee
2016–2018 Fiat 500X
2015–2017 Chrysler 200
2013–2016 Dodge Dart

UF751 Ignition Coil Reference

Use UF751 as the primary ignition coil reference. Interchange references include references such as 68242286AA, 68080580AB, 68242286AB, GN10738, and C875. Compare the removed coil body, connector shape, keying, boot profile, and original service reference before ordering.

4469 Iridium Spark Plug Reference

Reference: 4469 as the primary spark plug reference. Confirm the exact spark plug requirement for the vehicle before installation.

How to Confirm Fitment Before Ordering

Confirm year, make, model, and 2.4L L4 engine.
Compare the removed ignition coil body, connector shape, keying, and boot profile.
Confirm the original OE/interchange reference.
Verify the 4469 spark plug reference for the exact application.
Confirm the required service quantity for the exact engine.

Diagnostic Checks Before Replacement

A misfire code alone does not prove an ignition coil has failed. Inspect wiring, connectors, spark plug wells, injectors, fuel delivery, intake leaks, sensors, compression, timing, and other mechanical conditions as part of the diagnosis.

Installation Checks

Inspect wiring and electrical connectors before installation.
Check spark plug wells for oil or moisture.
Compare removed and replacement coil shapes before installation.
Use the exact vehicle service specification for spark plug gap and tightening torque.
Verify connector seating after installation.

BDFHYK ignition coils are OE-style aftermarket replacement components.

Difficulty Moderate

Estimated Time 0.5–1 hour

Tools Required

Screwdrivers
Service manual specific to your vehicle
Socket set and ratchet
Wrenches

Pre-Installation Checklist

Stop the engine before disassembling or replacing the ignition coil.
Check the spark plugs and spark plug wires as part of diagnosis.
Keep the installation area clean and dry.
Make sure the ignition coil connections are correct.
Refer to the service manual for your specific vehicle because removal order and connector or fastener details can vary by make and model.
Disconnect the negative battery cable before working on the ignition system.

Installation Steps

Disconnect the battery. Remove the negative battery cable by loosening the clamp bolt with a socket or wrench.
Locate the ignition coils on top of the engine. They may be attached to the engine block or surrounding components.
Disconnect and remove the old ignition coil. Remove the mounting bolts or screws and disconnect the electrical connector(s). The order can vary by vehicle, so follow the vehicle-specific service manual. Remove the old coil once fully disconnected.
If one coil serves multiple spark plugs and has multiple electrical connections, mark or label the connectors so they can be reattached to the correct terminals.
Install the new ignition coil in the reverse order of removal. Secure the mounting bolts or screws and reconnect the electrical connector(s) in the correct positions.
Reconnect the negative battery terminal. Hand-tighten the connection, then tighten the terminal bolt with a socket or wrench. Do not over-tighten.
Close the hood, start the engine with the vehicle in Park, and confirm it starts and idles normally. If it does, test-drive the vehicle.

Post-Installation Verification

Confirm the new ignition coil is securely mounted.
Confirm all electrical connectors are connected to the correct terminals.
Confirm the negative battery terminal is reconnected and tightened sufficiently without over-tightening.
Start the engine in Park and confirm it starts and idles normally.
If idle is normal, test-drive the vehicle and check for remaining misfire or drivability symptoms.

Troubleshooting

Spark plug and wire checks from the manual:
With the engine running, disconnect spark plug wires one at a time and observe engine-speed or roughness changes; the manual states that no significant change can indicate a bad spark plug.
The manual describes checking for spark by holding the end of a disconnected spark plug wire near a metal surface and looking or listening for a spark or cracking sound.
While the engine is cranked, check for spark at each spark plug wire; the manual states that no spark can indicate a dead wire.
Make sure battery, ignition, coil, and spark-plug wire connections are secure. Wiggle connections and retest if a loose connection is suspected.
Keep spark plug ends clean and free of dirt, oil, or grease; clean and retest before replacing a plug.
Inspect wires for cracked, cut, scraped, or burned insulation. Check boots and terminals for damage, corrosion, or poor contact.
Check for corrosion between the boot, spark plug, and ignition coil, and inspect the spark plug for discoloration or damage.
Inspect spring clips and wire retention at the distributor and spark plug ends to make sure connections are held securely.
Ignition coil failure can cause one or more cylinders to misfire, stuttering, sluggishness, and other drivability issues.

BDFHYK Ignition Coil Installation Guide

Q: Will this UF751 ignition coil and spark plug kit fit my vehicle?

A: Applications include 2018–2020 Jeep Compass, 2015–2020 Jeep Renegade, 2014–2020 Jeep Cherokee, 2016–2018 Fiat 500X, 2015–2017 Chrysler 200, and 2013–2016 Dodge Dart with the applicable 2.4L L4 engine. Confirm exact fitment before ordering.

Q: Which ignition coil reference should I compare?

A: Use UF751 as the primary reference and compare the number on the removed ignition coil. Interchange references include 68242286AA, 68080580AB, 68242286AB, GN10738, and C875.

Q: Which spark plug reference is used?

A: The primary spark plug reference is 4469.

Q: Is UF754 the same as UF751 for every application?

A: Do not assume every interchange reference applies identically to every vehicle. Compare UF751 with the removed component before ordering.

Q: How should fitment be confirmed before ordering?

A: Confirm year, make, model, 2.4L L4 engine, UF751 reference, connector shape, boot profile, and 4469 spark plug reference.

Q: Does a misfire code prove the ignition coil is bad?

A: No. Wiring, connectors, injectors, fuel delivery, intake leaks, sensors, compression, timing, and other mechanical conditions can cause similar symptoms.

Q: Should all coils and spark plugs be replaced together?

A: Replacement should follow diagnostic results, component condition, service history, and the exact engine's service requirements.

Q: What should be compared before ordering?

A: Compare year, make, model, 2.4L L4 engine, coil reference, connector shape and keying, boot profile, and the 4469 spark plug reference.

Q: What spark plug gap should be used?

A: Use the exact vehicle service specification for the engine and spark plug application.

Q: What tightening torque should be used?

A: Use the exact vehicle service specification for the engine and spark plug application.

Q: What should be inspected during installation?

A: Inspect wiring and connectors, check spark plug wells for oil or moisture, and compare removed and replacement component shapes.

Q: Are these Genuine OEM parts?

A: No. BDFHYK ignition coils are OE-style aftermarket replacement components.

Returns & Refunds

We accept returns within 30 days of delivery for eligible items. If the product is unused and in original condition, you may request a return according to our refund policy. Full policy details: View Refund Policy . We recommend contacting our support team before initiating a return to ensure the fastest resolution.

Customer Support

If you purchased the wrong part, received an incompatible item, or need installation assistance, please contact us directly.

Email: service@bdfhyk.com

Business Hours:

Mon–Fri 9:00–18:00 (GMT+8)

Mon–Fri 19:00–04:00 (UTC−6 / CST)

Manufacturing Standards

Direct Factory Supply, Cost Saving
Integrated R&D, production, and warehousing. Eliminate middleman markups: same quality at lower prices, superior quality at same prices.

Precision Inspection, Commitment to Excellence
Rigorous inspection process, international certification standards. Each product includes individual inspection.

Before vs After Replacement

Replacing worn ignition coils and spark plugs helps restore stable ignition and smoother engine performance.

BEFORE

Rough Idle & Engine Vibration Noticeable engine shaking while idling. Irregular exhaust flow may indicate unstable ignition performance.

AFTER

Fast Start & Stable Idle IMore consistent spark delivery reduces misfires and stabilizes idle speed.

BEFORE

Sluggish Acceleration Weak throttle response at lower RPM. Vehicle may feel underpowered.

AFTER

Enhanced Power Response Improved throttle response and smoother acceleration

BEFORE

Increased Fuel Consumption Poor combustion can lead to higher fuel usage.

AFTER

Improved Fuel Efficiency Optimized ignition supports more efficient combustion.

Performance improvements may vary depending on vehicle condition.
