4WD Front Brake Rotors Pads & Wheel Hub Kit for 2011-2019 Chevy Silverado GMC Sierra HD 13.98" | BDFHYK

$434.88
Product Detail
  • Type Brake & Wheel Hub Kit
  • SKU JN-SS25-00043003-BS24-00000BS-001-W
🚚 Estimated Delivery: Calculating... · Ships by Calculating... · Free Shipping
Trust & Assurance
Free Shipping · 2–7 Business Days
12-Month Warranty
30-Day Return
Secured Payment American Express Diners Club Discover JCB Maestro Mastercard PayPal Visa Pay
Description Return & Support

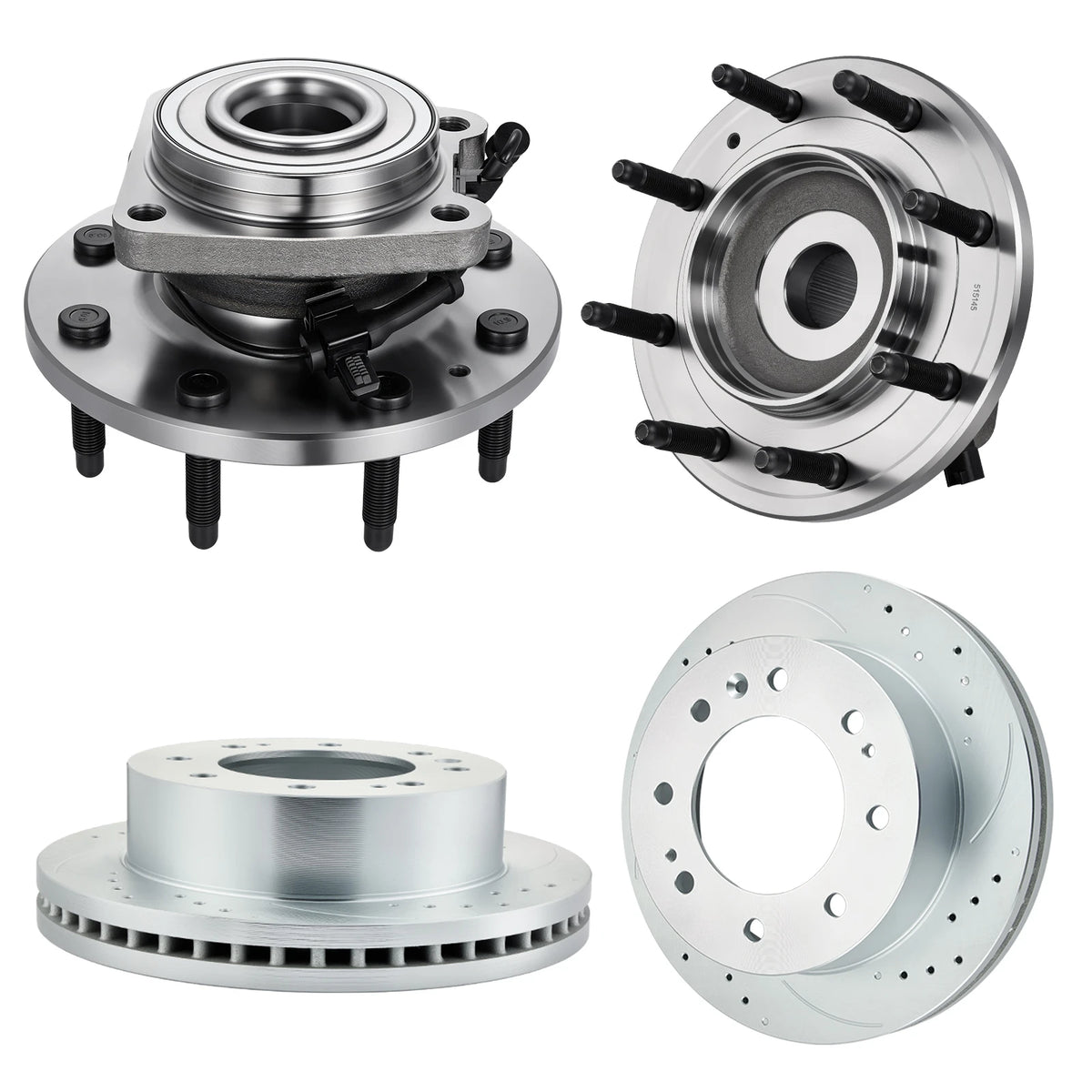

Front Brake & Wheel Hub Kit for Silverado & Sierra HD 4WD

Refresh the major wear components at both front wheels with one complete brake and hub kit. This package combines drilled and slotted 355 mm front rotors, ceramic brake pads with hardware, and 8-lug wheel bearing & hub assemblies for compatible 4WD applications.

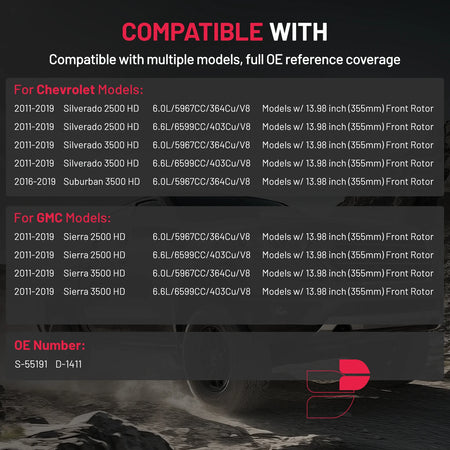

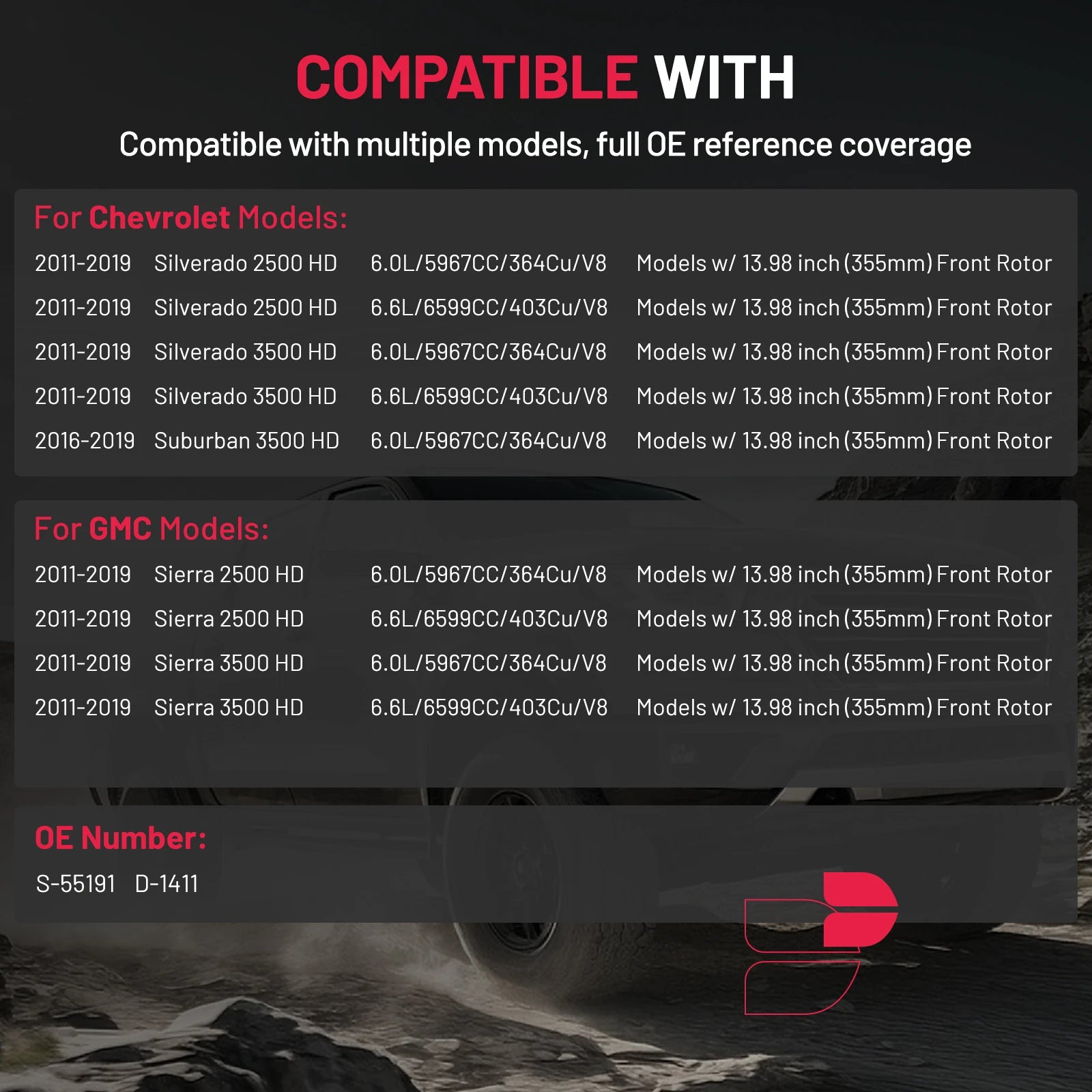

Fitment is configuration-specific: designed for compatible 4WD models using 13.98 in (355 mm) front rotors, 8-lug hubs, and 36-spline hub assemblies. Verify your original components before ordering.

Complete Front Brake & Hub Service Kit

Built for a more complete front-end service, this kit covers both the braking and wheel hub components on the driver and passenger sides.

  • Drilled & Slotted Rotors – G3000 cast iron construction with zinc-plated surfaces.
  • Ceramic Brake Pads – Premium ceramic pads with clips and installation hardware included.
  • 8-Lug Wheel Hub Assemblies – Front left and right hubs with ABS sensors and 36-spline configuration.
  • Both Front Wheels Covered – Components included for driver and passenger side replacement.

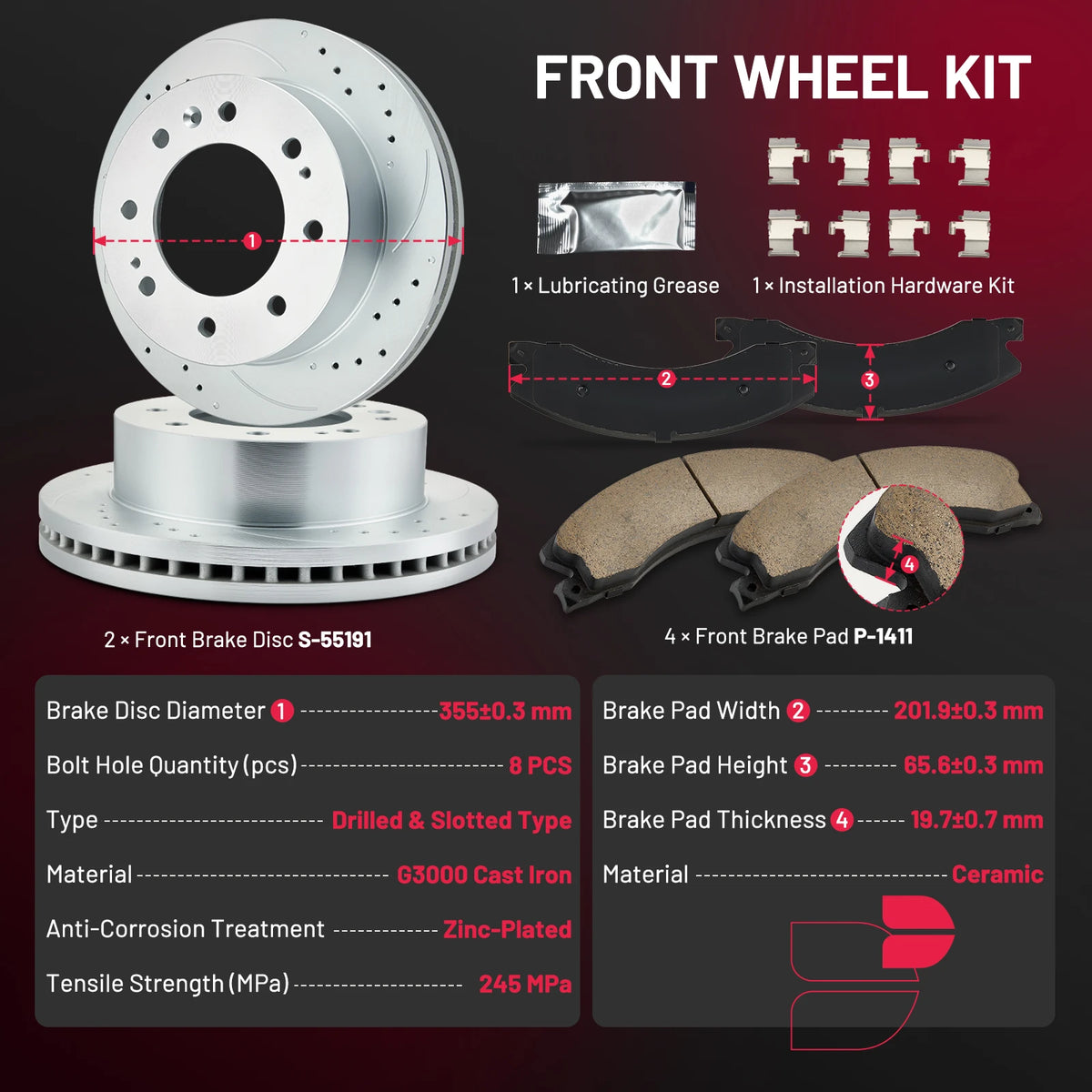

Package Includes

Qty. Component Part Number
2 Front Drilled & Slotted Brake Rotors S-55191
4 Front Ceramic Brake Pads P-1411
2 Front Wheel Bearing & Hub Assemblies 515145
1 Set Brake Pad Installation Hardware Included
1 Lubricating Grease Included

Front Brake Rotor Specifications

Part Number S-55191
Position Front Left & Right
Rotor Diameter 355 ± 0.3 mm / approx. 13.98 in
Bolt Hole Quantity 8
Rotor Type Drilled & Slotted
Material G3000 Cast Iron
Surface Treatment Zinc-Plated
Tensile Strength 245 MPa

Ceramic Brake Pad Specifications

Part Number P-1411
Position Front
Material Ceramic
Pad Width 201.9 ± 0.3 mm
Pad Height 65.6 ± 0.3 mm
Pad Thickness 19.7 ± 0.7 mm
Hardware Clips & Installation Hardware Included

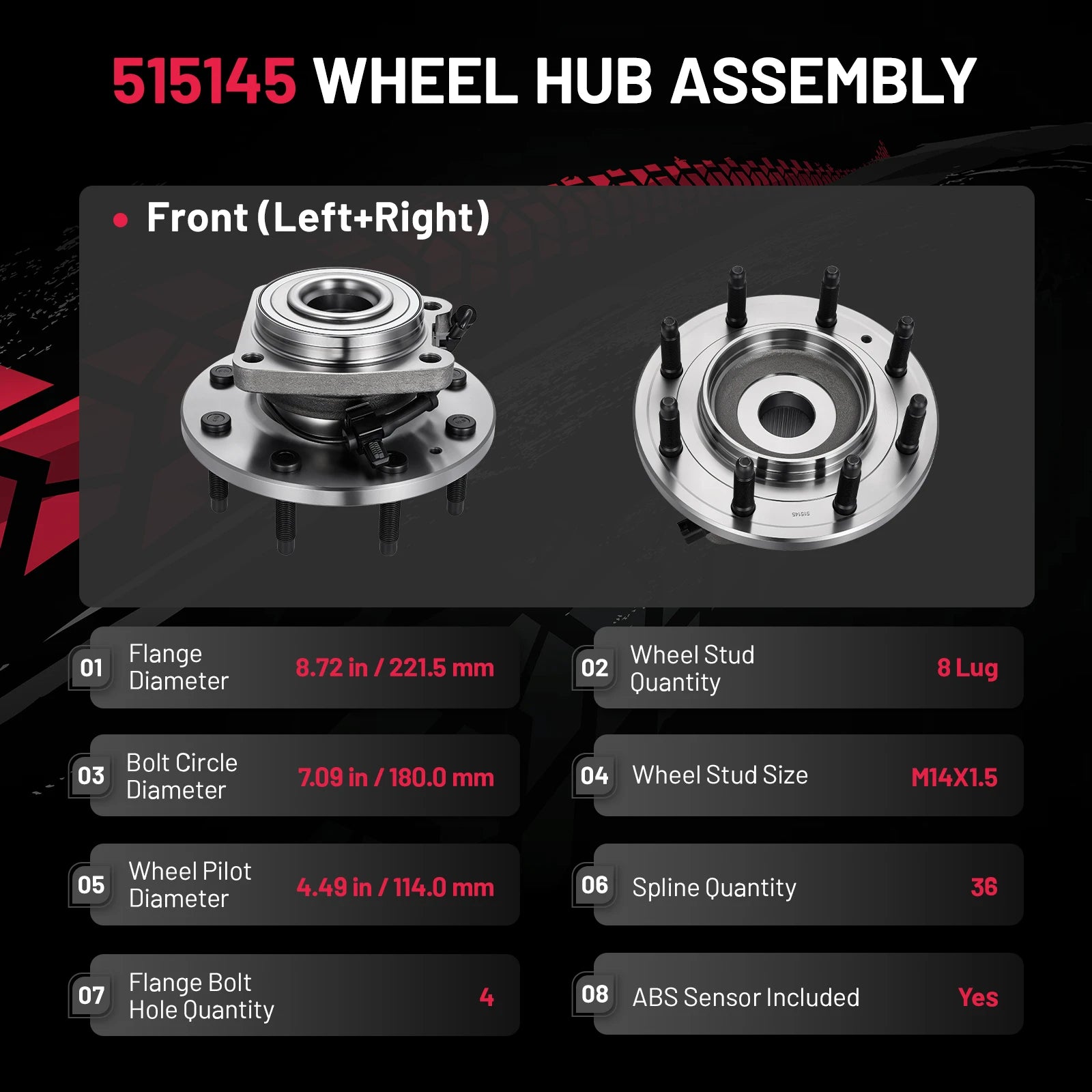

515145 Wheel Hub Specifications

Position Front Left & Right
Drive Type 4WD
Wheel Stud Quantity 8-Lug
Wheel Stud Size M14 × 1.5
Flange Diameter 8.72 in / 221.5 mm
Bolt Circle Diameter 7.09 in / 180.0 mm
Wheel Pilot Diameter 4.49 in / 114.0 mm
Spline Quantity 36
Flange Bolt Hole Quantity 4
ABS Sensor Included

Drilled & Slotted G3000 Rotors

The 355 mm front rotors feature a drilled and slotted design with G3000 cast iron construction. Zinc-plated surfaces provide added corrosion protection for exposed areas, while the 13.98-inch diameter matches the required front brake configuration for compatible applications.

Ceramic Pads with Hardware Included

The four-piece front brake pad set uses ceramic friction material and includes the required clips and installation hardware. Combined with the new rotors, the kit provides the primary components needed to service both front brakes at the same time.

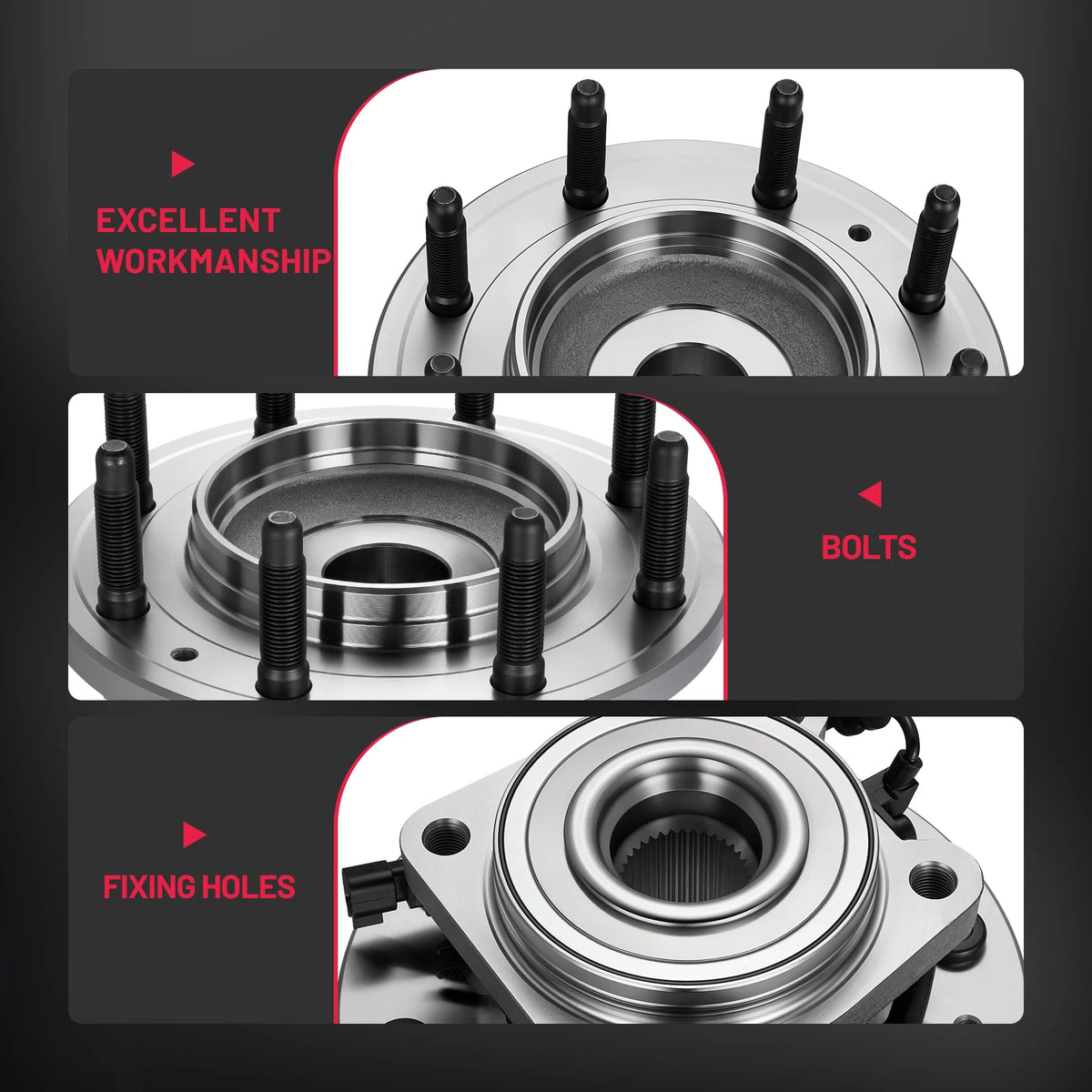

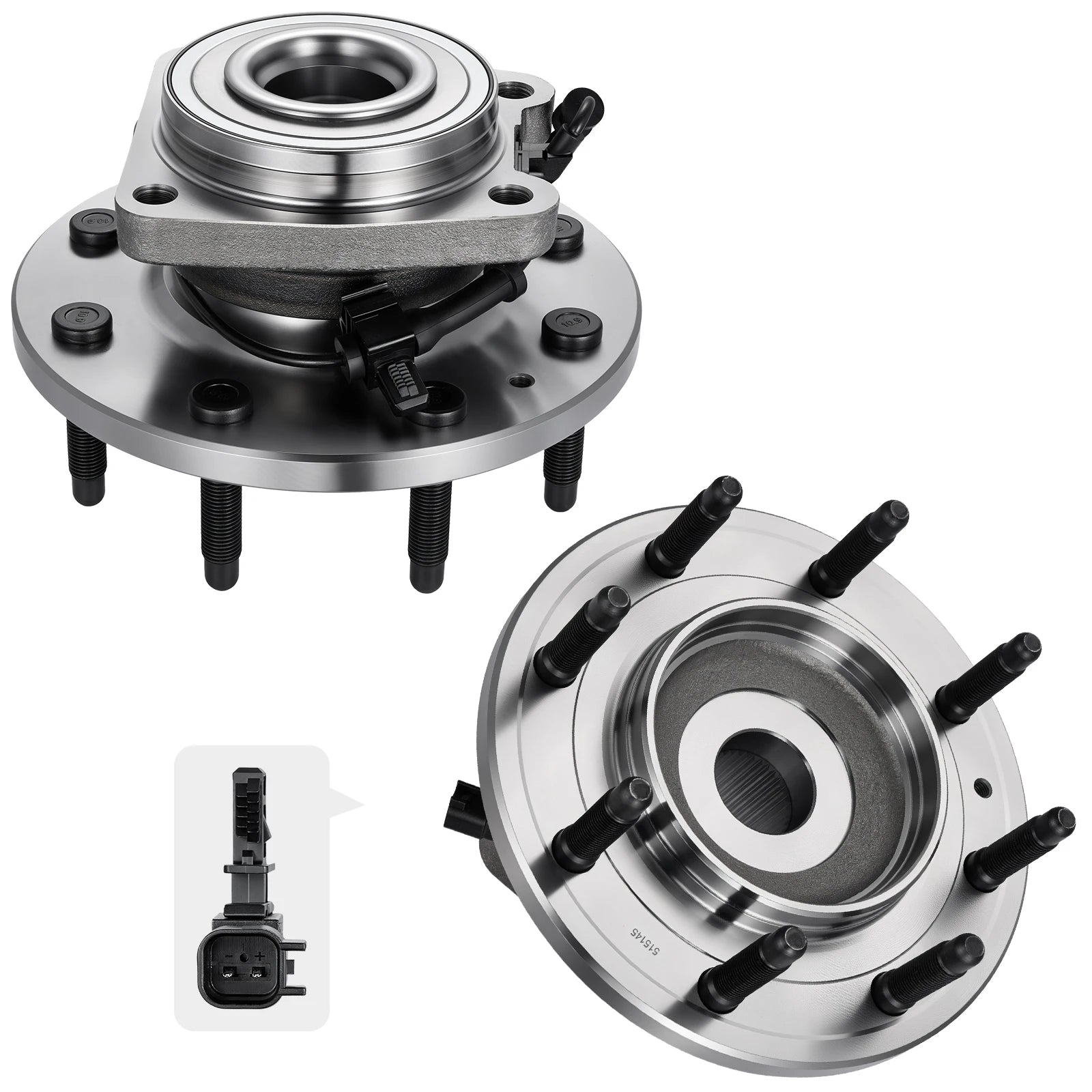

8-Lug Front Wheel Hub Assemblies

Two 515145 wheel bearing and hub assemblies provide complete coverage for the front left and right sides. Each hub features an 8-lug configuration, M14 × 1.5 wheel studs, 36 splines, a 4-bolt mounting flange, and an included ABS sensor.

Verify These 3 Specifications Before Ordering

Similar Silverado and Sierra HD models may use different brake and hub configurations. Before ordering, verify the following against your original components:

  • 4WD drivetrain
  • 13.98 in / 355 mm front brake rotor
  • 8-lug, 36-spline front wheel hub

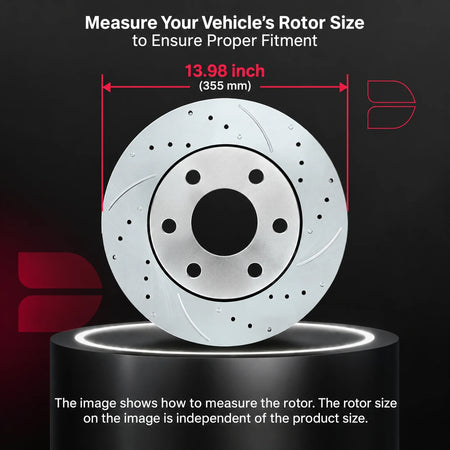

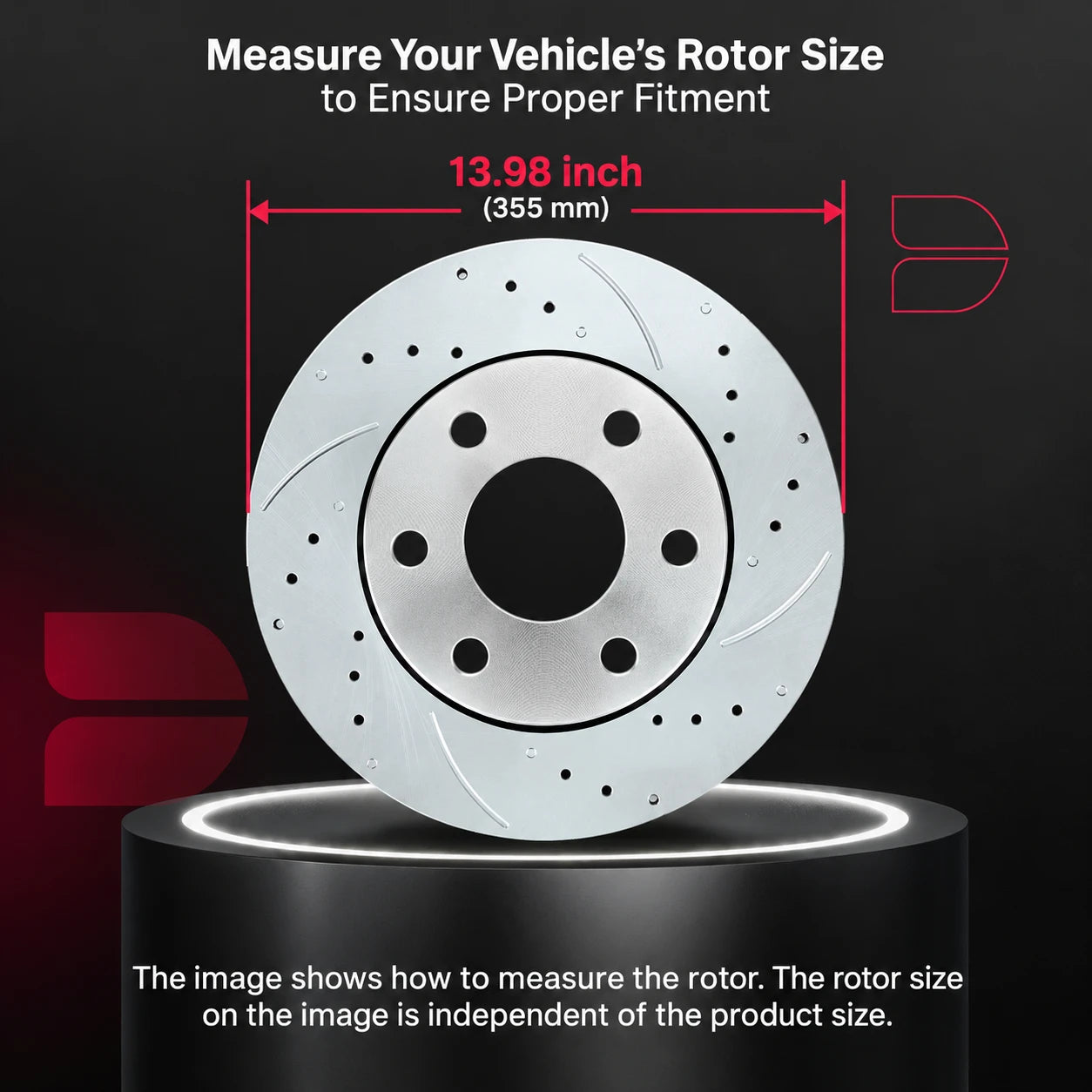

Important: Do not determine fitment by model year alone. Measure the diameter of your existing front rotor from edge to edge and confirm the hub specifications before purchase.
