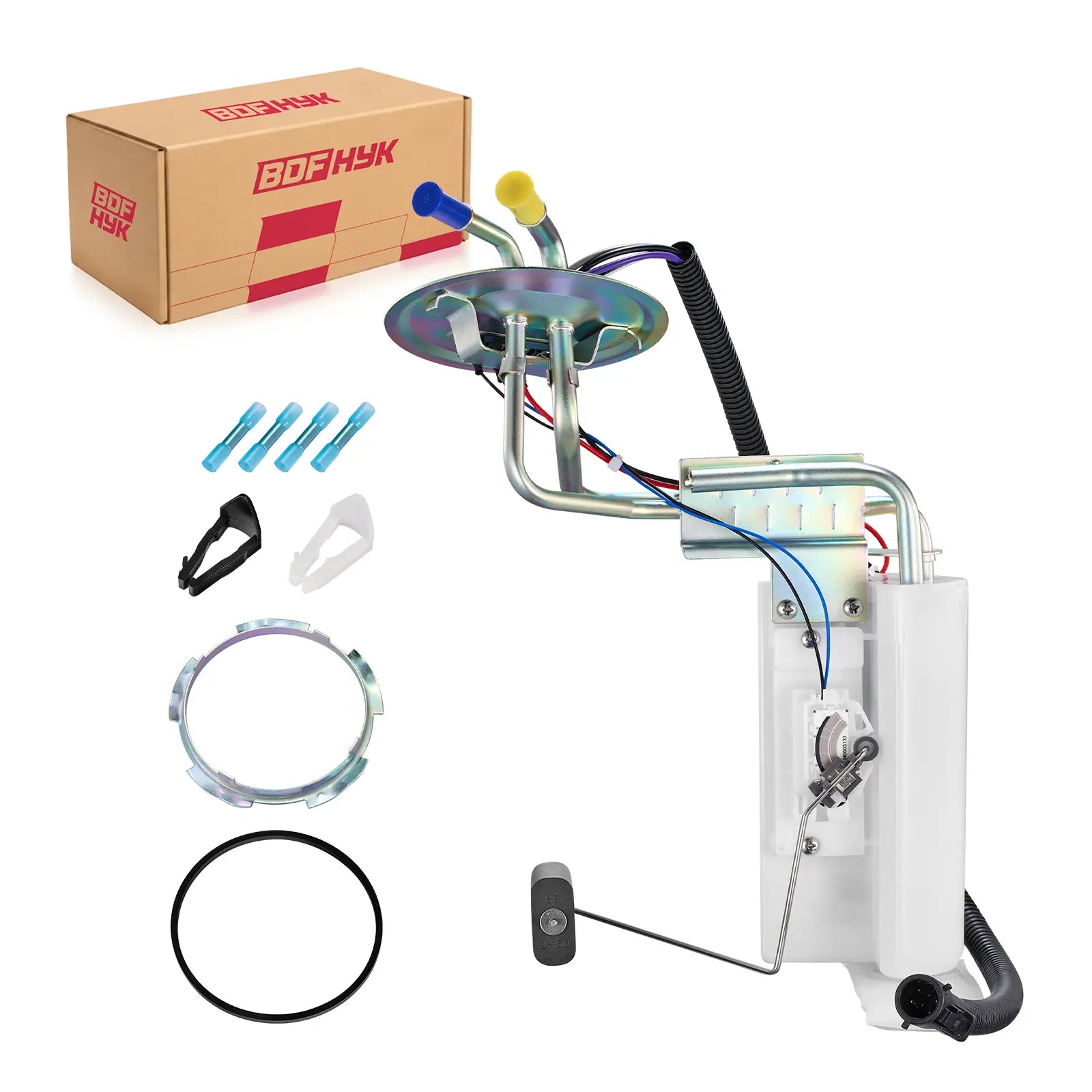

Ford F-150 F-250 F-350 Fuel Pump Module Assembly 1992-1997 4.9L 5.0L 5.8L Replacement SP2006H F6TZ9A407BA BDFHYK

$58.99

Product Detail

Type Fuel Pump Assembly
SKU BDDLZ-BD-05-10485-FP
Make
- Ford
OE Number F6TZ9A407BA,F6TZ9A407BB,MU2006,SP2006H,SKEFP009

Trust & Assurance

Free Shipping · 3–7 Business Days

12-Month Warranty

30-Day Return

Secured Payment

Technical Specifications

Part Number	SP2006H
Product Type	In-Tank Fuel Pump Module Assembly
Installation Location	Inside the fuel tank
Fuel Type	Gasoline
Application	Selected 1992–1997 Ford F-150, F-250 and F-350 configurations
Engine Coverage	Selected 4.9L L6, 5.0L V8 and 5.8L V8 applications; year range varies
Tank Capacity	19 gallons
Tank Position	Driver-side tank configuration; verify original layout
Module Functions	Fuel delivery and fuel-level reporting
Fuel Level Sender	Included
Sender Resistance	Approximately 15 ohms empty and 161 ohms full
Strainer	Included
Seal and Lock Ring	Included
Fuel Inlet	One 0.3125-inch quick-connect inlet
Fuel Outlet	One 0.375-inch quick-connect outlet
Electrical Connector	Round male connector with four blade terminals
Wire Harness	Included
OE References	SP2006H, MU2006, SKEFP009, F6TZ-9A407-BA, F6TZ-9A407-BB
Fitment Priority	Truck series, year, engine, 19-gallon tank, tank position, OE number and physical layout

Extended cranking, low measured fuel pressure, hesitation under load, intermittent stalling, or an inaccurate fuel gauge can indicate an in-tank module fault after the fuse, relay, power supply, ground, wiring, and fuel lines have been tested. This SP2006H replacement module is intended for specified 1992–1997 Ford F-Series gasoline trucks using the matching 19-gallon driver-side tank. Confirm the model, year, engine, tank capacity and position, OE number, four-terminal connector, fuel-port layout, flange, hanger depth, and float-arm geometry before ordering.

Fuel Pump Module Fitment for Ford F-Series Trucks

Verified applications include selected Ford F-150, F-250, and F-350 configurations with 4.9L, 5.0L, or 5.8L gasoline engines. Exact year coverage varies by engine and truck series, and visually similar modules for different tank capacities or tank positions are not interchangeable.

Fitment Verification

Confirm the exact F-Series model, model year, gasoline engine, and 19-gallon tank.
Verify that the module mounts in the driver-side tank position used by the original assembly.
Match SP2006H, MU2006, SKEFP009, F6TZ-9A407-BA, or F6TZ-9A407-BB.
Compare the round four-terminal connector, 5/16-inch inlet, 3/8-inch outlet, flange, hanger depth, strainer position, and float arm.

Module Functions and Included Components

Electric in-tank pump supplies fuel to the engine-side delivery system.
Fuel-level sender and float arm report tank level to the instrument cluster.
Inlet strainer, tank seal, lock ring, mounting hardware, and wire harness are included in the verified SP2006H configuration.
Sender resistance is approximately 15 ohms at empty and 161 ohms at full.

Symptoms and Diagnostic Checks

Measure fuel pressure before replacing the module. Test voltage and ground at the connector under load, inspect the fuse and relay, and check the fuel lines and selector system where dual tanks are installed. Tank contamination, a damaged sender circuit, corroded wiring, a faulty tank-selector valve, or an engine-management problem can produce similar symptoms.

Installation Notes

Relieve fuel-system pressure, disconnect the battery, and support the correct tank safely. Clean the tank and sealing surface, install the supplied compatible seal and lock ring, position the strainer and float without interference, and connect the inlet, outlet, and wiring correctly. Prime the system, inspect the flange and lines for leaks, measure fuel pressure, and confirm normal gauge operation.

What’s Included in This Fuel Pump Assembly

Complete fuel pump module
Integrated fuel level sending unit
Fuel strainer (filter sock)
Housing and mounting components

This fuel pump assembly is designed as a direct replacement unit that restores proper fuel delivery and fuel level monitoring.

Estimated Installation Time

Professional mechanic: 1–2 hours
DIY installation: 2–4 hours

Fuel pump replacement usually requires accessing the fuel tank or service panel depending on the vehicle design. Always disconnect the battery and relieve fuel system pressure before installation.

Pump Only vs Fuel Pump Assembly

Option	Description
Replace Pump Only	Lower parts cost but requires disassembling the existing module and reusing older components.
Replace Complete Assembly	A complete module designed for direct installation, helping restore reliable fuel delivery more efficiently.

Most modern vehicles use integrated fuel pump modules, which makes replacing the full assembly the more reliable solution.

Q: Which vehicles use the SP2006H module?

A: It covers specified 1992–1997 Ford F-Series gasoline trucks, with exact year coverage varying by model and engine.

Q: Does it fit every F-150, F-250, or F-350 from those years?

A: No. Confirm the engine, 19-gallon tank, driver-side tank position, OE number, connector, ports, hanger depth, and sender geometry.

Q: Which engines are covered?

A: The current application covers selected 4.9L L6, 5.0L V8, and 5.8L V8 configurations. Model-year limits differ by engine.

Q: Is this module for a 19-gallon tank?

A: Yes. The verified SP2006H configuration is associated with the matching 19-gallon tank.

Q: Is the fuel-level sender included?

A: Yes. The module includes the sender and float arm.

Q: What connector and fuel ports should be checked?

A: Compare the round four-terminal connector, 5/16-inch inlet, and 3/8-inch outlet with the removed assembly.

Q: Are the strainer, seal, lock ring, and harness included?

A: Yes. These components are included in the verified SP2006H configuration.

Q: What should be tested before replacement?

A: Test fuel pressure, voltage and ground under load, fuse and relay operation, wiring, lines, sender circuit, and the tank-selector system where equipped.

Q: Why must the tank position be verified?

A: F-Series trucks can use different tank capacities and front, rear, or side-positioned modules that are not interchangeable.

Q: What checks are required after installation?

A: Prime the system, inspect the flange and fuel connections for leaks, measure pressure, and confirm normal gauge operation.
