Quick answer: Coolant reservoir maintenance is not just checking whether the plastic tank has coolant inside. A proper inspection should confirm the coolant level when the engine is cold, verify the correct coolant type, inspect the cap, hose ports, molded seams, sensor area, mounting tabs, and check whether coolant loss is caused by the reservoir itself or by another cooling system fault.
From a repair technician’s point of view, the coolant reservoir is a visible checkpoint for the entire engine cooling system. A low level, stained tank, coolant smell, bubbling, overflow, cracked seam, or repeated refilling can point to reservoir failure, but it can also indicate problems with the radiator cap, hoses, clamps, thermostat, water pump, radiator, cooling fan, head gasket, or trapped air in the system.
Key Takeaways for Coolant Reservoir Maintenance
- Always inspect the coolant reservoir when the engine is completely cool.
- Do not remove a pressurized coolant cap or radiator cap while the engine is hot.
- Use the coolant type specified for the vehicle instead of mixing random coolant colors.
- Keep the coolant level between the MIN and MAX marks when cold, unless the vehicle service information says otherwise.
- Do not overfill the reservoir, because excess coolant may be pushed out during heat expansion.
- Clean only light external dirt or mild internal residue. Replace the tank if the plastic is cracked, brittle, heavily stained, or leaking.
- If the coolant level keeps dropping after topping off, inspect the full cooling system before replacing parts.
Cooling System Basics: Expansion Tank vs Overflow Tank
Before servicing a coolant reservoir, identify which type of system the vehicle uses. Some vehicles use a pressurized coolant expansion tank as part of the sealed cooling system. Other vehicles use a non-pressurized overflow or recovery tank connected to the radiator neck.
Pressurized coolant expansion tank
A pressurized expansion tank usually has a pressure-rated cap and is part of the closed cooling circuit. Coolant expands into the tank as temperature rises and returns as the system cools. On this type of system, the reservoir cap, sealing surface, tank body, and hose ports must hold pressure correctly.
Non-pressurized overflow tank
A non-pressurized overflow tank stores excess coolant pushed out from the radiator. When the system cools, coolant can be pulled back into the radiator through the recovery hose. In this design, the radiator cap, recovery hose, and hose connection are especially important.
This difference matters because the service steps, cap inspection, coolant level reading, and failure symptoms can be different. If you are not sure which system your vehicle uses, check the owner’s manual or service information before adding or draining coolant.
Why Coolant Reservoir Maintenance Matters
A coolant reservoir helps manage coolant expansion and recovery. When the tank, cap, hose nipple, or molded seam fails, the system may lose coolant gradually or push coolant out under heat. If the coolant level drops too low, the engine may run hot, the heater may stop working correctly, air pockets may form, and overheating risk may increase.
For professional diagnosis, the reservoir is not treated as an isolated bottle. It is checked together with the full cooling system. A cracked coolant reservoir can be the failed part, but repeated low coolant may also come from a loose clamp, radiator leak, water pump seepage, thermostat housing leak, heater hose leak, or combustion gas entering the cooling system.
Technician Inspection Checklist
Use this checklist before adding, cleaning, or replacing the coolant reservoir.
| Inspection Area | What to Check | Possible Meaning |
|---|---|---|
| Coolant level | Level below MIN, above MAX, or changing repeatedly | Leak, overfill, air pocket, cap issue, or cooling system fault |
| Coolant condition | Rusty, oily, milky, cloudy, sludgy, or full of particles | Contamination, corrosion, incorrect coolant, internal engine concern, or overdue service |
| Tank body | Cracks, swelling, discoloration, brittleness, or seam marks | Aged plastic reservoir or heat-cycle damage |
| Cap area | Damaged seal, loose fit, residue around neck, pressure loss | Bad reservoir cap, weak pressure control, or improper sealing |
| Hose ports | Coolant crust, wet marks, cracked nipples, loose clamps | Connection leak or broken reservoir outlet/inlet |
| Mounting tabs | Broken tabs, tank movement, vibration marks | Loose reservoir that may stress hoses or fittings |
| Sensor port | Leak around sensor, missing seal, connector contamination | Level sensor seal issue or incorrect reservoir design |

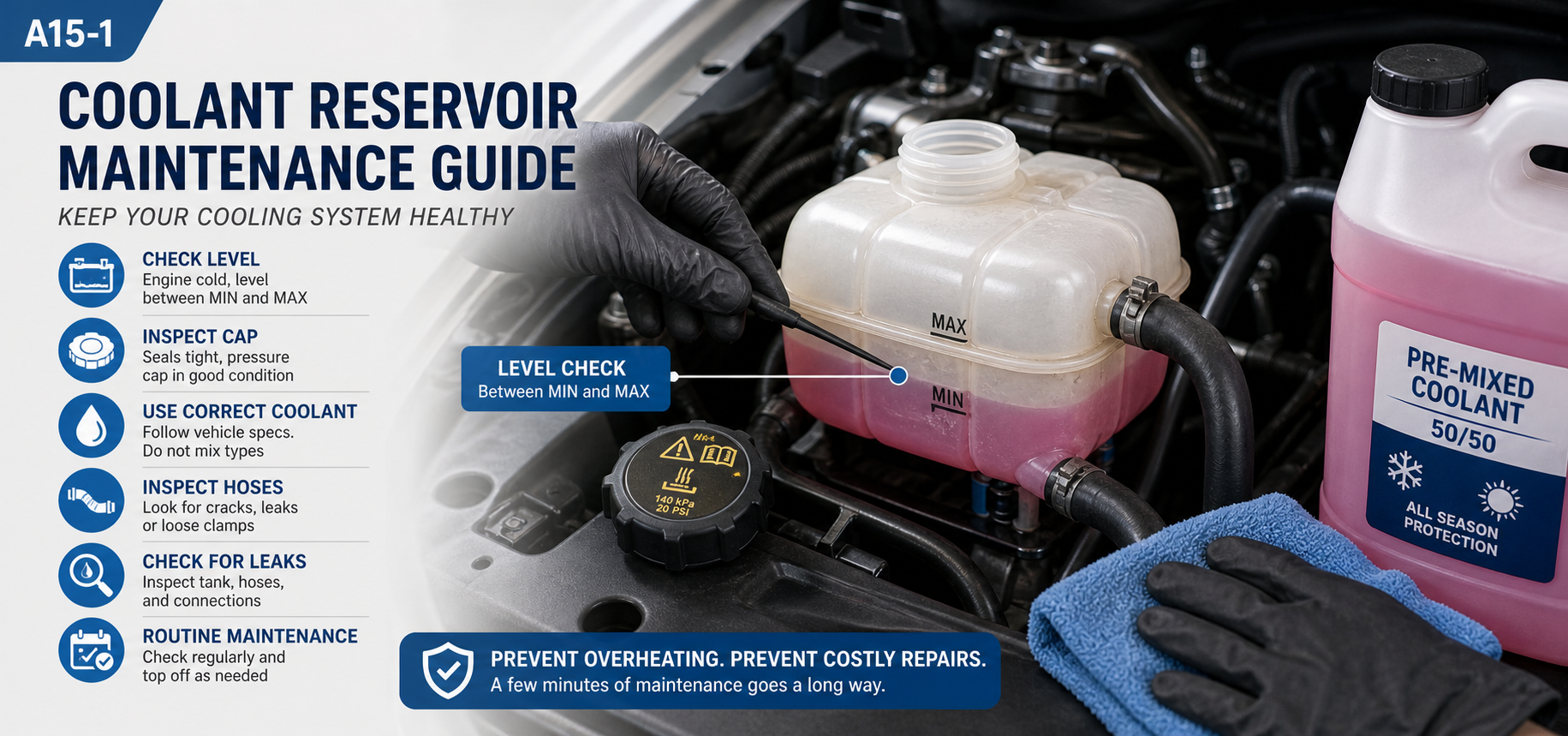

How to Check Coolant Level Correctly
Check coolant level only when the engine is cold and the vehicle is parked on level ground. The coolant should normally sit between the MIN and MAX marks on the reservoir. Do not judge the system by the hot level alone because coolant expands as temperature rises.
- Let the engine cool completely.
- Locate the coolant reservoir and clean the outside of the tank if the marks are hard to read.
- Check whether the coolant level is between the MIN and MAX lines.
- Inspect the tank, cap, hoses, and surrounding area for wet marks or dried coolant residue.
- If the level is low, add only the correct coolant type for the vehicle.
- After topping off, monitor the level over several drive cycles.
If the coolant level keeps dropping, do not continue topping it off without inspection. Repeated coolant loss usually means there is a leak, pressure issue, air pocket, or another cooling system problem that needs diagnosis.
How to Add Coolant to the Reservoir Properly
Adding coolant is simple, but the wrong method can create service problems. Use the correct coolant specification, avoid mixing incompatible coolant types, and do not fill the tank beyond the recommended cold level.
Step-by-step filling process
- Confirm that the engine is cold.
- Identify whether the vehicle uses a pressurized expansion tank or a non-pressurized overflow tank.
- Open the reservoir cap only when it is safe to do so.
- Add the correct premixed coolant or the correct coolant and distilled water ratio according to the vehicle requirement.
- Fill to the cold MAX mark unless service information says otherwise.
- Reinstall the cap securely.
- Run the engine and complete the proper bleeding process if the cooling system was opened or drained.
- Recheck the coolant level after the engine cools again.
Coolant type matters
Coolant color alone is not a reliable fitment guide. Different coolant chemistries can share similar colors, and mixing incompatible coolant types can create deposits, sludge, or reduced corrosion protection. Always follow the vehicle manufacturer’s coolant specification.
Draining a Coolant Reservoir: When and How to Do It Safely
You may need to drain the coolant reservoir when replacing the tank, cleaning out light residue, removing contaminated coolant, replacing a hose, or performing cooling system service. For a complete coolant exchange, follow the vehicle service procedure instead of only draining the reservoir.
When draining the reservoir makes sense
- The reservoir is being replaced.
- The coolant level is above the MAX line and needs correction.
- The tank contains loose debris or light sediment.
- A hose, cap, or sensor seal is being inspected.
- The cooling system has been opened for repair.
Basic draining method
- Let the engine cool completely.
- Place a drain pan below the reservoir or hose connection area.
- Remove the reservoir cap only when there is no system pressure.
- Disconnect the lower hose or use an approved fluid extractor depending on the tank design.
- Capture old coolant in a clean container if it will be inspected, or in a proper waste container if it will be discarded.
- Inspect the drained coolant for rust, oil, sludge, sealant residue, or particles.
- Reconnect hoses and clamps securely before refilling.
Used coolant should be handled and disposed of properly. Do not pour coolant onto the ground, into drains, or into household waste.
Coolant Reservoir Cleaning: What You Can and Cannot Fix
Cleaning a coolant reservoir can help restore level visibility and remove light surface residue. It cannot repair aged plastic, pressure leaks, cracked seams, broken hose nipples, warped cap seats, or brittle mounting tabs.
Cleaning may help when:
- The tank is only dusty on the outside.
- The MIN and MAX marks are difficult to read because of surface grime.
- There is mild internal staining but no cracks or leaks.
- The coolant is otherwise clean and the system is not losing coolant.
Replacement is the better choice when:
- The reservoir has visible cracks.
- The plastic is yellowed, brittle, or heavily heat-aged.
- The molded seam is wet or stained with coolant residue.
- A hose port or nipple is cracked.
- The cap seat is damaged or cannot seal properly.
- The level sensor port leaks.
- The tank is so stained that the coolant level cannot be read reliably.
Common Coolant Reservoir Problems Mechanics Look For
| Symptom | Likely Area to Inspect | Recommended Action |
|---|---|---|
| Coolant level keeps dropping | Reservoir seam, hoses, radiator, water pump, thermostat housing, heater hoses | Pressure test the cooling system and locate the leak before replacing parts |
| Coolant smell near engine bay | Tank cap, overflow hose, hose ports, radiator area | Look for dried coolant residue and wet marks after cooling |
| Coolant bubbling in reservoir | Air trapped in system, cap issue, overheating, combustion gas concern | Bleed the system and test for pressure or combustion gas if bubbling continues |
| Coolant pushed out of reservoir | Overfill, bad cap, overheating, blocked hose, pressure issue | Correct level, inspect cap, and diagnose overheating cause |
| Reservoir empty after driving | External leak, recovery hose leak, cap fault, internal coolant loss | Do not keep driving without cooling system inspection |
| Tank is cracked or brittle | Plastic body, molded seam, mounting tabs | Replace the coolant reservoir with a matching vehicle-specific part |
Common Coolant Reservoir Maintenance Mistakes
Opening the cap when the engine is hot
A hot cooling system can be under pressure. Opening a hot reservoir cap or radiator cap can release hot coolant and steam. Always allow the engine to cool completely before service.
Overfilling the reservoir
The reservoir needs expansion space. Filling above the MAX line when cold can cause coolant to overflow as the system heats up.
Mixing coolant types by color
Coolant color is not a reliable specification. Use the correct coolant type listed for the vehicle, not just a similar color.
Ignoring the cap
A weak or damaged cap can cause pressure loss, coolant overflow, boiling, or poor coolant recovery. Inspect the cap seal, spring, pressure rating, and contact surface.
Replacing the reservoir without diagnosing coolant loss
A leaking tank should be replaced, but not every low coolant problem is caused by the reservoir. Inspect the radiator, hoses, clamps, thermostat housing, water pump, heater hoses, cooling fan operation, and pressure cap.
How Often Should You Check the Coolant Reservoir?
For regular vehicle maintenance, check the coolant reservoir at least once a month, before long trips, before extreme hot or cold weather, and any time you notice coolant smell, steam, overheating, dashboard warnings, or a heater performance change.
After any cooling system repair, recheck the reservoir level after the first full heat cycle and again after the engine cools. Air pockets can move through the system after service, causing the level to change.
When to Replace the Coolant Reservoir
Replace the coolant reservoir when the tank is cracked, leaking, brittle, badly stained, has damaged hose ports, broken mounting tabs, a damaged cap seat, or a leaking sensor port. A vehicle-specific coolant reservoir tank replacement should match the original tank shape, hose routing, mounting points, cap design, and sensor provisions.
BDFHYK offers OE-style aftermarket coolant reservoir replacement options for selected vehicles. Before ordering, compare your original reservoir with the product listing by year, make, model, engine, OE or interchange number, hose port layout, cap style, sensor port, and mounting tabs.
Shop related parts here: BDFHYK coolant reservoir replacement collection.
Related Coolant Reservoir Guides
- Before You Buy a Coolant Reservoir Replacement
- How to Replace a Coolant Reservoir
- Can You Drive With a Leaking, Cracked or Empty Coolant Reservoir?
- Why Is My Coolant Reservoir Bubbling, Boiling or Overflowing?
- Cracked Coolant Reservoir: Why It Happens and When to Replace It
Frequently Asked Questions
Q: What is coolant reservoir maintenance?
A: Coolant reservoir maintenance means checking the coolant level, coolant condition, reservoir body, cap, hose ports, sensor area, and mounting points. It also means confirming that coolant loss is not coming from another part of the cooling system.
Q: Should I check the coolant reservoir hot or cold?
A: Check the coolant reservoir when the engine is cold. The cold level gives a more accurate reading, and it is safer because the system is not under hot pressure.
Q: How much coolant should be in the reservoir?
A: In most vehicles, the coolant should sit between the MIN and MAX marks when the engine is cold. Some vehicles have specific service instructions, so always follow the vehicle manual if it gives a different procedure.
Q: Can I add coolant directly to the reservoir?
A: Many vehicles allow coolant to be added through the reservoir, especially if it is a pressurized expansion tank. Some systems require radiator filling or a specific bleeding procedure. Check the vehicle service information before filling.
Q: Why does my coolant reservoir keep going empty?
A: An empty coolant reservoir may be caused by a leaking tank, cracked hose, loose clamp, bad cap, radiator leak, water pump leak, thermostat housing leak, heater hose leak, trapped air, or internal engine issue. A pressure test can help locate the source.
Q: Can I clean a coolant reservoir instead of replacing it?
A: You can clean light dirt or mild residue if the tank is still structurally sound. Replace the reservoir if it is cracked, brittle, leaking, heavily stained, or unable to seal properly.
Q: Is brown or rusty coolant in the reservoir normal?
A: No. Brown, rusty, oily, cloudy, or sludgy coolant can indicate contamination, corrosion, incorrect coolant, or overdue cooling system service. The system should be inspected before simply topping off the reservoir.
Q: Why is coolant bubbling in the reservoir?
A: Bubbling may come from trapped air, overheating, a weak cap, improper bleeding, or combustion gases entering the cooling system. If bubbling continues after proper bleeding, further diagnosis is needed.
Q: What happens if I overfill the coolant reservoir?
A: Overfilling reduces expansion space. As coolant heats and expands, the excess may be pushed out through the overflow path, leaving residue and making it look like the vehicle has a leak.
Q: When should I replace the coolant reservoir cap?
A: Replace the cap if the seal is cracked, the spring is weak, the pressure rating is incorrect, the cap does not tighten properly, or coolant residue appears around the cap area. Use the correct cap design and pressure rating for the vehicle.
Q: Is a universal coolant reservoir a good replacement?
A: For many daily-driver repairs, a vehicle-specific coolant reservoir is preferred because it matches the original mounting points, hose layout, cap design, and sensor provisions. Universal tanks may require modification and may not fit the original system correctly.
Q: Can a bad coolant reservoir cause overheating?
A: A leaking or failed reservoir can contribute to low coolant and overheating risk, but it should not be treated as the only possible cause. Inspect the radiator, thermostat, water pump, cooling fan, hoses, cap, and bleeding condition as well.
Conclusion
Coolant reservoir maintenance is a practical way to catch early cooling system problems before they become overheating issues. A good inspection checks the coolant level, fluid condition, tank body, cap, hose ports, mounting tabs, and surrounding components. If the reservoir is cracked, brittle, leaking, or no longer readable, replacement is usually better than cleaning.
Before replacing a coolant reservoir, verify the vehicle fitment, OE or interchange number, cap type, sensor port, hose layout, and mounting points. BDFHYK coolant reservoir products are OE-style aftermarket replacement parts designed for selected vehicle applications, and buyers should confirm fitment before ordering.
