Quick Answer
To check a coolant reservoir leak, inspect the tank body, molded seams, cap, hose nipples, clamps, sensor ports, and the area below the reservoir when the engine is completely cool. Look for wet coolant, dried coolant residue, a sweet smell, low coolant level, stains, cracks, or puddles after parking.
If the coolant reservoir itself is cracked, leaking, brittle, distorted, or damaged around the cap neck, seam, hose port, or sensor area, replacement may be needed. If coolant is coming from another part of the cooling system, replacing the reservoir alone will not fix the leak.
If you are not sure what this tank does, start with What Does a Coolant Reservoir Do?
Common Signs of a Coolant Reservoir Leak
A coolant reservoir leak can be easy to see, but some leaks only appear when the engine is hot and the cooling system is under pressure.
Common signs include:
- Low coolant level in the reservoir
- Wet coolant on or around the tank
- Dried white, pink, orange, green, or blue residue
- Sweet coolant smell near the engine bay
- Small puddles under the vehicle after parking
- Coolant stains around the mounting area
- Steam or coolant smell after driving
- Repeated need to top off coolant
Plastic coolant reservoirs can develop hairline cracks after years of heat cycles. These cracks may be hard to see when the tank is cold, but dried coolant stains often reveal the leak path.
For more warning signs, see Bad Coolant Reservoir Symptoms
Check the Coolant Reservoir When the Engine Is Cool
Always inspect the coolant reservoir when the engine is fully cool. Opening a hot pressurized cooling system can release hot coolant or steam and cause injury.
Park the vehicle on level ground and check the coolant level against the 'MIN,' 'MAX,' 'COLD,' or 'FULL COLD' markings. If the reservoir is below the minimum line or empty, inspect the tank and surrounding parts before simply adding more coolant.
If you need help locating the tank, read Where Is the Coolant Reservoir Located?
For coolant level guidance, see How Much Coolant Should Be in the Reservoir?
If the tank is dirty, wipe it clean when cold. Then drive normally, let the engine cool again, and inspect for fresh residue or wet spots. This can help show where the leak starts.

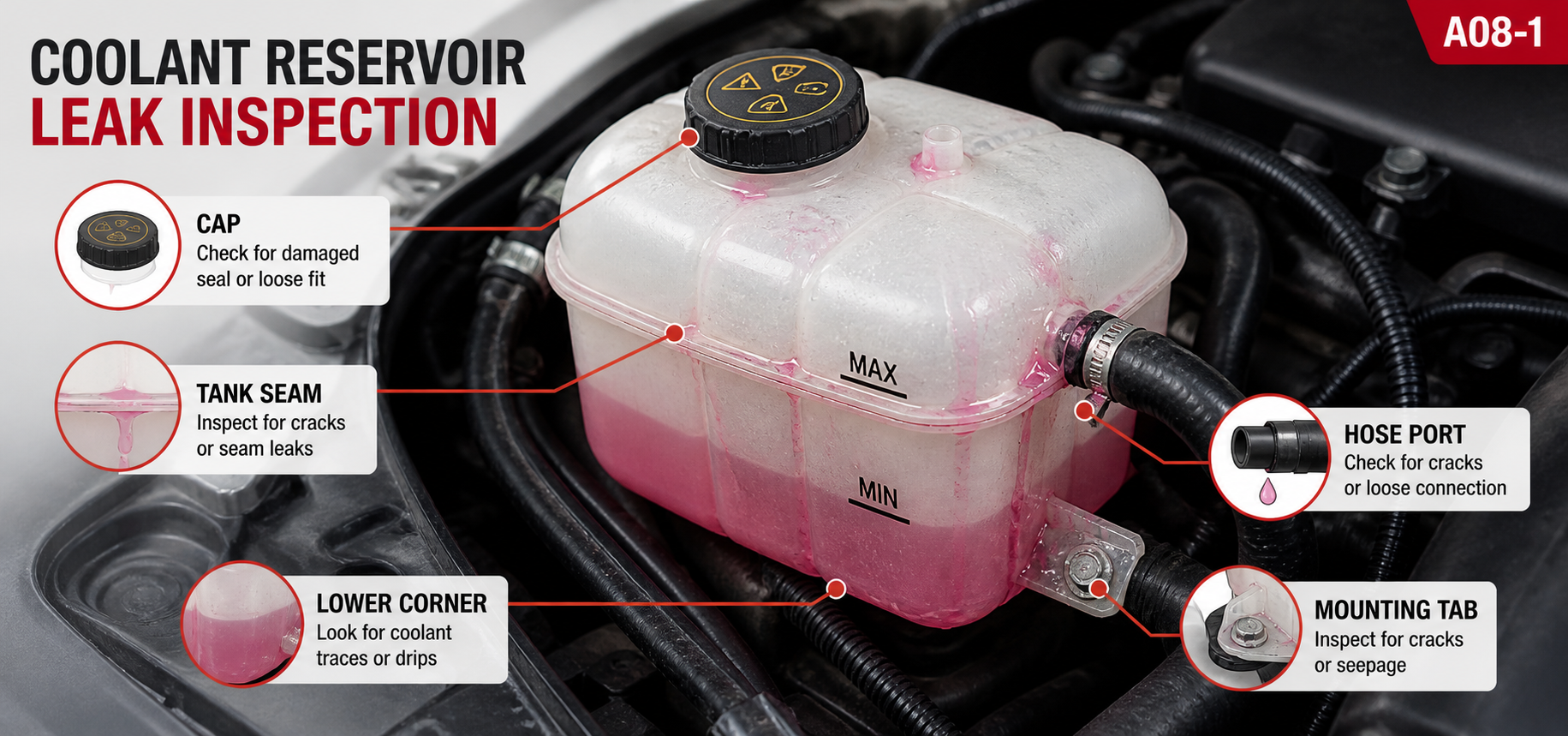

How to Check the Tank Body and Seams
Start with the reservoir itself. Look carefully at the molded plastic body, especially areas that experience stress or heat.
Inspect these areas:
- Front and rear tank surfaces
- Molded seams
- Lower corners
- Mounting tabs
- Cap neck
- Hose nipples
- Sensor ports
- Bottom of the tank
A crack may appear as a fine line, stain trail, or crusty coolant residue. If the seam is wet or stained, the tank may be leaking from a molded joint. If a mounting tab is broken, the reservoir may move while driving and stress the hose connections.
If the tank body or seam is damaged, read Cracked Coolant Reservoir: When to Replace It
How to Check the Reservoir Cap
A leaking coolant reservoir is not always caused by a cracked tank. A bad cap can allow coolant to escape or prevent the system from holding pressure correctly.
Check the cap for:
- Cracked plastic
- Worn seal
- Loose fit
- Damaged threads
- Missing gasket
- Incorrect cap type
- Coolant stains around the neck
Some reservoirs use a pressure-rated cap. If your vehicle requires a pressure cap, do not replace it with a random cap that only appears to fit. The wrong cap can cause coolant loss, overflow, pressure problems, or poor coolant recovery.
If coolant is bubbling, boiling, or overflowing from the reservoir area, see Why Is My Coolant Reservoir Bubbling, Boiling, or Overflowing?
How to Check Hose Connections and Clamps
Next, inspect the hose connections at the reservoir. Many coolant leaks happen at the hose nipple, clamp, or hose end rather than the tank body.
Check for:
- Loose clamps
- Hardened hose ends
- Split or swollen hoses
- Cracks near the hose nipple
- Coolant residue around the connection
- Misrouted hoses
- Hose tension caused by poor tank fitment
A hose that is stretched, twisted, or installed at the wrong angle can leak later, even if it looks sealed during installation. If the reservoir is not mounted correctly, it can also put stress on the hose and cause seepage.
For a more detailed inspection process, see How to Check the Tank, Cap, Hose, and Connections
Check Sensor Ports and Fittings
Some coolant reservoirs include a coolant level sensor or additional fittings. These areas can leak if the seal, O-ring, or plastic opening is damaged.
Look for coolant residue around:
- Sensor ports
- Electrical connectors
- O-rings
- Plastic fittings
- Threaded or push-in inserts
If coolant is leaking from a sensor area, confirm whether the replacement reservoir includes the sensor or whether the original sensor must be transferred.
When the Leak Is Not from the Reservoir
Coolant can travel along hoses, brackets, or engine components and make it look like the reservoir is leaking. If the tank appears wet, inspect above and around it before replacing parts.
Other possible leak sources include:
- Upper radiator hose
- Lower radiator hose
- Radiator end tank
- Radiator cap
- Thermostat housing
- Heater hose
- Water pump
- Plastic coolant fittings
- Engine gasket or internal leak
If your reservoir keeps going empty, read Why Is My Coolant Reservoir Empty?
If you are unsure whether coolant should be added to the reservoir or radiator, see Coolant Reservoir vs Radiator: Where Should You Add Coolant?
Different vehicles may use different tank designs. To understand the difference, read Coolant Reservoir vs Overflow Tank vs Expansion Tank
Why the Reservoir Leaks Only After Driving
A coolant reservoir may not leak when the engine is cold but may leak after driving because heat and pressure expand the plastic tank, hoses, and seals.
Common reasons include:
- Hairline cracks opening under pressure
- Weak seams leaking when hot
- Hose ends expanding and seeping
- Cap seal failing under pressure
- Plastic hose nipples flexing
- Coolant expanding above the normal level
This is why a cold visual inspection may not always find the problem. If the leak appears only after driving, inspect the tank after the engine cools, or have the system pressure tested.
If the issue is caused by too much coolant in the tank, read What Happens If You Overfill the Coolant Reservoir?
Can You Drive With a Coolant Reservoir Leak?
Avoid driving if coolant loss is significant, the engine overheats, or the coolant level is unsafe. Even a small reservoir leak can become serious if coolant drops below the required level.
For more details, see Can You Drive With a Leaking, Cracked, or Empty Coolant Reservoir?
Should You Use Stop-Leak Products?
Stop-leak products should not be used as a substitute for finding the actual leak source. They may temporarily slow a small leak in some situations, but they can also cause unwanted buildup in the cooling system.
Use stop-leak only if the vehicle manufacturer or a qualified technician recommends it for your specific situation. For a cracked plastic reservoir, damaged hose nipple, bad cap, or leaking seam, replacement is usually the better long-term repair.
When to Replace a Leaking Coolant Reservoir
Replace the coolant reservoir if you find:
- Cracks in the tank body
- Leaks from the molded seam
- A damaged cap neck
- A cracked hose nipple
- Brittle or yellowed plastic
- Heat distortion
- Leaks around sensor ports
- Broken mounting tabs
- Repeated coolant loss from the tank area
A coolant reservoir should not be replaced as a guess. If coolant is leaking from another component, repair that component first.
If you plan to replace it yourself, read How to Replace a Coolant Reservoir
How to Choose the Correct Replacement Reservoir
When buying a replacement coolant reservoir, match the original part carefully. Fitment errors can cause hose stress, poor sealing, coolant leaks, or installation problems.
Confirm:
- Vehicle year, make, model, and engine
- OE part number
- Tank shape
- Mounting tab position
- Hose port number and direction
- Cap type and pressure requirement
- Sensor provisions
- Whether the cap is included
- Whether the sensor is included
Before ordering, review Before You Buy a Coolant Reservoir Replacement
FAQs
Q: Can I drive with a coolant reservoir leak?
A: Avoid driving if coolant loss is significant, the engine overheats, or the coolant level is unsafe. Even a small reservoir leak can become serious quickly.
Q: Can I repair a cracked coolant reservoir?
A: Temporary repairs are usually not reliable for a plastic reservoir that goes through heat and pressure cycles. If the tank is cracked, leaking at the seam, or damaged at the hose nipple, replacement is usually safer.
Q: Why does my coolant reservoir leak only after driving?
A: Heat and pressure can open small cracks, weaken seams, or stress hose connections that do not leak when the engine is cold.
Q: Should I replace the coolant reservoir cap too?
A: Replace the cap if it is cracked, loose, incorrect, missing a seal, or unable to hold pressure. Also confirm whether the new reservoir includes a cap before ordering.
Q: How do I know if the leak is from the reservoir or another part?
A: Clean the area when the engine is cool, drive the vehicle, let it cool again, and inspect for fresh coolant residue. If the source is still unclear, a pressure test can help identify the leak.
