Quick Answer
Common symptoms of a bad coolant reservoir include hairline cracks, dried coolant residue, wet hose connections, repeatedly low coolant, a sweet odor after driving, bubbling or boiling in the tank, coolant overflow, and plastic that is too yellow or cloudy to read.
These signs indicate a cooling-system problem, but they do not prove that the reservoir is the only failed component. Coolant can also escape through the radiator, water pump, thermostat housing, heater core, hoses, connections, or pressure cap. Understanding what a coolant reservoir does on the specific vehicle is essential for an accurate diagnosis.

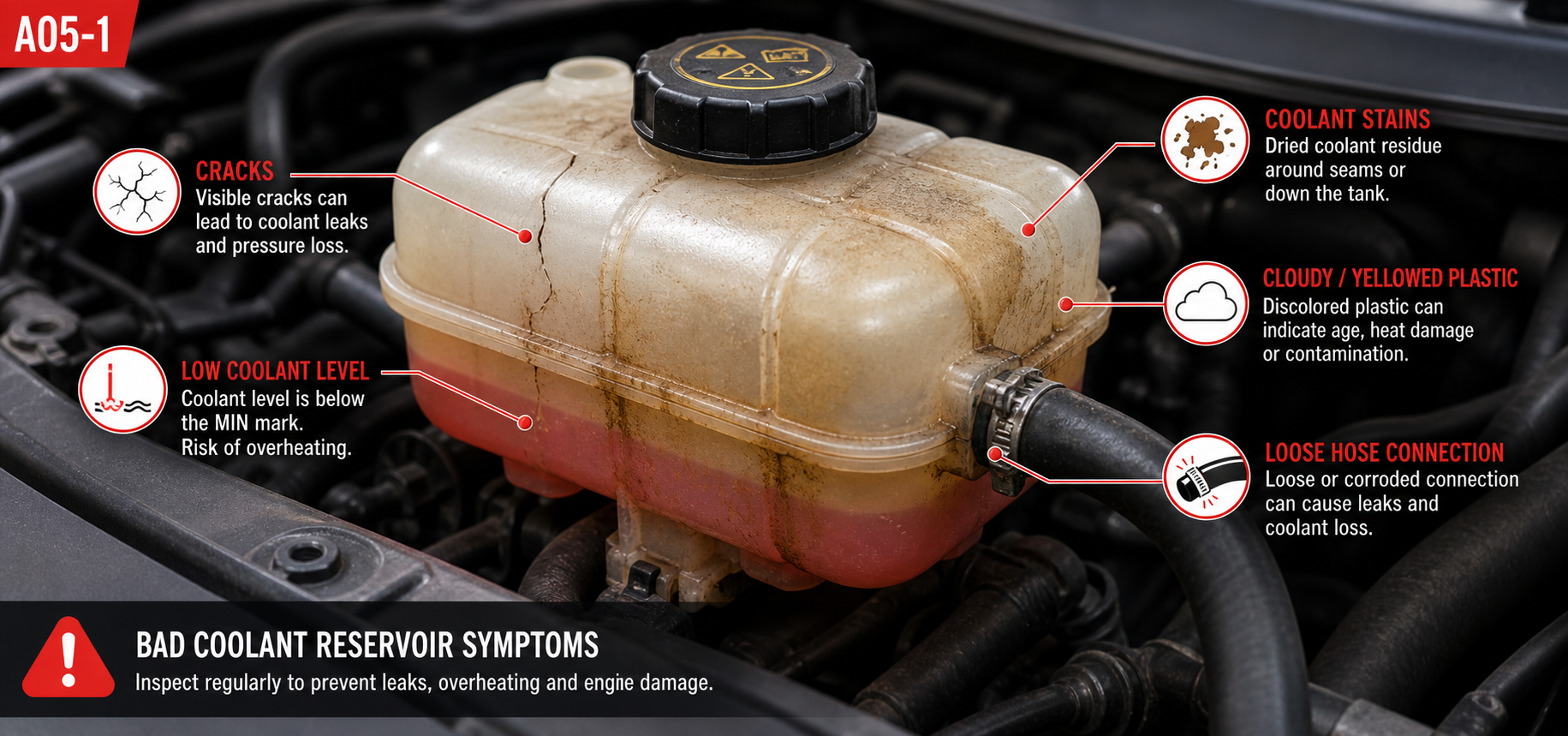

Most Common Visible Symptoms
Coolant reservoirs undergo repeated heating and cooling cycles, which can gradually weaken or deform the plastic. During an inspection, look for the following signs:
- Hairline cracks: Inspect the tank body, molded corners, seams, and mounting areas for fine fractures. Small cracks may expand when the cooling system becomes hot and pressurized.
- Faulty seals or wet connections: Check the cap area, hose nipples, hose connections, and the space beneath the reservoir for fresh moisture.
- Chalky or sticky coolant residue: Escaping coolant may dry into a crusty, chalky, or sticky deposit. Residue commonly appears around cap threads, hose nipples, molded seams, and mounting points.
- Sweet odor after driving: A distinct sweet smell from the engine compartment can indicate that coolant is leaking through a small opening and evaporating on a hot surface.
- Yellow, brittle, or cloudy plastic: Severe discoloration or cloudiness can make the coolant level impossible to read against the molded level marks. Brittle plastic also indicates advanced material degradation.
Drivers should first identify where the coolant reservoir is located on their vehicle so that the tank, fluid level, cap, and connections can be checked regularly.
Low Coolant and Repeated Refilling
A coolant level that repeatedly drops means the cooling system is losing fluid or failing to recover it correctly. An empty reservoir alone does not establish that the tank is defective. Other possible leak points include a punctured radiator, failing water pump, warped thermostat housing, or leaking heater core.
A damaged reservoir may leak only under certain conditions:
- when the engine reaches normal operating temperature;
- when cooling-system pressure increases; or
- when vehicle movement creates vibration or flexing.
For this reason, a reservoir can appear dry during a brief cold inspection but develop a coolant reservoir leak during normal driving. Diagnosis should include the tank body, cap, hoses, and connection points. Follow a systematic process for checking the tank, cap, hoses, and connections under appropriate temperature conditions.
Important technical distinction: Diagnostic procedures depend on system design. A pressurized expansion tank manages coolant and pressure differently from an unpressurized atmospheric overflow bottle. Review the differences among a coolant reservoir, overflow tank, and expansion tank before interpreting fluid loss or pressure symptoms.
Bubbling, Boiling, and Coolant Overflow
Bubbling or boiling in the reservoir is a serious warning sign, but it does not necessarily mean the tank itself has failed. Possible causes include:
- air trapped in the cooling system;
- a compromised head gasket allowing combustion gases to enter the cooling jacket; or
- a failed pressure cap that cannot maintain the system pressure needed to control the coolant’s boiling point.
These faults can create abnormal pressure and fluid movement inside the reservoir. A detailed explanation is available in why a coolant reservoir may bubble, boil, or overflow.
Coolant overflowing after driving can indicate improper pressure management or overfilling. Verify how much coolant should be in the reservoir and understand what can happen if the reservoir is overfilled.
Critical safety warning: Never remove a cooling-system cap while the engine or system is hot. A pressurized cooling system can eject boiling fluid and cause severe burns. Allow the engine to cool completely before removing any cap or checking coolant through an open filler neck.
How to Check Whether the Reservoir Is Leaking
- Allow the engine and cooling system to cool completely before removing any cap.
- Clean the exterior of the reservoir so that old residue does not hide fresh leakage.
- Inspect the tank body, seams, molded corners, cap area, hose nipples, and connections with a flashlight.
- Look for hairline fractures, dried deposits, wet areas, or coolant beneath the tank.
- Observe the exterior after the engine reaches normal operating temperature, without opening the hot cooling system.
- Check for fresh wetness or cracks that become more visible as the system heats and pressurizes.
- If the reservoir remains dry, inspect other cooling-system components rather than assuming the tank is the source of coolant loss.
When Coolant Reservoir Replacement Makes Sense
Replacement is appropriate when the reservoir is structurally cracked, visibly deformed, brittle, deeply discolored, or too opaque to monitor the coolant level. A compromised tank can allow coolant or pressure loss, increasing the risk of engine overheating and severe engine damage.
Minor yellowing caused by age is not necessarily an immediate failure. However, severe yellowing combined with brittleness, cracking, deformation, or an unreadable fluid level indicates advanced plastic degradation. See the guidance on a cracked coolant reservoir and when to replace it.
If the coolant reservoir is empty or actively leaking onto the ground, evaluate the cause and the risks before continuing to drive. Review the safety considerations for driving with a leaking, cracked, or empty coolant reservoir.
Choosing and Installing a Replacement Reservoir
A replacement reservoir must match the vehicle and cooling-system design. Before purchasing, cross-reference the vehicle year, make, model, engine displacement, hose-port layout, pressure-cap rating, and original equipment manufacturer part number. The checklist covering these considerations is available in what to check before buying a coolant reservoir replacement.
After confirming the correct component, follow an appropriate installation procedure. See the step-by-step guide on how to replace a coolant reservoir.
Frequently Asked Questions
Q: Can a bad coolant reservoir cause engine overheating?
A: Yes. A cracked or leaking reservoir can contribute to overheating if it causes substantial coolant loss or prevents a pressurized cooling system from maintaining its required operating pressure. Loss of pressure lowers the coolant’s boiling point and can lead to boiling and overheating. Because fill locations vary by system design, confirm the correct procedure by reviewing whether coolant should be added through the reservoir or radiator.
Q: How can I tell whether the reservoir is the leaking component?
A: With the system completely cool, clean the reservoir and inspect its seams, molded corners, cap area, hose nipples, and connections. After the engine reaches normal operating temperature, inspect the exterior without opening the hot system. Fresh wetness, expanding hairline fractures, or new residue on the tank can identify the reservoir as a likely leak source.
Q: Should a yellowed coolant reservoir always be replaced?
A: No. Minor yellowing alone is not necessarily evidence of immediate failure. Replacement becomes more appropriate when severe discoloration is accompanied by brittleness, deformation, cracking, or plastic that is too opaque to read the coolant level.
Q: What else can cause a low or empty coolant reservoir?
A: Possible causes include leaks from the radiator, water pump, thermostat housing, heater core, hoses, connections, or reservoir. Some leaks appear only when the engine is hot, the system is pressurized, or the vehicle is moving.
Q: How can reservoir life be supported?
A: Maintain stable engine operating temperatures and prevent debris buildup by following an appropriate coolant reservoir maintenance guide.
