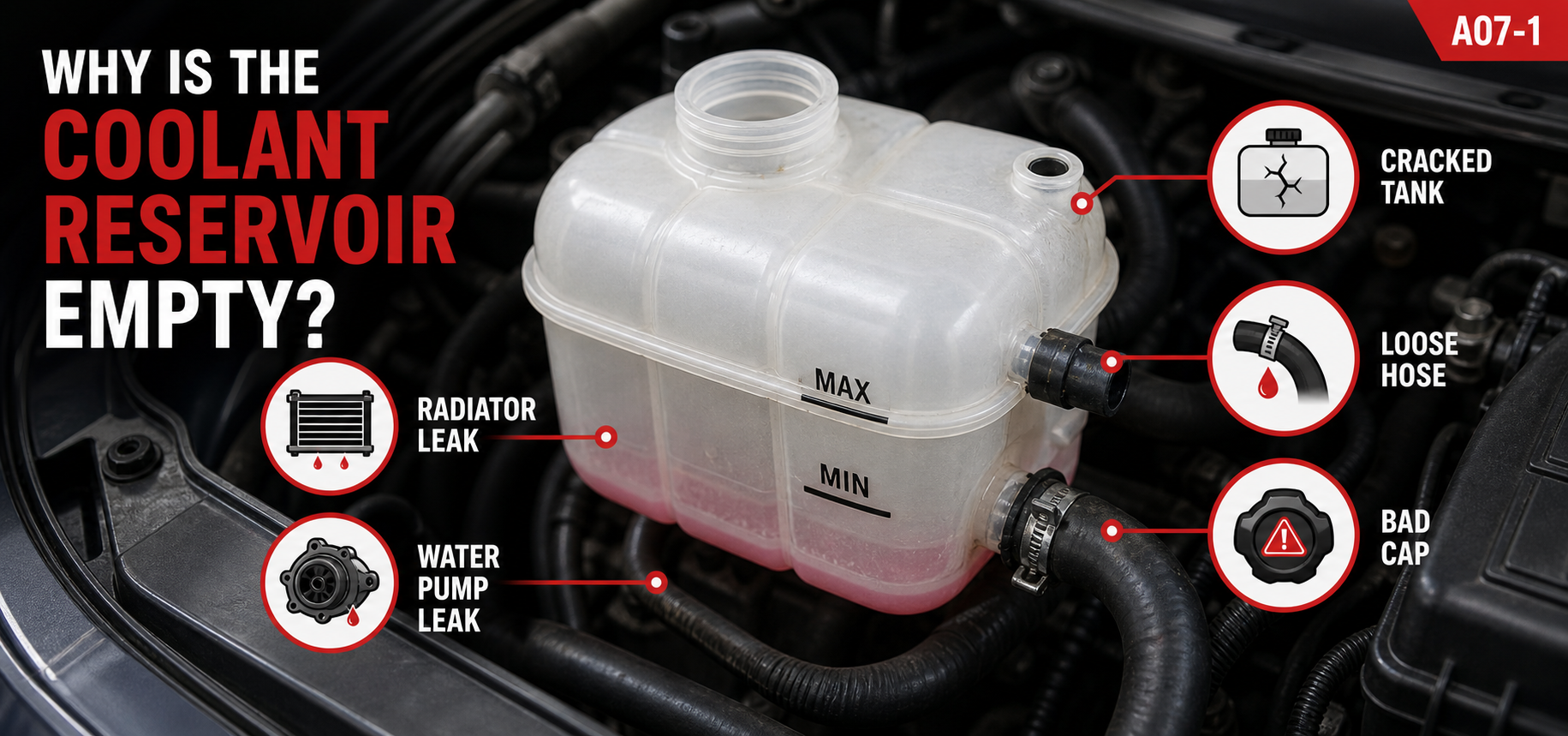

Key conclusion: A coolant reservoir that is empty or repeatedly runs dry usually indicates one of three problems: an external coolant leak, a pressure or recovery-system failure, or an internal engine fault. Repeatedly adding coolant may temporarily restore the level, but it does not correct the underlying cause.
- External leaks: Possible sources include a cracked reservoir, deteriorated hoses, loose clamps, a leaking radiator, a failing water-pump seal or weep hole, and a leaking thermostat housing.
- Pressure or recovery failures: A faulty radiator cap, expansion-tank cap, cap seal, or overflow hose can prevent coolant from moving correctly between the radiator and reservoir.
- Internal engine faults: A blown head gasket or another internal fault may allow combustion gases to enter the cooling system or coolant to enter the engine.
Replace the reservoir only when the tank itself is cracked, brittle, warped, or leaking. A new reservoir will not repair coolant loss from the radiator, water pump, heater lines, thermostat housing, or engine. For an overview of the component’s function, see what a coolant reservoir does.
When Coolant Loss Requires Immediate Action
If the dashboard shows an engine-overheating warning or the coolant level drops rapidly within minutes, stop driving immediately. Operating an engine without enough coolant or proper cooling-system pressure can cause severe overheating and engine damage, including warping.
Perform preliminary checks only when the engine is completely cold and the vehicle is parked on a flat, level surface. Follow the vehicle manufacturer’s manual when checking or adding coolant.
For additional guidance on driving risks, see whether it is safe to drive with a leaking, cracked, or empty coolant reservoir.
Coolant-Loss Diagnostic Checklist
1. Establish the Cold Coolant Level
With the engine cold and the vehicle level, inspect the translucent reservoir and compare the coolant level with the molded cold-level markings. If the markings are unclear, consult the vehicle manual or review how much coolant should be in the reservoir.
2. Inspect the Reservoir and Connections
Check the reservoir body, molded seams, cap, hose ports, and lower surfaces for wet spots, seepage, or cracks. Older plastic tanks may become yellowed or brittle, and small fractures may be difficult to see.
Inspect hose joints and nearby components for white, crusty, or chalky residue. Coolant can evaporate after reaching warm metal, leaving residue even when no liquid leak is visible. For a detailed inspection sequence, see how to check the tank cap, hose, and connections.
3. Check Other Common Leak Points
Inspect the following areas for active leaks or dried coolant residue:
- Radiator plastic end tanks and radiator core.
- Heater-core interface lines and overflow plumbing.
- Water-pump seals and weep hole.
- Thermostat-housing gaskets.
- Spring clamps, worm-gear clamps, and hose fittings.
4. Monitor for Overnight Puddles
Place clean cardboard beneath the engine bay or inspect the ground after the vehicle has been parked overnight. The absence of a puddle does not rule out a leak. Hairline cracks in plastic may open and release coolant only when the system is hot and pressurized, and coolant on warm components may evaporate before reaching the ground.
5. Check the Cap and Recovery Hose
Inspect the radiator cap or pressurized expansion-tank cap for a damaged or degraded seal. Also inspect the narrow overflow or recovery hose for blockage, scale, damage, or disconnection. These faults can interrupt coolant transfer as the engine heats and cools.
How Pressure and Coolant Recovery Affect the Reservoir
In a normal closed-loop cooling system, coolant moves between the main cooling circuit and the reservoir as engine temperature changes. The cap, seals, and connecting hose must maintain the intended pressure and vacuum path for this transfer to occur.
A faulty cap may fail to vent correctly or may fail to create the vacuum seal needed during cooling. A blocked, damaged, or disconnected recovery hose can also prevent normal coolant movement. The exact behavior depends on whether the vehicle uses a traditional atmospheric recovery bottle or a pressurized expansion tank.
For help identifying the system layout, see coolant reservoir vs. overflow tank vs. expansion tank.
Why the Reservoir Can Be Empty While the Radiator Is Full
A dry reservoir combined with a full radiator can indicate a failure in the connection or recovery path between the two components. In this situation, inspect the following:
- Blocked overflow line: Debris or internal scale may obstruct the narrow hose connecting the radiator and reservoir.
- Damaged or incorrect cap: A degraded seal or incorrect pressure rating may prevent proper venting or vacuum recovery.
- Disconnected plumbing: A loose or disconnected hose can interrupt transfer between the components.
- System-layout differences: Atmospheric recovery bottles and pressurized expansion tanks manage coolant and pressure differently.
Before adding coolant, identify whether the vehicle’s design calls for filling through the reservoir, radiator, or another designated point. Consult the factory manual and see coolant reservoir vs. radiator: where should you add coolant.
Why Coolant May Disappear Without a Visible Puddle
Coolant loss without a puddle can occur when:
- A pinhole crack releases coolant only under operating pressure, and the coolant evaporates on hot components.
- A small leak leaves dried residue instead of a wet spot.
- An internal engine fault, such as a blown head gasket, allows coolant to enter the engine.
- Combustion gases enter and aerate the cooling system.
Continuous bubbling in the reservoir may be associated with boiling, overflow, or combustion-gas intrusion and requires diagnosis. See why a coolant reservoir may bubble, boil, or overflow.
When to Replace the Coolant Reservoir
Replace the reservoir when the tank has a confirmed structural fault, including:
- Visible cracks or micro-cracking.
- Severe warping or brittle plastic.
- Coolant seepage from factory-welded seams.
- Damaged or stripped threads at the cap or hose ports.
- A confirmed leak from the tank body or integrated fittings.
If the reservoir is structurally sound, replacing it will not stop a leak from the radiator, water pump, thermostat housing, heater line, or another cooling-system component. For tank-specific diagnosis, see when a cracked coolant reservoir should be replaced.
What to Verify Before Ordering a Replacement Reservoir
Vehicle-specific fitment is more important than matching general tank dimensions. Cross-reference the vehicle’s year, make, model, engine displacement, and factory part information before ordering. Review the coolant-reservoir replacement buying checklist and verify the following specifications:
| Technical parameter | What to verify |
|---|---|
| OEM part number | Cross-reference the factory original-equipment and interchange numbers. |
| Hose-port configuration | Match the number, diameter, and orientation of all inlet and outlet ports. |
| Mounting profile | Confirm the position of mounting tabs, bolt holes, and clip-in guide pins. |
| Cap specifications | Match the required cap design, including snap-on or threaded pressure-cap configurations. |
| Sensor provisions | Confirm compatibility with any integrated coolant-level sensor. |
For the installation process, see how to replace a coolant reservoir. After installation, follow the vehicle manufacturer’s filling instructions and avoid overfilling. Additional information is available in the coolant reservoir maintenance guide and the guide to what happens when a coolant reservoir is overfilled.
Frequently Asked Questions
Q: Is it dangerous if my car's coolant reservoir is completely empty?
A: Yes. A bone-dry reservoir tank indicates a critical cooling system deficit. It signals either a severe active fluid leak or a failure in the vacuum recovery process, both of which introduce dangerous air pockets into the engine loop and risk catastrophic thermal block damage.
Q: Can I simply add fresh coolant directly into an empty reservoir tank?
A: You can perform a fluid top-off according to your vehicle's factory manual instructions, but this is a temporary fix. If the reservoir runs dry again after a brief driving cycle, you must halt operations and perform a pressure check to isolate the underlying leak source.
Q: Why is my reservoir bottle empty if there is no visible puddle under the car?
A: Coolant loss without a visible puddle typically happens for three reasons: the fluid is escaping as vapor through a pinhole crack under high operating pressure and evaporating instantly; it is weeping internally into the engine through a blown head gasket; or the system is experiencing internal combustion aeration. If you observe continuous bubbling, see why is my coolant reservoir bubbling, boiling, or overflowing.
Q: Will installing a brand-new reservoir fix my empty tank problem for good?
A: Only if the plastic tank assembly or its integrated seams were the direct source of the leak. If fluid is escaping via the radiator core, the water pump, or a heater line, those independent components must be repaired. For advice on managing overfill risks during installation, see what happens if you overfill the coolant reservoir.
Q: I am having trouble finding the bottle under my hood. Where is it typically mounted?
A: Component placement varies significantly based on vehicle year, make, model, and engine displacement configurations. To locate your unit under the hood, see where is the coolant reservoir located.
