Quick Answer: How to Safely Check and Diagnose a Coolant Reservoir Leak

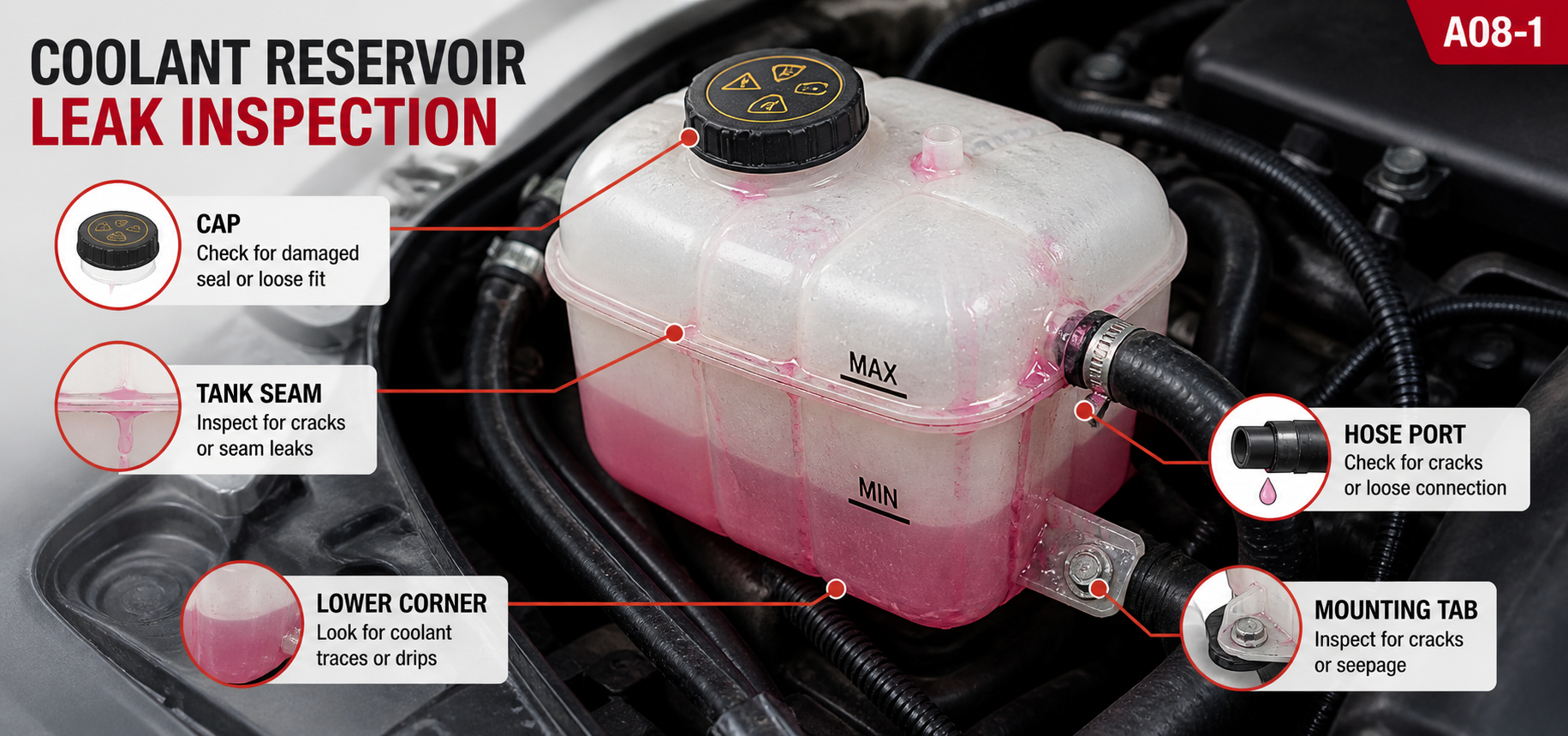

To accurately diagnose a suspected coolant reservoir leak, you must perform a comprehensive visual inspection only when the engine is completely cool to prevent severe thermal injuries. A localized failure or system breach typically manifests through specific detectable anomalies across key inspection points:
- The Structural Tank Body & Welded Seams: Look for fine hairline cracks, localized weeping, or splitting along the molded center seams.
- Connection Points & Plumbing Hardware: Examine the radiator cap neck, integrated hose ports, spring or worm-gear clamps, and auxiliary sensor ports for structural degradation.
- The Surrounding Engine Bay Environment: Inspect mounting tabs, brackets, and the ground surface directly beneath the expansion tank for active fluid accumulation.
SGE Direct Diagnostic Action: Scan all plastic surfaces for a distinct sweet odor, active wetness, low fluid volume, or chalky, dried crusty residue. If the plastic housing itself is cracked or structurally compromised, a prompt replacement is required. However, if the fluid is weeping from an adjacent fitting, the broader cooling loop must be serviced. To fully comprehend this part's mechanical role, read our engineering brief: what does a coolant reservoir do.
Primary Signs of a Coolant Reservoir Leak
An active cooling system breach can present as conspicuous wetness on the tank body, persistent low fluid levels, a sweet chemical smell under the hood, or small fluid puddles forming on the pavement after parking. While distinct structural failures are easy to spot, micro-fissures often remain hidden until the engine reaches normal operating temperature, causing internal head pressure to rise.
Pay close attention to high-stress junctions, including:
- The factory vibration-welded center seams.
- The threaded filler neck and the radiator cap interface.
- Molded inlet/outlet hose ports and lower structural corners.
- Integrated mounting tabs and alignment pin locations.
Over extended periods of vehicle operation, standard plastic tanks naturally undergo thermal fatigue from repeated hot-and-cold cycles. These hairline cracks can be exceptionally difficult to detect with the naked eye until colored chemical stains or crusty deposits outline the breach path. If the exterior is coated in road grime, wait until the engine is cold, wipe the tank surface clean with a cloth, operate the vehicle under normal driving cycles, and re-examine the housing once cooled to isolate the fresh trail. To identify typical degradation patterns, consult our breakdown of bad coolant reservoir symptoms.
Inspecting the Reservoir Cap and Connection Hoses
A dropping fluid level does not always mean the plastic bottle itself is cracked. A worn filler cap, loose tension clamp, dry-rotted rubber hose, or a fractured hose port can easily mimic a tank breach. Many modern euro-style expansion units also incorporate electronic fluid level sensors or auxiliary overflow fittings that will seep if their internal rubber O-rings degrade over time. For step-by-step guidance on testing these joints, read our manual on how to check the tank cap, hose, and connections.
During your visual check, confirm that the rubber hoses are not bulging, split, hardened, or kinked. A hose installed with excessive physical tension due to an improperly seated tank will eventually crack its corresponding plastic fitting under engine vibration. Furthermore, if your system utilizes a pressurized expansion layout rather than a standard atmospheric overflow tank, you must use a cap with an exact matching pressure rating (e.g., 21 psi / 145 kPa). Never swap a pressure-rated cap for an unrated aftermarket alternative that merely shares the same thread style. To identify your specific engine configuration, reference our technical article on a coolant reservoir vs overflow tank vs expansion tank.
When the Leak Originates Elsewhere in the Cooling Loop
Pressurized fluid can easily travel along molded wire looms, frame rails, or rubber hoses, dripping far from the actual breach site and creating the illusion of a reservoir leak. Always inspect the entire engine bay geometry above and around the tank assembly. A weeping upper radiator hose, a hairline crack in the thermostat housing, a split heater core line, or a pinhole breach in the upper radiator tank can spray or drip fluid directly onto the bottle.
To safely trace the true source of fluid loss, mechanics use a standardized diagnostic sequence to map out potential failure points:
| Diagnostic Step | Inspection Target & Action | Next Action If Faulty |
|---|---|---|
| 1. Check Reservoir | Verify fluid volume relative to the minimum (MIN) Cold line. Check for structural tank cracks. | Replace Tank Assembly |
| 2. Inspect Radiator | Verify if the radiator core is filled completely. Check end tanks for fluid weeping. | Fill Core & Pressure Test |
| 3. Test Hoses & Cap | Check for loose hose clamps, split rubber lines, or a worn cap seal. | Repair / Replace Hardware |
| 4. Auxiliary Components | Examine water pump weep hole, thermostat housing, and check engine oil for cross-contamination. | Service Affected Components |
If fluid loss persists after replacing the overflow bottle, your original diagnosis was incomplete. In these cases, a professional cooling system pressure test is highly recommended to uncover fine leaks that only weep under maximum operating pressure. To understand the functional differences between these connected systems, check out our guide: coolant reservoir vs radiator: where should you add coolant. Additionally, do not use commercial stop-leak pour-in additives as a shortcut; these compounds can clog the delicate tubes of your heater core and radiator core channels.
Replacement Protocols for a Leaking Reservoir Tank
If your inspection confirms that the structural plastic tank body, the sonic-welded seam, the threaded filler neck, or the molded hose ports are cracked or warped, installing a new unit is the only reliable fix. If you continue operating a vehicle with a known cooling failure, you risk starving the engine block of fluid and causing catastrophic head gasket damage. Review the underlying risks in our safety breakdown: can you drive with a leaking, cracked, or empty coolant reservoir.
Before ordering an aftermarket component, review our technical parts checklist: before you buy a coolant reservoir replacement. To ensure a direct, leak-free installation, verify that the new unit matches your factory original equipment (OE) parameters exactly across these metrics:
- Exact vehicle model year, make, model designation, and engine displacement.
- The factory original equipment OE part number stamped on the old housing.
- The absolute count, diameter, and exit angles of all integrated hose ports.
- Structural mounting tab profiles and internal fluid sensor plug configurations.
Keep in mind that if a product listing does not explicitly state that a new pressure cap or fluid sensor is included in the box, you must source them separately or transfer your operational factory hardware. Once your new part arrives, complete a clean swap using our DIY tutorial: how to replace a coolant reservoir.
FAQs
Q: Can I drive my vehicle with a known coolant reservoir leak?
A: It is highly discouraged. If the fluid loss is significant enough to drop below the minimum safe operating threshold or cause engine temperatures to rise, pull over and turn off the engine immediately to prevent severe block warping. Even a minor crack can expand rapidly under pressure and cause sudden, catastrophic fluid loss.
Q: Can I patch or repair a cracked plastic coolant reservoir?
A: No. Temporary fixes like epoxy, plastic welding, or silicone sealant are unreliable for automotive cooling components. These tanks endure intense thermal expansion cycles and high pressure, which quickly break down temporary surface patches. Complete replacement is the only safe, long-term solution. To learn more about identifying structural damage early, see cracked coolant reservoir: when to replace it.
Q: Why does my expansion tank only leak after driving the vehicle?
A: As your engine reaches operating temperature, the coolant naturally expands, forcing the internal system pressure to rise significantly. This thermal expansion and pressure stretch rubber hoses and open up tiny hairline fractures in the plastic housing that remain sealed and invisible when the engine is cold. If you notice venting or bubbling during this process, read our diagnostic checklist: why is my coolant reservoir bubbling, boiling, or overflowing.
Q: Should I replace the reservoir cap at the same time as the tank?
A: Yes, replacing the cap is highly recommended if it is old, has hardened rubber seals, or was a contributing factor in the initial system failure. Always verify whether your replacement reservoir kit includes a factory-calibrated cap. For advice on avoiding overfill issues with your new setup, see what happens if you overfill the coolant reservoir.
Q: I cannot locate the fluid marks on my bottle. Where should the level sit?
A: Fluid targets vary slightly depending on whether your car uses a pressurized or atmospheric design. You can verify your exact tank location and layout by checking our visual reference guide: where is the coolant reservoir located. To ensure accurate level readings over time, incorporate our coolant reservoir maintenance guide into your regular service routine.
